Toyota Corolla/fielder NZE124 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-12610	NZE124,ZZE124 TOYODA KOKI	09/2002 - 04/2004	1
40120-12610	NZE124,ZZE124 TOYODA KOKI	04/2004 - 09/2006	1
40120-12610	NZE124,ZZE124 TOYODA KOKI	08/2000 - 09/2002	1
40120-32320	NZE124 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI	08/2000 - 09/2002	1
40120-32320	NZE124 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI	04/2004 - 09/2006	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44200-12770	NZE124,ZZE124	09/2002 - 04/2004	1
44200-12780	NZE124 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)	08/2000 - 09/2002	1
44200-12770	NZE124,ZZE124	04/2004 - 09/2006	1
44200-12780	NZE124 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)	04/2004 - 09/2006	1
44200-12780	NZE124 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)	09/2002 - 04/2004	1
44200-12770	NZE124,ZZE124	08/2000 - 09/2002	1
44275L - WIRE, BOOT
90580-14073	CE121,NZE124,ZZE12#	08/2000 - 09/2002	2
90580-14073	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	2
90580-14073	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	2
44275L - WIRE, BOOT
90580-14073	CE121,NZE124,ZZE12#	08/2000 - 09/2002	2
90580-14073	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	2
90580-14073	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	2
45046 - END SUB-ASSY, TIE ROD, RH
45046-29305	NZE124,ZZE124	08/2000 - 09/2002	1
45046-29305	NZE124,ZZE124	09/2002 - 04/2004	1
45046-29305	NZE124,ZZE124	04/2004 - 09/2006	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29305	NZE124,ZZE124	08/2000 - 09/2002	1
45046-29305	NZE124,ZZE124	04/2004 - 09/2006	1
45046-29305	NZE124,ZZE124	09/2002 - 04/2004	1
45503 - END SUB-ASSY, STEERING RACK
45503-19265	NZE124,ZZE124	09/2002 - 04/2004	2
45503-19265	NZE124,ZZE124	08/2000 - 09/2002	2
45503-19265	NZE124,ZZE124	04/2004 - 09/2006	2
45503 - END SUB-ASSY, STEERING RACK
45503-19265	NZE124,ZZE124	09/2002 - 04/2004	2
45503-19265	NZE124,ZZE124	08/2000 - 09/2002	2
45503-19265	NZE124,ZZE124	04/2004 - 09/2006	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122..5F;CE121,NZE124,ZZE123,124 外径=35.2	09/2002 - 04/2004	2
90214-14009	CE121,NZE124,ZZE12# 外径=35.2	08/2000 - 09/2002	2
90214-14009	ZZE122..5F;NZE124,ZZE123,124 外径=35.2	04/2004 - 09/2006	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122..5F;CE121,NZE124,ZZE123,124 外径=35.2	09/2002 - 04/2004	2
90214-14009	CE121,NZE124,ZZE12# 外径=35.2	08/2000 - 09/2002	2
90214-14009	ZZE122..5F;NZE124,ZZE123,124 外径=35.2	04/2004 - 09/2006	2
45535 - BOOT, STEERING RACK, NO.1
45535-32070	NZE124,ZZE124	08/2000 - 09/2002	1
45535-32070	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
45535-32070	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	NZE124,ZZE124	08/2000 - 09/2002	2
90467-19019	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	2
90467-19019	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	NZE124,ZZE124	08/2000 - 09/2002	2
90467-19019	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	2
90467-19019	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	2
45536 - BOOT, STEERING RACK, NO.2
45535-32070	NZE124,ZZE124	08/2000 - 09/2002	1
45535-32070	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
45535-32070	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
Common parts
90105-12266
90105-12341
90170-14012
90179-12091
95381-03020

NZE124-AEPNK (2000)

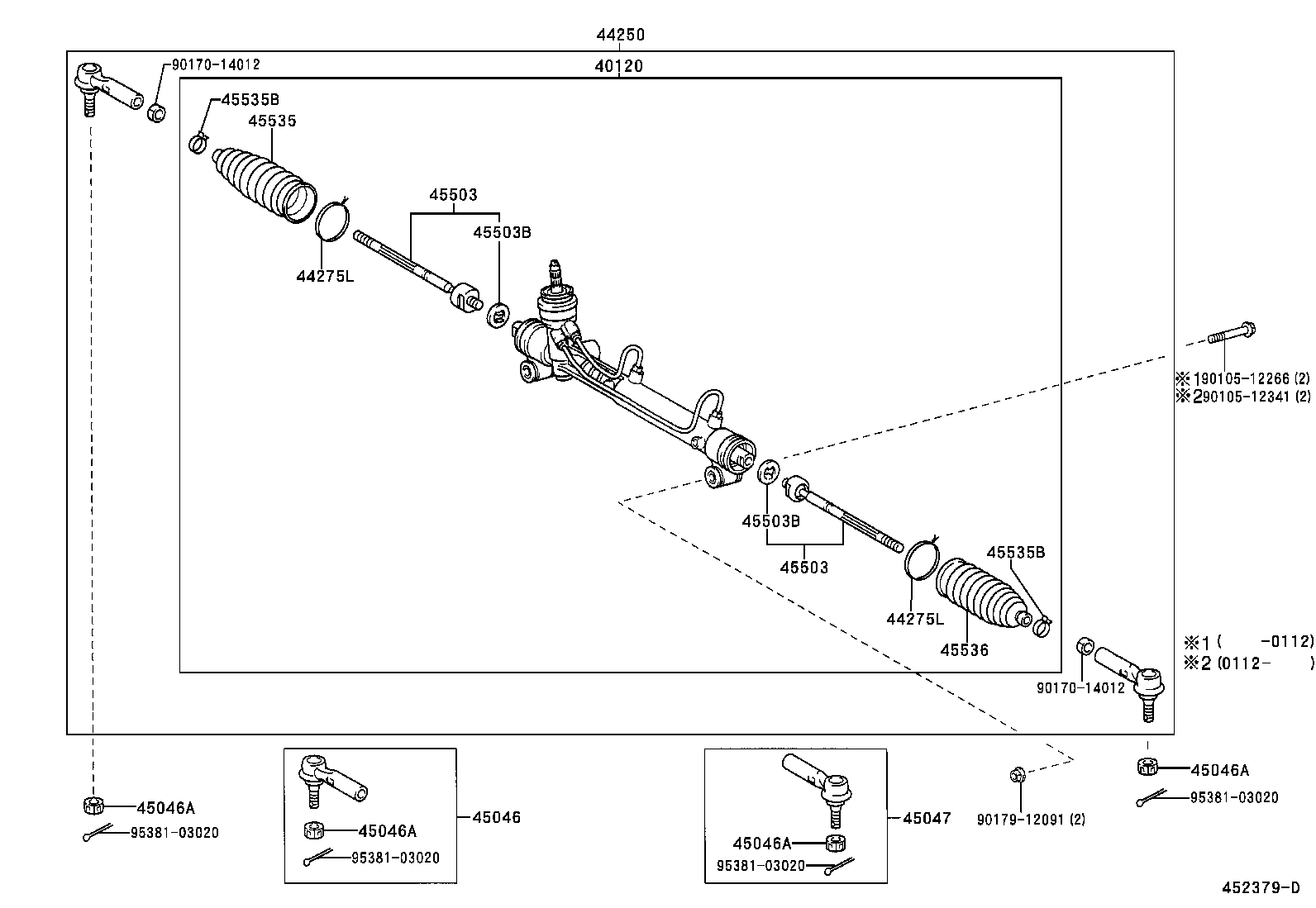

ILLUST NO. 1 OF 2(0008- )NZE124,ZZE124

ILLUST NO. 2 OF 2(0008-0209)CE121,NZE124,ZZE12# ; (0209- )ZZE122..5F ; (0209- )CE121,NZE124,ZZ

Part Price Details

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-12170	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
04445-12170	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
04445-20261	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-20171	CE121,NZE124,ZZE12#	11/2001 - 09/2002	1
04455-20171	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
04455-20171	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
04455-12220	CE121,NZE124,ZZE12#	08/2000 - 11/2001	1
