Toyota Corolla/fielder NZE124 STEERING WHEEL

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)

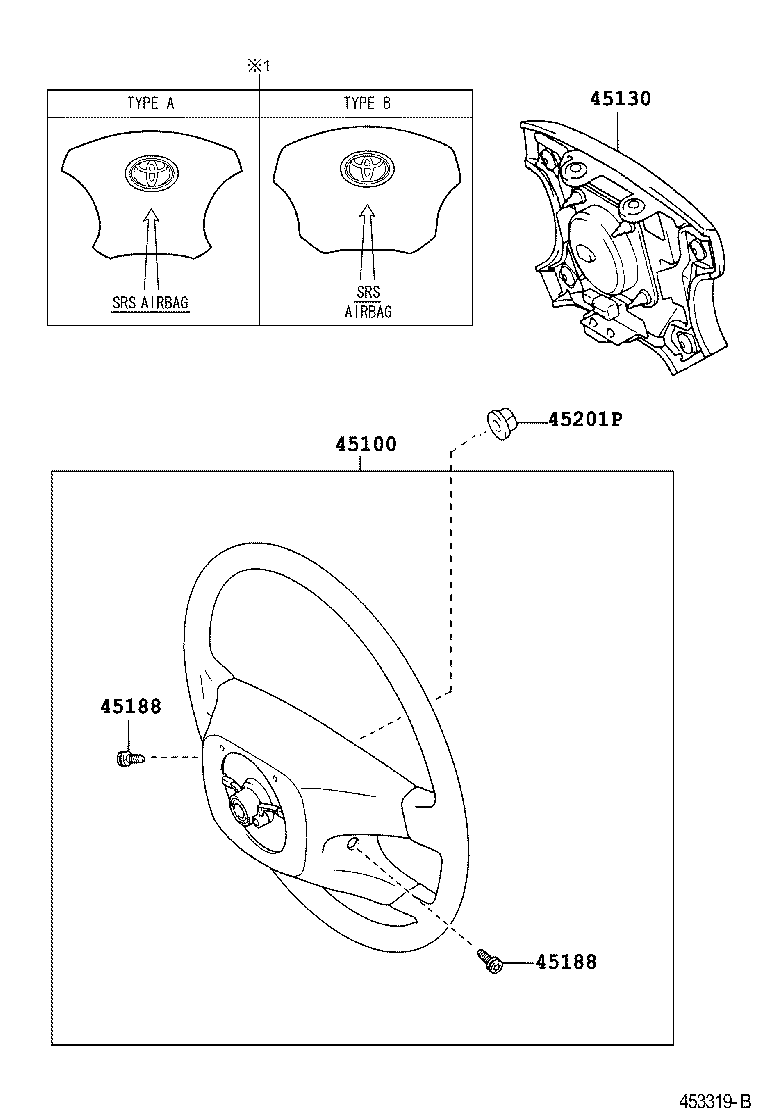

Click highlighted areas on diagram

3-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1A020B0	CE121,NZE12#..SED 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-42080B0	ZZE122,124..S 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45100-1A020E0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45100-1A020B0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45100-1A020B0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130 - BUTTON ASSY, HORN
45130-1A200E0	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	08/2000 - 05/2001	1
45130-1A240E0	CE121,NZE12#..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	05/2001 - 09/2002	1
45130-1A240B0	CE121,NZE12#..SED..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	05/2001 - 09/2002	1
45130-1A310E0	CE121,NZE12#..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45130-1A200B0	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	08/2000 - 05/2001	1
45130-12A20E0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45130-12A20B0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130-1A310B0	CE121,NZE12#..SED..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45130 - BUTTON ASSY, HORN
45130-1A200E0	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	08/2000 - 05/2001	1
45130-1A240E0	CE121,NZE12#..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	05/2001 - 09/2002	1
45130-1A240B0	CE121,NZE12#..SED..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	05/2001 - 09/2002	1
45130-1A310E0	CE121,NZE12#..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45130-1A200B0	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	08/2000 - 05/2001	1
45130-12A20E0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45130-12A20B0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130-1A310B0	CE121,NZE12#..SED..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	08/2000 - 09/2002	2
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	09/2002 - 04/2004	2
45188-60010	NZE12#,ZZE122,124..G,LXL,X 長さ=18	04/2004 - 09/2006	2
45201P - NUT, STEERING WHEEL SET
90179-12071	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90179-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-12071	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
Linked diagrams
8410

(0008-0209)

Click highlighted areas on diagram

4-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1A020B0	CE121,NZE12#..SED 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-42080B0	ZZE122,124..S 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45100-1A020E0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45100-1A020B0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45100-1A020B0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130 - BUTTON ASSY, HORN
45130-1A200E0	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	08/2000 - 05/2001	1
45130-1A240E0	CE121,NZE12#..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	05/2001 - 09/2002	1
45130-1A240B0	CE121,NZE12#..SED..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	05/2001 - 09/2002	1
45130-1A310E0	CE121,NZE12#..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45130-1A200B0	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	08/2000 - 05/2001	1
45130-12A20E0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45130-12A20B0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130-1A310B0	CE121,NZE12#..SED..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45130 - BUTTON ASSY, HORN
45130-1A200E0	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	08/2000 - 05/2001	1
45130-1A240E0	CE121,NZE12#..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	05/2001 - 09/2002	1
45130-1A240B0	CE121,NZE12#..SED..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	05/2001 - 09/2002	1
45130-1A310E0	CE121,NZE12#..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45130-1A200B0	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	08/2000 - 05/2001	1
45130-12A20E0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45130-12A20B0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130-1A310B0	CE121,NZE12#..SED..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	08/2000 - 09/2002	2
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	09/2002 - 04/2004	2
45188-60010	NZE12#,ZZE122,124..G,LXL,X 長さ=18	04/2004 - 09/2006	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	08/2000 - 09/2002	2
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	09/2002 - 04/2004	2
45188-60010	NZE12#,ZZE122,124..G,LXL,X 長さ=18	04/2004 - 09/2006	2
45201P - NUT, STEERING WHEEL SET
90179-12071	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90179-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-12071	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1

(0209- )

Click highlighted areas on diagram

3-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1A020B0	CE121,NZE12#..SED 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-42080B0	ZZE122,124..S 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45100-1A020E0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45100-1A020B0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45100-1A020B0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130 - BUTTON ASSY, HORN
45130-1A200E0	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	08/2000 - 05/2001	1
45130-1A240E0	CE121,NZE12#..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	05/2001 - 09/2002	1
45130-1A240B0	CE121,NZE12#..SED..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	05/2001 - 09/2002	1
45130-1A310E0	CE121,NZE12#..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45130-1A200B0	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	08/2000 - 05/2001	1
45130-12A20E0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45130-12A20B0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130-1A310B0	CE121,NZE12#..SED..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	08/2000 - 09/2002	2
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	09/2002 - 04/2004	2
45188-60010	NZE12#,ZZE122,124..G,LXL,X 長さ=18	04/2004 - 09/2006	2
45201P - NUT, STEERING WHEEL SET
90179-12071	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90179-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-12071	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
Linked diagrams
8410

(0209- )

Click highlighted areas on diagram

4-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1A020B0	CE121,NZE12#..SED 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-42080B0	ZZE122,124..S 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45100-1A020E0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45100-1A020E0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45100-1A020B0	CE121,NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45100-1A020B0	NZE12# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130 - BUTTON ASSY, HORN
45130-1A200E0	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	08/2000 - 05/2001	1
45130-1A240E0	CE121,NZE12#..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	05/2001 - 09/2002	1
45130-1A240B0	CE121,NZE12#..SED..X TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	05/2001 - 09/2002	1
45130-1A310E0	CE121,NZE12#..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45130-1A200B0	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	08/2000 - 05/2001	1
45130-12A20E0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45130-12A20B0	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45130-1A310B0	CE121,NZE12#..SED..X ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	08/2000 - 09/2002	2
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	09/2002 - 04/2004	2
45188-60010	NZE12#,ZZE122,124..G,LXL,X 長さ=18	04/2004 - 09/2006	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	08/2000 - 09/2002	2
45188-60010	CE121,NZE12#,ZZE122,124..G,LXL,X 長さ=18	09/2002 - 04/2004	2
45188-60010	NZE12#,ZZE122,124..G,LXL,X 長さ=18	04/2004 - 09/2006	2
45201P - NUT, STEERING WHEEL SET
90179-12071	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90179-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-12071	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
