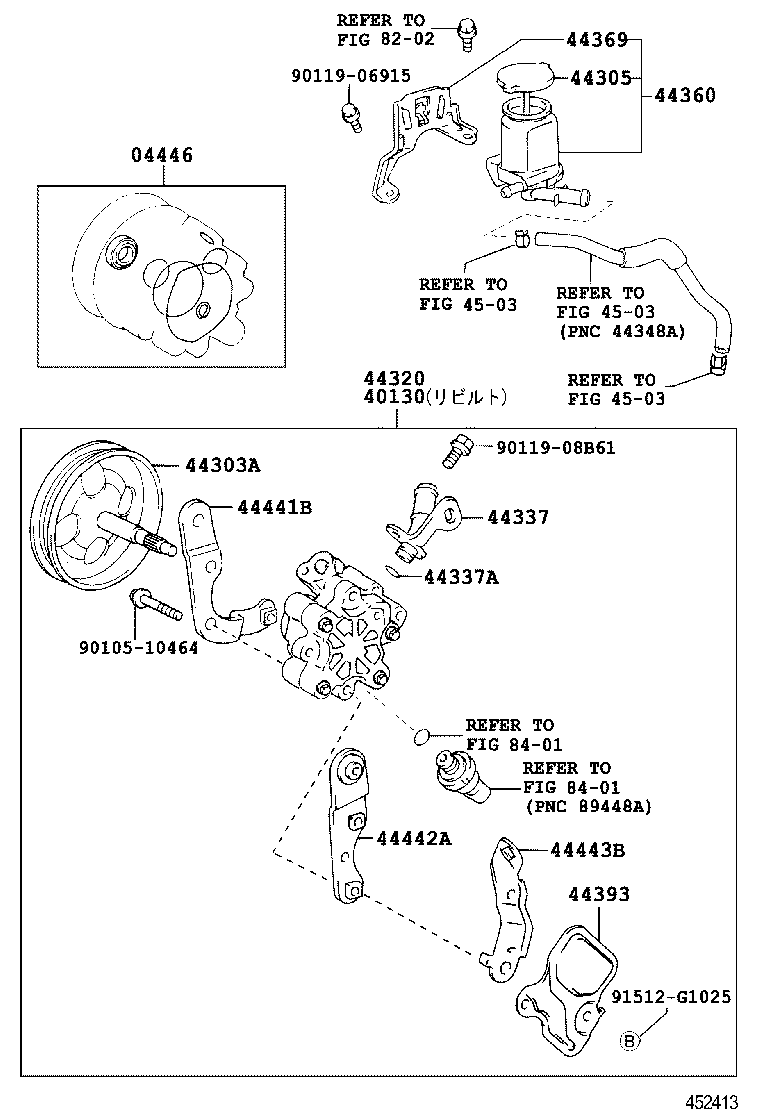

Toyota Corolla/fielder NZE124 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
04446-32050	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 10/2005	1
04446-32050	ZZE122..5F;NZE124,ZZE123,124	09/2002 - 04/2004	1
04446-20170	ZZE122..5F;NZE124,ZZE123,124	10/2005 - 09/2006	1
40130 - PUMP ASSY,VANE REBUILT
40130-12530	NZE124 TOYODA KOKI	08/2000 - 09/2002	1
40130-12530	NZE124 TOYODA KOKI	09/2002 - 04/2004	1
40130-12530	NZE124 TOYODA KOUKI	04/2004 - 09/2006	1
40130-12540	ZZE122,124 TOYODA KOKI	08/2000 - 09/2002	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-32010	ZZE122,124	08/2000 - 09/2002	1
44303-52020	NZE124	08/2000 - 09/2002	1
44303-52020	NZE124	04/2004 - 09/2006	1
44303-52020	NZE124	09/2002 - 04/2004	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
44305-28030	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
44305-28030	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
44320 - PUMP ASSY, VANE
44310-12530	NZE124	08/2000 - 09/2002	1
44310-12530	NZE124	09/2002 - 04/2004	1
44310-12540	ZZE122,124	08/2000 - 09/2002	1
44310-12530	NZE124	04/2004 - 09/2006	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-32110	ZZE122..5F;ZZE123,124	09/2002 - 04/2004	1
44337-12120	NZE124	08/2000 - 09/2002	1
44337-12120	NZE124	09/2002 - 04/2004	1
44337-12120	NZE124	04/2004 - 09/2006	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
90301-11020	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
90301-11020	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-12100	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
44360-12100	NZE124,ZZE12#	08/2000 - 09/2002	1
44360-12100	ZZE122..5F;NZE124,ZZE123,124	09/2002 - 04/2004	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-12060	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
44369-12060	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
44369-12060	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
44393 - INSULATOR, POWER STEERING PUMP HEAT
44393-52010	NZE124	08/2000 - 09/2002	1
44393-52010	NZE124	09/2002 - 04/2004	1
44393-52010	NZE124	04/2004 - 09/2006	1
44441B - BRACKET, PUMP, FRONT
44441-52010	NZE124	04/2004 - 09/2006	1
44441-52010	NZE124	08/2000 - 09/2002	1
44441-52010	NZE124	09/2002 - 04/2004	1
44442A - BRACKET, VANE PUMP, REAR
44442-52020	NZE124	08/2000 - 09/2002	1
44442-12040	ZZE122..5F;ZZE123,124	09/2002 - 04/2004	1
44442-52020	NZE124	04/2004 - 09/2006	1
44442-52020	NZE124	09/2002 - 04/2004	1
44442-12040	ZZE122..5F;ZZE123,124	04/2004 - 09/2006	1
44443B - BRACKET, VANE PUMP
44442-12030	NZE124	08/2000 - 09/2002	1
44442-12030	NZE124	09/2002 - 04/2004	1
44442-12030	NZE124	04/2004 - 09/2006	1
Common parts
90105-10464
90119-06915
90119-08B61
91512-G1025
Linked diagrams
4503
8202
8401

NZE124-AEPNK (2000)

(0008- )NZE124
