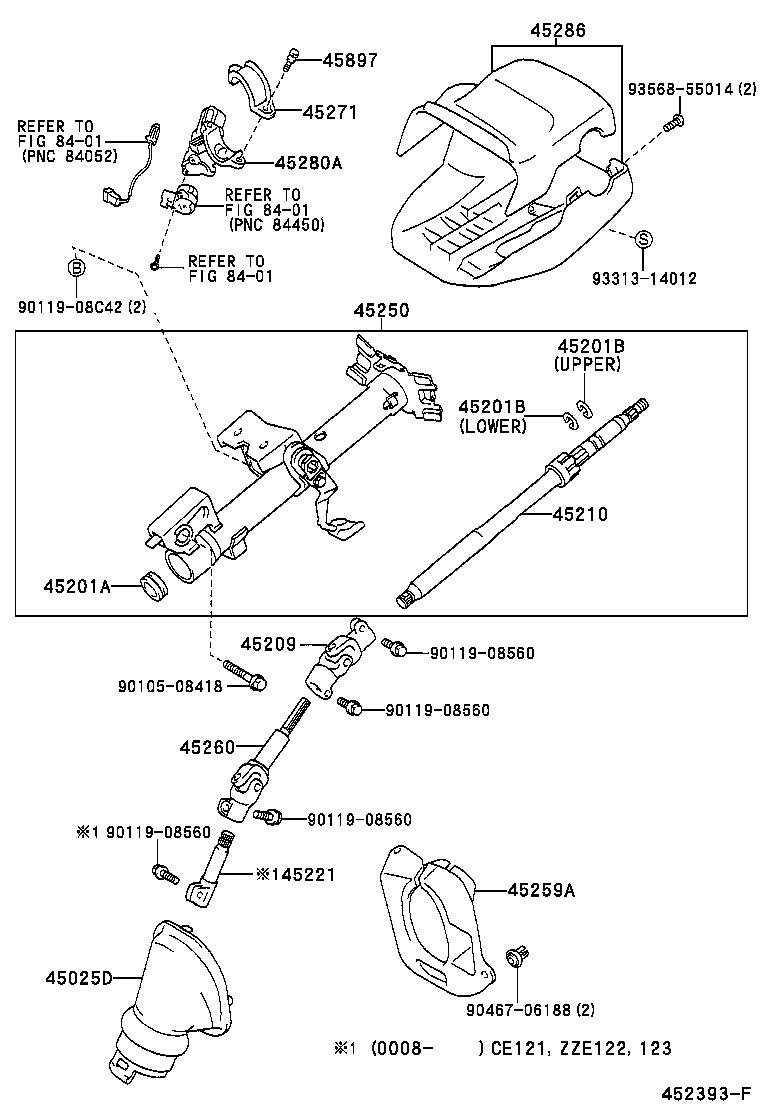

Toyota Corolla/fielder NZE124 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12240	NZE124,ZZE124	04/2004 - 09/2006	1
45025-12240	NZE124,ZZE124	09/2002 - 04/2004	1
45025-12240	NZE124,ZZE124	08/2000 - 09/2002	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
45274-42010	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
45274-42010	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	CE121,NZE124,ZZE12# 厚さ=1.20,下側	08/2000 - 09/2002	1
90520-17269	CE121,NZE124,ZZE12# 厚さ=1.20,上側	08/2000 - 09/2002	1
90520-17269	ZZE122..5F;CE121,NZE124,ZZE123,124 厚さ=1.20,上側	09/2002 - 04/2004	1
90520-17042	ZZE122..5F;CE121,NZE124,ZZE123,124 厚さ=1.20,下側	09/2002 - 04/2004	1
90520-17269	ZZE122..5F;NZE124,ZZE123,124 厚さ=1.20,上側	04/2004 - 09/2006	1
90520-17042	ZZE122..5F;NZE124,ZZE123,124 厚さ=1.20,下側	04/2004 - 09/2006	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	CE121,NZE124,ZZE12# 厚さ=1.20,下側	08/2000 - 09/2002	1
90520-17269	CE121,NZE124,ZZE12# 厚さ=1.20,上側	08/2000 - 09/2002	1
90520-17269	ZZE122..5F;CE121,NZE124,ZZE123,124 厚さ=1.20,上側	09/2002 - 04/2004	1
90520-17042	ZZE122..5F;CE121,NZE124,ZZE123,124 厚さ=1.20,下側	09/2002 - 04/2004	1
90520-17269	ZZE122..5F;NZE124,ZZE123,124 厚さ=1.20,上側	04/2004 - 09/2006	1
90520-17042	ZZE122..5F;NZE124,ZZE123,124 厚さ=1.20,下側	04/2004 - 09/2006	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12150	NZE12#,ZZE12#	04/2004 - 09/2005	1
45209-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
45209-12151	NZE12#,ZZE12#	10/2005 - 09/2006	1
45209-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
45210 - SHAFT ASSY, STEERING MAIN
45210-42020	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
45210-42020	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
45210-42020	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
45250 - COLUMN ASSY, STEERING
45250-1E200	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
45250-1E200	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
45250-1E200	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 09/2006	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12020	NZE124,ZZE124	08/2000 - 09/2002	1
45259-12020	NZE124,ZZE124	09/2002 - 04/2004	1
45259-12020	NZE124,ZZE124	04/2004 - 09/2006	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12470	NZE124,ZZE124	08/2000 - 09/2002	1
45260-12470	NZE124,ZZE124	09/2002 - 04/2004	1
45260-12470	NZE124,ZZE124	04/2004 - 09/2006	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	NZE12#,ZZE12#	04/2004 - 09/2006	1
45271-16020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
45271-16020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52030	CE121,NZE124,ZZE12#..4FC	08/2000 - 09/2002	1
45280-52030	NZE124,ZZE123,124..4FC	04/2004 - 09/2006	1
45280-52030	CE121,NZE124,ZZE123,124..4FC	09/2002 - 04/2004	1
45286 - COVER, STEERING COLUMN
45286-12967B2	NZE12#..X;CE121..SED..X DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45286-12970B0	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ｵ-ﾄｴｱｺﾝ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45286-12967E0	CE121,NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45286-12967B2	ZZE12#;CE121,NZE12#..SED DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45286-12967E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45286-12970B0	NZE124..SED..X HIDｾﾚｸｼﾖﾝ *(K),DK.GRAY,TRIM1#	09/2004 - 11/2004	1
45286-12970E0	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ｵ-ﾄｴｱｺﾝ),SANDAL WOOD,TRIM0#	04/2004 - 12/2999	1
45286-12967E0	NZE12#..X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
45286-12970B0	NZE121,124..SED..X ｱﾘ(ｵ-ﾄｴｱｺﾝ),DK.GRAY,TRIM1#	12/2004 - 09/2006	1
45286-12970B0	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ｵ-ﾄｴｱｺﾝ),DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45286-12967B2	NZE12#..X DK.GRAY,TRIM1#	04/2004 - 09/2006	1
45286-12970E0	NZE124..SED..X HIDｾﾚｸｼﾖﾝ *(K),SANDAL WOOD,TRIM0#	09/2004 - 11/2004	1
45286-12970E0	NZE121,124..SED..X ｱﾘ(ｵ-ﾄｴｱｺﾝ),SANDAL WOOD,TRIM0#	12/2004 - 09/2006	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
45897-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45897-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
Common parts
90105-08418
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401

NZE124-AEPNK (2000)

(0008-0209)CE121,NZE124,ZZE12# ; (0209- )ZZE122..5F ; (0209- )CE121,NZE124,ZZ
