Toyota Corolla/fielder NZE124 FRONT DRIVE SHAFT

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

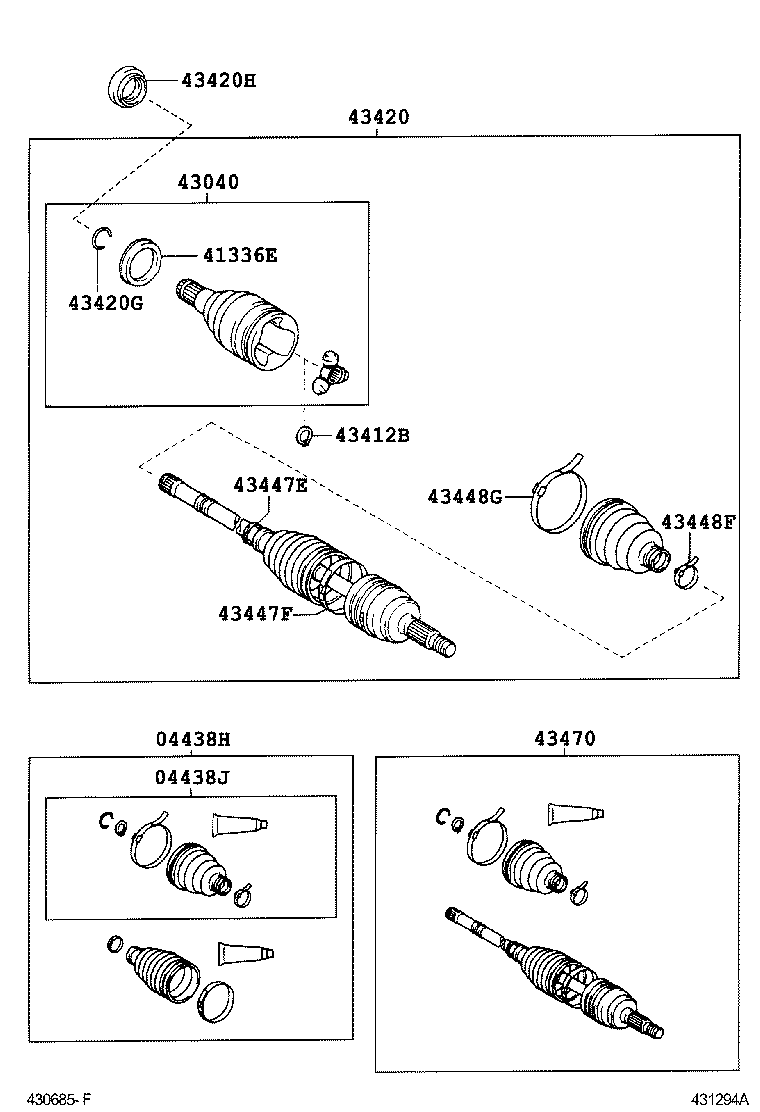

ILLUST NO. 3 OF 3(0008-0404)NZE12#,ZZE124

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12501	NZE124	08/2000 - 12/2001	1
04438-12502	NZE124	09/2002 - 04/2004	1
04438-12502	NZE124	12/2001 - 09/2002	1
04428-42100	ZZE122,124	04/2004 - 09/2006	1
04427-52580	NZE12# TYPE A:ｲﾗｽﾄ参照	04/2006 - 09/2006	1
04427-52260	NZE124	10/2005 - 03/2006	1
04438-12502	NZE124	04/2004 - 10/2005	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12490	NZE124	08/2000 - 09/2002	1
04438-52030	NZE124	09/2002 - 12/2003	1
04437-52190	NZE124	12/2003 - 04/2004	1
04437-52190	NZE124	04/2004 - 04/2006	1
04438-42200	ZZE122,124	04/2004 - 09/2006	1
04437-52190	NZE124 TYPE A:ｲﾗｽﾄ参照	04/2006 - 09/2006	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12010	NZE12#	08/2000 - 09/2002	1
41336-12060	CE121,ZZE123,124..4FC	09/2002 - 04/2004	1
41336-12010	NZE12#	09/2002 - 04/2004	1
41336-12010	NZE12#	04/2004 - 09/2006	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-10011	NZE124 ｹﾞﾝﾁﾁﾖｳﾀﾂﾌﾞﾋﾝ	08/2000 - 09/2002	1
43403-10011	NZE124 ｹﾞﾝﾁﾁﾖｳﾀﾂﾌﾞﾋﾝ	09/2002 - 04/2004	1
43403-10011	NZE124	04/2004 - 09/2006	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22001	NZE124	08/2000 - 09/2002	1
90520-22001	NZE124	09/2002 - 04/2004	1
90520-22001	NZE124	04/2004 - 09/2006	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12450	NZE124	08/2000 - 09/2002	1
43420-12450	NZE124	09/2002 - 04/2004	1
43420-12450	NZE124	04/2004 - 09/2006	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004	NZE12#	08/2000 - 09/2002	1
90521-27005	ZZE122;CE121,ZZE123,124..4FC,6F	08/2000 - 09/2002	1
90521-26004	NZE12#	09/2002 - 04/2004	1
90521-26004	NZE12#	04/2004 - 09/2006	1
90521-27005	CE121,ZZE123,124..4FC,6F	09/2002 - 04/2004	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35046	CE121,ZZE122,124..4FC	08/2000 - 09/2002	1
90311-34022	NZE121,124..4FC	08/2000 - 09/2002	1
90311-34022	NZE121,124..4FC	04/2004 - 07/2005	1
90311-35046	CE121,ZZE122,124..4FC	09/2002 - 04/2004	1
90311-34022	NZE124	09/2002 - 04/2004	1
90311-34030	NZE121,124..4FC	07/2005 - 09/2006	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52110	NZE124	04/2004 - 09/2006	1
42345-52110	NZE124 内径=29.2	09/2002 - 04/2004	1
42345-52110	NZE124 ｱﾘ(ABS)	08/2000 - 09/2002	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52100	NZE124 ｱﾘ(ABS)	08/2000 - 09/2002	1
42345-52100	NZE124	04/2004 - 09/2006	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
42345-52100	NZE124 内径=88.9	09/2002 - 04/2004	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
90949-01078	NZE124,ZZE124	09/2002 - 04/2004	1
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160	ZZE122,124 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 02/2002	1
90949-01146	NZE124	08/2000 - 09/2002	1
90949-01146	NZE124	09/2002 - 04/2004	1
90949-01146	NZE124	04/2004 - 09/2006	1
42345-12160	ZZE122,124	04/2004 - 09/2006	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80004	NZE124	08/2000 - 09/2002	1
43470-80004	NZE124	09/2002 - 04/2004	1
43470-80118	NZE124	10/2005 - 09/2006	1
43470-80004	NZE124	04/2004 - 10/2005	1

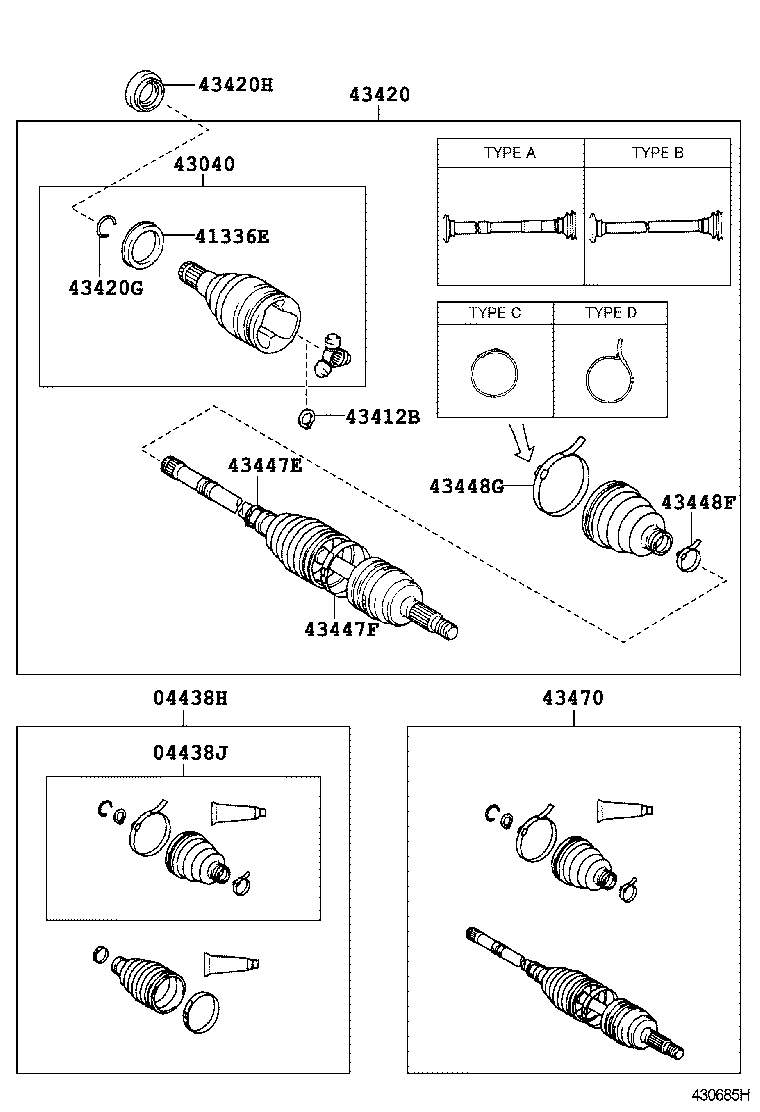

ILLUST NO. 3 OF 3(0404- )NZE124,ZZE124

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12501	NZE124	08/2000 - 12/2001	1
04438-12502	NZE124	09/2002 - 04/2004	1
04438-12502	NZE124	12/2001 - 09/2002	1
04428-42100	ZZE122,124	04/2004 - 09/2006	1
04427-52580	NZE12# TYPE A:ｲﾗｽﾄ参照	04/2006 - 09/2006	1
04427-52260	NZE124	10/2005 - 03/2006	1
04438-12502	NZE124	04/2004 - 10/2005	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12490	NZE124	08/2000 - 09/2002	1
04438-52030	NZE124	09/2002 - 12/2003	1
04437-52190	NZE124	12/2003 - 04/2004	1
04437-52190	NZE124	04/2004 - 04/2006	1
04438-42200	ZZE122,124	04/2004 - 09/2006	1
04437-52190	NZE124 TYPE A:ｲﾗｽﾄ参照	04/2006 - 09/2006	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12010	NZE12#	08/2000 - 09/2002	1
41336-12060	CE121,ZZE123,124..4FC	09/2002 - 04/2004	1
41336-12010	NZE12#	09/2002 - 04/2004	1
41336-12010	NZE12#	04/2004 - 09/2006	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-10011	NZE124 ｹﾞﾝﾁﾁﾖｳﾀﾂﾌﾞﾋﾝ	08/2000 - 09/2002	1
43403-10011	NZE124 ｹﾞﾝﾁﾁﾖｳﾀﾂﾌﾞﾋﾝ	09/2002 - 04/2004	1
43403-10011	NZE124	04/2004 - 09/2006	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22001	NZE124	08/2000 - 09/2002	1
90520-22001	NZE124	09/2002 - 04/2004	1
90520-22001	NZE124	04/2004 - 09/2006	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12450	NZE124	08/2000 - 09/2002	1
43420-12450	NZE124	09/2002 - 04/2004	1
43420-12450	NZE124	04/2004 - 09/2006	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004	NZE12#	08/2000 - 09/2002	1
90521-27005	ZZE122;CE121,ZZE123,124..4FC,6F	08/2000 - 09/2002	1
90521-26004	NZE12#	09/2002 - 04/2004	1
90521-26004	NZE12#	04/2004 - 09/2006	1
90521-27005	CE121,ZZE123,124..4FC,6F	09/2002 - 04/2004	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35046	CE121,ZZE122,124..4FC	08/2000 - 09/2002	1
90311-34022	NZE121,124..4FC	08/2000 - 09/2002	1
90311-34022	NZE121,124..4FC	04/2004 - 07/2005	1
90311-35046	CE121,ZZE122,124..4FC	09/2002 - 04/2004	1
90311-34022	NZE124	09/2002 - 04/2004	1
90311-34030	NZE121,124..4FC	07/2005 - 09/2006	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52110	NZE124	04/2004 - 09/2006	1
42345-52110	NZE124 内径=29.2	09/2002 - 04/2004	1
42345-52110	NZE124 ｱﾘ(ABS)	08/2000 - 09/2002	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52100	NZE124 ｱﾘ(ABS)	08/2000 - 09/2002	1
42345-52100	NZE124	04/2004 - 09/2006	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
42345-52100	NZE124 内径=88.9	09/2002 - 04/2004	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
90949-01078	NZE124,ZZE124	09/2002 - 04/2004	1
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160	ZZE122,124 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 02/2002	1
90949-01146	NZE124	08/2000 - 09/2002	1
90949-01146	NZE124	09/2002 - 04/2004	1
90949-01146	NZE124	04/2004 - 09/2006	1
42345-12160	ZZE122,124	04/2004 - 09/2006	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80004	NZE124	08/2000 - 09/2002	1
43470-80004	NZE124	09/2002 - 04/2004	1
43470-80118	NZE124	10/2005 - 09/2006	1
43470-80004	NZE124	04/2004 - 10/2005	1

ILLUST NO. 1 OF 3(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

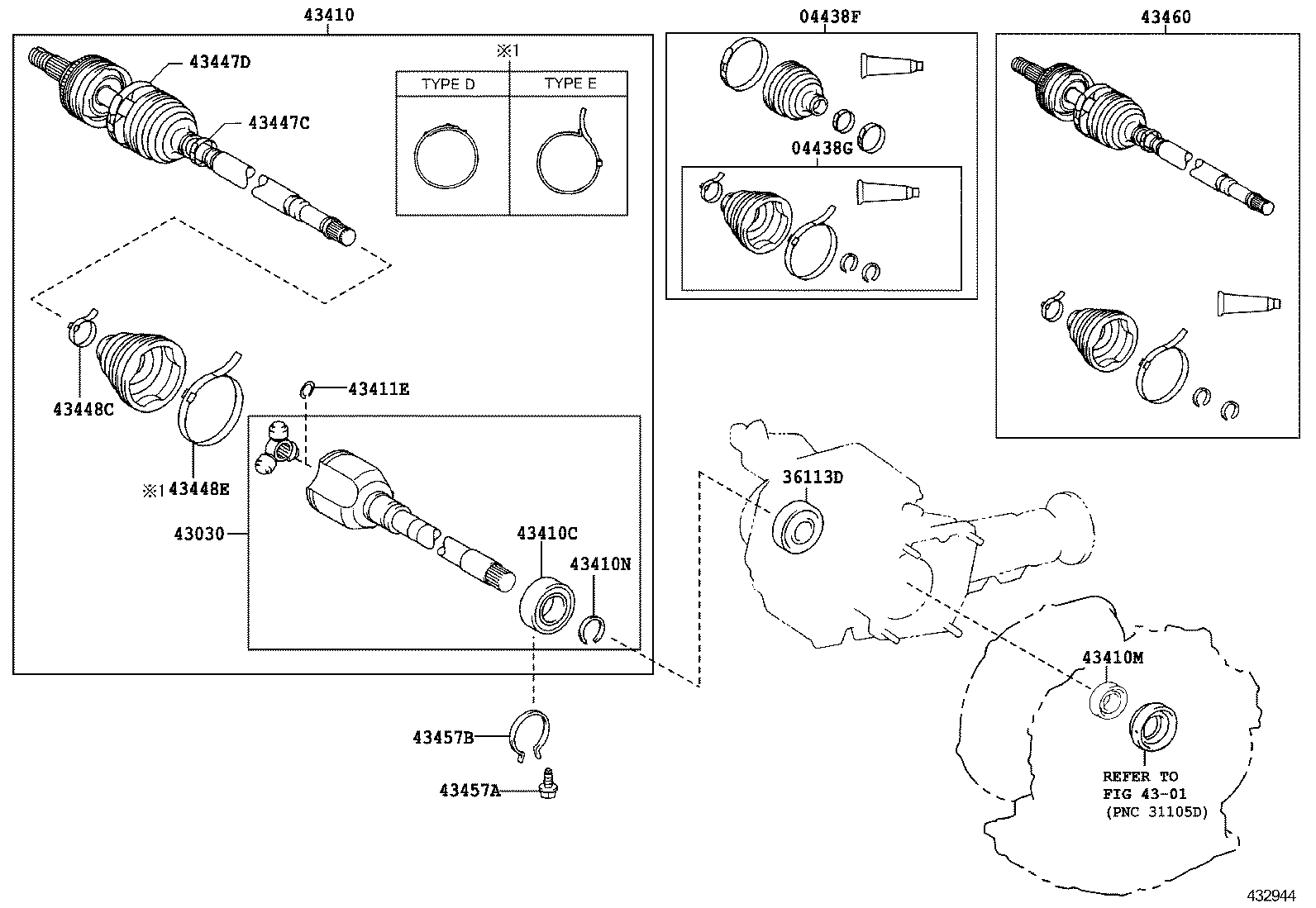

ILLUST NO. 2 OF 3(0008-0404)NZE124,ZZE124

Click highlighted areas on diagram

ﾗｲﾄ

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-52062	NZE124	08/2000 - 12/2001	1
04438-52063	NZE124	12/2001 - 09/2002	1
04427-52540	NZE124	12/2003 - 04/2004	1
04438-52080	NZE124	09/2002 - 12/2003	1
04427-52540	NZE124	04/2004 - 09/2006	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-32231	NZE124	08/2000 - 09/2002	1
04437-52030	NZE124,ZZE124	12/2003 - 04/2004	1
04438-52230	NZE124	09/2002 - 12/2003	1
04438-52230	NZE124	04/2006 - 09/2006	1
04437-52030	NZE124	04/2004 - 04/2006	1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006	NZE124,ZZE124	09/2002 - 04/2004	1
90311-36006	NZE124,ZZE124	04/2004 - 09/2006	1
90311-36006	NZE124,ZZE124	08/2000 - 09/2002	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-52010	NZE124	08/2000 - 09/2002	1
43030-52010	NZE124	04/2004 - 09/2006	1
43030-52010	NZE124	09/2002 - 04/2004	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12500	NZE124	08/2000 - 09/2002	1
43410-12500	NZE124	09/2002 - 12/2003	1
43410-12501	NZE124	04/2004 - 06/2004	1
43410-12500	NZE124	06/2004 - 09/2006	1
43410-12501	NZE124	12/2003 - 04/2004	1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006	NZE124,ZZE124	08/2000 - 09/2002	1
90363-36006	NZE124,ZZE124	04/2004 - 09/2006	1
90363-36006	NZE124,ZZE124	09/2002 - 04/2004	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003	NZE124,ZZE124	08/2000 - 09/2002	1
90316-28003	NZE124,ZZE124	09/2002 - 04/2004	1
90316-28003	NZE124,ZZE124	04/2004 - 09/2006	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008	NZE124,ZZE123,124	08/2000 - 09/2002	1
90520-33008	NZE124,ZZE123,124	04/2004 - 09/2006	1
90520-33008	NZE124,ZZE123,124	09/2002 - 04/2004	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005	CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
90520-22005	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
90520-22005	NZE124	04/2004 - 06/2004	1
90520-22005	NZE124 PNC 43410=TYPE C	06/2004 - 09/2006	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52110	NZE124	09/2002 - 04/2004	1
42345-52110	NZE124	04/2004 - 09/2006	1
42345-52110	NZE124	08/2000 - 09/2002	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52100	NZE124	08/2000 - 09/2002	1
42345-52100	NZE124	04/2004 - 09/2006	1
42345-52100	NZE124	09/2002 - 04/2004	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
90949-01078	NZE124,ZZE124	09/2002 - 04/2004	1
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
42345-12160	NZE124 PNC 43410=TYPE C	06/2004 - 09/2006	1
42345-12160	NZE124,ZZE122,124	04/2004 - 09/2006	1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19023	NZE124,ZZE124 *10−1.25PX27.8−14.8	08/2000 - 09/2000	1
90901-19060	NZE124,ZZE124 *10−1.25PX28.5−14.8	09/2000 - 09/2002	1
90901-19060	NZE124,ZZE124 *10−1.25PX28.5−14.8	09/2002 - 04/2004	1
90119-10952	NZE124,ZZE124 *10−1.25PX29―14.8	07/2005 - 09/2006	1
90901-19060	NZE124,ZZE124 *10−1.25PX28.5−14.8	04/2004 - 06/2005	1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002	NZE124,ZZE124	09/2002 - 04/2004	1
90521-75002	NZE124,ZZE124	04/2004 - 09/2006	1
90521-75002	NZE124,ZZE124	08/2000 - 09/2002	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19805	NZE124	08/2000 - 09/2002	1
43460-19805	NZE124	09/2002 - 12/2003	1
43460-80024	NZE124	12/2003 - 04/2004	1
43460-80047	NZE124	04/2004 - 09/2006	1
Linked diagrams
4301

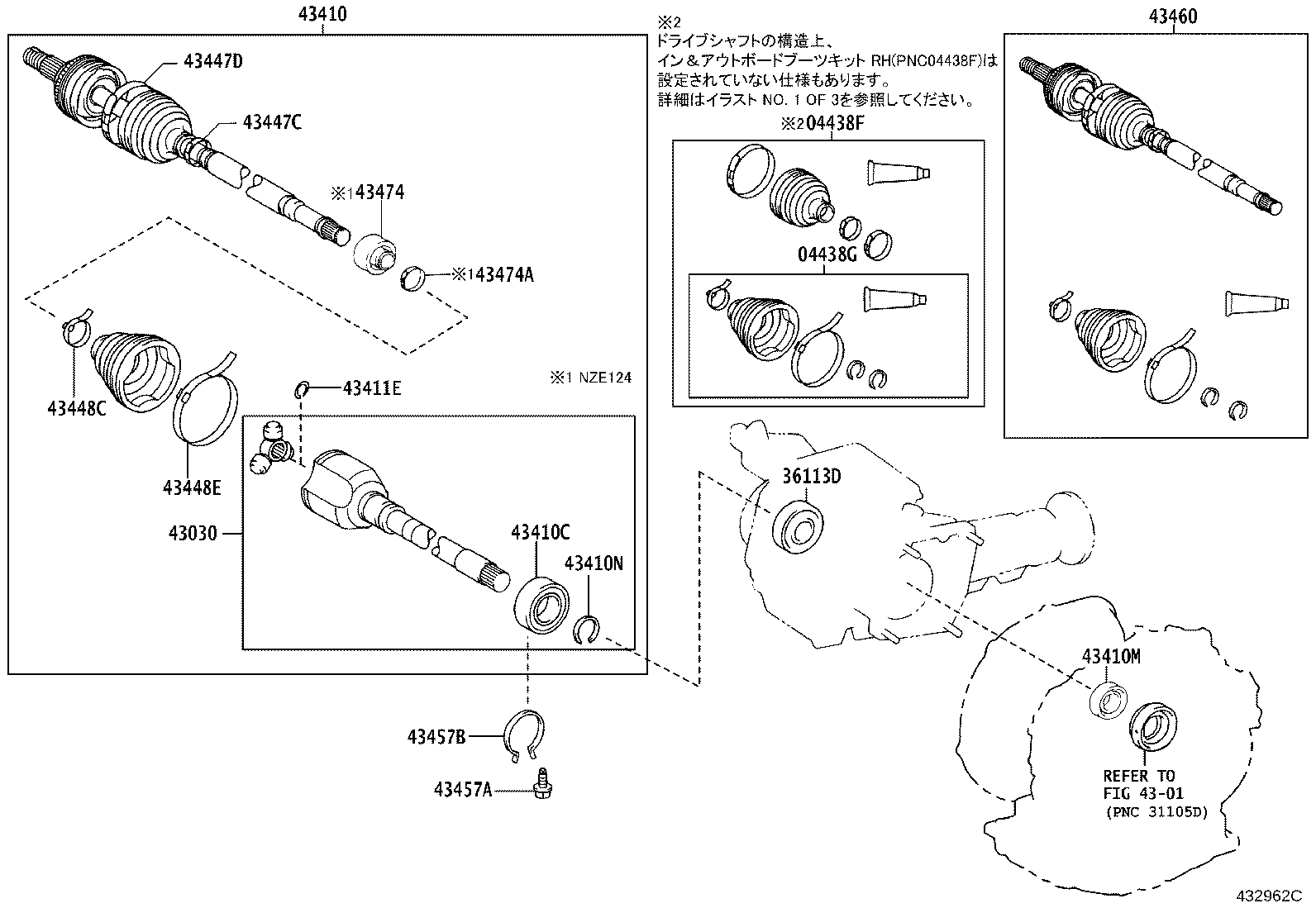

ILLUST NO. 2 OF 3(0404- )NZE124,ZZE124

Click highlighted areas on diagram

ﾗｲﾄ

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-52062	NZE124	08/2000 - 12/2001	1
04438-52063	NZE124	12/2001 - 09/2002	1
04427-52540	NZE124	12/2003 - 04/2004	1
04438-52080	NZE124	09/2002 - 12/2003	1
04427-52540	NZE124	04/2004 - 09/2006	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-32231	NZE124	08/2000 - 09/2002	1
04437-52030	NZE124,ZZE124	12/2003 - 04/2004	1
04438-52230	NZE124	09/2002 - 12/2003	1
04438-52230	NZE124	04/2006 - 09/2006	1
04437-52030	NZE124	04/2004 - 04/2006	1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006	NZE124,ZZE124	09/2002 - 04/2004	1
90311-36006	NZE124,ZZE124	04/2004 - 09/2006	1
90311-36006	NZE124,ZZE124	08/2000 - 09/2002	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-52010	NZE124	08/2000 - 09/2002	1
43030-52010	NZE124	04/2004 - 09/2006	1
43030-52010	NZE124	09/2002 - 04/2004	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12500	NZE124	08/2000 - 09/2002	1
43410-12500	NZE124	09/2002 - 12/2003	1
43410-12501	NZE124	04/2004 - 06/2004	1
43410-12500	NZE124	06/2004 - 09/2006	1
43410-12501	NZE124	12/2003 - 04/2004	1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006	NZE124,ZZE124	08/2000 - 09/2002	1
90363-36006	NZE124,ZZE124	04/2004 - 09/2006	1
90363-36006	NZE124,ZZE124	09/2002 - 04/2004	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003	NZE124,ZZE124	08/2000 - 09/2002	1
90316-28003	NZE124,ZZE124	09/2002 - 04/2004	1
90316-28003	NZE124,ZZE124	04/2004 - 09/2006	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008	NZE124,ZZE123,124	08/2000 - 09/2002	1
90520-33008	NZE124,ZZE123,124	04/2004 - 09/2006	1
90520-33008	NZE124,ZZE123,124	09/2002 - 04/2004	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005	CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
90520-22005	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
90520-22005	NZE124	04/2004 - 06/2004	1
90520-22005	NZE124 PNC 43410=TYPE C	06/2004 - 09/2006	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52110	NZE124	09/2002 - 04/2004	1
42345-52110	NZE124	04/2004 - 09/2006	1
42345-52110	NZE124	08/2000 - 09/2002	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52100	NZE124	08/2000 - 09/2002	1
42345-52100	NZE124	04/2004 - 09/2006	1
42345-52100	NZE124	09/2002 - 04/2004	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
90949-01078	NZE124,ZZE124	09/2002 - 04/2004	1
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
42345-12160	NZE124 PNC 43410=TYPE C	06/2004 - 09/2006	1
42345-12160	NZE124,ZZE122,124	04/2004 - 09/2006	1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19023	NZE124,ZZE124 *10−1.25PX27.8−14.8	08/2000 - 09/2000	1
90901-19060	NZE124,ZZE124 *10−1.25PX28.5−14.8	09/2000 - 09/2002	1
90901-19060	NZE124,ZZE124 *10−1.25PX28.5−14.8	09/2002 - 04/2004	1
90119-10952	NZE124,ZZE124 *10−1.25PX29―14.8	07/2005 - 09/2006	1
90901-19060	NZE124,ZZE124 *10−1.25PX28.5−14.8	04/2004 - 06/2005	1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002	NZE124,ZZE124	09/2002 - 04/2004	1
90521-75002	NZE124,ZZE124	04/2004 - 09/2006	1
90521-75002	NZE124,ZZE124	08/2000 - 09/2002	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19805	NZE124	08/2000 - 09/2002	1
43460-19805	NZE124	09/2002 - 12/2003	1
43460-80024	NZE124	12/2003 - 04/2004	1
43460-80047	NZE124	04/2004 - 09/2006	1
43474 - DAMPER, DRIVE SHAFT
43474-13030	NZE124	12/2003 - 04/2004	1
43474-13030	NZE124	04/2004 - 06/2004	1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010	NZE124	12/2003 - 04/2004	1
42345-14010	NZE124	04/2004 - 06/2004	1
Linked diagrams
4301

NZE124-AEPNK (2000)

ILLUST NO. 3 OF 3(0008-0404)NZE12#,ZZE124

ILLUST NO. 3 OF 3(0404- )NZE124,ZZE124

ILLUST NO. 1 OF 3(0008- )

ILLUST NO. 2 OF 3(0008-0404)NZE124,ZZE124

ILLUST NO. 2 OF 3(0404- )NZE124,ZZE124

Part Price Details
