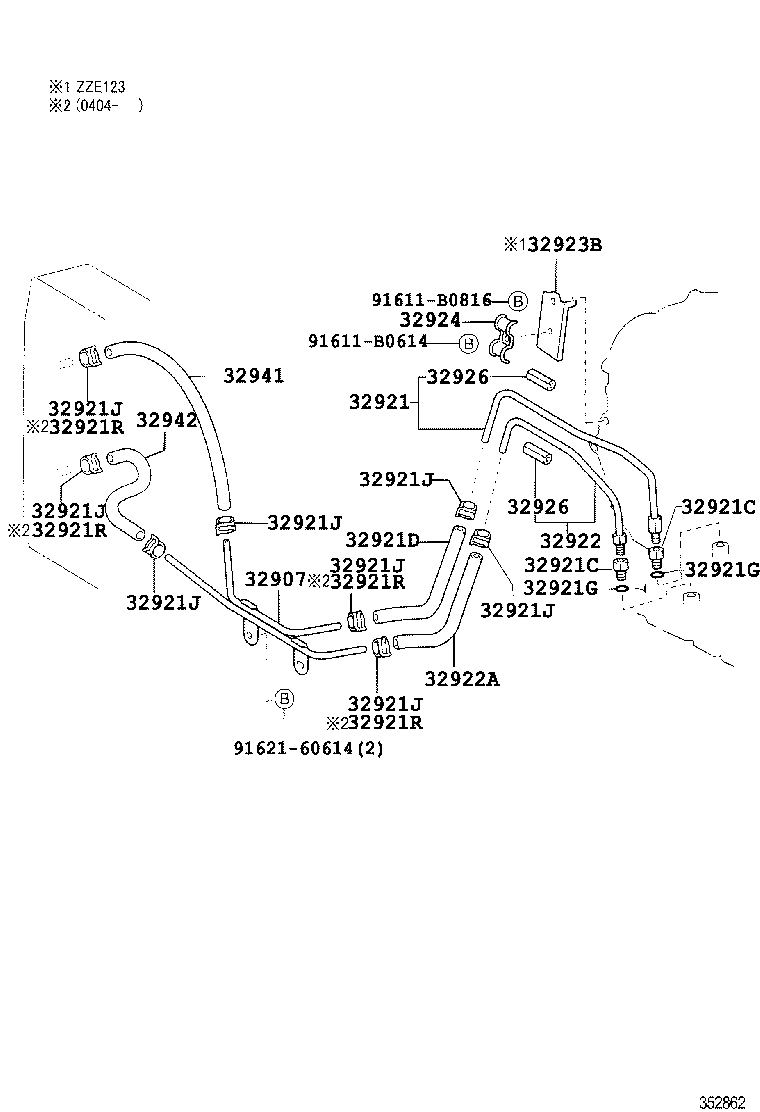

Toyota Corolla/fielder NZE124 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-12020	NZE12#,ZZE123,124..4FC	04/2004 - 09/2006	1
32907-12020	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	1
32907-12020	NZE12#,ZZE12#..4FC	08/2000 - 09/2002	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12440	NZE121,124..4FC	09/2002 - 04/2004	1
32921-12460	ZZE122,124..4FC	08/2000 - 07/2001	1
32921-12460	ZZE122,124..4FC	08/2001 - 09/2002	1
32921-12440	NZE121,124..4FC	08/2000 - 09/2002	1
32921-12440	NZE121,124..4FC	04/2004 - 09/2006	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003	CE121,NZE121,124,ZZE122,124..4FC ｲﾝﾚｯﾄ	08/2000 - 09/2002	1
90404-14007	CE121,NZE121,124,ZZE122,124..4FC ｱｳﾄﾚｯﾄ	08/2000 - 09/2002	1
90407-14003	CE121,NZE121,124,ZZE124..4FC ｲﾝﾚｯﾄ	09/2002 - 04/2004	1
90404-14007	NZE121,124,ZZE124..4FC ｱｳﾄﾚｯﾄ	04/2004 - 09/2006	1
90407-14003	NZE121,124,ZZE124..4FC ｲﾝﾚｯﾄ	04/2004 - 09/2006	1
90404-14007	CE121,NZE121,124,ZZE124..4FC ｱｳﾄﾚｯﾄ	09/2002 - 04/2004	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003	CE121,NZE121,124,ZZE122,124..4FC ｲﾝﾚｯﾄ	08/2000 - 09/2002	1
90404-14007	CE121,NZE121,124,ZZE122,124..4FC ｱｳﾄﾚｯﾄ	08/2000 - 09/2002	1
90407-14003	CE121,NZE121,124,ZZE124..4FC ｲﾝﾚｯﾄ	09/2002 - 04/2004	1
90404-14007	NZE121,124,ZZE124..4FC ｱｳﾄﾚｯﾄ	04/2004 - 09/2006	1
90407-14003	NZE121,124,ZZE124..4FC ｲﾝﾚｯﾄ	04/2004 - 09/2006	1
90404-14007	CE121,NZE121,124,ZZE124..4FC ｱｳﾄﾚｯﾄ	09/2002 - 04/2004	1
32921D - HOSE(FOR OIL COOLER INLET)
32943-12010	CE121,NZE120,ZZE123,124..4FC	09/2002 - 04/2004	1
32943-12020	NZE121,124..4FC	04/2004 - 09/2006	1
32943-12020	NZE121,124..4FC	08/2001 - 09/2002	1
90445-15050	NZE121,124..4FC	08/2000 - 07/2001	1
90445-15020	ZZE122,124..4FC	08/2000 - 07/2001	1
90445-15042	NZE120,ZZE123,124..4FC	04/2004 - 09/2006	1
32943-12020	NZE121,124..4FC	09/2002 - 04/2004	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	CE121,NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
90301-10189	CE121,NZE12#,ZZE12#..4FC	08/2000 - 09/2002	2
90301-10189	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	CE121,NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
90301-10189	CE121,NZE12#,ZZE12#..4FC	08/2000 - 09/2002	2
90301-10189	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	CE121,NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
96135-51300	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	8
96135-51300	ZZE122,124..4FC	08/2001 - 09/2002	8
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
96135-51300	ZZE122,124..4FC	08/2000 - 07/2001	8
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124..4FC	04/2004 - 09/2006	4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12310	NZE121,124..4FC	08/2000 - 09/2002	1
32922-12350	ZZE122,124..4FC	08/2000 - 09/2002	1
32922-12310	NZE121,124..4FC	09/2002 - 04/2004	1
32922-12310	NZE121,124..4FC	04/2004 - 09/2006	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15050	NZE121,124..4FC	09/2002 - 04/2004	1
90445-15020	ZZE122,124..4FC	08/2001 - 09/2002	1
90445-15020	CE121,NZE120,ZZE123,124..4FC	09/2002 - 04/2004	1
90445-15020	ZZE122,124..4FC	08/2000 - 07/2001	1
90445-15050	NZE121,124..4FC	08/2000 - 09/2002	1
90445-15050	NZE121,124..4FC	04/2004 - 09/2006	1
90445-15020	NZE120,ZZE123,124..4FC	04/2004 - 09/2006	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10127	CE121,NZE12#,ZZE124..4FC	09/2002 - 04/2004	1
90462-10127	CE121,NZE12#,ZZE122,124..4FC	08/2000 - 09/2002	1
90462-10127	NZE12#,ZZE124..4FC	04/2004 - 09/2006	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010	CE121,NZE12#..4FC 長さ=30,内径=8	08/2000 - 09/2002	2
32926-10010	ZZE122,124..4FC 長さ=30,内径=8	08/2001 - 09/2002	2
32926-10010	NZE12#,ZZE124..4FC 長さ=30,内径=8	04/2004 - 09/2006	2
32926-10010	ZZE122,124..4FC 長さ=30,内径=8	08/2000 - 07/2001	2
32926-10010	CE121,NZE12#,ZZE124..4FC 長さ=30,内径=8	09/2002 - 04/2004	2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010	CE121,NZE12#..4FC 長さ=30,内径=8	08/2000 - 09/2002	2
32926-10010	ZZE122,124..4FC 長さ=30,内径=8	08/2001 - 09/2002	2
32926-10010	NZE12#,ZZE124..4FC 長さ=30,内径=8	04/2004 - 09/2006	2
32926-10010	ZZE122,124..4FC 長さ=30,内径=8	08/2000 - 07/2001	2
32926-10010	CE121,NZE12#,ZZE124..4FC 長さ=30,内径=8	09/2002 - 04/2004	2
32941 - HOSE, OIL COOLER INLET, NO.1
90445-15039	NZE12#,ZZE12#..4FC	08/2000 - 09/2002	1
90445-15039	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	1
90445-15039	NZE12#,ZZE123,124..4FC	04/2004 - 09/2006	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-15034	ZZE122,124..4FC	08/2000 - 09/2002	1
90445-15050	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	1
90445-15050	NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
90445-15050	NZE12#,ZZE124..4FC	04/2004 - 09/2006	1
Common parts
91611-B0614
91611-B0816
91621-60614

NZE124-AEPNK (2000)

(0008-0209)4FC ; (0209- )CE121,NZE12#,ZZE123,124..4FC
