Toyota Corolla/fielder NZE124 SHIFT LEVER & RETAINER

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

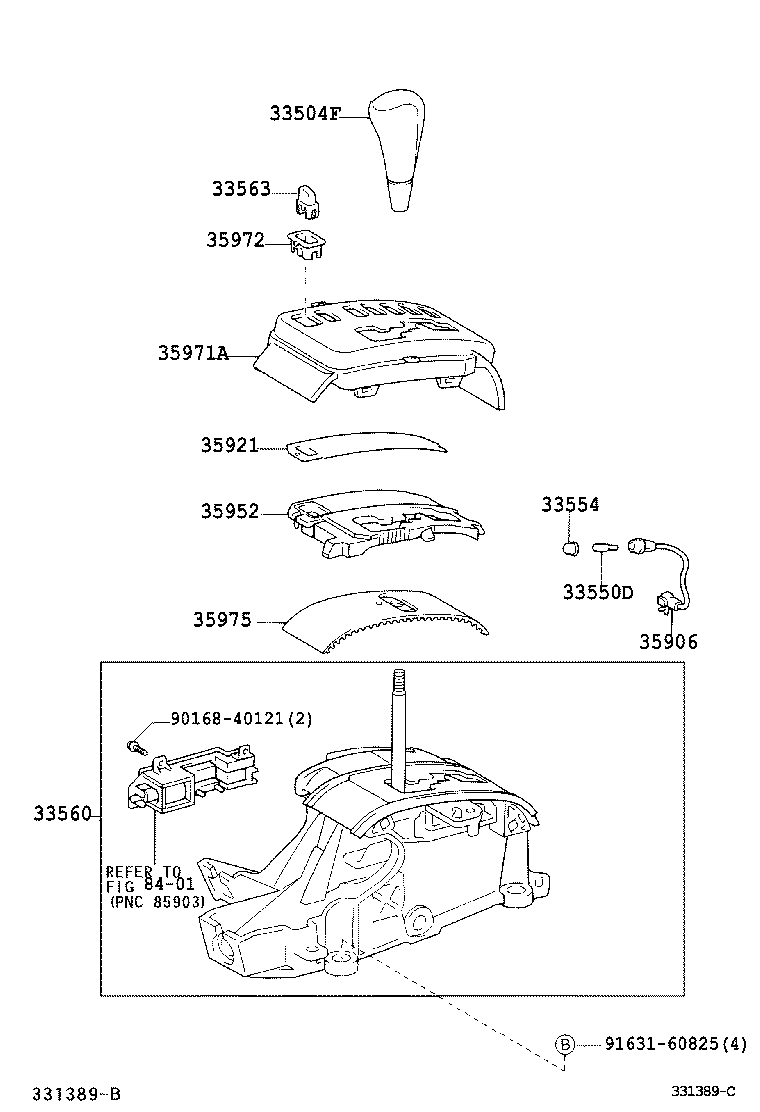

ILLUST NO. 1 OF 2(0008-0609)ZZE122,124..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12310E0	CE121,NZE12#..4FC SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
33504-30281B1	ZZE122,124..4FC..S DK.GRAY,TRIM1#	08/2000 - 09/2002	1
33504-30281B1	ZZE122,124..4FC..S DK.GRAY,TRIM1#	09/2002 - 04/2004	1
33542-12310B0	CE121,NZE12#..SED..4FC DK.GRAY,TRIM1#	08/2000 - 09/2002	1
33542-12310B0	CE121,NZE12#..4FC DK.GRAY,TRIM1#	09/2002 - 04/2004	1
33504-30281B1	ZZE122,124..4FC..S DK.GRAY,TRIM1#	04/2004 - 09/2006	1
33542-12310E0	CE121,NZE12#..4FC SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
33542-12310E0	NZE12#..4FC SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
33542-12310B0	NZE12#..4FC DK.GRAY,TRIM1#	04/2004 - 09/2006	1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010	NZE12#,ZZE123..4FC 12V 1.4W	04/2004 - 09/2006	1
35955-74010	CE121,NZE12#,ZZE123..4FC 12V 1.4W	09/2002 - 04/2004	1
90981-11014	ZZE122,124..4FC 14V 1.4W	08/2000 - 09/2002	1
90981-11014	ZZE122,124..4FC 14V 1.4W	04/2004 - 09/2006	1
90981-11014	ZZE122,124..4FC 14V 1.4W	09/2002 - 04/2004	1
35955-74010	CE121,NZE12#,ZZE123..4FC 12V 1.4W	08/2000 - 09/2002	1
33554 - CAP, SHIFT LEVER
33554-12100	ZZE122,124..4FC	08/2000 - 09/2002	1
33554-12100	ZZE122,124..4FC	09/2002 - 04/2004	1
33554-12100	ZZE122,124..4FC	04/2004 - 09/2006	1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12050	CE121,NZE12#..4FC	09/2002 - 09/2003	1
33560-12140	ZZE122,124..4FC	09/2002 - 04/2004	1
33560-12140	ZZE122,124..4FC	08/2000 - 09/2002	1
33560-12050	CE121,NZE12#..4FC	08/2000 - 09/2002	1
33560-12140	ZZE122,124..4FC	04/2004 - 09/2006	1
33560-12051	NZE12#..4FC	04/2004 - 09/2006	1
33560-12051	CE121,NZE12#..4FC	09/2003 - 04/2004	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-12190	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
33563-12190	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
33563-12190	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
33563-12180	ZZE122,124..4FC	08/2000 - 09/2002	1
33563-12180	ZZE122,124..4FC	09/2002 - 04/2004	1
33563-12180	ZZE122,124..4FC	04/2004 - 09/2006	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12190	ZZE122,124..4FC	09/2002 - 04/2004	1
35906-12200	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
35906-12190	ZZE122,124..4FC	04/2004 - 09/2006	1
35906-12190	ZZE122,124..4FC	08/2000 - 09/2002	1
35906-12200	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
35906-12200	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12520	ZZE122,124..4FC	08/2000 - 09/2002	1
35921-12530	CE121,NZE12#..4FC	08/2000 - 09/2002	1
35921-12520	ZZE122,124..4FC	09/2002 - 04/2004	1
35921-12530	CE121,NZE12#..4FC	09/2002 - 04/2004	1
35921-12530	NZE12#..4FC	04/2004 - 09/2006	1
35921-12520	ZZE122,124..4FC	04/2004 - 09/2006	1
35952 - LENS, POSITION INDICATOR
35952-12020	ZZE122,124..4FC	09/2002 - 04/2004	1
35952-12020	ZZE122,124..4FC	08/2000 - 09/2002	1
35952-12020	ZZE122,124..4FC	04/2004 - 09/2006	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-12470	ZZE122,124..4FC	09/2002 - 04/2004	1
35971-12470	ZZE122,124..4FC	08/2000 - 09/2002	1
35971-12480	CE121,NZE12#..4FC	08/2000 - 09/2002	1
35971-12480	NZE12#..4FC	04/2004 - 09/2006	1
35971-12480	CE121,NZE12#..4FC	09/2002 - 04/2004	1
35971-12470	ZZE122,124..4FC	04/2004 - 09/2006	1
35972 - COVER, POSITION INDICATOR HOUSING
35972-12010	ZZE122,124..4FC	04/2004 - 09/2006	1
35972-12010	ZZE122,124..4FC	09/2002 - 04/2004	1
35972-12010	ZZE122,124..4FC	08/2000 - 09/2002	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12290	CE121,NZE12#..4FC	08/2000 - 09/2002	1
35975-12290	NZE12#..4FC	04/2004 - 09/2006	1
35975-12290	CE121,NZE12#..4FC	09/2002 - 04/2004	1
35975-30270	ZZE122,124..4FC	08/2000 - 09/2002	1
35975-30270	ZZE122,124..4FC	09/2002 - 04/2004	1
35975-30270	ZZE122,124..4FC	04/2004 - 09/2006	1
Common parts
90168-40121
91631-60825
Linked diagrams
8401

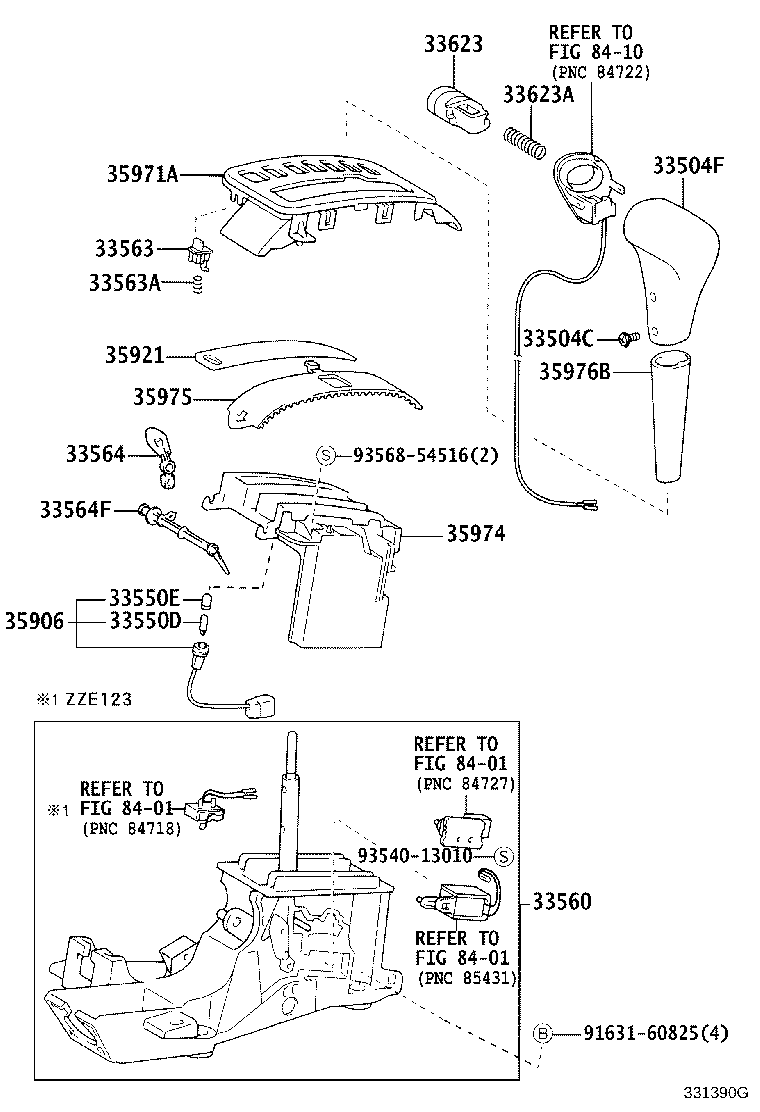

ILLUST NO. 1 OF 2(0008-0609)CE121,NZE12#,ZZE123..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40221	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	2
90159-40221	NZE12#,ZZE123..4FC	04/2004 - 09/2006	2
90159-40221	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12310E0	CE121,NZE12#..4FC SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
33504-30281B1	ZZE122,124..4FC..S DK.GRAY,TRIM1#	08/2000 - 09/2002	1
33504-30281B1	ZZE122,124..4FC..S DK.GRAY,TRIM1#	09/2002 - 04/2004	1
33542-12310B0	CE121,NZE12#..SED..4FC DK.GRAY,TRIM1#	08/2000 - 09/2002	1
33542-12310B0	CE121,NZE12#..4FC DK.GRAY,TRIM1#	09/2002 - 04/2004	1
33504-30281B1	ZZE122,124..4FC..S DK.GRAY,TRIM1#	04/2004 - 09/2006	1
33542-12310E0	CE121,NZE12#..4FC SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
33542-12310E0	NZE12#..4FC SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
33542-12310B0	NZE12#..4FC DK.GRAY,TRIM1#	04/2004 - 09/2006	1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010	NZE12#,ZZE123..4FC 12V 1.4W	04/2004 - 09/2006	1
35955-74010	CE121,NZE12#,ZZE123..4FC 12V 1.4W	09/2002 - 04/2004	1
90981-11014	ZZE122,124..4FC 14V 1.4W	08/2000 - 09/2002	1
90981-11014	ZZE122,124..4FC 14V 1.4W	04/2004 - 09/2006	1
90981-11014	ZZE122,124..4FC 14V 1.4W	09/2002 - 04/2004	1
35955-74010	CE121,NZE12#,ZZE123..4FC 12V 1.4W	08/2000 - 09/2002	1
33550E - CAP, POSITION INDICATOR LAMP
35956-52030	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
35956-52030	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
35956-52030	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12050	CE121,NZE12#..4FC	09/2002 - 09/2003	1
33560-12140	ZZE122,124..4FC	09/2002 - 04/2004	1
33560-12140	ZZE122,124..4FC	08/2000 - 09/2002	1
33560-12050	CE121,NZE12#..4FC	08/2000 - 09/2002	1
33560-12140	ZZE122,124..4FC	04/2004 - 09/2006	1
33560-12051	NZE12#..4FC	04/2004 - 09/2006	1
33560-12051	CE121,NZE12#..4FC	09/2003 - 04/2004	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-12190	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
33563-12190	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
33563-12190	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
33563-12180	ZZE122,124..4FC	08/2000 - 09/2002	1
33563-12180	ZZE122,124..4FC	09/2002 - 04/2004	1
33563-12180	ZZE122,124..4FC	04/2004 - 09/2006	1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-05055	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
90501-05055	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
90501-05055	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
33564 - LINK, SHIFT LOCK RELEASE, NO.1
33564-12130	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
33564-12130	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
33564-12130	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
33564F - LINK, SHIFT LOCK RELEASE, NO.2
33564-12150	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12170E0	CE121,NZE12#..4FC..X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
33623-12170B0	NZE12#..4FC..X;CE121..SED..4FC..X DK.GRAY,TRIM1#	09/2002 - 04/2004	1
33623-12170E0	CE121,NZE12#..4FC..X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
33623-12170B0	NZE12#..4FC..X DK.GRAY,TRIM1#	04/2004 - 09/2006	1
33623-12170E0	NZE12#..4FC..X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
33623-12170B0	CE121,NZE12#..SED..4FC..X DK.GRAY,TRIM1#	08/2000 - 09/2002	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-06082	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
90501-06082	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
90501-06082	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12190	ZZE122,124..4FC	09/2002 - 04/2004	1
35906-12200	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
35906-12190	ZZE122,124..4FC	04/2004 - 09/2006	1
35906-12190	ZZE122,124..4FC	08/2000 - 09/2002	1
35906-12200	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
35906-12200	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12520	ZZE122,124..4FC	08/2000 - 09/2002	1
35921-12530	CE121,NZE12#..4FC	08/2000 - 09/2002	1
35921-12520	ZZE122,124..4FC	09/2002 - 04/2004	1
35921-12530	CE121,NZE12#..4FC	09/2002 - 04/2004	1
35921-12530	NZE12#..4FC	04/2004 - 09/2006	1
35921-12520	ZZE122,124..4FC	04/2004 - 09/2006	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-12470	ZZE122,124..4FC	09/2002 - 04/2004	1
35971-12470	ZZE122,124..4FC	08/2000 - 09/2002	1
35971-12480	CE121,NZE12#..4FC	08/2000 - 09/2002	1
35971-12480	NZE12#..4FC	04/2004 - 09/2006	1
35971-12480	CE121,NZE12#..4FC	09/2002 - 04/2004	1
35971-12470	ZZE122,124..4FC	04/2004 - 09/2006	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12240	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
35974-12240	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
35974-12240	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12290	CE121,NZE12#..4FC	08/2000 - 09/2002	1
35975-12290	NZE12#..4FC	04/2004 - 09/2006	1
35975-12290	CE121,NZE12#..4FC	09/2002 - 04/2004	1
35975-30270	ZZE122,124..4FC	08/2000 - 09/2002	1
35975-30270	ZZE122,124..4FC	09/2002 - 04/2004	1
35975-30270	ZZE122,124..4FC	04/2004 - 09/2006	1
35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
35976-12120B0	ZZE123..4FC;CE121,NZE12#..SED..4FC DK.GRAY,TRIM1#	08/2000 - 09/2002	1
35976-12120E0	NZE12#..4FC SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
35976-12120B0	NZE12#,ZZE123..4FC DK.GRAY,TRIM1#	04/2004 - 09/2006	1
35976-12120E0	CE121,NZE12#..4FC SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
35976-12120E0	CE121,NZE12#..4FC SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
35976-12120B0	CE121,NZE12#,ZZE123..4FC DK.GRAY,TRIM1#	09/2002 - 04/2004	1
Common parts
91631-60825
93540-13010
93568-54516
Linked diagrams
8401
8410

ILLUST NO. 2 OF 2(0008-0609)4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-12100	CE121,NZE12#..4FC	08/2000 - 09/2002	1
33574-12100	ZZE123..6F;NZE120,124,ZZE124;NZE121,ZZE122..4FC	09/2002 - 04/2004	1
33574-12100	ZZE123..6F;NZE120,124,ZZE124;NZE121,ZZE122..4FC	04/2004 - 09/2006	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-1A020	NZE121,124..4FC	08/2000 - 09/2002	1
33820-12880	ZZE122,124..4FC	08/2000 - 09/2002	1
33820-12880	ZZE122,124..4FC	09/2002 - 04/2004	1
33820-1A020	NZE121,124..4FC	09/2002 - 04/2004	1
33820-12A20	NZE121,124,ZZE122,124..4FC	04/2004 - 09/2006	1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08061	CE121,NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
90179-08061	CE121,NZE12#,ZZE12#..4FC	08/2000 - 09/2002	1
90179-08061	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-20230	NZE121,124,ZZE122,124..4FC	08/2000 - 09/2002	1
33823-20230	NZE121,124,ZZE124..4FC	09/2002 - 04/2004	1
33823-20230	NZE121,124,ZZE124..4FC	04/2004 - 09/2006	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-12070	NZE121,124,ZZE122,124..4FC	08/2000 - 09/2002	1
33829-12110	NZE121,124,ZZE122,124..4FC	04/2004 - 09/2006	1
33829-12070	NZE121,124,ZZE122,124..4FC	09/2002 - 04/2004	1
33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
33880-12050	ZZE122,124..4FC	08/2000 - 09/2002	1
33880-12050	ZZE122,124..4FC	09/2002 - 04/2004	1
33880-12030	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
33880-12030	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
33880-12030	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
33880-12050	ZZE122,124..4FC	04/2004 - 09/2006	1
Common parts
90119-T0029
90178-T0003
90179-06178
90464-00838
90468-04193
90468-14016
91611-B0816
91626-40618
Linked diagrams
3513

NZE124-AEPNK (2000)

ILLUST NO. 1 OF 2(0008-0609)ZZE122,124..4FC

ILLUST NO. 1 OF 2(0008-0609)CE121,NZE12#,ZZE123..4FC

ILLUST NO. 2 OF 2(0008-0609)4FC

Part Price Details
