Toyota Corolla/fielder NZE124 STARTER

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

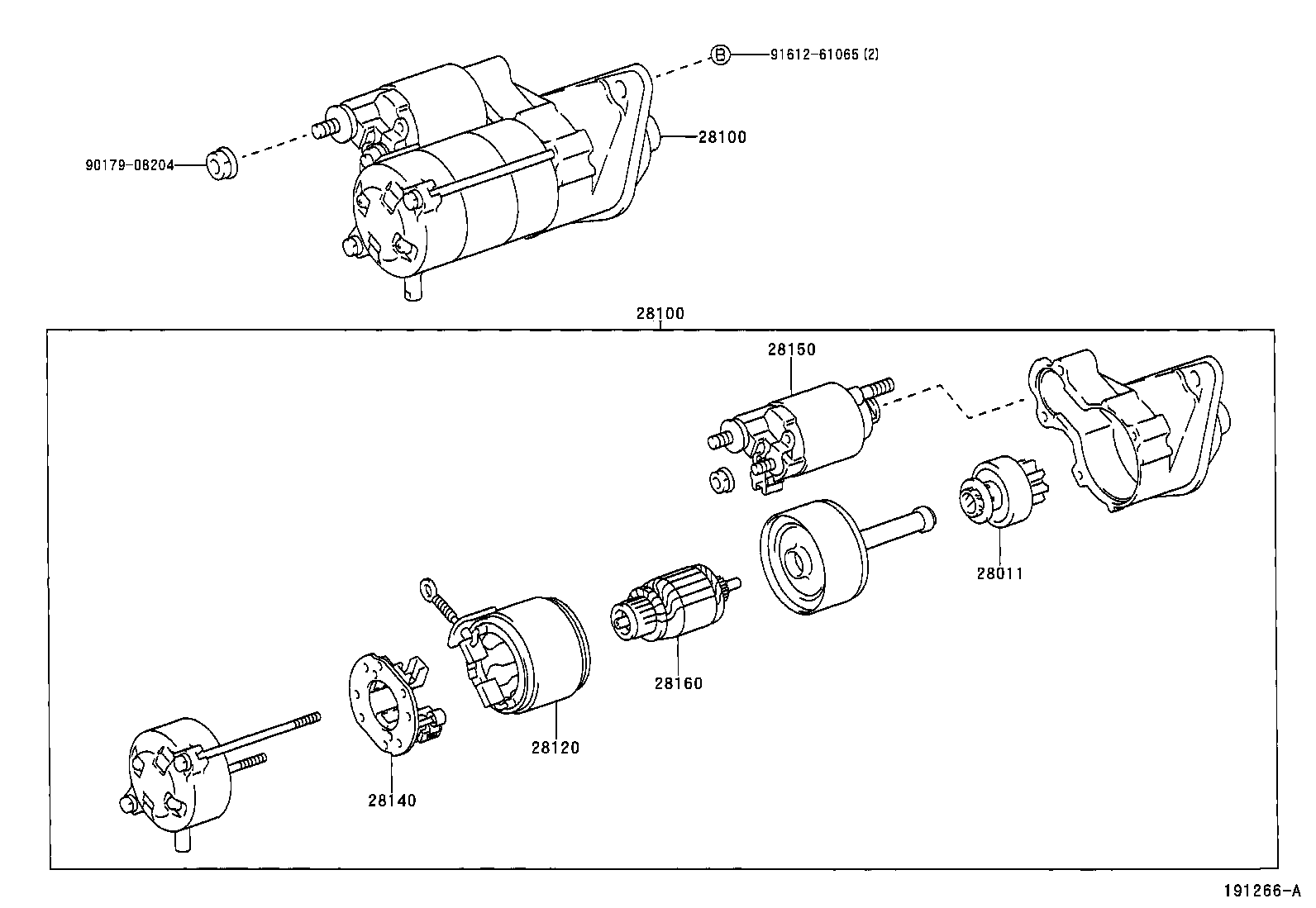

(0008-0208)1NZFE,2NZFE

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28011-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28011-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
28011-70020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
28100 - STARTER ASSY
28100-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	09/2002 - 04/2004	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	09/2002 - 04/2004	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	04/2004 - 09/2006	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	04/2004 - 09/2006	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28100 - STARTER ASSY
28100-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	09/2002 - 04/2004	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	09/2002 - 04/2004	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	04/2004 - 09/2006	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	04/2004 - 09/2006	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28120 - YOKE ASSY, STARTER
28120-23020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28120-70020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28120-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	09/2002 - 04/2004	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	04/2004 - 09/2006	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	08/2000 - 09/2002	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	09/2002 - 04/2004	1
28120-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	04/2004 - 09/2006	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
28140-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	09/2002 - 04/2004	1
28140-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	08/2000 - 09/2002	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-16160	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
28150-16160	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
28150-16160	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
28160 - ARMATURE ASSY, STARTER
28160-70021	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28160-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	04/2004 - 09/2006	1
28160-70021	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	09/2002 - 04/2004	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	09/2002 - 04/2004	1
28160-70021	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	04/2004 - 09/2006	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	08/2000 - 09/2002	1
Common parts
90179-08204
91612-61065

(0008-0208)1NZFE,2NZFE

Click highlighted areas on diagram

12V 0.8KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28011-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28011-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
28011-70020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
28100 - STARTER ASSY
28100-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	09/2002 - 04/2004	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	09/2002 - 04/2004	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	04/2004 - 09/2006	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	04/2004 - 09/2006	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28100 - STARTER ASSY
28100-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	09/2002 - 04/2004	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	09/2002 - 04/2004	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	04/2004 - 09/2006	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	04/2004 - 09/2006	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28120 - YOKE ASSY, STARTER
28120-23020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28120-70020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28120-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	09/2002 - 04/2004	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	04/2004 - 09/2006	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	08/2000 - 09/2002	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	09/2002 - 04/2004	1
28120-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	04/2004 - 09/2006	1
28142A - STARTER KIT
28142-10020	1NZFE,2NZFE..NZE12#	08/2000 - 08/2002	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-16160	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
28150-16160	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
28150-16160	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
28160 - ARMATURE ASSY, STARTER
28160-70021	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28160-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	04/2004 - 09/2006	1
28160-70021	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	09/2002 - 04/2004	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	09/2002 - 04/2004	1
28160-70021	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	04/2004 - 09/2006	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	08/2000 - 09/2002	1
Common parts
90179-08204
91612-61065

(0208- )1NZFE,2NZFE

Click highlighted areas on diagram

12V 0.8KW,1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28011-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28011-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
28011-70020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
28100 - STARTER ASSY
28100-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	09/2002 - 04/2004	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	09/2002 - 04/2004	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	04/2004 - 09/2006	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	04/2004 - 09/2006	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28100 - STARTER ASSY
28100-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	08/2000 - 09/2002	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	09/2002 - 04/2004	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	09/2002 - 04/2004	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	04/2004 - 09/2006	1
28100-21030	1NZFE,2NZFE..NZE12# 12V 1.0KW	04/2004 - 09/2006	1
28100-21020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28120 - YOKE ASSY, STARTER
28120-23020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28120-70020	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28120-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	09/2002 - 04/2004	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	04/2004 - 09/2006	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	08/2000 - 09/2002	1
28120-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	09/2002 - 04/2004	1
28120-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	04/2004 - 09/2006	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
28140-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	09/2002 - 04/2004	1
28140-70020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	08/2000 - 09/2002	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-16160	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
28150-16160	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
28150-16160	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
28160 - ARMATURE ASSY, STARTER
28160-70021	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2002 - 09/2002	1
28160-21050	1NZFE,2NZFE..NZE12# 12V 0.8KW	08/2000 - 08/2002	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	04/2004 - 09/2006	1
28160-70021	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	09/2002 - 04/2004	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	09/2002 - 04/2004	1
28160-70021	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 0.8KW	04/2004 - 09/2006	1
28160-70050	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12# 12V 1.0KW	08/2000 - 09/2002	1
Common parts
90179-08204
91612-61065
