Toyota Corolla/fielder NZE124 VACUUM PIPING

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0109)1NZFE,2NZFE

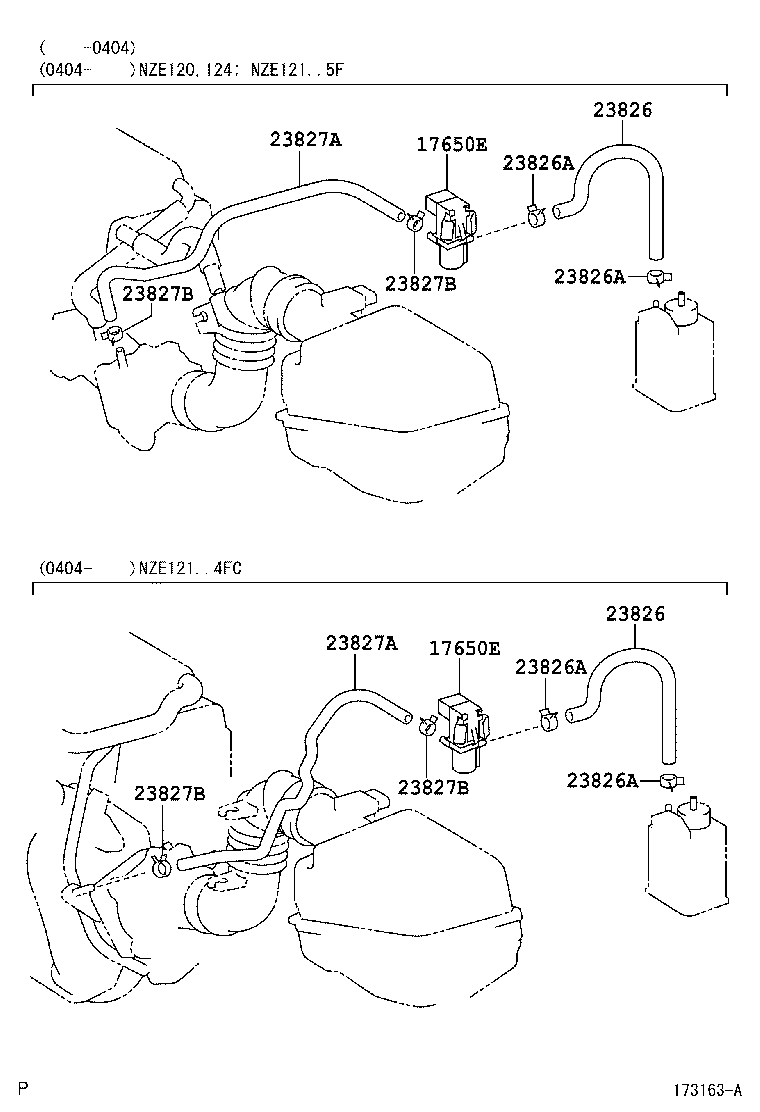

Click highlighted areas on diagram

Part #	Description	Period	Qty
17650E - VALVE, VACUUM SWITCHING
90910-12236	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
90910-12257	1NZFE,2NZFE..NZE12#	09/2001 - 09/2002	1
90910-12257	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
90910-12257	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21040	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21050	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
23826-21030	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
23826-21030	1NZFE,2NZFE..NZE12#	09/2001 - 09/2002	1
23826-21030	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	2
96132-51100	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51100	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	2
96132-51100	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51100	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21030	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
23827-21030	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
23827-21030	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
96132-51300	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51300	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
96132-51300	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51300	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2
23829A - HOSE, FUEL VAPOR FEED
95326-07005	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2

(0109- )1NZFE,2NZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17650E - VALVE, VACUUM SWITCHING
90910-12236	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
90910-12257	1NZFE,2NZFE..NZE12#	09/2001 - 09/2002	1
90910-12257	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
90910-12257	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
17650E - VALVE, VACUUM SWITCHING
90910-12236	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
90910-12257	1NZFE,2NZFE..NZE12#	09/2001 - 09/2002	1
90910-12257	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
90910-12257	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21050	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
23826-21030	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
23826-21030	1NZFE,2NZFE..NZE12#	09/2001 - 09/2002	1
23826-21030	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21050	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	1
23826-21030	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
23826-21030	1NZFE,2NZFE..NZE12#	09/2001 - 09/2002	1
23826-21030	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	2
96132-51100	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51100	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	2
96132-51100	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51100	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	2
96132-51100	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51100	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	2
96132-51100	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51100	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21030	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
23827-21030	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
23827-21030	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21030	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
23827-21030	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
23827-21030	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
96132-51300	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51300	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
96132-51300	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51300	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
96132-51300	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51300	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	2
96132-51300	1NZFE,2NZFE..NZE12#	04/2004 - 09/2006	2
96132-51300	1NZFE,2NZFE..NZE12#	08/2000 - 09/2001	2

NZE124-AEPNK (2000)

(0008-0109)1NZFE,2NZFE

(0109- )1NZFE,2NZFE
