Toyota Corolla/fielder NZE124 MANIFOLD

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

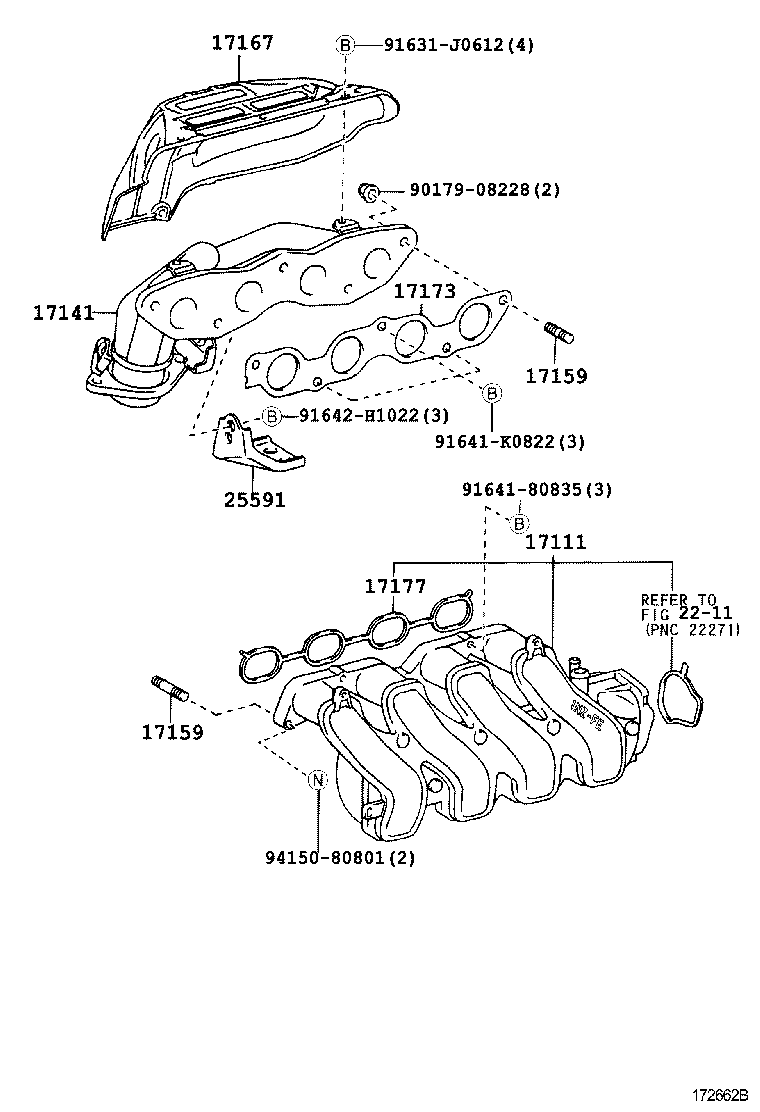

(0008-0209)1NZFE..NZE124

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-21050	1NZFE..NZE121,124	08/2000 - 09/2002	1
17101-21050	1NZFE..NZE124;1NZFE..NZE121..5F	04/2004 - 09/2006	1
17101-21050	1NZFE..NZE121,124	09/2002 - 04/2004	1
17141 - MANIFOLD, EXHAUST
17141-21070	1NZFE..NZE124	08/2000 - 09/2002	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	08/2000 - 09/2002	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	08/2000 - 09/2002	2
90126-08037	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｴｷｿﾞｰｽﾄ側	04/2004 - 09/2006	2
90126-08026	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｲﾝﾃｰｸ側	04/2004 - 09/2006	2
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	08/2000 - 09/2002	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	08/2000 - 09/2002	2
90126-08037	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｴｷｿﾞｰｽﾄ側	04/2004 - 09/2006	2
90126-08026	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｲﾝﾃｰｸ側	04/2004 - 09/2006	2
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21040	1NZFE..NZE124	08/2000 - 09/2002	1
17167-21070	1NZFE..NZE124	09/2002 - 04/2004	1
17167-21070	1NZFE..NZE124	04/2004 - 09/2006	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
17173-21020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
17173-21020	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
17177-21020	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
17177-21020	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21030	1NZFE..NZE124	08/2000 - 09/2002	1
25591-21030	1NZFE..NZE124	04/2004 - 09/2006	1
25591-21030	1NZFE..NZE124	09/2002 - 04/2004	1
Common parts
90179-08228
91631-J0612
91641-80835
91641-K0822
91642-H1022
94150-80801
Linked diagrams
2211

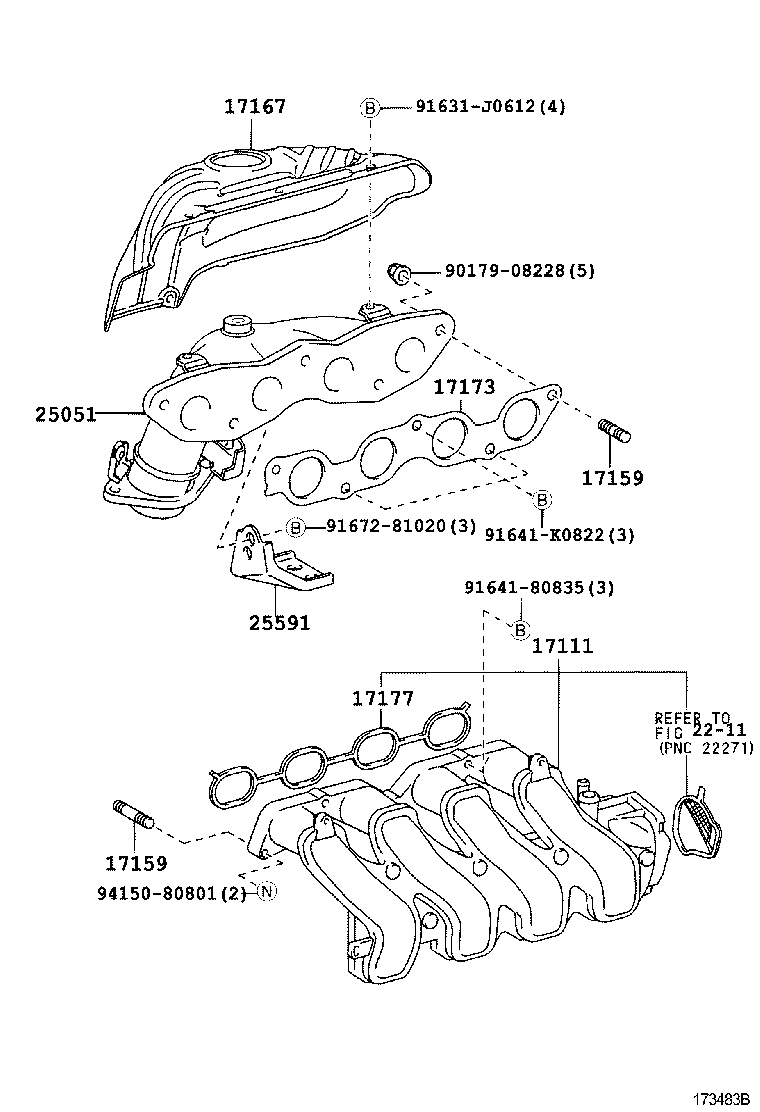

(0209- )1NZFE..NZE124

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-21050	1NZFE..NZE121,124	08/2000 - 09/2002	1
17101-21050	1NZFE..NZE124;1NZFE..NZE121..5F	04/2004 - 09/2006	1
17101-21050	1NZFE..NZE121,124	09/2002 - 04/2004	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	08/2000 - 09/2002	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	08/2000 - 09/2002	2
90126-08037	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｴｷｿﾞｰｽﾄ側	04/2004 - 09/2006	2
90126-08026	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｲﾝﾃｰｸ側	04/2004 - 09/2006	2
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	08/2000 - 09/2002	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08037	1NZFE,2NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	08/2000 - 09/2002	2
90126-08037	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｴｷｿﾞｰｽﾄ側	04/2004 - 09/2006	2
90126-08026	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124 ｲﾝﾃｰｸ側	04/2004 - 09/2006	2
90126-08026	1NZFE,2NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21040	1NZFE..NZE124	08/2000 - 09/2002	1
17167-21070	1NZFE..NZE124	09/2002 - 04/2004	1
17167-21070	1NZFE..NZE124	04/2004 - 09/2006	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
17173-21020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
17173-21020	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020	1NZFE,2NZFE..NZE12#	09/2002 - 04/2004	1
17177-21020	1NZFE,2NZFE..NZE12#	08/2000 - 09/2002	1
17177-21020	1NZFE..NZE121..5F;1NZFE,2NZFE..NZE120,124	04/2004 - 09/2006	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-21010	1NZFE..NZE124	04/2004 - 09/2006	1
25051-21010	1NZFE..NZE124	09/2002 - 04/2004	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21030	1NZFE..NZE124	08/2000 - 09/2002	1
25591-21030	1NZFE..NZE124	04/2004 - 09/2006	1
25591-21030	1NZFE..NZE124	09/2002 - 04/2004	1
Common parts
90179-08228
91631-J0612
91641-80835
91641-K0822
91672-81020
94150-80801
Linked diagrams
2211

NZE124-AEPNK (2000)

(0008-0209)1NZFE..NZE124

(0209- )1NZFE..NZE124
