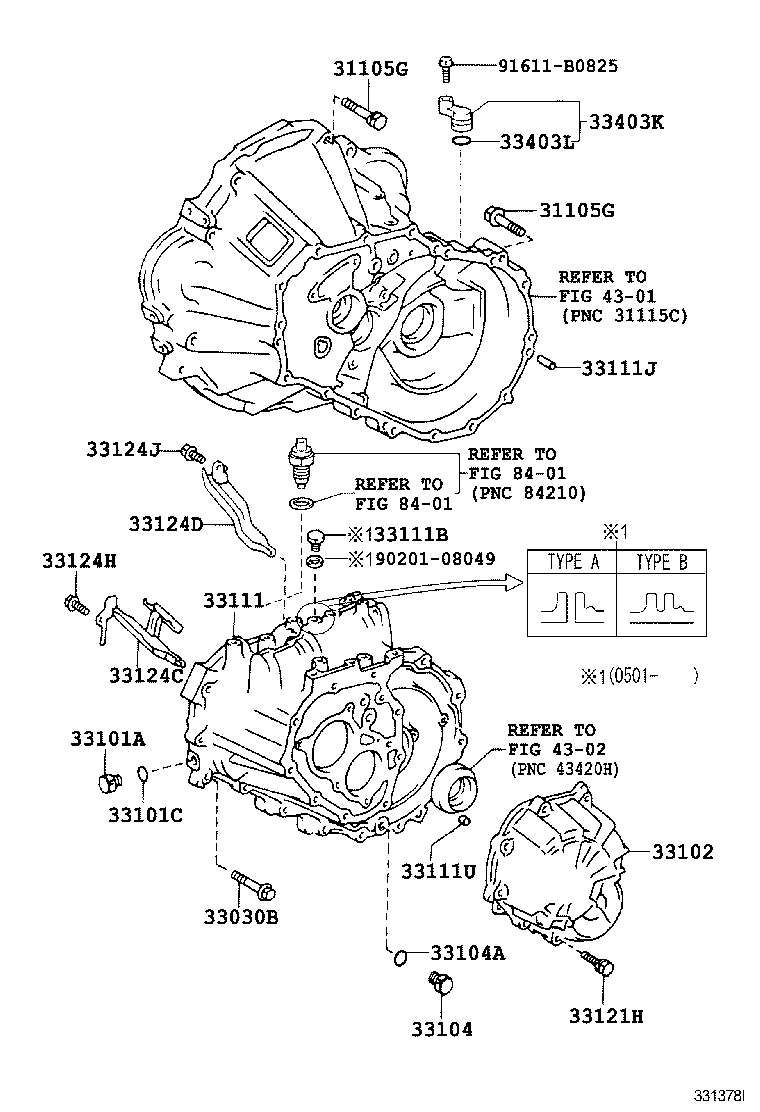

Toyota Corolla/fielder NZE121 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050	NZE120,121..5F *10−1.25PX50−30	08/2000 - 09/2002	7
91612-61050	NZE120,121..5F *10−1.25PX50−30	09/2002 - 04/2004	7
91612-61045	NZE120,121..5F *10−1.25PX45−30	12/2005 - 09/2006	7
91612-61050	NZE120,121..5F *10−1.25PX50−30	04/2004 - 11/2005	7
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050	NZE120,121..5F *10−1.25PX50−30	08/2000 - 09/2002	7
91612-61050	NZE120,121..5F *10−1.25PX50−30	09/2002 - 04/2004	7
91612-61045	NZE120,121..5F *10−1.25PX45−30	12/2005 - 09/2006	7
91612-61050	NZE120,121..5F *10−1.25PX50−30	04/2004 - 11/2005	7
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064	NZE121,ZZE122,123..MTM *8−1.25PX51−28	08/2000 - 09/2002	13
90105-08086	NZE121,ZZE122..5F *8−1.25PX45−27.5	04/2004 - 07/2004	3
90105-08086	NZE121,ZZE122,123..MTM *8−1.25PX45−27.5	09/2002 - 04/2004	3
90105-08353	NZE121,ZZE122,123..MTM *8−1.25PX50−30	04/2004 - 09/2006	13
90105-08430	NZE121,ZZE122..5F *8−1.25PX45−27.5	07/2004 - 09/2006	3
90105-08353	NZE121,ZZE122,123..MTM *8−1.25PX50−30	09/2002 - 04/2004	13
90105-08086	NZE121,ZZE122,123..MTM *8−1.25PX45−27.5	08/2000 - 09/2002	3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	NZE120,121,ZZE122..5F	08/2000 - 09/2002	1
90341-18006	NZE120,121,ZZE122..5F	09/2002 - 04/2004	1
90341-18033	NZE120,121,ZZE122..5F	06/2005 - 09/2006	1
90341-18006	NZE120,121,ZZE122..5F	04/2004 - 06/2005	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90430-18008	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021	NZE121,ZZE122..5F	09/2002 - 04/2004	1
33102-12021	NZE121,ZZE122..5F	04/2004 - 09/2006	1
33102-12021	NZE121,ZZE122..5F	08/2000 - 09/2002	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
90341-18006	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90341-18006	NZE120,121,ZZE122..5F	04/2004 - 05/2005	1
90341-18033	NZE120,121,ZZE122..5F	06/2005 - 09/2006	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
90430-18008	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
33111 - CASE, MANUAL TRANSMISSION
33111-16063	NZE121..5F	08/2000 - 09/2002	1
33111-52110	NZE121..5F TYPE B:ｲﾗｽﾄ参照	01/2005 - 09/2006	1
33111-16064	NZE121..5F TYPE A:ｲﾗｽﾄ参照	01/2005 - 09/2006	1
33111-16063	NZE121..5F	09/2002 - 04/2004	1
33111-16063	NZE121..5F	04/2004 - 01/2005	1
33111B - BOLT, STUD OR BOLT(FOR TRANSMISSION CASE)
90101-08166	NZE121,ZZE122..5F *8−1.25PX14−12	01/2005 - 09/2006	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	04/2004 - 09/2006	4
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	08/2000 - 09/2002	4
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	09/2002 - 04/2004	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	NZE121,ZZE122,123..MTM 長さ=11,外径=11	08/2000 - 09/2002	2
90253-11001	NZE121,ZZE122,123..MTM 長さ=11,外径=11	04/2004 - 09/2006	2
90253-11001	NZE121,ZZE122,123..MTM 長さ=11,外径=11	09/2002 - 04/2004	2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835	NZE121,ZZE122,123..MTM	09/2002 - 04/2004	9
91611-60835	NZE121,ZZE122..5F	04/2004 - 03/2006	9
91611-60835	NZE121,ZZE122,123..MTM	08/2000 - 09/2002	9
90119-08782	NZE121,ZZE122..5F	03/2006 - 09/2006	9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050	NZE121,ZZE122,123..MTM	09/2002 - 04/2004	1
33124-20050	NZE121,ZZE122,123..MTM	04/2004 - 09/2006	1
33124-20050	NZE121,ZZE122,123..MTM	08/2000 - 09/2002	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021	NZE121,ZZE122..5F	09/2002 - 04/2004	1
33124-12021	NZE121,ZZE122..5F	08/2000 - 09/2002	1
33124-12021	NZE121,ZZE122..5F	04/2004 - 09/2006	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
91611-G0820	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
91611-G0820	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
33124J - BOLT, W/WASHER
91611-G0820	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
91611-G0820	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
91611-G0820	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
33403-35230	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
33403-35230	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
33403L - RING, O
96711-24030	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
96711-24030	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
96711-24030	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
Common parts
90201-08049
91611-B0825
Linked diagrams
4301
4302
8401

NZE121-AEMNK (2000)

(0008- )NZE121,ZZE122..5F
