3102 - CLUTCH PEDAL & FLEXIBLE HOSE

NZE121-AEMNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

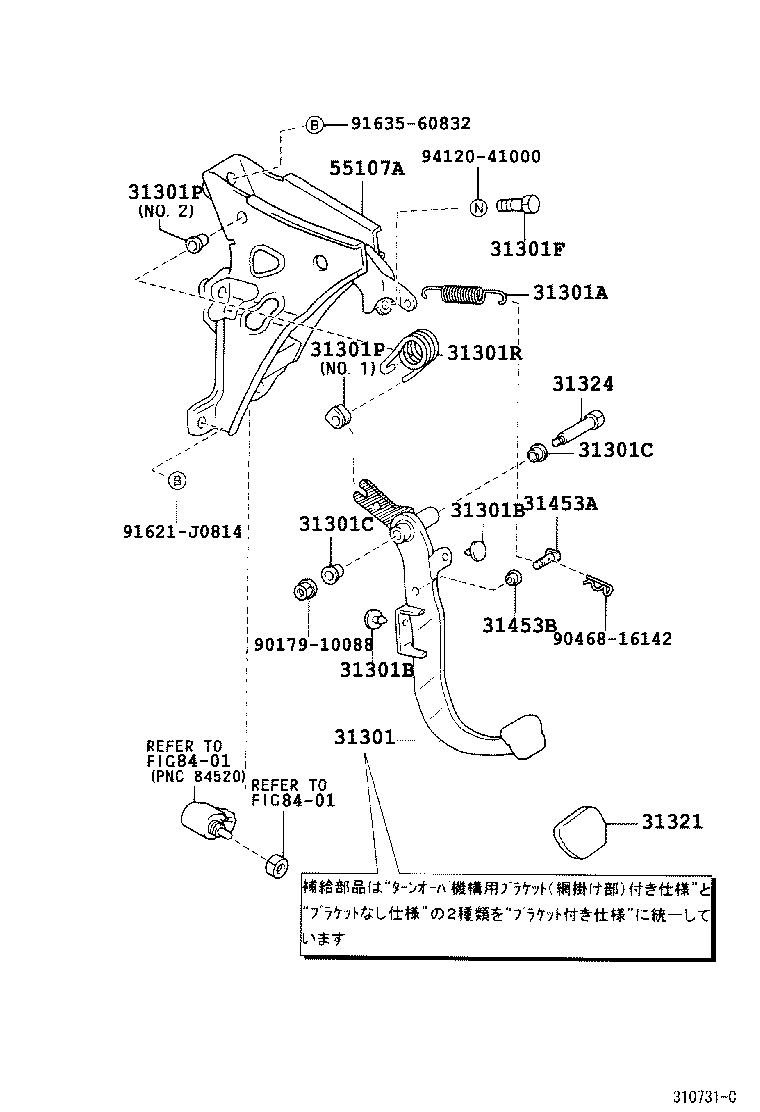

ILLUST NO. 1 OF 2(0008- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12450	CE121,NZE120,121,ZZE122,123..MTM ｲﾗｽﾄｺﾒﾝﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
31301-12450	NZE120,121,ZZE122,123..MTM ｲﾗｽﾄｺﾒﾝﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
31301-12450	CE121,NZE120,121,ZZE122,123..MTM ｲﾗｽﾄｺﾒﾝﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14050	CE121,NZE120,121..5F	08/2000 - 09/2002	1
90507-14050	NZE120,121..5F	04/2004 - 09/2006	1
90507-14050	CE121,NZE120,121..5F	09/2002 - 04/2004	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	2
90541-06036	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	2
90541-06036	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	2
90541-06036	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	2
90541-06036	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	2
90386-13015	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	2
90386-13015	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	2
90386-13015	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	2
90386-13015	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90101-10369	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
90101-10369	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
31321 - PAD, CLUTCH PEDAL
31321-52010	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
31321-52010	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
31321-52010	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
31324 - SHAFT, CLUTCH PEDAL
90109-10167	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
90109-10167	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
90109-10167	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243	NZE120,121,ZZE122,123..MTM 長さ=30	04/2004 - 09/2006	1
90249-08243	CE121,NZE120,121,ZZE122,123..MTM 長さ=30	09/2002 - 04/2004	1
90249-08243	CE121,NZE120,121,ZZE122,123..MTM 長さ=30	08/2000 - 09/2002	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
90386-08002	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90386-08002	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12200	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
55107-12200	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
55107-12200	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
Common parts
90179-10088
90468-16142
91621-J0814
91635-60832
94120-41000
Linked diagrams
8401

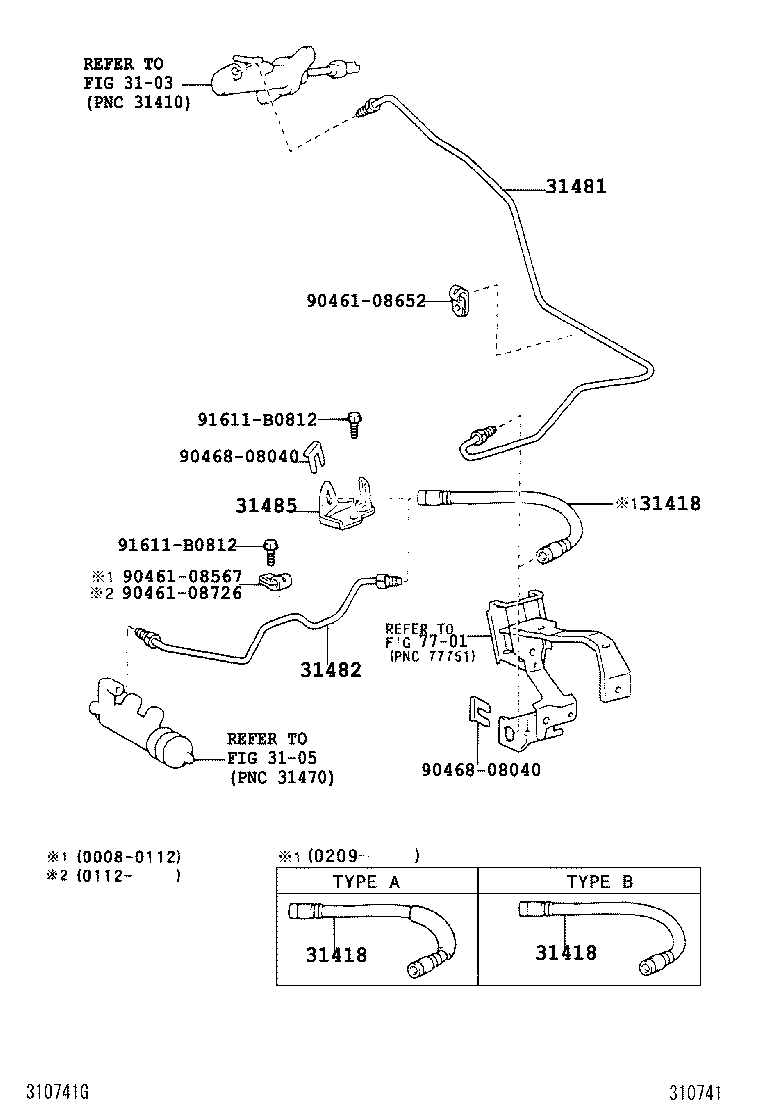

ILLUST NO. 2 OF 2(0008- )NZE120,121..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02D12	NZE120,121..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90947-02D12	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 09/2002	1
90947-02B47	NZE121..5F	08/2000 - 12/2001	1
90947-02D12	NZE120,121..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90947-02B47	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90947-02B47	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
31418 - HOSE, CLUTCH
90947-02D12	NZE120,121..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90947-02D12	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 09/2002	1
90947-02B47	NZE121..5F	08/2000 - 12/2001	1
90947-02D12	NZE120,121..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90947-02B47	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90947-02B47	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
31418 - HOSE, CLUTCH
90947-02D12	NZE120,121..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90947-02D12	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 09/2002	1
90947-02B47	NZE121..5F	08/2000 - 12/2001	1
90947-02D12	NZE120,121..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90947-02B47	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90947-02B47	NZE120,121..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12320	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
31481-12320	CE121,NZE120,121,ZZE122,123..MTM	09/2001 - 09/2002	1
31481-12320	NZE120,121,ZZE122,123..MTM	04/2004 - 09/2006	1
31481-12250	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2001	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12300	NZE120,121..5F	12/2001 - 09/2002	1
31482-12300	NZE120,121..5F	04/2004 - 09/2006	1
31482-12180	NZE120,121..5F	08/2000 - 12/2001	1
31482-12300	NZE120,121..5F	09/2002 - 04/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12320	NZE120,121..5F	04/2004 - 09/2006	1
31484-12320	NZE120,121..5F	09/2002 - 04/2004	1
31484-12320	NZE120,121..5F	08/2000 - 09/2002	1
Common parts
90461-08567
90461-08652
90461-08726
90468-08040
91611-B0812
Linked diagrams
3103
3105
7701
