Toyota Corolla/fielder NZE120 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE120-AEMNK (2000)
4804 - REAR SPRING & SHOCK ABSORBER

NZE120-AEMNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 2NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

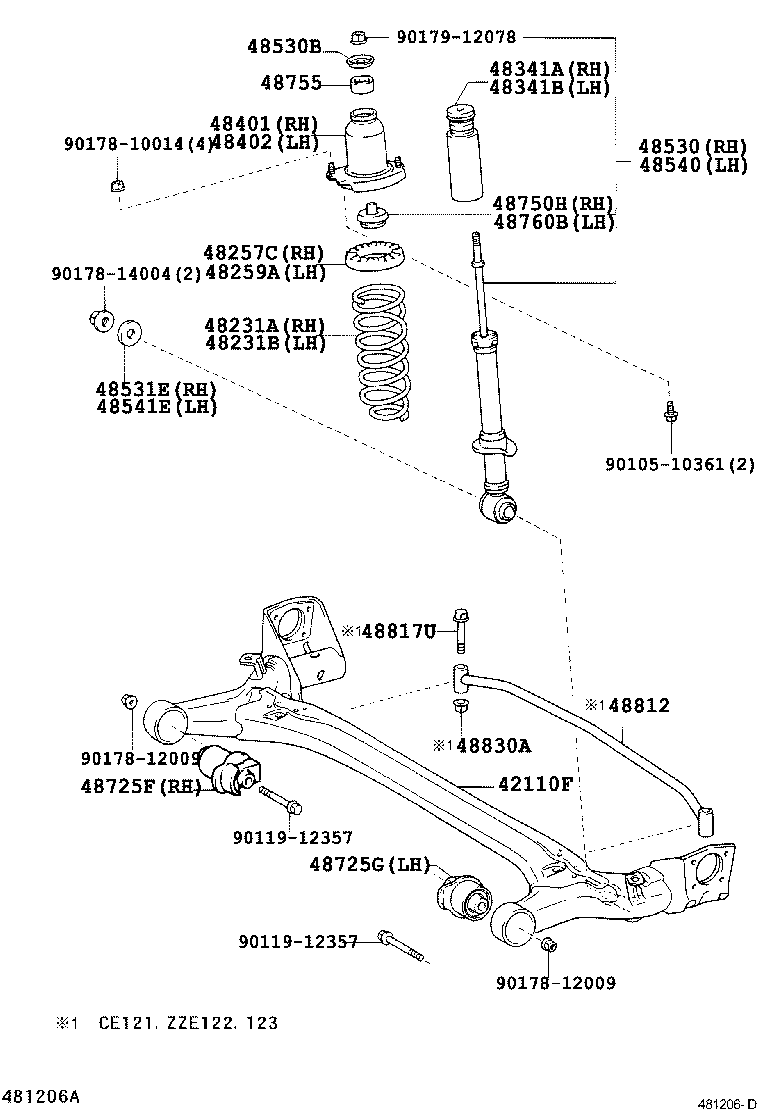

(0008-0104)CE121,NZE120,121,ZZE122,123

Click highlighted areas on diagram

Part #	Description	Period	Qty
42110F - BEAM ASSY, REAR AXLE
42101-32030	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
42101-12140	NZE120,121,ZZE122	04/2004 - 09/2006	1
42101-32030	CE121,NZE120,121,ZZE122	08/2000 - 09/2002	1
48231A - SPRING, COIL, REAR RH
48231-1H530	CE121,NZE120,121,ZZE122..SED	09/2002 - 04/2004	1
48231-1H530	NZE120,121,ZZE122..SED	04/2004 - 09/2006	1
48231-1H530	CE121,NZE120,121,ZZE122..SED	08/2000 - 09/2002	1
48231B - SPRING, COIL, REAR LH
48231-1H530	CE121,NZE120,121,ZZE122..SED	08/2000 - 09/2002	1
48231-1H530	CE121,NZE120,121,ZZE122..SED	09/2002 - 04/2004	1
48231-1H530	NZE120,121,ZZE122..SED	04/2004 - 09/2006	1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-32090	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48257-32090	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48257-32090	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-32090	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48257-32090	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48257-32090	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48341-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48341-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48341-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48341-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48401-32020	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48401-32020	NZE120,121,ZZE122	04/2004 - 09/2006	1
48401-32020	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48403-32010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48403-32010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48403-32010	NZE120,121,ZZE122	04/2004 - 09/2006	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80028	NZE120,121..SED ﾏｰｸ 48530−1A390	08/2000 - 04/2001	1
48530-80046	NZE120,121..SED ﾏｰｸ 48530−1A390	04/2001 - 09/2002	1
48530-80091	NZE120,121..SED ﾏｰｸ 48530−1A610	09/2002 - 11/2003	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	11/2003 - 04/2004	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	04/2004 - 08/2004	1
48530-80270	NZE120,121..SED ﾏｰｸ 48530−12A50	08/2004 - 07/2006	1
48530-80403	NZE120,121..SED ﾏｰｸ 48530−12A51	07/2006 - 09/2006	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03021	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90948-03021	NZE12#,ZZE12#	04/2004 - 09/2006	2
90948-03021	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
90560-14028	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
90560-14028	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
90560-14028	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-80028	NZE120,121..SED ﾏｰｸ 48530−1A390	08/2000 - 04/2001	1
48530-80046	NZE120,121..SED ﾏｰｸ 48530−1A390	04/2001 - 09/2002	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	11/2003 - 04/2004	1
48530-80091	NZE120,121..SED ﾏｰｸ 48530−1A610	09/2002 - 11/2003	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	04/2004 - 08/2004	1
48530-80403	NZE120,121..SED ﾏｰｸ 48530−12A51	07/2006 - 09/2006	1
48530-80270	NZE120,121..SED ﾏｰｸ 48530−12A50	08/2004 - 07/2006	1
48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
90560-14028	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
90560-14028	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
90560-14028	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-12560	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48725-12560	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
48725-12560	NZE120,121,ZZE122	04/2004 - 09/2006	1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-12560	NZE120,121,ZZE122	04/2004 - 09/2006	1
48725-12560	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
48725-12560	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48750-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48750-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48755 - SUPPORT, REAR SUSPENSION
48755-63010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
48755-63010	NZE120,121,ZZE122,123	04/2004 - 09/2006	2
48755-63010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48750-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48750-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
Common parts
90105-10361
90119-12357
90178-10014
90178-12009
90178-14004
90179-12078

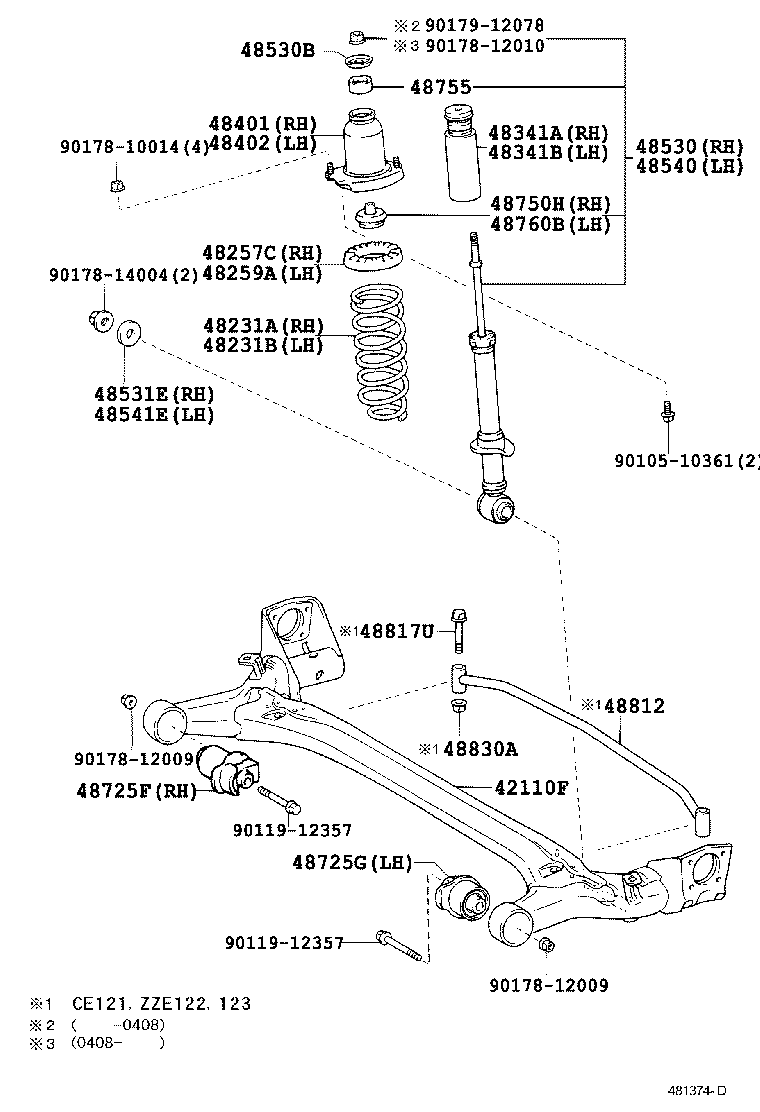

(0104-0404)CE121,NZE120,121,ZZE122,123 ; (0404-)NZE120,121,ZZE122

Click highlighted areas on diagram

Part #	Description	Period	Qty
42110F - BEAM ASSY, REAR AXLE
42101-32030	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
42101-12140	NZE120,121,ZZE122	04/2004 - 09/2006	1
42101-32030	CE121,NZE120,121,ZZE122	08/2000 - 09/2002	1
48231A - SPRING, COIL, REAR RH
48231-1H530	CE121,NZE120,121,ZZE122..SED	09/2002 - 04/2004	1
48231-1H530	NZE120,121,ZZE122..SED	04/2004 - 09/2006	1
48231-1H530	CE121,NZE120,121,ZZE122..SED	08/2000 - 09/2002	1
48231B - SPRING, COIL, REAR LH
48231-1H530	CE121,NZE120,121,ZZE122..SED	08/2000 - 09/2002	1
48231-1H530	CE121,NZE120,121,ZZE122..SED	09/2002 - 04/2004	1
48231-1H530	NZE120,121,ZZE122..SED	04/2004 - 09/2006	1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-32090	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48257-32090	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48257-32090	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-32090	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48257-32090	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48257-32090	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48341-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48341-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48341-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48341-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48401-32020	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48401-32020	NZE120,121,ZZE122	04/2004 - 09/2006	1
48401-32020	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48403-32010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48403-32010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48403-32010	NZE120,121,ZZE122	04/2004 - 09/2006	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80028	NZE120,121..SED ﾏｰｸ 48530−1A390	08/2000 - 04/2001	1
48530-80046	NZE120,121..SED ﾏｰｸ 48530−1A390	04/2001 - 09/2002	1
48530-80091	NZE120,121..SED ﾏｰｸ 48530−1A610	09/2002 - 11/2003	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	11/2003 - 04/2004	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	04/2004 - 08/2004	1
48530-80270	NZE120,121..SED ﾏｰｸ 48530−12A50	08/2004 - 07/2006	1
48530-80403	NZE120,121..SED ﾏｰｸ 48530−12A51	07/2006 - 09/2006	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03021	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90948-03021	NZE12#,ZZE12#	04/2004 - 09/2006	2
90948-03021	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
90560-14028	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
90560-14028	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
90560-14028	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-80028	NZE120,121..SED ﾏｰｸ 48530−1A390	08/2000 - 04/2001	1
48530-80046	NZE120,121..SED ﾏｰｸ 48530−1A390	04/2001 - 09/2002	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	11/2003 - 04/2004	1
48530-80091	NZE120,121..SED ﾏｰｸ 48530−1A610	09/2002 - 11/2003	1
48530-80154	NZE120,121..SED ﾏｰｸ 48530−12A50	04/2004 - 08/2004	1
48530-80403	NZE120,121..SED ﾏｰｸ 48530−12A51	07/2006 - 09/2006	1
48530-80270	NZE120,121..SED ﾏｰｸ 48530−12A50	08/2004 - 07/2006	1
48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
90560-14028	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
90560-14028	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
90560-14028	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-12560	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48725-12560	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
48725-12560	NZE120,121,ZZE122	04/2004 - 09/2006	1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-12560	NZE120,121,ZZE122	04/2004 - 09/2006	1
48725-12560	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
48725-12560	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
48750-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48750-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48755 - SUPPORT, REAR SUSPENSION
48755-63010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
48755-63010	NZE120,121,ZZE122,123	04/2004 - 09/2006	2
48755-63010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-47010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
48750-47010	NZE120,121,ZZE122,123	04/2004 - 09/2006	1
48750-47010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
Common parts
90105-10361
90119-12357
90178-10014
90178-12009
90178-12010
90178-14004
90179-12078

NZE120-AEMNK (2000)

(0008-0104)CE121,NZE120,121,ZZE122,123

(0104-0404)CE121,NZE120,121,ZZE122,123 ; (0404-)NZE120,121,ZZE122
