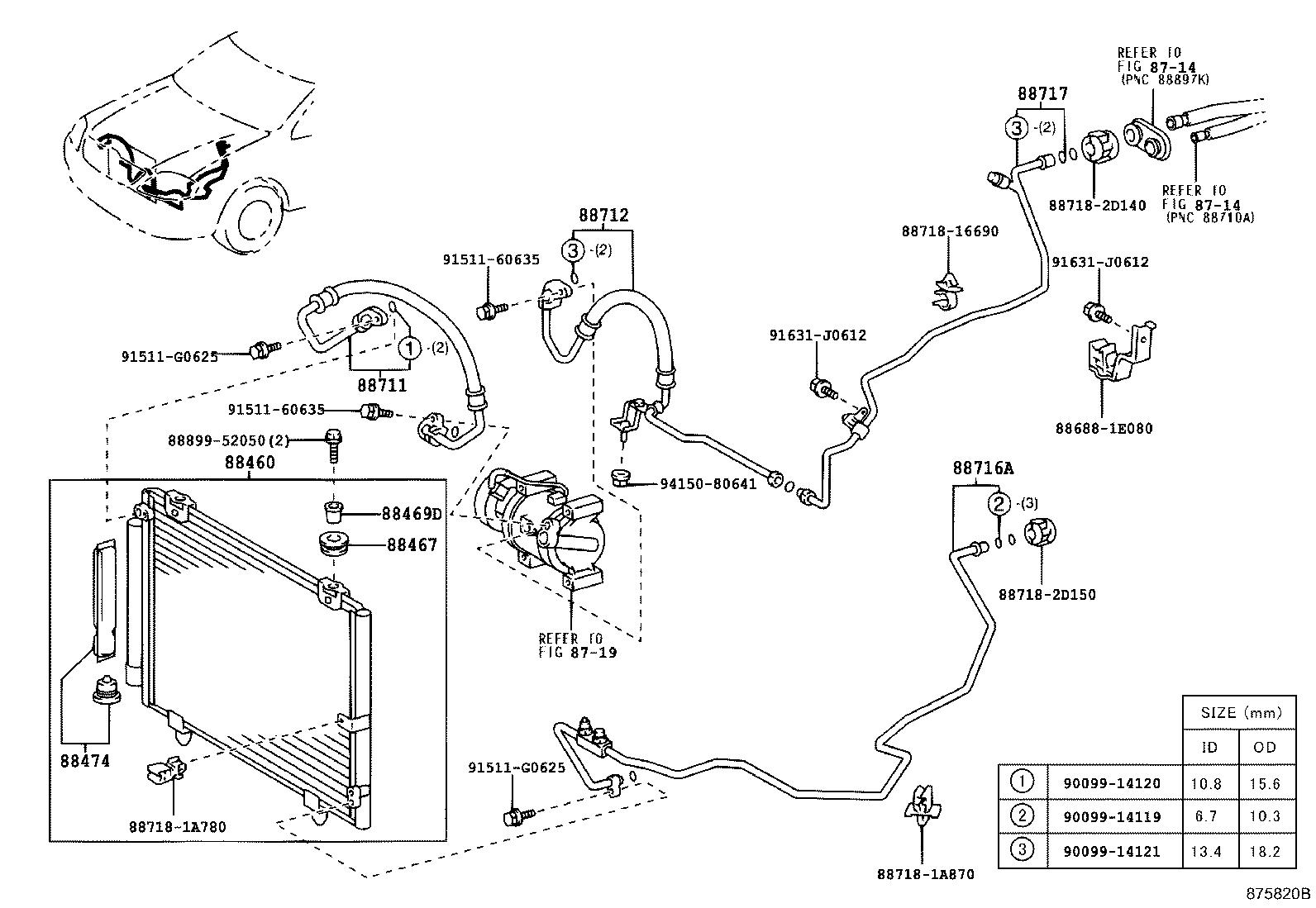

Toyota Corolla/fielder CE121 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88450-12211	CE121;ZZE122..5F	09/2002 - 04/2004	1
88450-12210	ZZE122..5F;CE121,ZZE123	08/2000 - 09/2002	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
88467-12180	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
88469-52010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
88474 - DRYER, COOLER
88474-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
88474-17010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12640	CE121	09/2002 - 04/2004	1
88703-12550	CE121	08/2000 - 09/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12830	CE121	08/2000 - 09/2002	1
88704-12830	CE121	09/2002 - 04/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12510	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
88710-12510	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88710-12520	CE121	09/2002 - 04/2004	1
88710-12520	CE121	08/2000 - 09/2002	1
Common parts
88688-1E080
88718-16690
88718-1A780
88718-1A870
88718-2D140
88718-2D150
88899-52050
90099-14119
90099-14120
90099-14121
91511-60635
91511-G0625
91631-J0612
94150-80641
Linked diagrams
8714
8719

CE121-AEPNE (2000)
