CE121-AEPNE (2000)
Toyota Corolla/Fielder
Production
Aug 2000
-
Apr 2004
Engine
3CE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

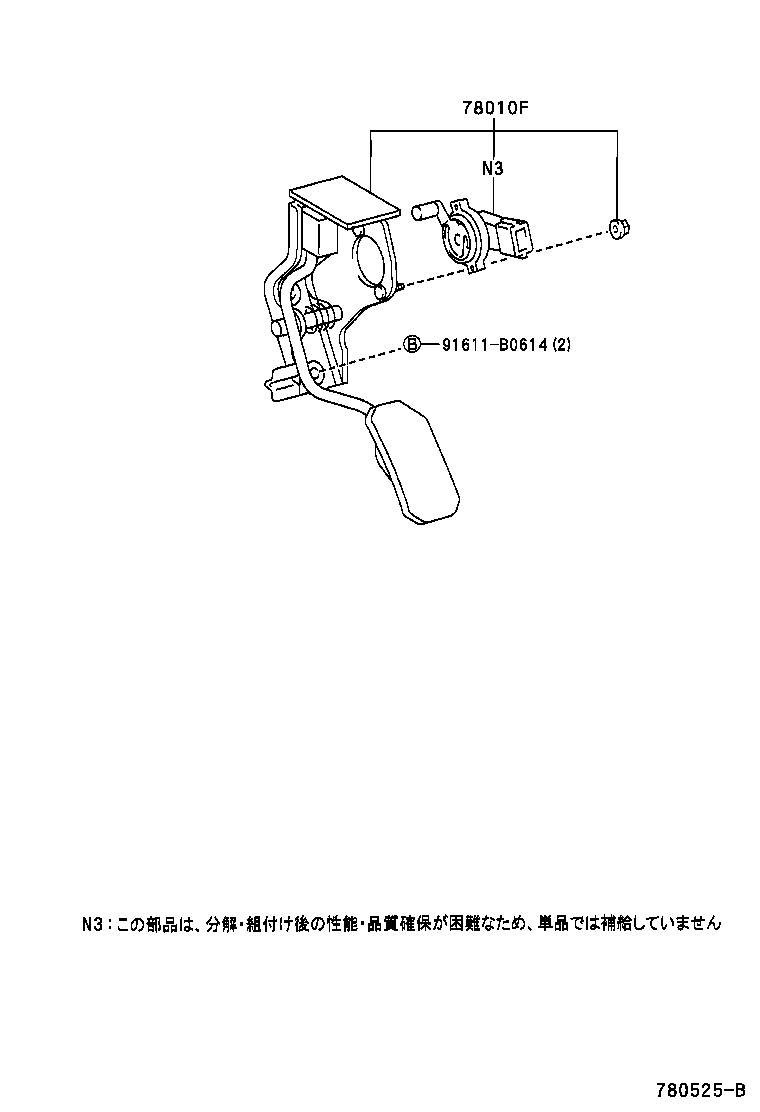

(0008-0209)CE121
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010F - PEDAL ASSY, ACCELERATOR | ||||
| 78010-12150 |
CE121 |
1 | ||
| 78010-12152 |
CE121 |
1 | ||
| 78010-12151 |
CE121 |
1 | ||
| 78010-12151 |
CE121 |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||

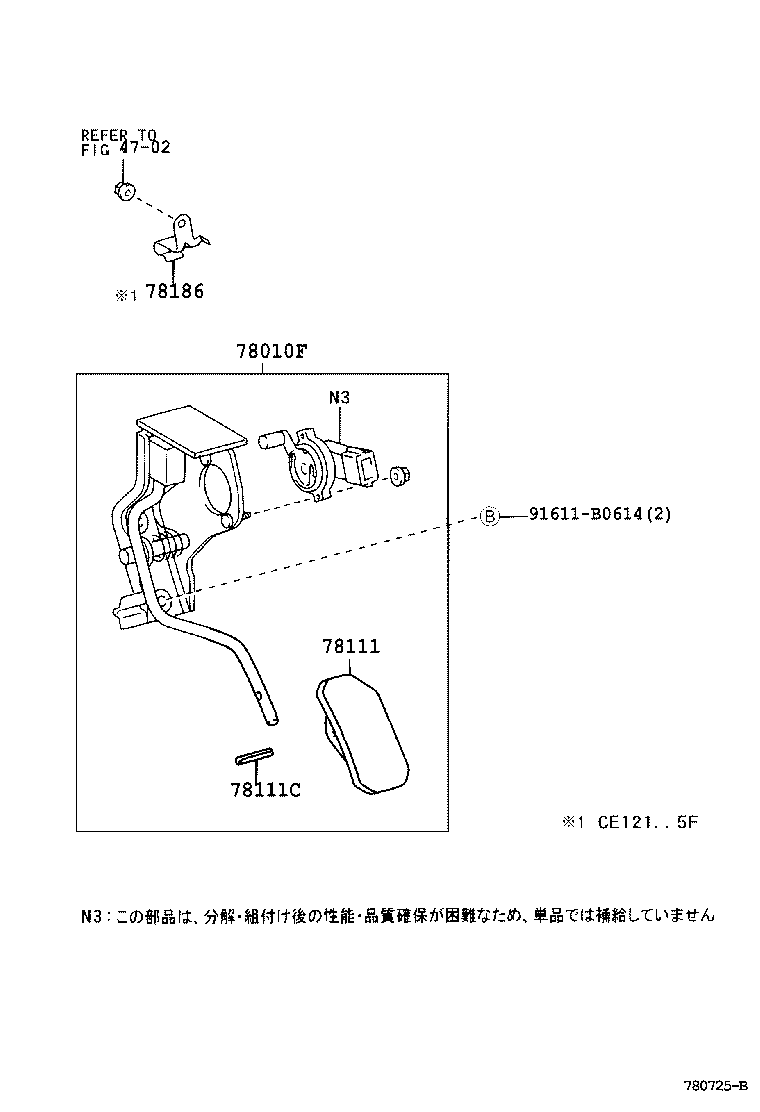

(0209-0404)CE121 ; (0404- )NZE121..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010F - PEDAL ASSY, ACCELERATOR | ||||
| 78010-12150 |
CE121 |
1 | ||
| 78010-12152 |
CE121 |
1 | ||
| 78010-12151 |
CE121 |
1 | ||
| 78010-12151 |
CE121 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
CE121,NZE12#,ZZE12# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
CE121,NZE12#,ZZE12# |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
