CE121-AEPNE (2000)
Toyota Corolla/Fielder

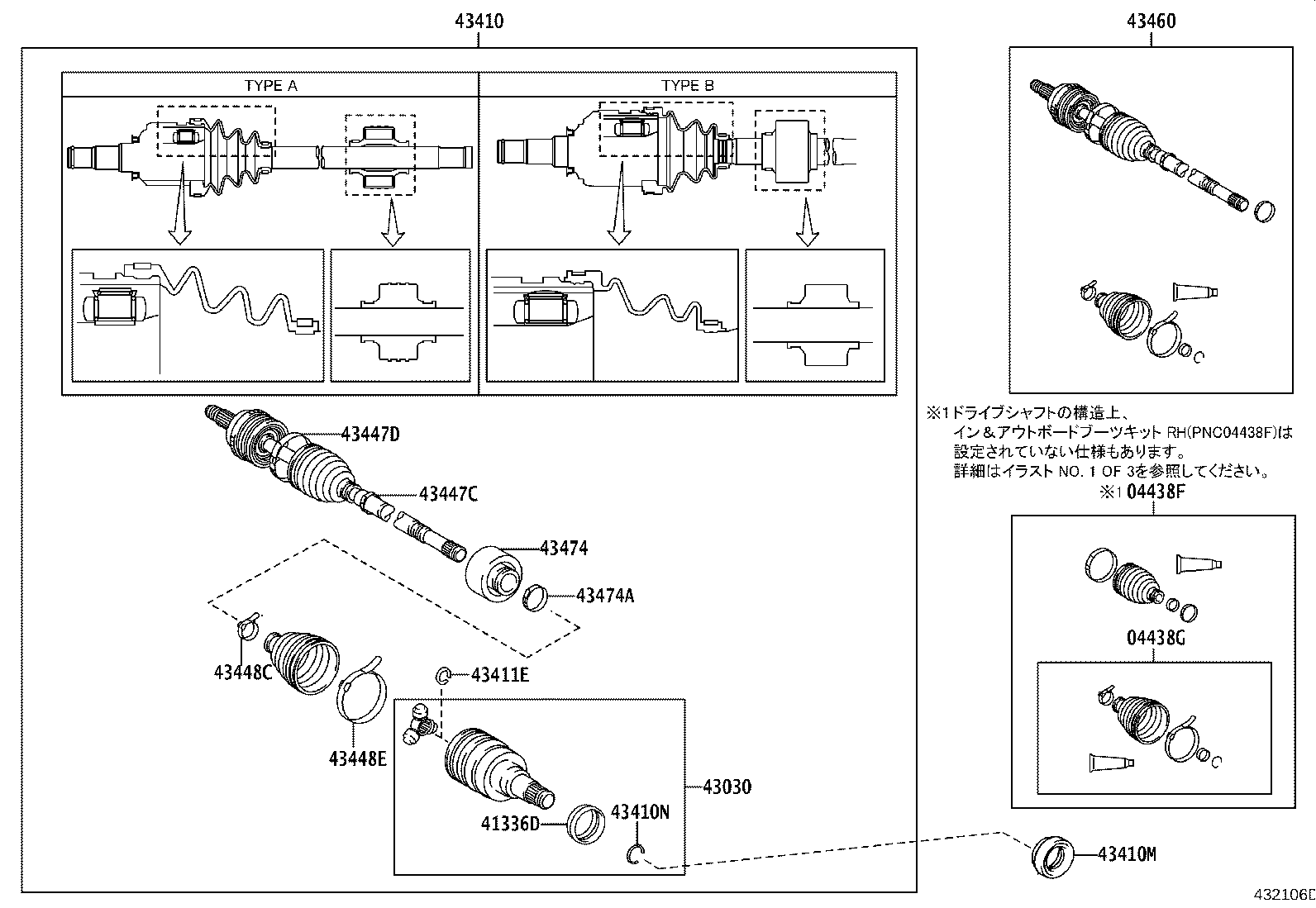

ILLUST NO. 2 OF 3(0008-0404)ZZE122 ; (0008-0404)CE121..4FC
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12481 |
ZZE122;CE121..4FC PNC 43410=TYPE B |
1 | ||
| 04438-12600 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 04438-12481 |
ZZE122;CE121..4FC |
1 | ||
| 04438-12502 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-12501 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-12502 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-12610 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04428-12250 |
ZZE122;CE121..4FC |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12450 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04438-12490 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-32231 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04438-32240 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 04438-42200 |
ZZE122;CE121..4FC |
1 | ||
| 04438-52230 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04438-32240 |
ZZE122;CE121..4FC |
1 | ||
| 04437-52190 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-42200 |
ZZE122;CE121..4FC |
2 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
NZE120,121 |
1 | ||
| 41336-12060 |
CE121..4FC |
1 | ||
| 41336-12060 |
ZZE122;CE121..4FC |
1 | ||
| 41336-12010 |
NZE120,121 |
1 | ||
| 41336-32010 |
CE121..4FC |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20020 |
CE121..4FC (J) |
1 | ||
| 43403-10011 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43030-02030 |
CE121..4FC (L) |
1 | ||
| 43030-20020 |
CE121..4FC (J) |
1 | ||
| 43030-02030 |
CE121..4FC (L) |
1 | ||
| 43403-12040 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43403-12040 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43403-10011 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-02230 |
CE121..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12490 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12680 |
CE121..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12660 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410-02230 |
CE121..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12490 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12680 |
CE121..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12660 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35045 |
CE121,ZZE122..4FC |
1 | ||
| 90311-35045 |
CE121,ZZE122..4FC |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-27005 |
ZZE122;CE121..4FC |
1 | ||
| 90521-26004 |
NZE120,121 |
1 | ||
| 90521-27005 |
CE121..4FC |
1 | ||
| 90521-26004 |
NZE120,121 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
CE121,NZE124,ZZE124..4FC |
1 | ||
| 90520-22005 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90520-22005 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 90520-22001 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 90520-22001 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 90520-22005 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 42345-12150 |
CE121..4FC |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
CE121..4FC |
1 | ||
| 42345-12140 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-52100 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-52100 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12140 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-12140 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90949-01078 |
NZE120,121 |
1 | ||
| 90949-01078 |
CE121..4FC;NZE120,121,ZZE122 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-12160 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90949-01146 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12160 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-12160 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90949-01146 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09440 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43460-09470 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43460-80004 |
ZZE122;CE121..4FC PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43460-80001 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43460-80004 |
ZZE122;CE121..4FC PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43460-80001 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43460-09470 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12040 |
CE121..4FC |
1 | ||
| 43474-52030 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43474-12040 |
CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B |
1 | ||
| 43474-12040 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43474-12130 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43474-12130 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
NZE120,121 |
1 | ||
| 42345-14010 |
CE121,NZE120,121,ZZE122 |
1 | ||
| 42345-14010 |
CE121 |
1 | ||
ILLUST NO. 3 OF 3(0008-0404)ZZE122 ; (0008-0404)CE121..4FC
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12501 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12481 |
ZZE122;CE121..4FC PNC 43420=TYPE A |
1 | ||
| 04438-12600 |
ZZE122;CE121..4FC PNC 43420=TYPE B |
1 | ||
| 04438-12610 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12502 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12481 |
ZZE122;CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04427-52260 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12610 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12502 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12640 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12450 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 04438-12490 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 04438-52230 |
NZE120,121 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04438-52230 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 04438-42200 |
ZZE122;CE121..4FC |
1 | ||
| 04438-52030 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 04438-32240 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 04438-32240 |
ZZE122;CE121..4FC |
1 | ||
| 04438-32231 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 04437-52190 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 41336-12060 |
CE121,ZZE123,124..4FC |
1 | ||
| 41336-12060 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-10011 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 43040-32040 |
ZZE122;CE121..4FC (J) |
1 | ||
| 43403-02040 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43403-12040 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43403-10011 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43040-02020 |
ZZE122;CE121..4FC (L) |
1 | ||
| 43040-02020 |
CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(L) |
1 | ||
| 43403-10011 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 43040-32040 |
ZZE122;CE121..4FC TYPE A OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43403-12040 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 90520-22001 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90520-22001 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90520-22005 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 90520-22005 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90520-22001 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 90520-22005 |
CE121,ZZE124..4FC |
1 | ||
| 90520-22005 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02260 |
CE121..4FC (L) |
1 | ||
| 43420-12600 |
CE121..4FC (J) |
1 | ||
| 43420-02260 |
CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43420-12420 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43420-12580 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43420-12580 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43420-12600 |
CE121..4FC TYPE A OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43420-12420 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ZZE122;CE121,ZZE123,124..4FC,6F |
1 | ||
| 90521-27005 |
CE121,ZZE123,124..4FC,6F |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35046 |
CE121,ZZE122,124..4FC |
1 | ||
| 90311-35046 |
CE121,ZZE122,124..4FC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12150 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42345-12150 |
CE121..4FC 内径=30.4 |
1 | ||
| 42345-12150 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42345-52110 |
NZE120,121 有り(ABS) |
2 | ||
| 42345-12150 |
CE121,ZZE124..4FC |
1 | ||
| 42345-52110 |
NZE120,121 有り(ABS) |
1 | ||
| 42345-12150 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 42345-20040 |
ZZE122;CE121..4FC 内径=33.9 |
1 | ||
| 42345-52110 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52100 |
NZE120,121 有り(ABS) |
2 | ||
| 42345-12140 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42345-28020 |
ZZE122;CE121..4FC 内径=98.6 |
1 | ||
| 42345-12140 |
CE121..4FC 内径=92.0 |
1 | ||
| 42345-52100 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 42345-12140 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42345-52100 |
NZE120,121 有り(ABS) |
1 | ||
| 42345-12140 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 42345-12140 |
CE121,ZZE124..4FC |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
CE121..4FC;NZE120,121 |
1 | ||
| 90949-01078 |
NZE120,121 TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 90949-01078 |
NZE120,121 TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 42345-12160 |
NZE120,121 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90949-01078 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
NZE120,121 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 42345-12160 |
NZE120,121 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 90949-01146 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 90949-01146 |
NZE120,121 TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 42345-12160 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 42345-12160 |
CE121..4FC TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-12160 |
CE121,ZZE124..4FC TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-12160 |
NZE120,121 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09670 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 43470-09720 |
CE121..4FC (L),PNC 43420=TYPE B |
1 | ||
| 43470-80003 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 43470-80018 |
NZE120,121 PNC 43420=TYPE B |
1 | ||
| 43470-80019 |
CE121..4FC (J),PNC 43420=TYPE B |
1 | ||
| 43470-09720 |
CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(L) |
1 | ||
| 43470-80019 |
CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(J) |
1 | ||
| 43470-80018 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43470-09670 |
NZE120,121 (L),PNC 43420=TYPE B |
1 | ||
| 43470-80003 |
NZE120,121 PNC 43420=TYPE A |
1 | ||
| 43470-80018 |
NZE120,121 (J),PNC 43420=TYPE B |
1 | ||
| 43470-80019 |
CE121..4FC (J) |
1 | ||
| 43470-09720 |
CE121..4FC (L) |
1 | ||
| 43470-80003 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
ILLUST NO. 1 OF 3(0008- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(0008-0404)NZE120,121
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12481 |
ZZE122;CE121..4FC PNC 43410=TYPE B |
1 | ||
| 04438-12600 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 04438-12481 |
ZZE122;CE121..4FC |
1 | ||
| 04438-12502 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-12501 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-12502 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-12610 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04428-12250 |
ZZE122;CE121..4FC |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12450 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04438-12490 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-32231 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04438-32240 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 04438-42200 |
ZZE122;CE121..4FC |
1 | ||
| 04438-52230 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 04438-32240 |
ZZE122;CE121..4FC |
1 | ||
| 04437-52190 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 04438-42200 |
ZZE122;CE121..4FC |
2 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
NZE120,121 |
1 | ||
| 41336-12060 |
CE121..4FC |
1 | ||
| 41336-12060 |
ZZE122;CE121..4FC |
1 | ||
| 41336-12010 |
NZE120,121 |
1 | ||
| 41336-32010 |
CE121..4FC |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20020 |
CE121..4FC (J) |
1 | ||
| 43403-10011 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43030-02030 |
CE121..4FC (L) |
1 | ||
| 43030-20020 |
CE121..4FC (J) |
1 | ||
| 43030-02030 |
CE121..4FC (L) |
1 | ||
| 43403-12040 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43403-12040 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43403-10011 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-02230 |
CE121..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12490 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12680 |
CE121..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12660 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410-02230 |
CE121..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12490 |
NZE120,121 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12680 |
CE121..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410-12660 |
NZE120,121 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35045 |
CE121,ZZE122..4FC |
1 | ||
| 90311-35045 |
CE121,ZZE122..4FC |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-27005 |
ZZE122;CE121..4FC |
1 | ||
| 90521-26004 |
NZE120,121 |
1 | ||
| 90521-27005 |
CE121..4FC |
1 | ||
| 90521-26004 |
NZE120,121 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
CE121,NZE124,ZZE124..4FC |
1 | ||
| 90520-22005 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90520-22005 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 90520-22001 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 90520-22001 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 90520-22005 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 42345-12150 |
CE121..4FC |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
CE121..4FC |
1 | ||
| 42345-12140 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-52100 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-52100 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12140 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-12140 |
ZZE122;CE121,ZZE124..4FC |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90949-01078 |
NZE120,121 |
1 | ||
| 90949-01078 |
CE121..4FC;NZE120,121,ZZE122 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-12160 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90949-01146 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 42345-12160 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 42345-12160 |
ZZE122;CE121,NZE124,ZZE124..4FC |
1 | ||
| 90949-01146 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09440 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43460-09470 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43460-80004 |
ZZE122;CE121..4FC PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43460-80001 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43460-80004 |
ZZE122;CE121..4FC PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43460-80001 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43460-09470 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12040 |
CE121..4FC |
1 | ||
| 43474-52030 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43474-12040 |
CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B |
1 | ||
| 43474-12040 |
NZE120,121 PNC 43410=TYPE B |
1 | ||
| 43474-12130 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE120,121 PNC 43410=TYPE A |
1 | ||
| 43474-12130 |
ZZE122;CE121..4FC PNC 43410=TYPE A |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
NZE120,121 |
1 | ||
| 42345-14010 |
CE121,NZE120,121,ZZE122 |
1 | ||
| 42345-14010 |
CE121 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
