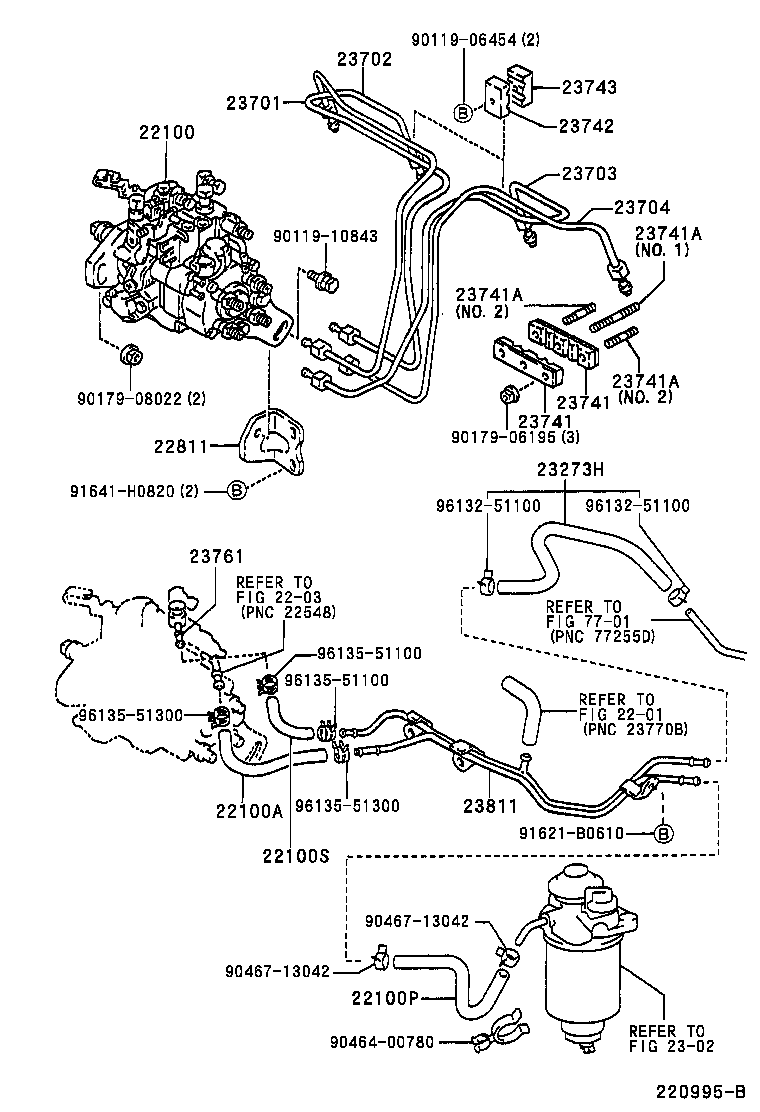

Toyota Corolla/fielder CE121 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-6E210	3CE..CE121	08/2000 - 09/2002	1
22100-6E210	3CE..CE121	09/2002 - 04/2004	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23273-64030	3CE..CE121	08/2000 - 09/2002	1
23273-64030	3CE..CE121	09/2002 - 04/2004	1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
23271-64300	3CE..CE121	08/2000 - 09/2002	1
23271-64300	3CE..CE121	09/2002 - 04/2004	1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23274-64020	3CE..CE121	08/2000 - 09/2002	1
23274-64020	3CE..CE121	09/2002 - 04/2004	1
22811 - STAY, INJECTION PUMP, NO.1
22811-64020	3CE..CE121	08/2000 - 09/2002	1
22811-64020	3CE..CE121	09/2002 - 04/2004	1
23273H - HOSE, FUEL, NO.2
23273-64150	3CE..CE121	08/2000 - 09/2002	1
23273-64150	3CE..CE121	09/2002 - 04/2004	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64110	3CE..CE121	09/2002 - 04/2004	1
23701-64110	3CE..CE121	10/2001 - 09/2002	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64110	3CE..CE121	10/2001 - 09/2002	1
23702-64110	3CE..CE121	09/2002 - 04/2004	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64090	3CE..CE121	09/2002 - 04/2004	1
23703-64090	3CE..CE121	10/2001 - 09/2002	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64110	3CE..CE121	09/2002 - 04/2004	1
23704-64110	3CE..CE121	10/2001 - 09/2002	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64011	3CE..CE121	09/2002 - 04/2004	2
23741-64011	3CE..CE121	06/2002 - 09/2002	2
23741-64010	3CE..CE121	08/2000 - 06/2002	2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64011	3CE..CE121	09/2002 - 04/2004	2
23741-64011	3CE..CE121	06/2002 - 09/2002	2
23741-64010	3CE..CE121	08/2000 - 06/2002	2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622	3CE..CE121 NO.2	08/2000 - 09/2002	2
90116-06275	3CE..CE121 NO.1	08/2000 - 09/2002	1
92122-60622	3CE..CE121 NO.2	09/2002 - 04/2004	2
90116-06275	3CE..CE121 NO.1	09/2002 - 04/2004	1
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622	3CE..CE121 NO.2	08/2000 - 09/2002	2
90116-06275	3CE..CE121 NO.1	08/2000 - 09/2002	1
92122-60622	3CE..CE121 NO.2	09/2002 - 04/2004	2
90116-06275	3CE..CE121 NO.1	09/2002 - 04/2004	1
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622	3CE..CE121 NO.2	08/2000 - 09/2002	2
90116-06275	3CE..CE121 NO.1	08/2000 - 09/2002	1
92122-60622	3CE..CE121 NO.2	09/2002 - 04/2004	2
90116-06275	3CE..CE121 NO.1	09/2002 - 04/2004	1
23742 - CLAMP, INJECTION PIPE, NO.2
23741-54010	3CE..CE121	08/2000 - 09/2002	2
23741-54010	3CE..CE121	09/2002 - 04/2004	2
23743 - CLAMP, INJECTION PIPE, NO.3
23742-54010	3CE..CE121	09/2002 - 04/2004	2
23742-54010	3CE..CE121	08/2000 - 09/2002	2
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23764-64110	3CE..CE121	09/2002 - 04/2004	1
23764-64110	3CE..CE121	08/2000 - 09/2002	1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-64120	3CE..CE121	08/2000 - 09/2002	1
23811-64120	3CE..CE121	09/2002 - 04/2004	1
Common parts
90119-06454
90119-10843
90179-06195
90179-08022
90464-00780
90467-13042
91621-B0610
91641-H0820
96132-51100
96135-51100
96135-51300
Linked diagrams
2201
2203
2302
7701

CE121-AEPNE (2000)

(0008- )3CE
