CE121-AEPNE (2000)
Toyota Corolla/Fielder

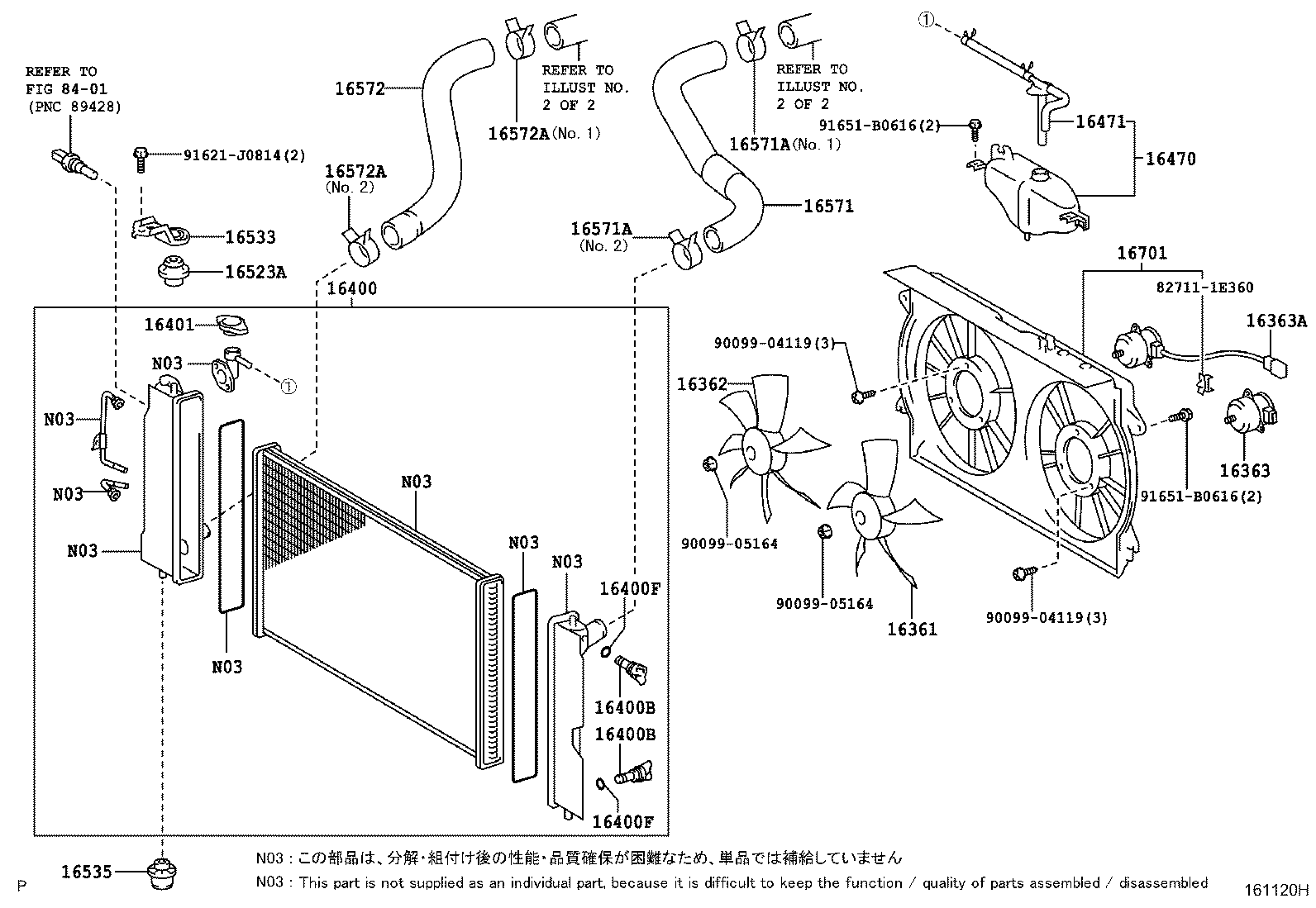

ILLUST NO. 1 OF 2(0008- )3CE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-64110 |
3CE..CE121..4FC |
1 | ||
| 16361-64110 |
3CE..CE121..4FC |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16361-22080 |
3CE..CE121..4FC |
1 | ||
| 16361-22080 |
3CE..CE121 |
2 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-70010 |
3CE..CE121..4FC |
1 | ||
| 16363-70010 |
3CE..CE121..4FC |
1 | ||
| 16363-64240 |
3CE..CE121..4FC |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-64200 |
3CE..CE121 |
1 | ||
| 16363-64230 |
3CE..CE121 |
1 | ||
| 16363-64200 |
3CE..CE121 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A300 |
3CE..CE121..4FC |
1 | ||
| 16400-6A300 |
3CE..CE121..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3CE..CE121 |
2 | ||
| 23322-54010 |
3CE..CE121 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3CE..CE121 |
2 | ||
| 23322-54010 |
3CE..CE121 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3CE..CE121 |
2 | ||
| 16492-21050 |
3CE..CE121 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3CE..CE121 |
2 | ||
| 16492-21050 |
3CE..CE121 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3CE..CE121 |
1 | ||
| 16401-72090 |
3CE..CE121 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64270 |
3CE..CE121 |
1 | ||
| 16470-64270 |
3CE..CE121 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-64110 |
3CE..CE121 |
1 | ||
| 16405-64110 |
3CE..CE121 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21020 |
3CE..CE121 |
2 | ||
| 16523-21020 |
3CE..CE121 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
3CE..CE121 |
2 | ||
| 16533-21020 |
3CE..CE121 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-27010 |
3CE..CE121 |
2 | ||
| 16504-64010 |
3CE..CE121 |
2 | ||
| 16535-27010 |
3CE..CE121 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64370 |
3CE..CE121 |
1 | ||
| 16571-64370 |
3CE..CE121 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 90466-41008 |
3CE..CE121 NO.2 |
1 | ||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 90467-41002 |
3CE..CE121 NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 90466-41008 |
3CE..CE121 NO.2 |
1 | ||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 90467-41002 |
3CE..CE121 NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64350 |
3CE..CE121 |
1 | ||
| 16572-64350 |
3CE..CE121 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41002 |
3CE..CE121 NO.2 |
1 | ||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 90466-41008 |
3CE..CE121 NO.2 |
1 | ||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41002 |
3CE..CE121 NO.2 |
1 | ||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 90466-41008 |
3CE..CE121 NO.2 |
1 | ||
| 90467-37005 |
3CE..CE121 NO.1 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64520 |
3CE..CE121 |
1 | ||
| 16711-27120 |
3CE..CE121 |
1 | ||
| 16711-27120 |
3CE..CE121 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91621-J0814 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

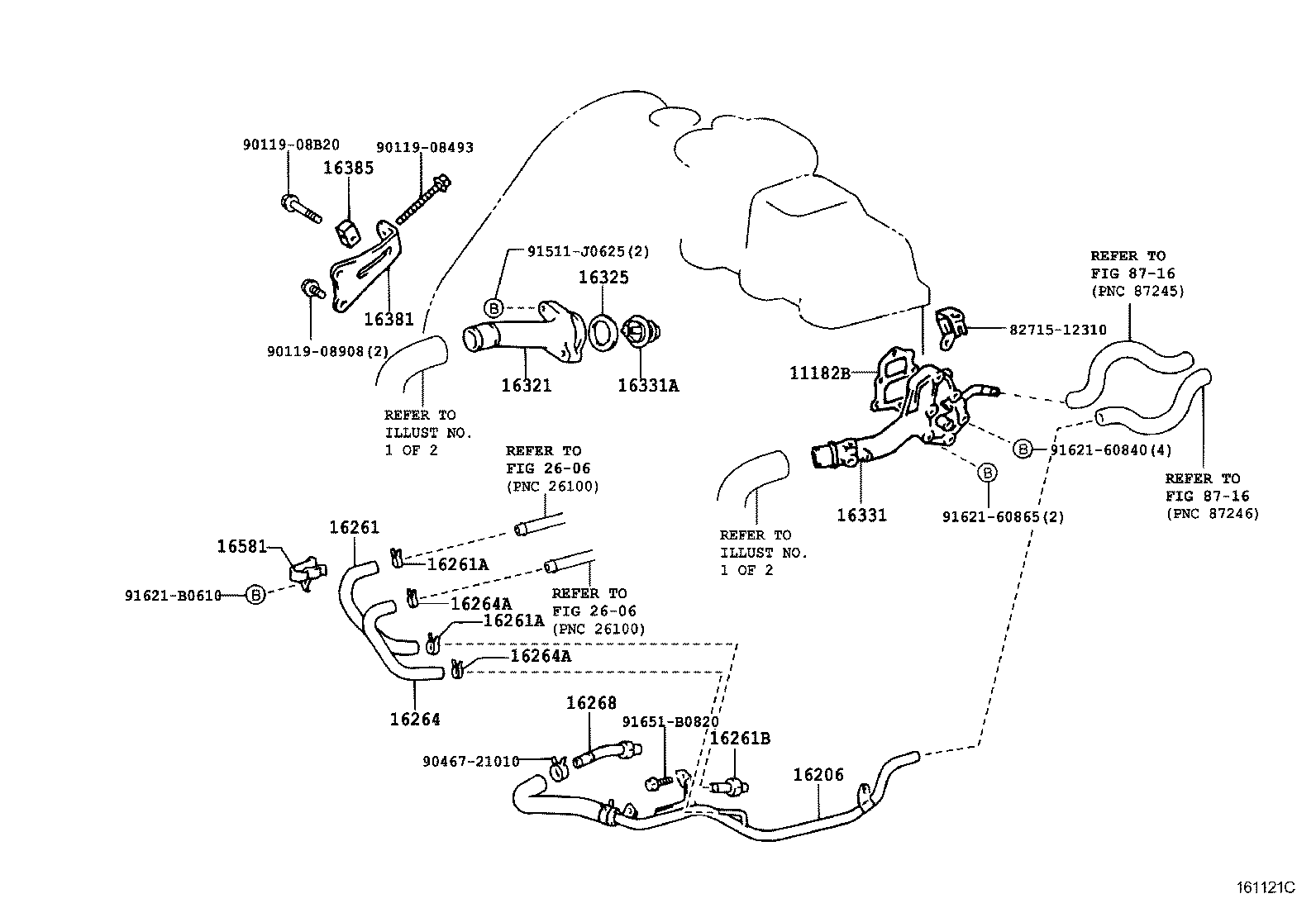

ILLUST NO. 2 OF 2(0008- )3CE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11182B - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
3CE..CE121 |
1 | ||
| 11182-64021 |
3CE..CE121 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-64070 |
3CE..CE121 |
1 | ||
| 16206-64070 |
3CE..CE121 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64140 |
3CE..CE121 |
1 | ||
| 16261-64140 |
3CE..CE121 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3CE..CE121 |
1 | ||
| 90467-15022 |
3CE..CE121 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3CE..CE121 |
1 | ||
| 90467-15022 |
3CE..CE121 |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53059 |
3CE..CE121 |
1 | ||
| 90404-53059 |
3CE..CE121 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64160 |
3CE..CE121 |
1 | ||
| 16264-64160 |
3CE..CE121 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
3CE..CE121 |
3 | ||
| 90467-13128 |
3CE..CE121 |
3 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
3CE..CE121 |
3 | ||
| 90467-13128 |
3CE..CE121 |
3 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64100 |
3CE..CE121 |
1 | ||
| 16268-64100 |
3CE..CE121 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
3CE..CE121 |
1 | ||
| 16321-64020 |
3CE..CE121 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CE..CE121 |
1 | ||
| 16325-63011 |
3CE..CE121 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64150 |
3CE..CE121 |
1 | ||
| 16331-64150 |
3CE..CE121 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CE..CE121 *WAX 82−95 |
1 | ||
| 90916-03046 |
3CE..CE121 *WAX 82−95 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64180 |
3CE..CE121 |
1 | ||
| 16381-64180 |
3CE..CE121 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
3CE..CE121 |
1 | ||
| 16385-64011 |
3CE..CE121 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-64010 |
3CE..CE121 |
1 | ||
| 16581-64010 |
3CE..CE121 |
1 | ||
| Common parts | ||||
| 82715-12310 | ||||
| 90119-08493 | ||||
| 90119-08908 | ||||
| 90119-08B20 | ||||
| 90467-21010 | ||||
| 91511-J0625 | ||||
| 91621-60840 | ||||
| 91621-60865 | ||||
| 91621-B0610 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 2606 | ||||
| 8716 | ||||
