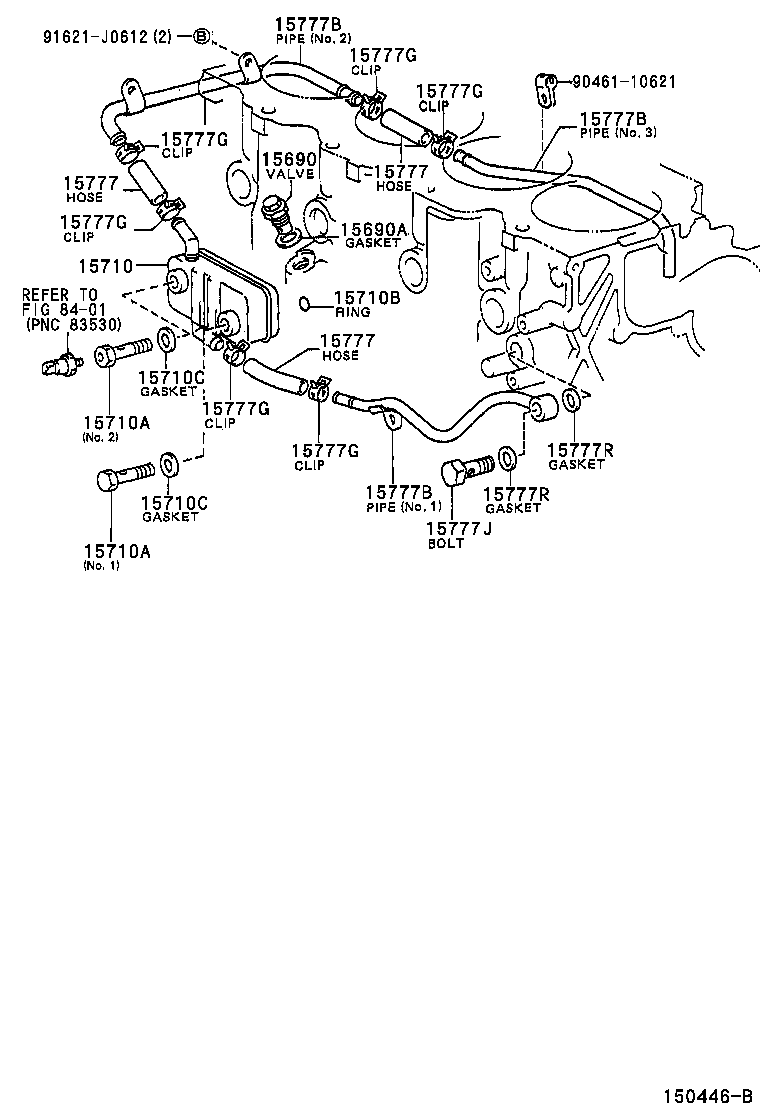

Toyota Corolla/fielder CE121 ENGINE OIL COOLER

Part #	Description	Period	Qty
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-64010	3CE..CE121	09/2002 - 04/2004	1
15690-64010	3CE..CE121	08/2000 - 09/2002	1
15690A - GASKET(FOR OIL COOLER RELIEF VALVE)
90430-22003	3CE..CE121	09/2002 - 04/2004	1
90430-22003	3CE..CE121	08/2000 - 09/2002	1
15710 - COOLER ASSY, OIL
15710-64010	3CE..CE121	09/2002 - 04/2004	1
15710-64010	3CE..CE121	08/2000 - 09/2002	1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18009	3CE..CE121 NO.1	09/2002 - 04/2004	1
90401-18011	3CE..CE121 NO.2	09/2002 - 04/2004	1
90401-18009	3CE..CE121 NO.1	08/2000 - 09/2002	1
90401-18011	3CE..CE121 NO.2	08/2000 - 09/2002	1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18009	3CE..CE121 NO.1	09/2002 - 04/2004	1
90401-18011	3CE..CE121 NO.2	09/2002 - 04/2004	1
90401-18009	3CE..CE121 NO.1	08/2000 - 09/2002	1
90401-18011	3CE..CE121 NO.2	08/2000 - 09/2002	1
15710B - RING, O(FOR OIL COOLER)
90301-22004	3CE..CE121	09/2002 - 04/2004	2
90301-22004	3CE..CE121	08/2000 - 09/2002	2
15710C - GASKET(FOR OIL COOLER)
90430-18021	3CE..CE121	08/2000 - 09/2002	2
90430-18021	3CE..CE121	09/2002 - 04/2004	2
15710C - GASKET(FOR OIL COOLER)
90430-18021	3CE..CE121	08/2000 - 09/2002	2
90430-18021	3CE..CE121	09/2002 - 04/2004	2
15777 - HOSE, OIL COOLER
90445-21006	3CE..CE121	09/2002 - 04/2004	3
90445-21006	3CE..CE121	08/2000 - 09/2002	3
15777 - HOSE, OIL COOLER
90445-21006	3CE..CE121	09/2002 - 04/2004	3
90445-21006	3CE..CE121	08/2000 - 09/2002	3
15777 - HOSE, OIL COOLER
90445-21006	3CE..CE121	09/2002 - 04/2004	3
90445-21006	3CE..CE121	08/2000 - 09/2002	3
15777B - PIPE, OIL COOLER
15769-64011	3CE..CE121 NO.3	09/2002 - 04/2004	1
15767-64011	3CE..CE121 NO.2	09/2002 - 04/2004	1
15768-64071	3CE..CE121 NO.1	08/2000 - 09/2002	1
15767-64011	3CE..CE121 NO.2	08/2000 - 09/2002	1
15768-64071	3CE..CE121 NO.1	09/2002 - 04/2004	1
15769-64011	3CE..CE121 NO.3	08/2000 - 09/2002	1
15777B - PIPE, OIL COOLER
15769-64011	3CE..CE121 NO.3	09/2002 - 04/2004	1
15767-64011	3CE..CE121 NO.2	09/2002 - 04/2004	1
15768-64071	3CE..CE121 NO.1	08/2000 - 09/2002	1
15767-64011	3CE..CE121 NO.2	08/2000 - 09/2002	1
15768-64071	3CE..CE121 NO.1	09/2002 - 04/2004	1
15769-64011	3CE..CE121 NO.3	08/2000 - 09/2002	1
15777B - PIPE, OIL COOLER
15769-64011	3CE..CE121 NO.3	09/2002 - 04/2004	1
15767-64011	3CE..CE121 NO.2	09/2002 - 04/2004	1
15768-64071	3CE..CE121 NO.1	08/2000 - 09/2002	1
15767-64011	3CE..CE121 NO.2	08/2000 - 09/2002	1
15768-64071	3CE..CE121 NO.1	09/2002 - 04/2004	1
15769-64011	3CE..CE121 NO.3	08/2000 - 09/2002	1
15777G - CLAMP OR CRIP, HOSE
96134-41900	3CE..CE121	09/2002 - 04/2004	6
96134-41900	3CE..CE121	08/2000 - 09/2002	6
15777G - CLAMP OR CRIP, HOSE
96134-41900	3CE..CE121	09/2002 - 04/2004	6
96134-41900	3CE..CE121	08/2000 - 09/2002	6
15777G - CLAMP OR CRIP, HOSE
96134-41900	3CE..CE121	09/2002 - 04/2004	6
96134-41900	3CE..CE121	08/2000 - 09/2002	6
15777G - CLAMP OR CRIP, HOSE
96134-41900	3CE..CE121	09/2002 - 04/2004	6
96134-41900	3CE..CE121	08/2000 - 09/2002	6
15777G - CLAMP OR CRIP, HOSE
96134-41900	3CE..CE121	09/2002 - 04/2004	6
96134-41900	3CE..CE121	08/2000 - 09/2002	6
15777G - CLAMP OR CRIP, HOSE
96134-41900	3CE..CE121	09/2002 - 04/2004	6
96134-41900	3CE..CE121	08/2000 - 09/2002	6
15777J - BOLT, UNION(FOR OIL COOLER PIPE)
90401-20004	3CE..CE121	09/2002 - 04/2004	1
90401-20004	3CE..CE121	08/2000 - 09/2002	1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014	3CE..CE121	09/2002 - 04/2004	2
90430-20014	3CE..CE121	08/2000 - 09/2002	2
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014	3CE..CE121	09/2002 - 04/2004	2
90430-20014	3CE..CE121	08/2000 - 09/2002	2
Common parts
90461-10621
91621-J0612
Linked diagrams
8401

CE121-AEPNE (2000)

(0008- )3CE
