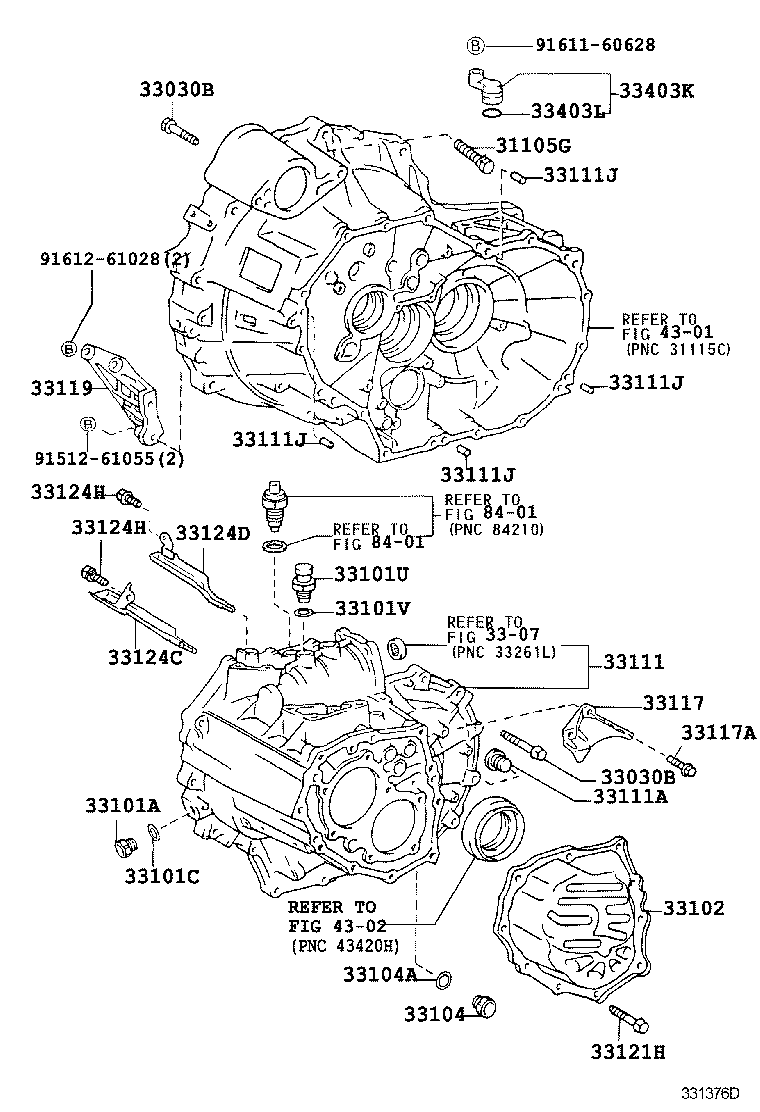

Toyota Corolla/fielder CE121 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050	NZE120,121..5F *10−1.25PX50−30	08/2000 - 09/2002	7
91641-H0820	CE121..5F *8−1.25PX20−20	08/2000 - 09/2002	1
90105-10077	CE121..5F *10−1.25PX43−26	08/2000 - 09/2002	1
90105-10077	CE121..5F *10−1.25PX43−26	09/2002 - 04/2004	1
91612-61050	NZE120,121..5F *10−1.25PX50−30	09/2002 - 04/2004	7
90119-12168	CE121..5F *12−1.25PX55−30	08/2000 - 09/2002	3
91641-H0820	CE121..5F *8−1.25PX20−20	09/2002 - 04/2004	1
90119-12168	CE121..5F *12−1.25PX55−30	09/2002 - 04/2004	3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126	CE121..5F *8−1.25PX45−27.5	08/2000 - 09/2002	17
90105-08126	CE121..5F *8−1.25PX45−27.5	09/2002 - 04/2004	17
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126	CE121..5F *8−1.25PX45−27.5	08/2000 - 09/2002	17
90105-08126	CE121..5F *8−1.25PX45−27.5	09/2002 - 04/2004	17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	NZE120,121,ZZE122..5F	08/2000 - 09/2002	1
90341-18033	CE121..5F	08/2000 - 09/2002	1
90341-18006	NZE120,121,ZZE122..5F	09/2002 - 04/2004	1
90341-18033	CE121..5F	09/2002 - 04/2004	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03148	CE121..5F	08/2000 - 09/2002	1
90930-03148	CE121..5F	09/2002 - 04/2004	1
33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
90430-18008	CE121..5F	08/2000 - 09/2002	1
90430-18008	CE121..5F	09/2002 - 04/2004	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12041	CE121..5F	08/2000 - 09/2002	1
33102-12041	CE121..5F	09/2002 - 06/2003	1
33102-12042	CE121..5F	06/2003 - 04/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
90341-18006	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90430-18008	CE121,NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
33111 - CASE, MANUAL TRANSMISSION
33101-20090	CE121..5F	01/2003 - 04/2004	1
33101-28041	CE121..5F	07/2001 - 09/2002	1
33101-28040	CE121..5F	09/2000 - 07/2001	1
33101-28041	CE121..5F	09/2002 - 01/2003	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-12004	CE121..5F	08/2000 - 09/2002	2
90341-12004	CE121..5F	09/2002 - 04/2004	2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	08/2000 - 09/2002	4
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	09/2002 - 04/2004	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	08/2000 - 09/2002	4
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	09/2002 - 04/2004	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	08/2000 - 09/2002	4
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	09/2002 - 04/2004	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	08/2000 - 09/2002	4
90250-08054	CE121,NZE120,121,ZZE122,123..MTM 長さ=23,外径=8	09/2002 - 04/2004	4
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-20020	CE121..5F	09/2002 - 04/2004	1
33117-20020	CE121..5F	08/2000 - 09/2002	1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
91641-H0820	CE121..5F	09/2002 - 04/2004	2
91641-H0820	CE121..5F	08/2000 - 09/2002	2
33119 - PLATE, STIFFENER, LH(MTM)
33119-12110	CE121..5F	09/2002 - 04/2004	1
33119-12110	CE121..5F	08/2000 - 09/2002	1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08630	CE121..5F	09/2002 - 04/2004	10
90119-08630	CE121..5F	08/2000 - 09/2002	10
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-28050	CE121..5F	08/2000 - 09/2002	1
33124-28050	CE121..5F	09/2002 - 04/2004	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-28060	CE121..5F	09/2002 - 04/2004	1
33124-28060	CE121..5F	08/2000 - 09/2002	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90119-08830	CE121..5F	08/2000 - 09/2002	2
90119-08830	CE121..5F	09/2002 - 04/2004	2
91611-G0820	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
90119-08830	CE121..5F	08/2000 - 09/2002	2
90119-08830	CE121..5F	09/2002 - 04/2004	2
91611-G0820	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
33403-20230	CE121..5F	08/2000 - 09/2002	1
33403-35230	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
33403-20230	CE121..5F	09/2002 - 04/2004	1
33403L - RING, O
96711-24018	CE121..5F	08/2000 - 09/2002	1
96711-24030	NZE120,121,ZZE122,123..MTM	08/2000 - 09/2002	1
96711-24018	CE121..5F	09/2002 - 04/2004	1
96711-24030	NZE120,121,ZZE122,123..MTM	09/2002 - 04/2004	1
Common parts
91512-61055
91611-60628
91612-61028
Linked diagrams
3307
4301
4302
8401

CE121-AEMNE (2000)

(0008- )CE121..5F
