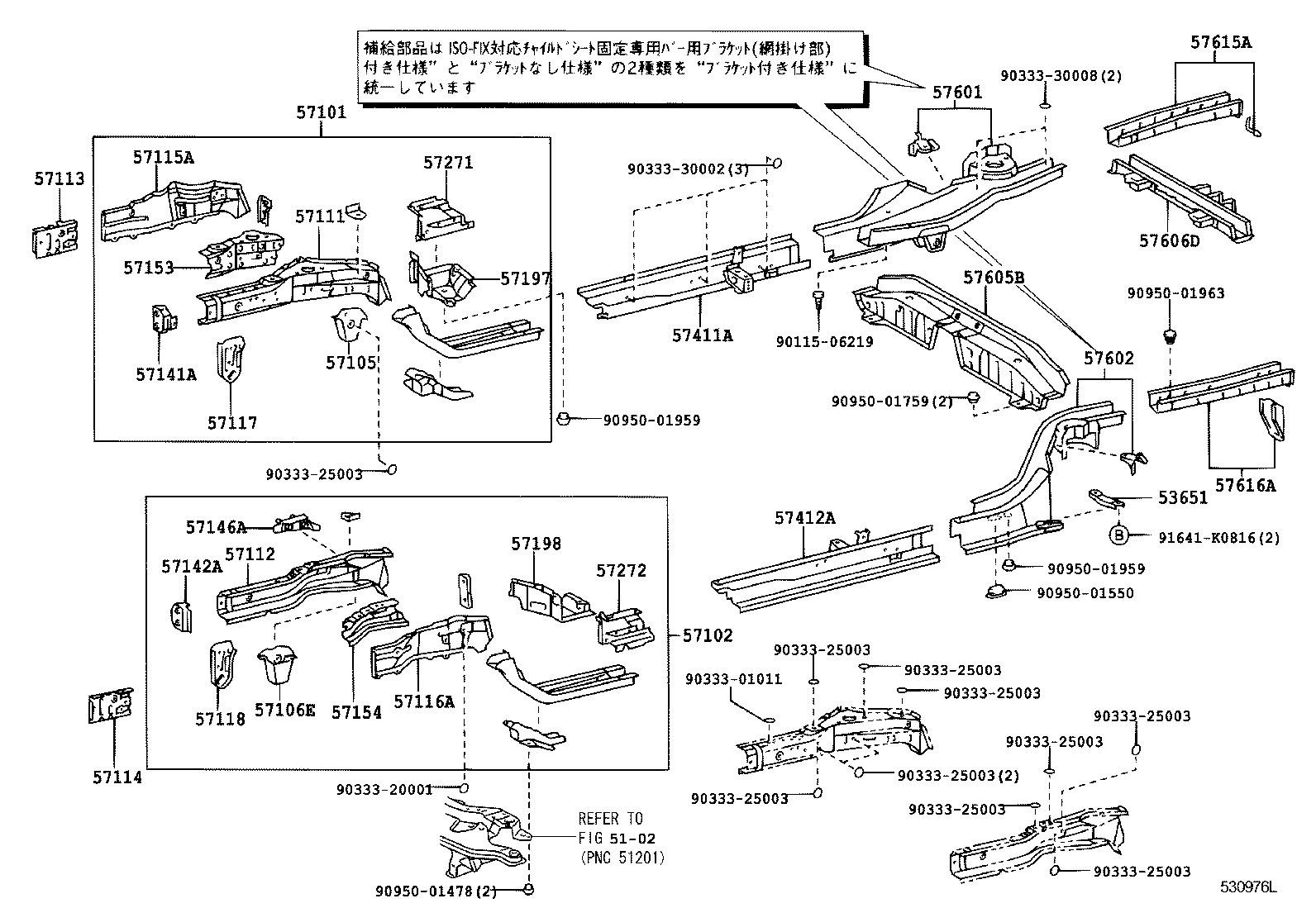

Toyota Corolla/fielder CE121 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
53651 - BRACE, REAR FLOOR SIDE MEMBER
53651-32010	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
53651-32010	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-1A280	CE121	05/2001 - 09/2002	1
57101-1A320	CE121	09/2002 - 04/2004	1
57101-12880	CE121	08/2000 - 05/2001	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-1A260	CE121,ZZE123..4FC,5F	05/2001 - 09/2002	1
57102-12800	CE121,ZZE123..4FC,5F	08/2000 - 05/2001	1
57102-1A300	CE121,ZZE123..4FC,5F	09/2002 - 04/2004	1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-12140	CE121	09/2002 - 04/2004	1
57105-12140	CE121	05/2001 - 09/2002	1
57105-12140	CE121	08/2000 - 05/2001	1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-12130	CE121,ZZE123..4FC,5F	05/2001 - 09/2002	1
57106-12130	CE121,ZZE123..4FC,5F	08/2000 - 05/2001	1
57106-12130	CE121,ZZE123..4FC,5F	09/2002 - 04/2004	1
57111 - MEMBER, FRONT SIDE, RH
57111-12210	CE121	08/2000 - 05/2001	1
57111-12210	CE121	05/2001 - 09/2002	1
57111-12210	CE121	09/2002 - 04/2004	1
57112 - MEMBER, FRONT SIDE, LH
57112-12170	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57112-12170	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57112-12170	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12190	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
57113-12190	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12160	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
57114-12160	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12080	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57115-12080	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57115-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12080	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57116-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57116-12080	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57117-12130	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57117-12130	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57117-12130	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57118-12130	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57118-12130	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57118-12130	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57141-12050	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57141-12050	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57141-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57142-12060	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57142-12090	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57142-12060	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-12020	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57146-12020	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57146-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57016-12070	CE121	08/2000 - 05/2001	1
57016-12070	CE121	05/2001 - 09/2002	1
57016-12070	CE121	09/2002 - 04/2004	1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57017-12050	CE121,ZZE123..4FC,5F	08/2000 - 05/2001	1
57017-12050	CE121,ZZE123..4FC,5F	09/2002 - 04/2004	1
57017-12050	CE121,ZZE123..4FC,5F	05/2001 - 09/2002	1
57197 - BOX, TORQUE, FRONT RH
57197-12030	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57197-12030	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57197-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57198 - BOX, TORQUE, FRONT LH
57198-12030	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57198-12030	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57198-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-12090	CE121	08/2000 - 09/2002	1
57271-12090	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-12090	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57272-12090	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
57272-12090	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12570	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57401-12570	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12570	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
57402-12590	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-1A906	CE121,NZE120,121,ZZE122..SED ｲﾗｽﾄｺﾒﾝﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
57601-1A906	CE121,NZE120,121,ZZE122..SED	09/2002 - 04/2004	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-1A904	CE121,NZE120,121,ZZE122..SED ｲﾗｽﾄｺﾒﾝﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
57602-1A904	CE121,NZE120,121,ZZE122..SED	09/2002 - 04/2004	1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-12180	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
57605-12180	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57606-12130	CE121,NZE120,121,ZZE122..SED	08/2000 - 04/2001	1
57606-13110	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
57606-13110	CE121,NZE120,121,ZZE122..SED	04/2001 - 09/2002	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-12905	CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	1
57615-12905	CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-12908	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57616-12908	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
57616-12909	CE121,NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ	09/2002 - 04/2004	1
Common parts
90115-06219
90333-01011
90333-20001
90333-25003
90333-30002
90333-30008
90950-01478
90950-01550
90950-01759
90950-01959
90950-01963
91641-K0816
Linked diagrams
5102

CE121-AEMEE (2000)

(0008-0209)CE121,NZE120,121,ZZE122,123
