CE121-AEMEE (2000)
Toyota Corolla/Fielder
(0008- )CE121..5F

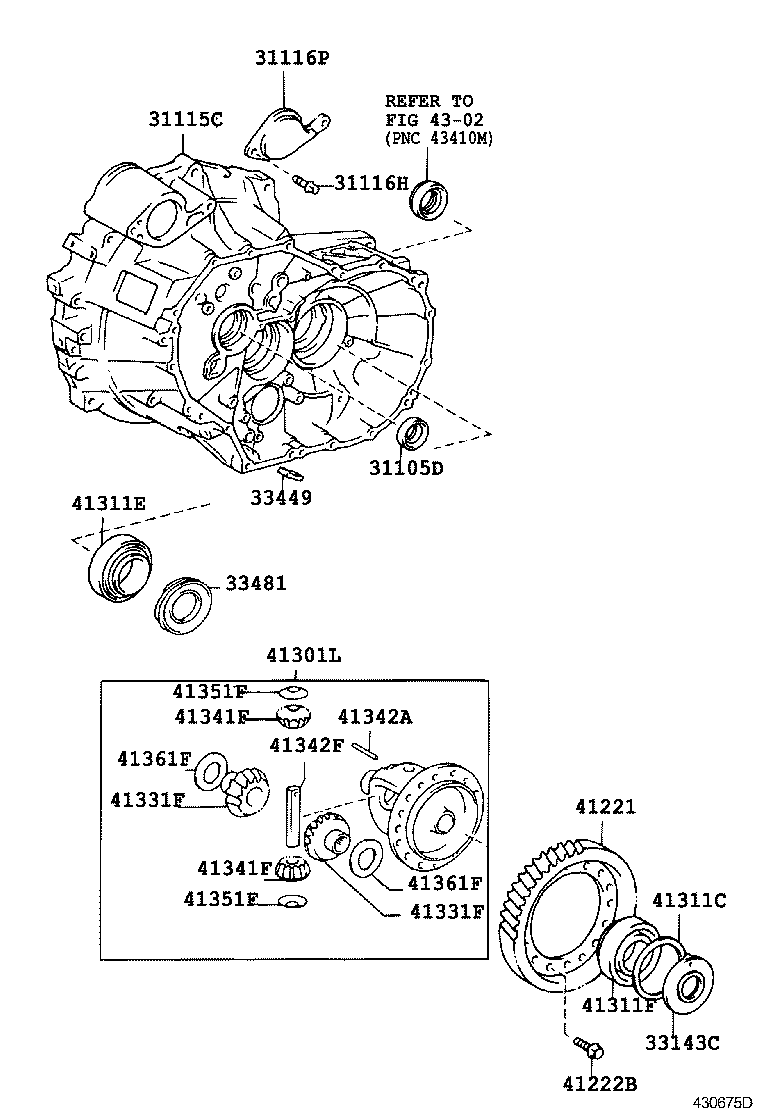

E351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
CE121..5F |
1 | ||
| 90311-25011 |
NZE120,121,ZZE122,123..MTM |
1 | ||
| 90311-25011 |
NZE120,121,ZZE122..5F |
1 | ||
| 90311-30006 |
CE121..5F |
1 | ||
| 90311-25016 |
NZE120,121,ZZE122..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-52010 |
NZE120,121..5F |
1 | ||
| 31115-28011 |
CE121..5F |
1 | ||
| 31115-28011 |
CE121..5F |
1 | ||
| 31115-28010 |
CE121..5F |
1 | ||
| 31115-52010 |
NZE120,121..5F |
1 | ||
| 31116H - BOLT(FOR FRONT TRANSAXLE CASE COVER) | ||||
| 91622-B1025 |
CE121..5F |
2 | ||
| 91622-61025 |
CE121..5F |
2 | ||
| 91511-41020 |
CE121..5F |
2 | ||
| 31116P - COVER, TRANSAXLE CASE | ||||
| 31116-12020 |
CE121..5F |
1 | ||
| 31116-12020 |
CE121..5F |
1 | ||
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-28010 |
CE121..5F |
1 | ||
| 33143-28010 |
CE121..5F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-12020 |
NZE120,121,ZZE122,123..MTM |
1 | ||
| 33449-12020 |
NZE120,121,ZZE123..MTM |
1 | ||
| 33449-20010 |
CE121..5F |
1 | ||
| 33449-20010 |
CE121..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-12040 |
NZE120,121..5F 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 33481-20150 |
CE121..5F 歯数=32 |
1 | ||
| 33481-20150 |
CE121..5F 歯数=32 |
1 | ||
| 33481-12040 |
NZE120,121..5F 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28080 |
CE121..5F |
1 | ||
| 41221-28080 |
CE121..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
CE121..5F |
16 | ||
| 90105-12319 |
CE121..5F |
16 | ||
| 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||||
| 41301-28070 |
CE121..5F |
1 | ||
| 41301-28070 |
CE121..5F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56060 |
CE121..5F 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-56059 |
CE121..5F 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-56055 |
CE121..5F 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-56056 |
CE121..5F 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-56057 |
CE121..5F 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-56063 |
CE121..5F 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-56062 |
CE121..5F 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-56068 |
CE121..5F 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-56065 |
CE121..5F 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-56058 |
CE121..5F 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-56072 |
CE121..5F 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 90564-56069 |
CE121..5F 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-56071 |
CE121..5F 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-56066 |
CE121..5F 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-56064 |
CE121..5F 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-56061 |
CE121..5F 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-56067 |
CE121..5F 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-56070 |
CE121..5F 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-56055 |
CE121..5F 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-56057 |
CE121..5F 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-56065 |
CE121..5F 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-56060 |
CE121..5F 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-56067 |
CE121..5F 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-56059 |
CE121..5F 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-56068 |
CE121..5F 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-56066 |
CE121..5F 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-56061 |
CE121..5F 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-56062 |
CE121..5F 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-56064 |
CE121..5F 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-56069 |
CE121..5F 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-56071 |
CE121..5F 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-56058 |
CE121..5F 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-56070 |
CE121..5F 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-56072 |
CE121..5F 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 90564-56056 |
CE121..5F 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-56063 |
CE121..5F 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
NZE120,121..5F NACHI |
1 | ||
| 90080-36101 |
NZE120,121..5F TIMKEN |
1 | ||
| 90366-57001 |
CE121..5F |
1 | ||
| 90366-38004 |
NZE120,121..5F NACHI |
1 | ||
| 90080-36101 |
NZE120,121..5F TIMKEN |
1 | ||
| 90366-57001 |
CE121..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
NZE120,121..5F |
1 | ||
| 90366-50072 |
CE121..5F |
1 | ||
| 90366-50072 |
CE121..5F |
1 | ||
| 90368-38010 |
NZE120,121..5F |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
CE121..5F |
2 | ||
| 41331-28020 |
CE121..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
CE121..5F |
2 | ||
| 41331-28020 |
CE121..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
CE121..5F |
2 | ||
| 41341-28010 |
CE121..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
CE121..5F |
2 | ||
| 41341-28010 |
CE121..5F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZZE122..4FC;CE121,NZE121,124,ZZE123,124 |
1 | ||
| 90250-06058 |
CE121,ZZE122..5F;NZE121,124,ZZE123,124 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28010 |
CE121..5F |
1 | ||
| 41342-28010 |
CE121..5F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CE121..5F |
2 | ||
| 41351-30060 |
CE121..5F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CE121..5F |
2 | ||
| 41351-30060 |
CE121..5F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| Linked diagrams | ||||
| 4302 | ||||
(0008- )NZE120,121,ZZE122,123..MTM
C51,C52,C60,C150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
NZE120,121,ZZE122,123..MTM |
1 | ||
| 90331-08002 |
NZE120,121,ZZE123..MTM |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
CE121..5F |
1 | ||
| 90311-25011 |
NZE120,121,ZZE122,123..MTM |
1 | ||
| 90311-25011 |
NZE120,121,ZZE122..5F |
1 | ||
| 90311-30006 |
CE121..5F |
1 | ||
| 90311-25016 |
NZE120,121,ZZE122..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-52010 |
NZE120,121..5F |
1 | ||
| 31115-28011 |
CE121..5F |
1 | ||
| 31115-28011 |
CE121..5F |
1 | ||
| 31115-28010 |
CE121..5F |
1 | ||
| 31115-52010 |
NZE120,121..5F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
CE121..5F |
1 | ||
| 33449-12020 |
NZE120,121,ZZE122,123..MTM |
1 | ||
| 33449-12020 |
NZE120,121,ZZE123..MTM |
1 | ||
| 33449-20010 |
CE121..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-12040 |
NZE120,121..5F 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 33481-20150 |
CE121..5F 歯数=32 |
1 | ||
| 33481-20150 |
CE121..5F 歯数=32 |
1 | ||
| 33481-12040 |
NZE120,121..5F 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28080 |
CE121..5F |
1 | ||
| 41221-28080 |
CE121..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
CE121..5F |
16 | ||
| 90105-12319 |
CE121..5F |
16 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
NZE120,121..5F NACHI |
1 | ||
| 90080-36101 |
NZE120,121..5F TIMKEN |
1 | ||
| 90366-57001 |
CE121..5F |
1 | ||
| 90366-38004 |
NZE120,121..5F NACHI |
1 | ||
| 90080-36101 |
NZE120,121..5F TIMKEN |
1 | ||
| 90366-57001 |
CE121..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
NZE120,121..5F |
1 | ||
| 90366-50072 |
CE121..5F |
1 | ||
| 90366-50072 |
CE121..5F |
1 | ||
| 90368-38010 |
NZE120,121..5F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41002 |
NZE120,121..5F 厚さ=1.2 |
1 | ||
| 90560-41002 |
NZE120,121..5F 厚さ=1.2 |
1 | ||
| 90560-41003 |
NZE120,121,ZZE123..MTM 厚さ=2.1 |
1 | ||
| 90560-41003 |
NZE120,121..5F 厚さ=2.1 |
2 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41014 |
NZE120,121,ZZE123..MTM 厚さ=2.10,ﾏｰｸ AA |
1 | ||
| 90564-41016 |
NZE120,121,ZZE123..MTM 厚さ=2.20,ﾏｰｸ CC |
1 | ||
| 90564-41021 |
NZE120,121,ZZE123..MTM 厚さ=2.45,ﾏｰｸ HH |
1 | ||
| 90564-41015 |
NZE120,121,ZZE123..MTM 厚さ=2.15,ﾏｰｸ BB |
1 | ||
| 90564-41017 |
NZE120,121,ZZE123..MTM 厚さ=2.25,ﾏｰｸ DD |
1 | ||
| 90564-41023 |
NZE120,121,ZZE123..MTM 厚さ=2.55,ﾏｰｸ KK |
1 | ||
| 90564-41022 |
NZE120,121,ZZE123..MTM 厚さ=2.50,ﾏｰｸ JJ |
1 | ||
| 90564-41019 |
NZE120,121,ZZE123..MTM 厚さ=2.35,ﾏｰｸ FF |
1 | ||
| 90564-41018 |
NZE120,121,ZZE123..MTM 厚さ=2.30,ﾏｰｸ EE |
1 | ||
| 90564-41025 |
NZE120,121,ZZE123..MTM 厚さ=2.65,ﾏｰｸ MM |
1 | ||
| 90564-41024 |
NZE120,121,ZZE123..MTM 厚さ=2.60,ﾏｰｸ LL |
1 | ||
| 90564-41026 |
NZE120,121,ZZE123..MTM 厚さ=2.70,ﾏｰｸ NN |
1 | ||
| 90564-41020 |
NZE120,121,ZZE123..MTM 厚さ=2.40,ﾏｰｸ GG |
1 | ||
| 90564-41030 |
NZE120,121,ZZE123..MTM 厚さ=2.90,ﾏｰｸ SS |
1 | ||
| 90564-41027 |
NZE120,121,ZZE123..MTM 厚さ=2.75,ﾏｰｸ PP |
1 | ||
| 90564-41028 |
NZE120,121,ZZE123..MTM 厚さ=2.80,ﾏｰｸ QQ |
1 | ||
| 90564-41032 |
NZE120,121,ZZE123..MTM 厚さ=3.00,ﾏｰｸ UU |
1 | ||
| 90564-41031 |
NZE120,121,ZZE123..MTM 厚さ=2.95,ﾏｰｸ TT |
1 | ||
| 90564-41029 |
NZE120,121,ZZE123..MTM 厚さ=2.85,ﾏｰｸ RR |
1 | ||
| 90564-41015 |
NZE120,121,ZZE122,123..MTM 厚さ=2.15,ﾏｰｸ BB |
1 | ||
| 90564-41014 |
NZE120,121,ZZE122,123..MTM 厚さ=2.10,ﾏｰｸ AA |
1 | ||
| 90564-41019 |
NZE120,121,ZZE122,123..MTM 厚さ=2.35,ﾏｰｸ FF |
1 | ||
| 90564-41016 |
NZE120,121,ZZE122,123..MTM 厚さ=2.20,ﾏｰｸ CC |
1 | ||
| 90564-41029 |
NZE120,121,ZZE122,123..MTM 厚さ=2.85,ﾏｰｸ RR |
1 | ||
| 90564-41025 |
NZE120,121,ZZE122,123..MTM 厚さ=2.65,ﾏｰｸ MM |
1 | ||
| 90564-41027 |
NZE120,121,ZZE122,123..MTM 厚さ=2.75,ﾏｰｸ PP |
1 | ||
| 90564-41018 |
NZE120,121,ZZE122,123..MTM 厚さ=2.30,ﾏｰｸ EE |
1 | ||
| 90564-41026 |
NZE120,121,ZZE122,123..MTM 厚さ=2.70,ﾏｰｸ NN |
1 | ||
| 90564-41021 |
NZE120,121,ZZE122,123..MTM 厚さ=2.45,ﾏｰｸ HH |
1 | ||
| 90564-41022 |
NZE120,121,ZZE122,123..MTM 厚さ=2.50,ﾏｰｸ JJ |
1 | ||
| 90564-41020 |
NZE120,121,ZZE122,123..MTM 厚さ=2.40,ﾏｰｸ GG |
1 | ||
| 90564-41031 |
NZE120,121,ZZE122,123..MTM 厚さ=2.95,ﾏｰｸ TT |
1 | ||
| 90564-41023 |
NZE120,121,ZZE122,123..MTM 厚さ=2.55,ﾏｰｸ KK |
1 | ||
| 90564-41032 |
NZE120,121,ZZE122,123..MTM 厚さ=3.00,ﾏｰｸ UU |
1 | ||
| 90564-41028 |
NZE120,121,ZZE122,123..MTM 厚さ=2.80,ﾏｰｸ QQ |
1 | ||
| 90564-41024 |
NZE120,121,ZZE122,123..MTM 厚さ=2.60,ﾏｰｸ LL |
1 | ||
| 90564-41017 |
NZE120,121,ZZE122,123..MTM 厚さ=2.25,ﾏｰｸ DD |
1 | ||
| 90564-41030 |
NZE120,121,ZZE122,123..MTM 厚さ=2.90,ﾏｰｸ SS |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
CE121..5F |
2 | ||
| 41331-28020 |
CE121..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
CE121..5F |
2 | ||
| 41331-28020 |
CE121..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
CE121..5F |
2 | ||
| 41341-28010 |
CE121..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
CE121..5F |
2 | ||
| 41341-28010 |
CE121..5F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZZE122..4FC;CE121,NZE121,124,ZZE123,124 |
1 | ||
| 90250-06058 |
CE121,ZZE122..5F;NZE121,124,ZZE123,124 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28010 |
CE121..5F |
1 | ||
| 41342-28010 |
CE121..5F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CE121..5F |
2 | ||
| 41351-30060 |
CE121..5F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CE121..5F |
2 | ||
| 41351-30060 |
CE121..5F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28230 |
CE121..5F 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28250 |
CE121..5F 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28260 |
CE121..5F 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28240 |
CE121..5F 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| Linked diagrams | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
