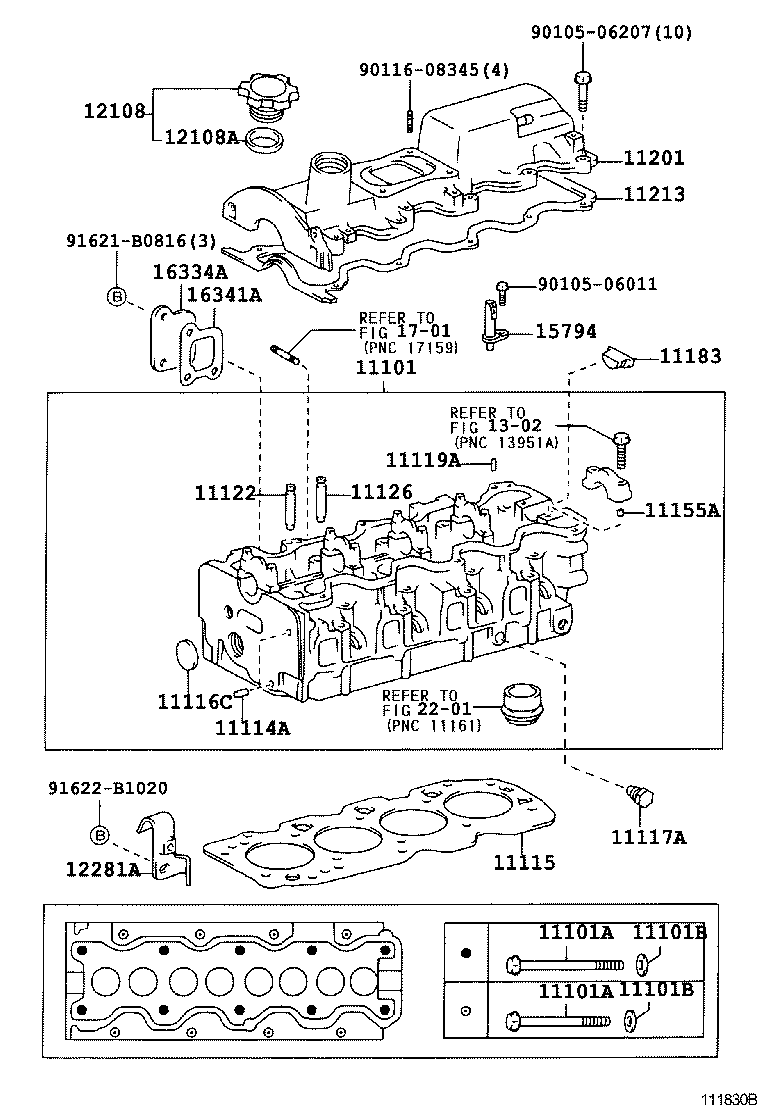

Toyota Corolla/fielder CE121 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-64371	3CE..CE121	08/2000 - 09/2002	1
11101-64371	3CE..CE121	09/2002 - 04/2004	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02130	3CE..CE121 *11−1.25PX145−53	08/2000 - 09/2002	10
90910-02130	3CE..CE121 *11−1.25PX145−53	09/2002 - 04/2004	10
90910-02131	3CE..CE121 *11−1.25PX123−53	08/2000 - 09/2002	8
90910-02131	3CE..CE121 *11−1.25PX123−53	09/2002 - 04/2004	8
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02130	3CE..CE121 *11−1.25PX145−53	08/2000 - 09/2002	10
90910-02130	3CE..CE121 *11−1.25PX145−53	09/2002 - 04/2004	10
90910-02131	3CE..CE121 *11−1.25PX123−53	08/2000 - 09/2002	8
90910-02131	3CE..CE121 *11−1.25PX123−53	09/2002 - 04/2004	8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222	3CE..CE121	09/2002 - 04/2004	18
90201-12222	3CE..CE121	08/2000 - 09/2002	18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222	3CE..CE121	09/2002 - 04/2004	18
90201-12222	3CE..CE121	08/2000 - 09/2002	18
11114A - PIN, STRAIGHT
90250-06068	3CE..CE121 長さ=11,外径=6	08/2000 - 09/2002	3
90250-06068	3CE..CE121 長さ=11,外径=6	09/2002 - 04/2004	3
11115 - GASKET, CYLINDER HEAD
11115-6420001	3CE..CE121 MARK 1	08/2000 - 09/2002	1
11115-6420003	3CE..CE121 MARK 3	08/2000 - 09/2002	1
11115-6420002	3CE..CE121 MARK 2	08/2000 - 09/2002	1
11115-6420001	3CE..CE121 MARK 1	09/2002 - 04/2004	1
11115-6420002	3CE..CE121 MARK 2	09/2002 - 04/2004	1
11115-6420003	3CE..CE121 MARK 3	09/2002 - 04/2004	1
11116C - PLUG, TIGHT, NO.3
96411-63000	3CE..CE121	09/2002 - 04/2004	1
96411-63000	3CE..CE121	08/2000 - 09/2002	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-16094	3CE..CE121	08/2000 - 09/2002	1
90341-16094	3CE..CE121	09/2002 - 04/2004	1
11119A - PIN, STRAIGHT, NO.1
90250-06013	3CE..CE121 長さ=16,外径=6	08/2000 - 09/2002	2
90250-06013	3CE..CE121 長さ=16,外径=6	09/2002 - 04/2004	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-64010	3CE..CE121 STD	09/2002 - 04/2004	4
11122-64010	3CE..CE121 STD	08/2000 - 09/2002	4
11123-64010	3CE..CE121 O/S 0.05	08/2000 - 09/2002	4
11123-64010	3CE..CE121 O/S 0.05	09/2002 - 04/2004	4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-64030	3CE..CE121 O/S 0.05	08/2000 - 09/2002	4
11126-64030	3CE..CE121 STD	09/2002 - 04/2004	4
11127-64030	3CE..CE121 O/S 0.05	09/2002 - 04/2004	4
11126-64030	3CE..CE121 STD	08/2000 - 09/2002	4
11155A - PIN, RING W/HEAD
90253-11021	3CE..CE121	08/2000 - 09/2002	10
90253-11021	3CE..CE121	09/2002 - 04/2004	10
11183 - PLUG, SEMICIRCULAR
11183-64010	3CE..CE121	08/2000 - 09/2002	1
11183-64010	3CE..CE121	09/2002 - 04/2004	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64210	3CE..CE121	09/2002 - 04/2004	1
11201-64210	3CE..CE121	08/2000 - 09/2002	1
11213 - GASKET, CYLINDER HEAD COVER
11213-64061	3CE..CE121	08/2000 - 09/2002	1
11213-64061	3CE..CE121	09/2002 - 04/2004	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010	3CE..CE121	08/2000 - 09/2002	1
12180-55010	3CE..CE121	09/2002 - 04/2004	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	3CE..CE121	09/2002 - 04/2004	1
90430-37140	3CE..CE121	08/2000 - 09/2002	1
12281A - HANGER, ENGINE, NO.1
12281-64050	3CE..CE121	09/2002 - 04/2004	1
12281-64050	3CE..CE121	08/2000 - 09/2002	1
15794 - NOZZLE, CYLINDER HEAD OIL
15794-64011	3CE..CE121	08/2000 - 09/2002	1
15794-64011	3CE..CE121	09/2002 - 04/2004	1
16334A - COVER, WATER OUTLET HOUSING
16334-64010	3CE..CE121	09/2002 - 04/2004	1
16334-64010	3CE..CE121	08/2000 - 09/2002	1
16341A - GASKET, WATER OUTLET
16341-64021	3CE..CE121	08/2000 - 09/2002	1
16341-64021	3CE..CE121	09/2002 - 04/2004	1
Common parts
90105-06011
90105-06207
90116-08345
91621-B0816
91622-B1020
Linked diagrams
1302
1701
2201

CE121-AEMEE (2000)

(0008- )3CE
