LA400A-KMVZ4 (2019)
Toyota Copen
Production
Oct 2019
-
Sep 9999
Engine
KFVET
Transmission
5FC MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )

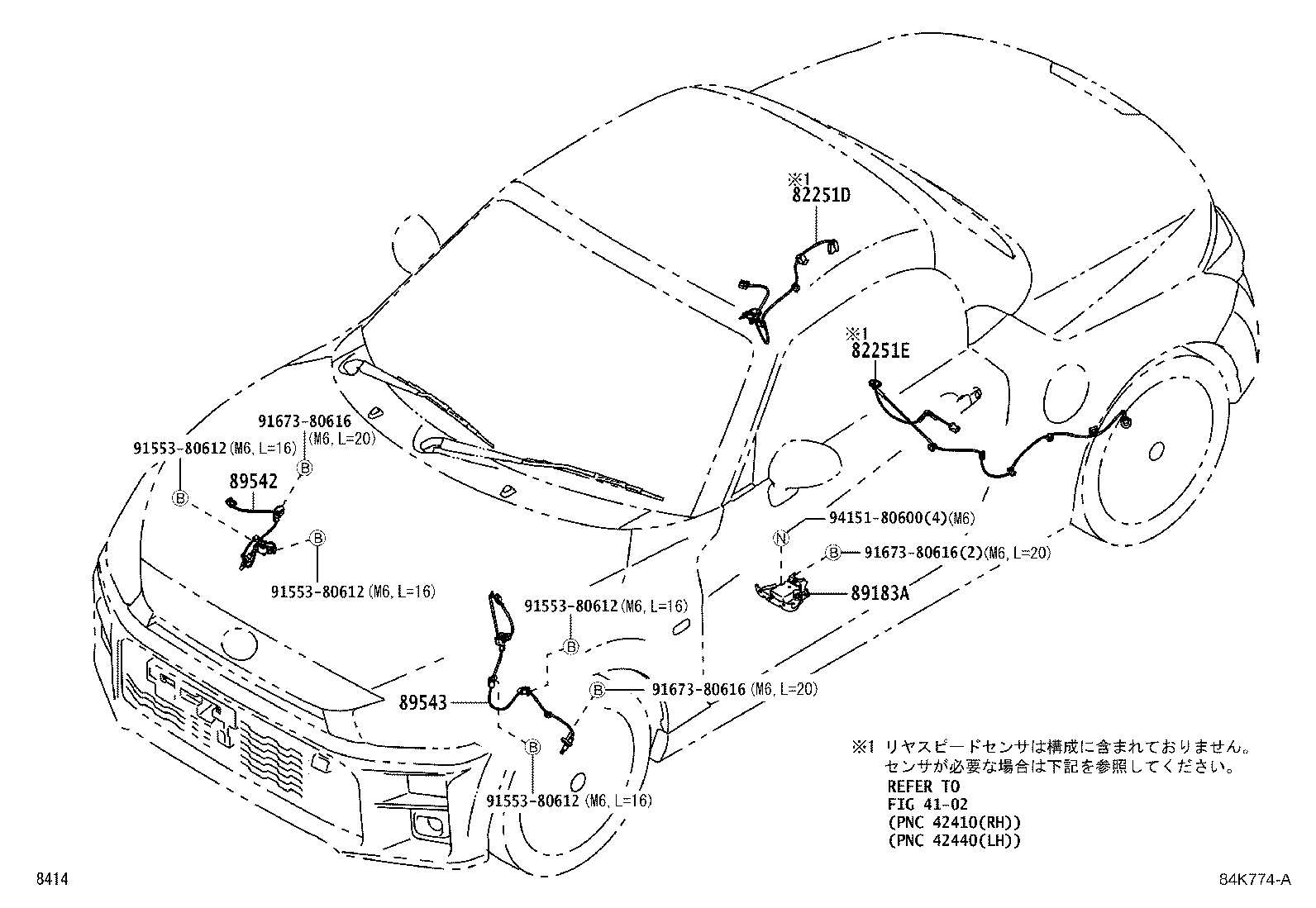

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82251D - WIRE, SPEED SENSOR, RH | ||||
| 82251-B2140 |
LA400 |
1 | ||
| 82251E - WIRE, SPEED SENSOR, LH | ||||
| 82251-B2170 |
LA400 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-B2010 |
LA400 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-B2100 |
LA400 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-B2100 |
LA400 |
1 | ||
| Common parts | ||||
| 91553-80612 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4102 | ||||
