LA400A-KMVZ4 (2019)

Toyota Copen

Production Oct 2019 - Sep 9999
Engine KFVET
Transmission 5FC MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1910- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ(ﾚｶﾛ)

diagram 26344B2010 26344B2010 71011S 7104 7104 7104 7104 7104 71131B 71311B 71410S 71430S 71610F 71811D 7181C 7181CB 72110A 72130A 72211 72510 72525A 78899 78899 78899 78899 78899A 78899A 78899A 8112697202 8112697202 9004105513 9004167013 9010510418 9017908068 9017908068 C9938 C9938C C9938C
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71066-B2020

LA400

 1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-B2030

LA400

 1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
38892-97201

LA400

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-B2130C1

LA400

-,TRIM2#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-B2240C0

LA400

-,TRIM2#

 1
71610F - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71075-B2G80

LA400

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-97214C1

LA400

BLACK,TRIM2#

 1
7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK)
71812-87201

LA400

 13
7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION)
71812-87201

LA400

 16
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-B2040

LA400

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-B2040

LA400

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-97209

LA400

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-B2020

LA400

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-97201C1

LA400

BLACK,TRIM2#

 1
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899A - BOLT, FRONT SEAT
91511-80820

LA400

M8,L=20

 8
78899A - BOLT, FRONT SEAT
91511-80820

LA400

M8,L=20

 8
78899A - BOLT, FRONT SEAT
91511-80820

LA400

M8,L=20

 8
C9938 - BUSH
21552-B2010

LA400

 2
C9938C - BUSH
21552-B2020

LA400

 4
C9938C - BUSH
21552-B2020

LA400

 4
Common parts
26344-B2010
81126-97202
90041-05513
90041-67013
90105-10418
90179-08068
Linked diagrams
7104

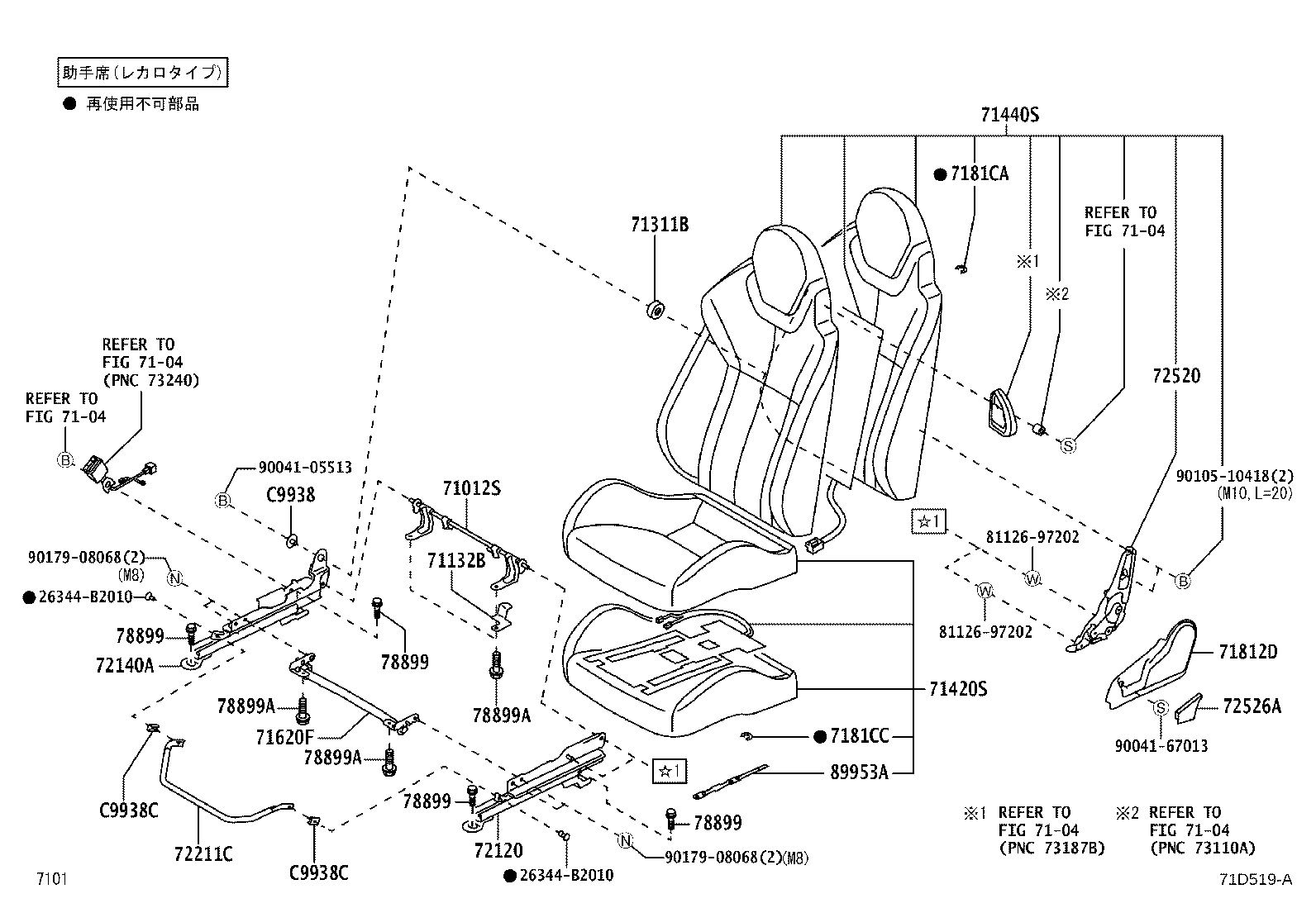

ILLUST NO. 2 OF 2(1910- )

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ(ﾚｶﾛ)

diagram 26344B2010 26344B2010 71012S 7104 7104 7104 7104 7104 71132B 71311B 71420S 71440S 71620F 71812D 7181CA 7181CC 72120 72140A 72211C 72520 72526A 78899 78899 78899 78899 78899A 78899A 78899A 8112697202 8112697202 89953A 9004105513 9004167013 9010510418 9017908068 9017908068 C9938 C9938C C9938C
Part # Description Qty Price
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71066-B2020

LA400

 1
71132B - PLATE, FRONT SEAT CUSHION, NO.2
71132-B2030

LA400

 1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
38892-97201

LA400

 2
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-B2190C1

LA400

-,TRIM2#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-B2350C0

LA400

-,TRIM2#

 1
71620F - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71075-B2G90

LA400

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-97214C1

LA400

BLACK,TRIM2#

 1
7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK)
71812-87201

LA400

 13
7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION)
71812-87201

LA400

 16
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-B2060

LA400

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-B2060

LA400

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-97209

LA400

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-B2020

LA400

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-97201C1

LA400

BLACK,TRIM2#

 1
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899 - BOLT, FRONT SEAT
90041-05495

LA400

M8,L=25

 8
78899A - BOLT, FRONT SEAT
91511-80820

LA400

M8,L=20

 8
78899A - BOLT, FRONT SEAT
91511-80820

LA400

M8,L=20

 8
78899A - BOLT, FRONT SEAT
91511-80820

LA400

M8,L=20

 8
89953A - SENSOR, BELT WARNING OCCUPANT DETECTION
89953-B2020

LA400

 1
C9938 - BUSH
21552-B2010

LA400

 2
C9938C - BUSH
21552-B2020

LA400

 4
C9938C - BUSH
21552-B2020

LA400

 4
Common parts
26344-B2010
81126-97202
90041-05513
90041-67013
90105-10418
90179-08068
Linked diagrams
7104
