LA400A-KMVZ4 (2019)

Toyota Copen

Production Oct 2019 - Sep 9999
Engine KFVET
Transmission 5FC MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

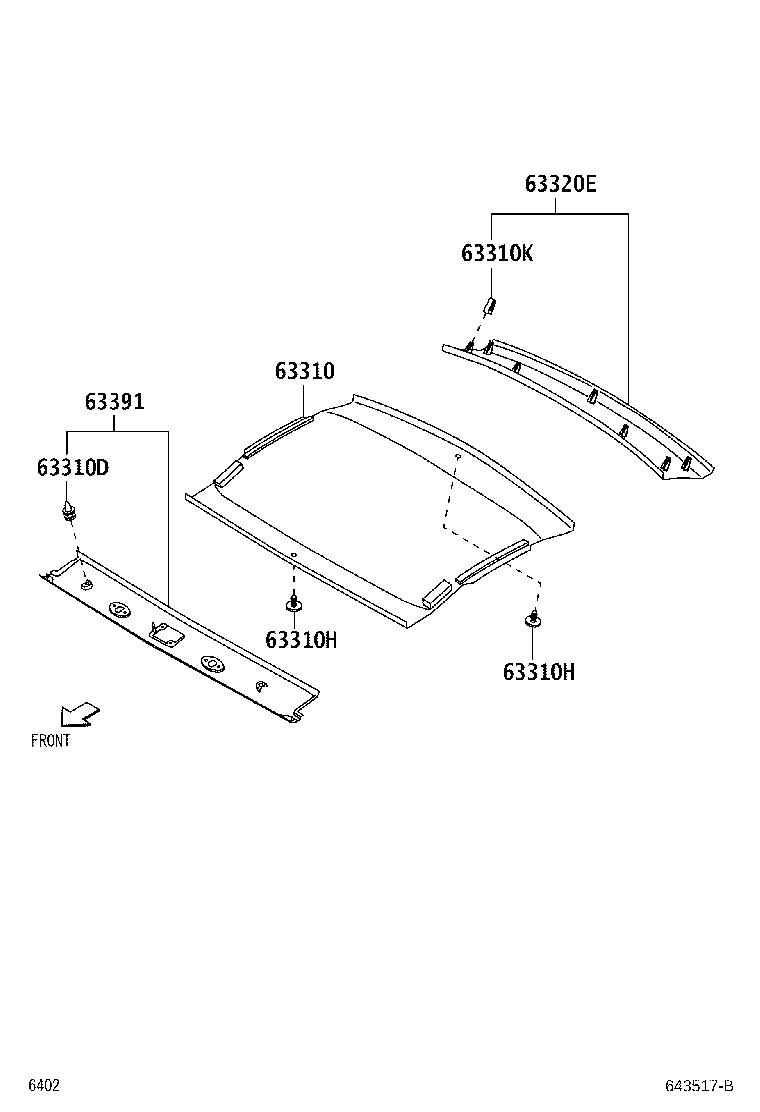

Click highlighted areas on diagram

diagram 63310 63310D 63310H 63310H 63310K 63320E 63391
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-B2670B1

LA400

DK GRAY,TRIM2#

 1
63310D - CLIP, ROOF HEADLINING
67771-B2010

LA400

 2
63310H - CLIP(FOR ROOF HEADLINING)
90044-67298C0

LA400

BLACK,TRIM2#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90044-67298C0

LA400

BLACK,TRIM2#

 2
63310K - CLIP
90044-68336

LA400

 7
63320E - HEADLINING ASSY, ROOF, REAR
63379-B2020B0

LA400

DK.GRAY,TRIM2#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63748-B2010B0

LA400

DK.GRAY,TRIM2#

 1
