LA400A-KMVZ4 (2019)

Toyota Copen

Production Oct 2019 - Sep 9999
Engine KFVET
Transmission 5FC MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

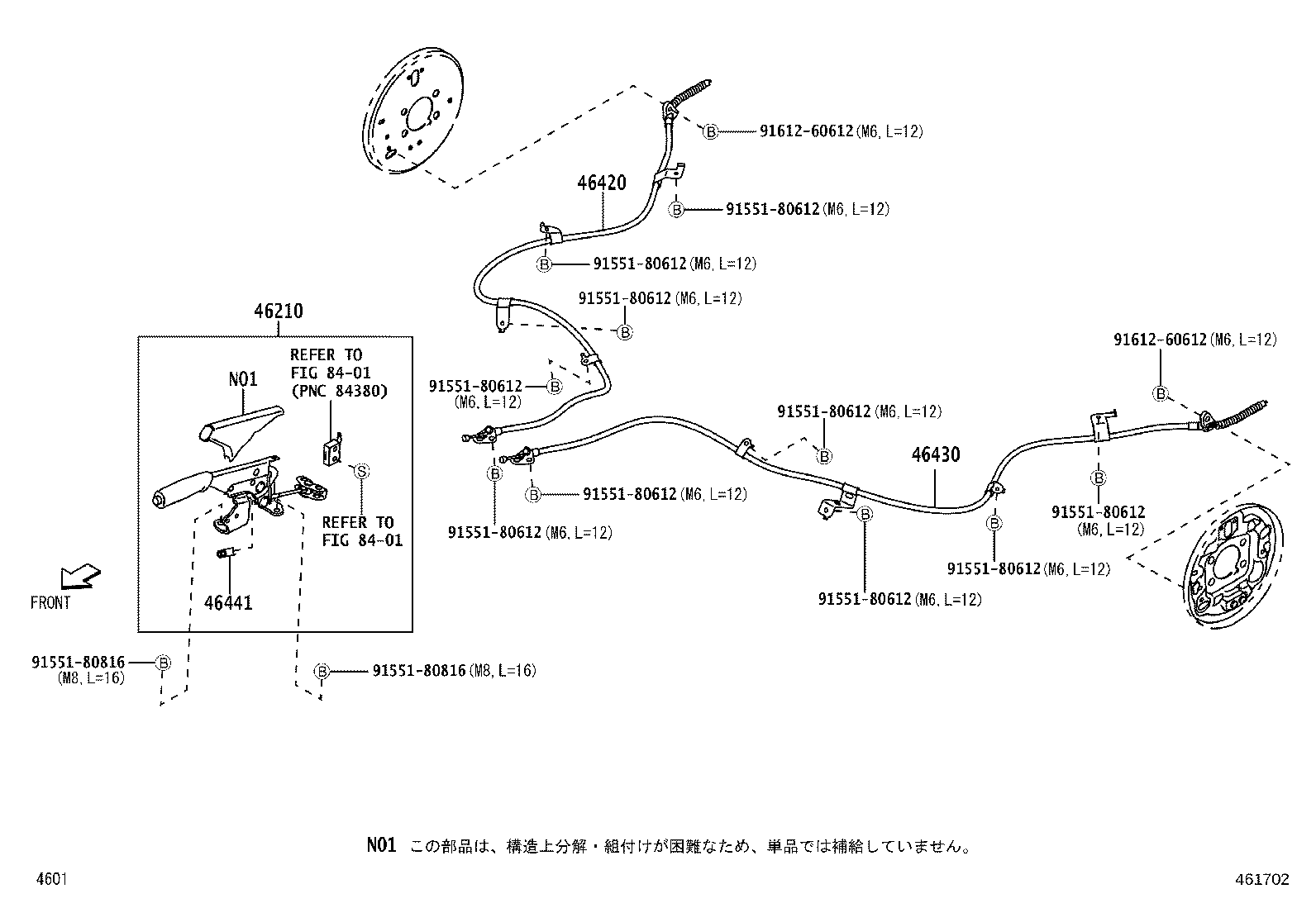

Click highlighted areas on diagram

diagram 46210 46420 46430 46441 8401 8401 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180816 9155180816 9161260612 9161260612
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-B2140B0

LA400

DK.GRAY,TRIM2#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-B2290

LA400

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-B2290

LA400

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-B2010

LA400

 1
Common parts
91551-80612
91551-80816
91612-60612
Linked diagrams
8401
