LA400A-KMVZ4 (2019)
Toyota Copen
Production
Oct 2019
-
Sep 9999
Engine
KFVET
Transmission
5FC MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )

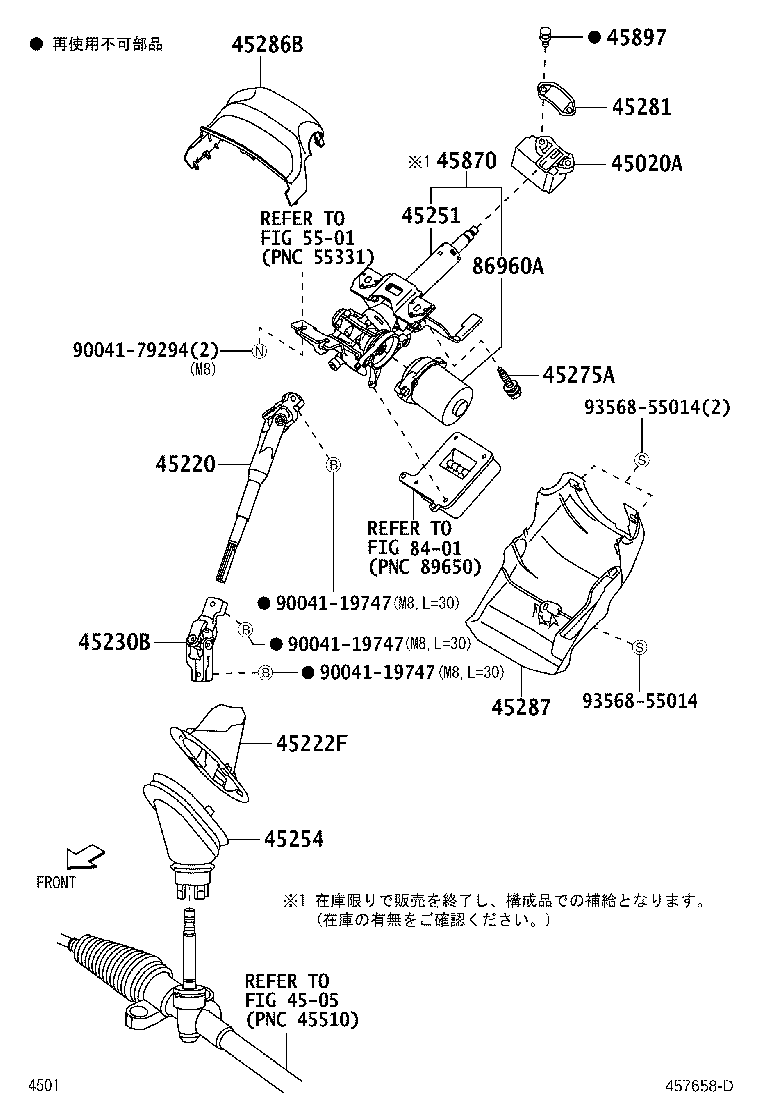

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-B2340 |
LA400 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-B2150 |
LA400 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-B2122 |
LA400 |
1 | ||
| 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL | ||||
| 45290-B1053 |
LA400 |
1 | ||
| 45251 - TUBE SET, STEERING COLUMN | ||||
| 45251-B9070 |
LA400 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-B2140 |
LA400 |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 91673-80830 |
LA400 |
2 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45281-B2050 |
LA400 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-B2190B0 |
LA400 DK.GRAY,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-B2281B0 |
LA400 DK.GRAY,TRIM2# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-B2B30 |
LA400 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-B1020 |
LA400 |
2 | ||
| 86960A - MOTOR SET, POWER STEERING | ||||
| 80960-B9010 |
LA400 |
1 | ||
| Common parts | ||||
| 90041-19747 | ||||
| 90041-79294 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 4505 | ||||
| 5501 | ||||
| 8401 | ||||
