LA400A-KMVZ4 (2019)
Toyota Copen
Production
Oct 2019
-
Sep 9999
Engine
KFVET
Transmission
5FC MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )KFVET..5FC

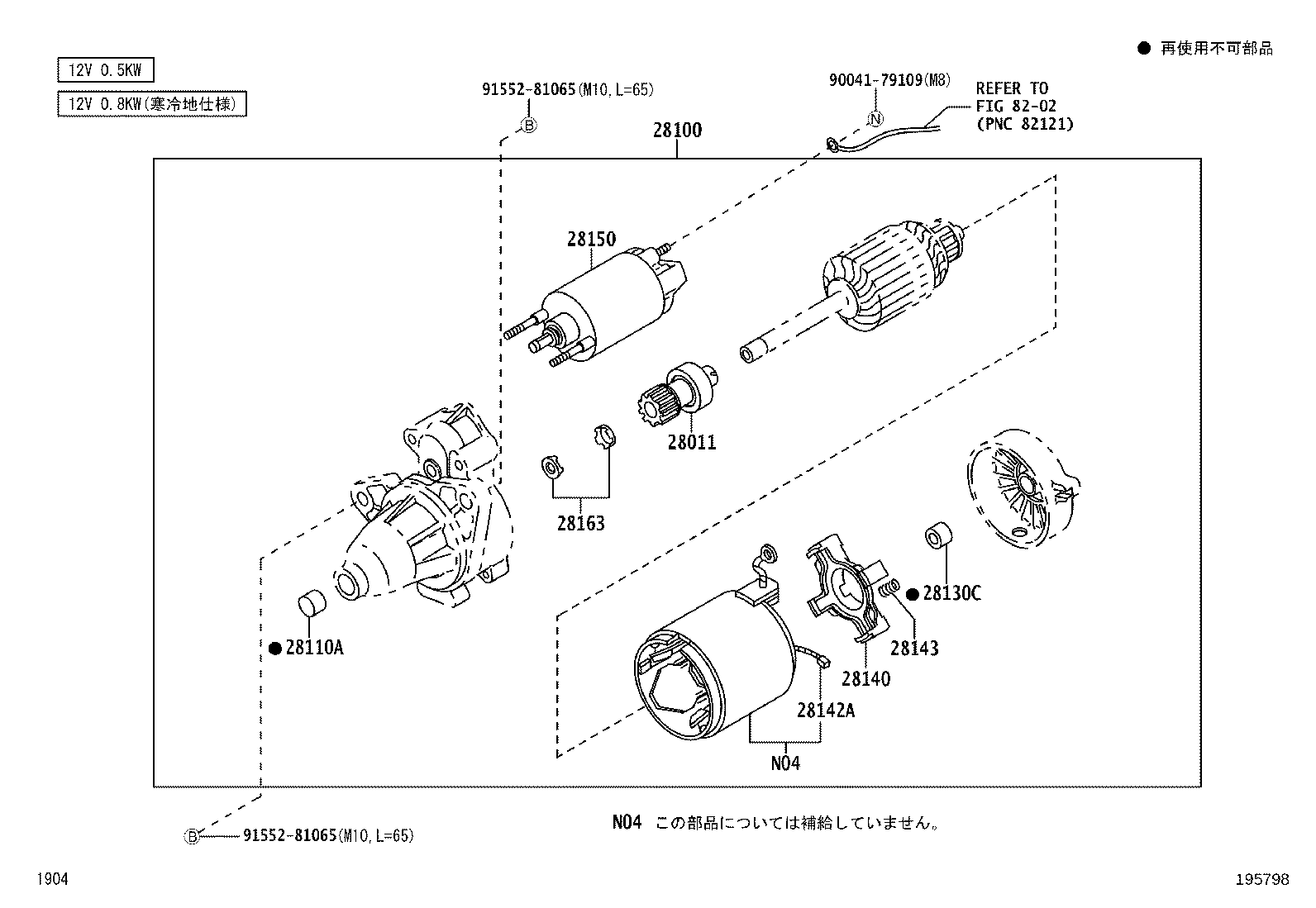

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-B1010 |
KFVET..LA400..5FC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-B2030 |
KFVET..LA400..5FC 12V 0.5KW |
1 | ||
| 28100-B2170 |
KFVET..LA400..5FC 12V 0.8KW,寒冷地仕様 |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 28277-87201 |
KFVET..LA400..5FC 寒冷地仕様 |
1 | ||
| 28271-87501 |
KFVET..LA400..5FC |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 28277-87201 |
KFVET..LA400..5FC 寒冷地仕様 |
1 | ||
| 28271-87502 |
KFVET..LA400..5FC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28149-87501 |
KFVET..LA400..5FC |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-87504 |
KFVET..LA400..5FC |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-10020 |
KFVET..LA400..5FC |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87536 |
KFVET..LA400..5FC |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28142-87505 |
KFVET..LA400..5FC |
1 | ||
| Common parts | ||||
| 90041-79109 | ||||
| 91552-81065 | ||||
| Linked diagrams | ||||
| 8202 | ||||
