LA400A-KMVZ4 (2019)

Toyota Copen

Production Oct 2019 - Sep 9999
Engine KFVET
Transmission 5FC MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

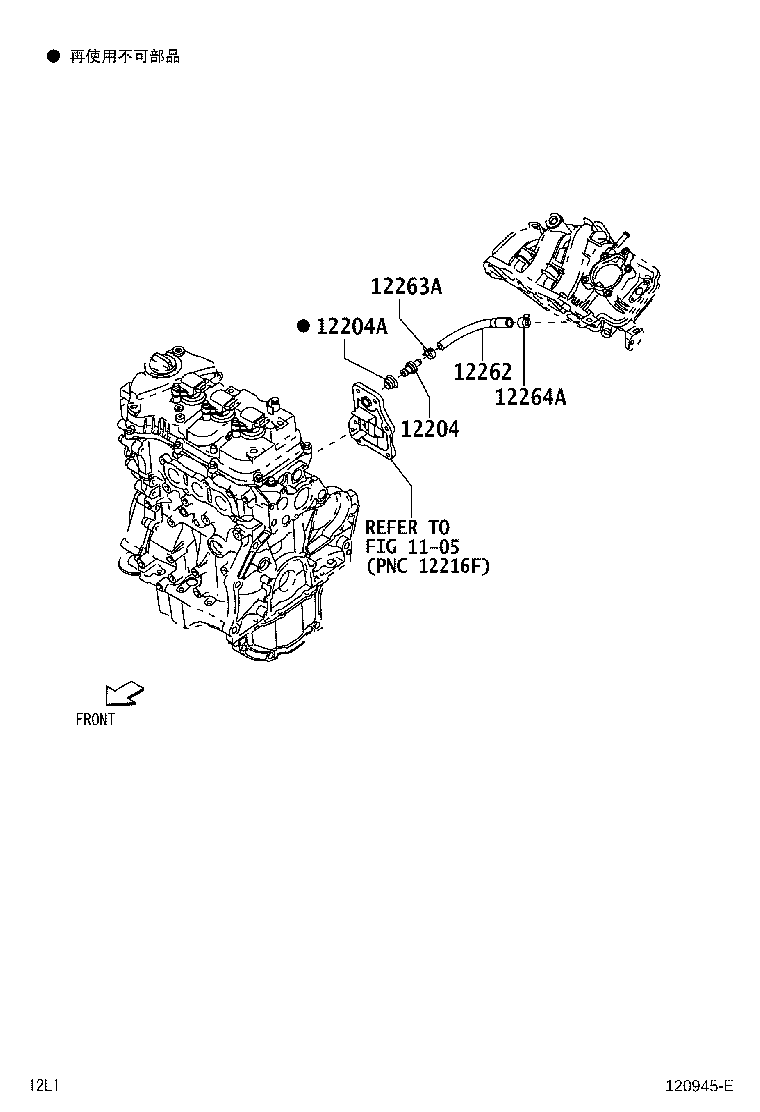

Click highlighted areas on diagram

diagram 1105 12204 12204A 12262 12263A 12264A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-B2010

KFVET..LA400

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90044-80652

KFVET..LA400

 1
12262 - HOSE, VENTILATION, NO.2
12261-B2160

KFVET..LA400

 1
12263A - CLIP(FOR VENTILATION HOSE)
90044-67314

KFVET..LA400

 1
12264A - CLIP(FOR VENTILATION HOSE)
96137-41901

KFVET..LA400

 1
Linked diagrams
1105
