LA400A-KBVZ4 (2019)

Toyota Copen

Production Oct 2019 - Sep 9999
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

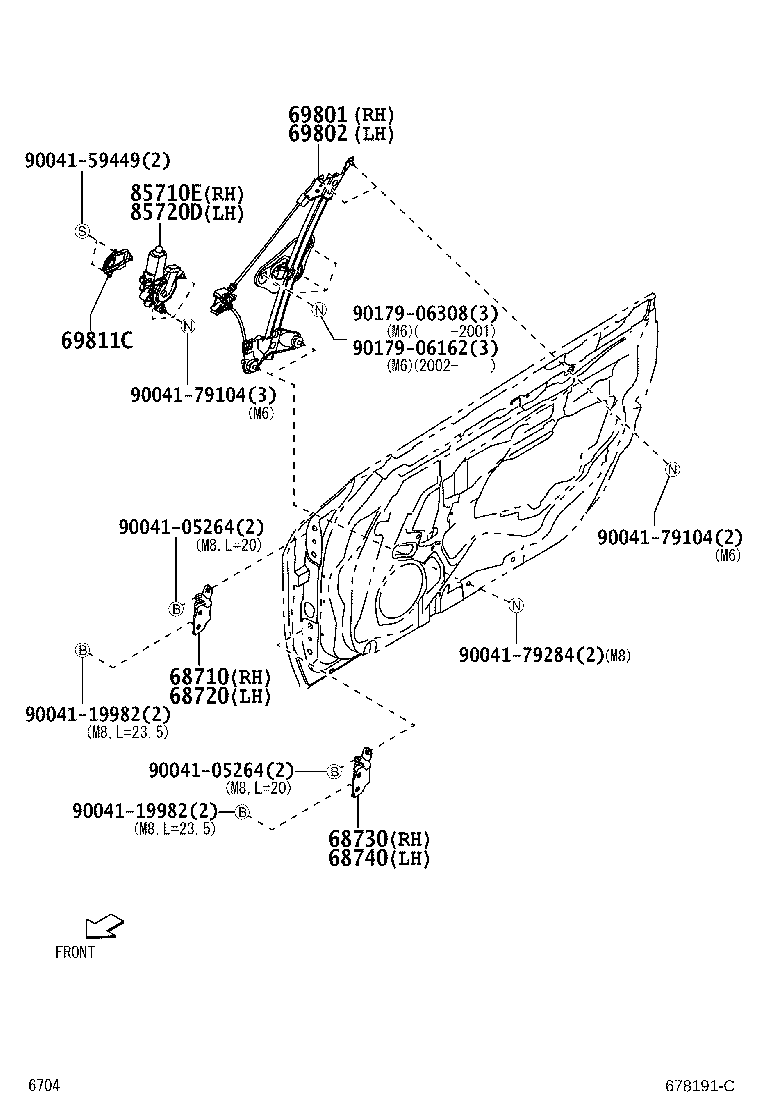

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 69811C 85710E 85720D 9004105264 9004105264 9004119982 9004119982 9004159449 9004179104 9004179104 9004179284 9017906162 9017906308
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-97210

LA400

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-97208

LA400

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-97208

LA400

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-97210

LA400

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-B2220

LA400

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-B2220

LA400

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811-97204

LA400

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-97208

LA400

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-97205

LA400

 1
Common parts
90041-05264
90041-19982
90041-59449
90041-79104
90041-79284
90179-06162
90179-06308
