XZB80-ZXTNY (2019)

Toyota Coaster

Production Aug 2019 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1908- )XZB80

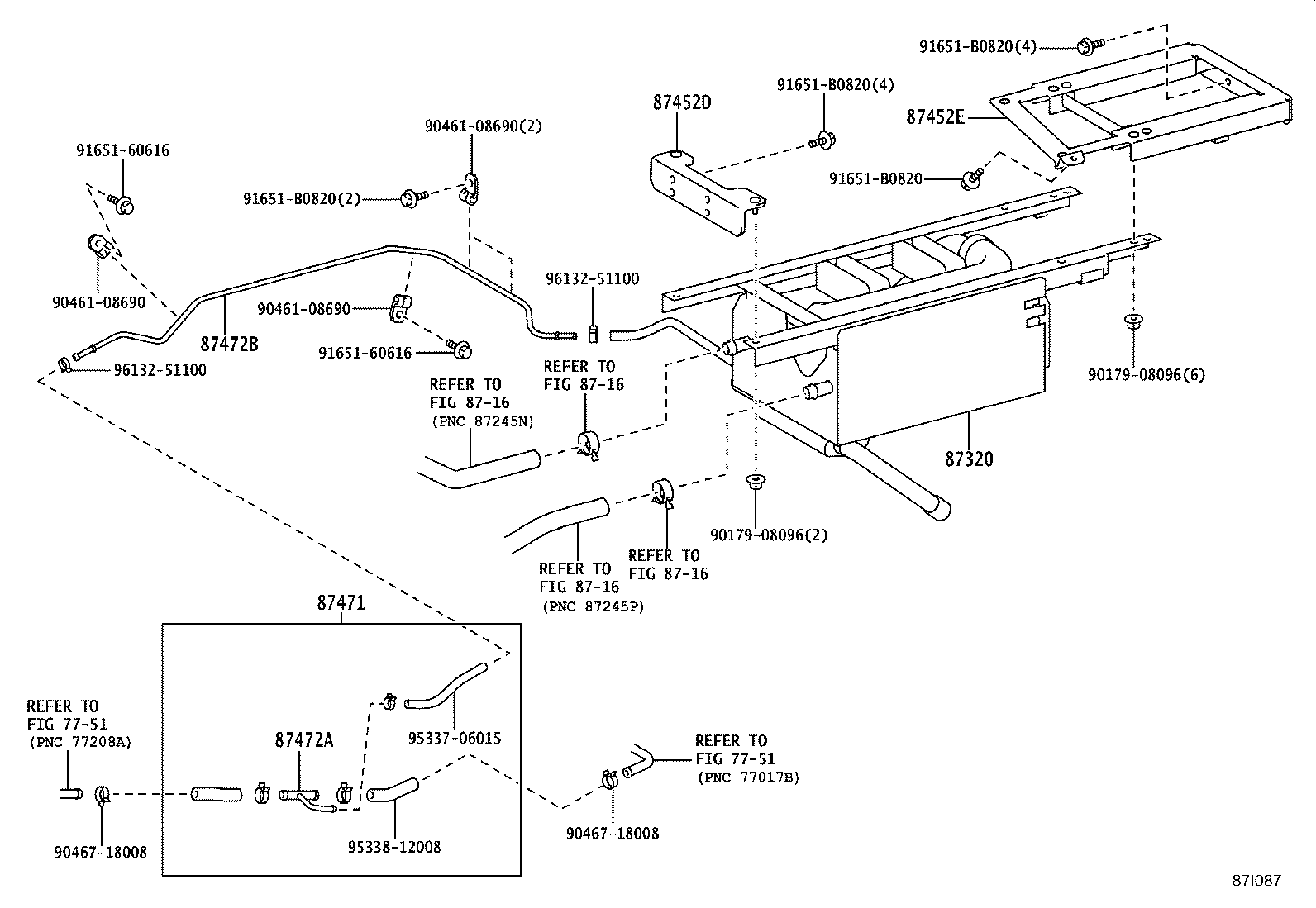

Click highlighted areas on diagram

ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)

diagram 7751 7751 8716 8716 8716 8716 87320 87452D 87452E 87471 87472A 87472B 9017908096 9017908096 9046108690 9046108690 9046108690 9046718008 9046718008 9165160616 9165160616 91651B0820 91651B0820 91651B0820 91651B0820 9533706015 9533812008 9613251100 9613251100
Part # Description Qty Price
87320 - EXCHANGER ASSY, HEATER HEAT
87320-36070

XZB60,70,80

寒冷地仕様&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ)

 1
87452D - BRACKET, POWER HEATER, NO.1
87489-36020

XZB60,70,80

寒冷地仕様&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ)

 1
87452E - BRACKET, POWER HEATER, NO.2
87489-36040

XZB80

寒冷地仕様&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ)

 1
87471 - JOINT, COMBUSTION HEATER FUEL
87471-36011

XZB60,70,80

補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ)

 1
87472A - PIPE, HEATER FUEL, NO.1
87472-36110

XZB60,70,80

補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ)

 1
87472B - PIPE, HEATER FUEL, NO.2
87472-36120

XZB60,70,80

補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ)

 1
Common parts
90179-08096
90461-08690
90467-18008
91651-60616
91651-B0820
95337-06015
95338-12008
96132-51100
Linked diagrams
7751
8716
