XZB80-ZXTNY (2019)

Toyota Coaster

Production Aug 2019 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

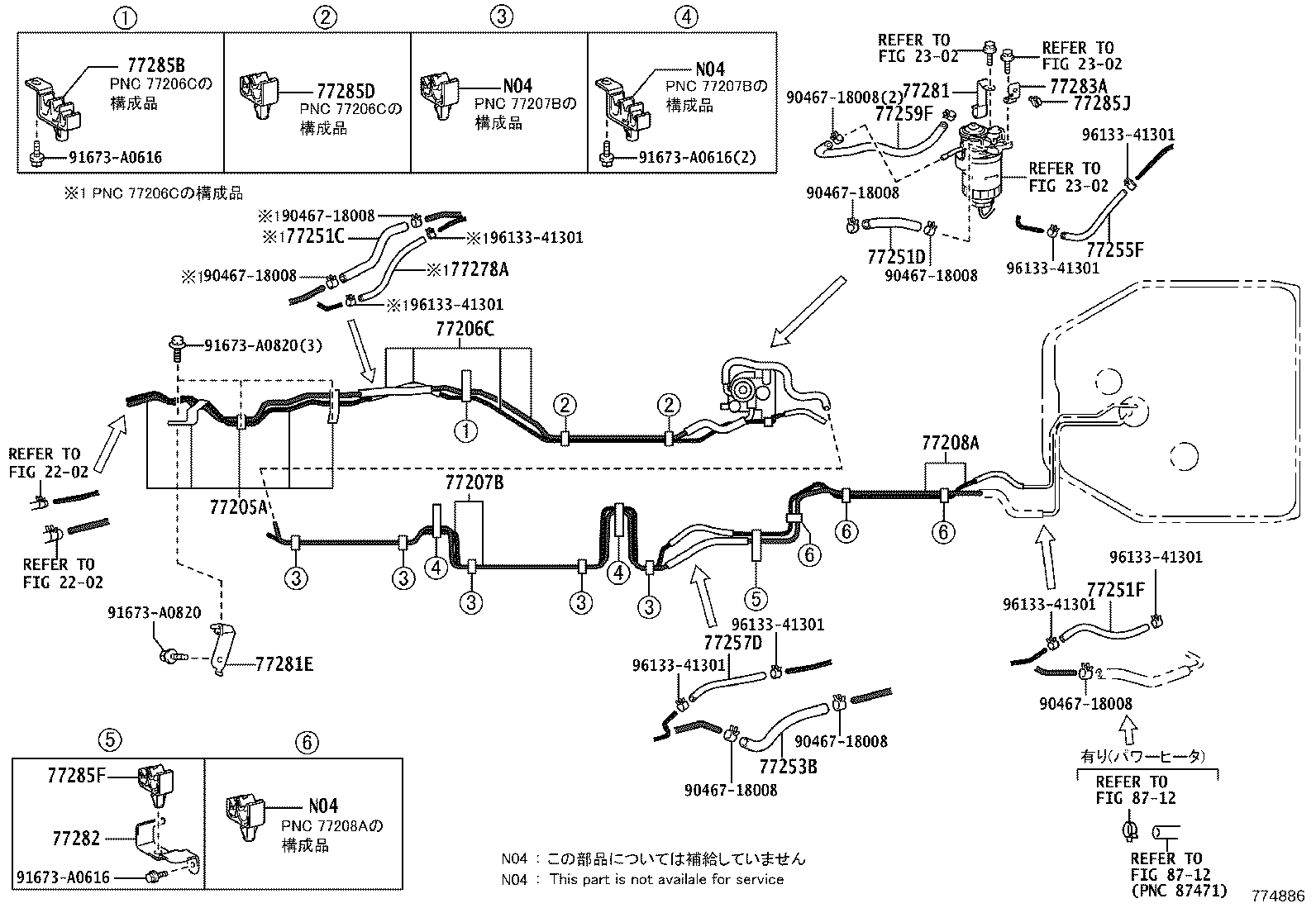

ILLUST NO. 2 OF 3(1908- )XZB80

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 2202 2202 2302 2302 2302 77205A 77206C 77207B 77208A 77251C 77251D 77251F 77253B 77255F 77257D 77259F 77278A 77281 77281E 77282 77283A 77285B 77285D 77285F 77285J 8712 8712 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 91673A0616 91673A0616 91673A0616 91673A0820 91673A0820 9613341301 9613341301 9613341301 9613341301 9613341301 9613341301 9613341301 9613341301
Part # Description Qty Price
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A61

XZB60,70,80

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-36610

XZB60,70,80

 1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36460

XZB80

 1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36260

XZB60,70,80

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-36450

XZB60,70,80

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36460

XZB60,70,80

 1
77251F - HOSE, FUEL
95337-08022

XZB60,70,80

長さ=220

 1
77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE)
95338-12026

XZB70,80

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95337-08019

XZB60,70,80

長さ=190

 1
77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE)
95337-08022

XZB70,80

 1
77259F - HOSE, FUEL
77259-36181

XZB60,70,80

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95337-08034

XZB60,70,80

長さ=260

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-36030

XZB60,70,80

 1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-36100

XZB60,70,80

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77281-36140

XZB60,70,80

 1
77283A - BRACKET, FUEL TUBE CLAMP, NO.1
77281-36130

XZB60,70,80

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-60670

XZB60,70,80

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-36290

XZB60,70,80

 2
77285F - CLAMP, FUEL TUBE, NO.1
77285-36290

XZB60,70,80

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-35800

XZB60,70,80

 1
Common parts
90467-18008
91673-A0616
91673-A0820
96133-41301
Linked diagrams
2202
2302
8712
