XZB80-ZXTNY (2019)

Toyota Coaster

Production Aug 2019 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

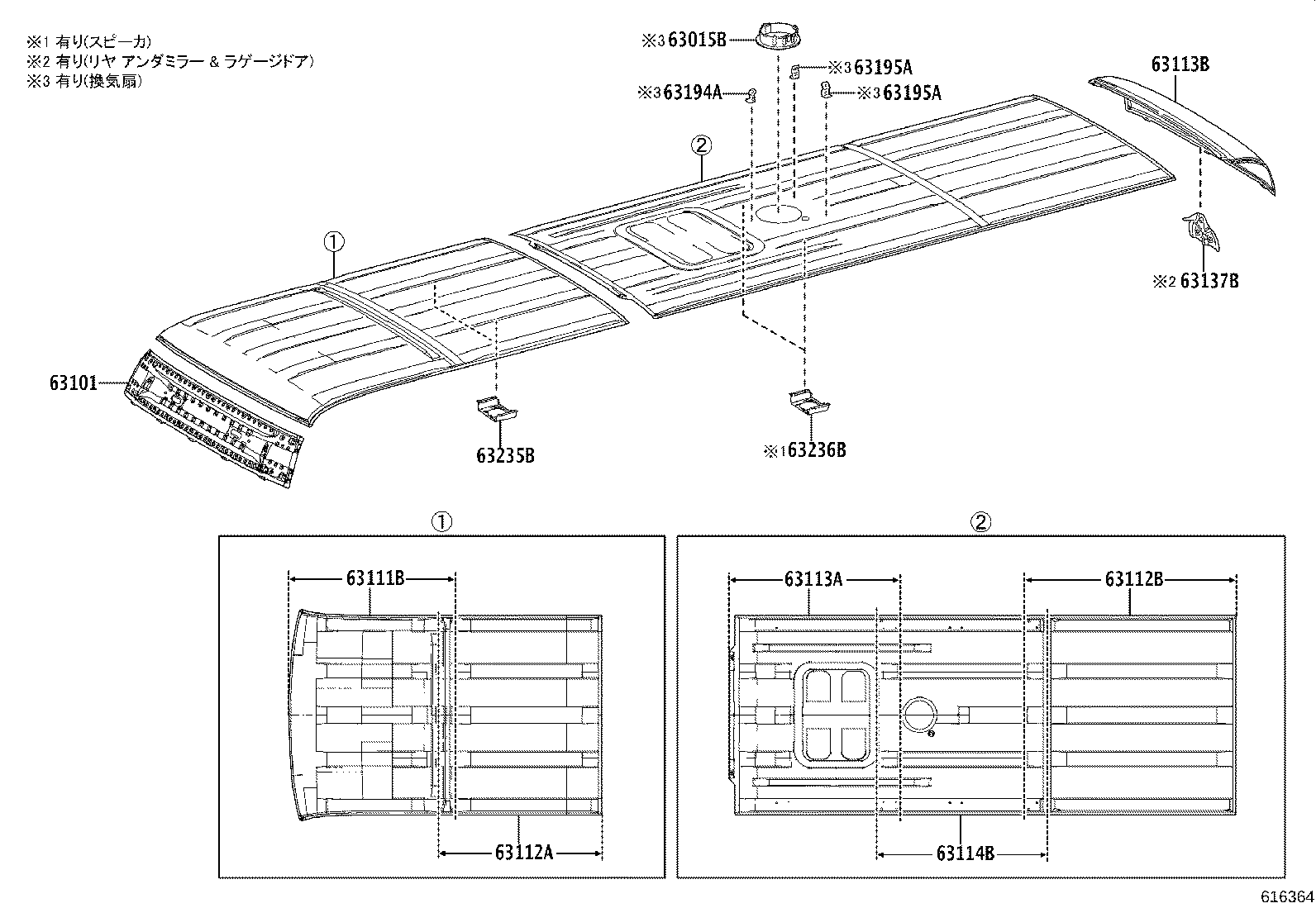

ILLUST NO. 1 OF 4(1908- )XZB80

Click highlighted areas on diagram

ﾙｰﾌﾊﾟﾈﾙ

diagram 63015B 63101 63111B 63112A 63112B 63113A 63113B 63114B 63137B 63194A 63195A 63195A 63235B 63236B
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63101-36040

XZB60,70,80

 1
63111B - PANEL, ROOF, NO.1
63116-36100

XZB60,70,80

 1
63112A - PANEL, ROOF, NO.2
63117-36130

XZB60,70,80

 1
63112B - PANEL, ROOF, REAR
63112-36210

XZB80

 1
63113A - PANEL, ROOF, NO.3
63118-36110

XZB60,70,80

 1
63113B - PANEL, ROOF, REAR
63113-36230

XZB60,70,80..09S,13S,21S,24S,39S,49S

 1
63114B - PANEL, ROOF, NO.4
63119-36140

XZB60,70,80

 1
63235B - BRACKET, ROOM SPEAKER
63236-36030

XZB60,70,80

 2
63236B - BRACKET, ROOM SPEAKER
63236-36030

XZB60,70,80..13S,21S,24S,25S,29S,39S,49S

 2

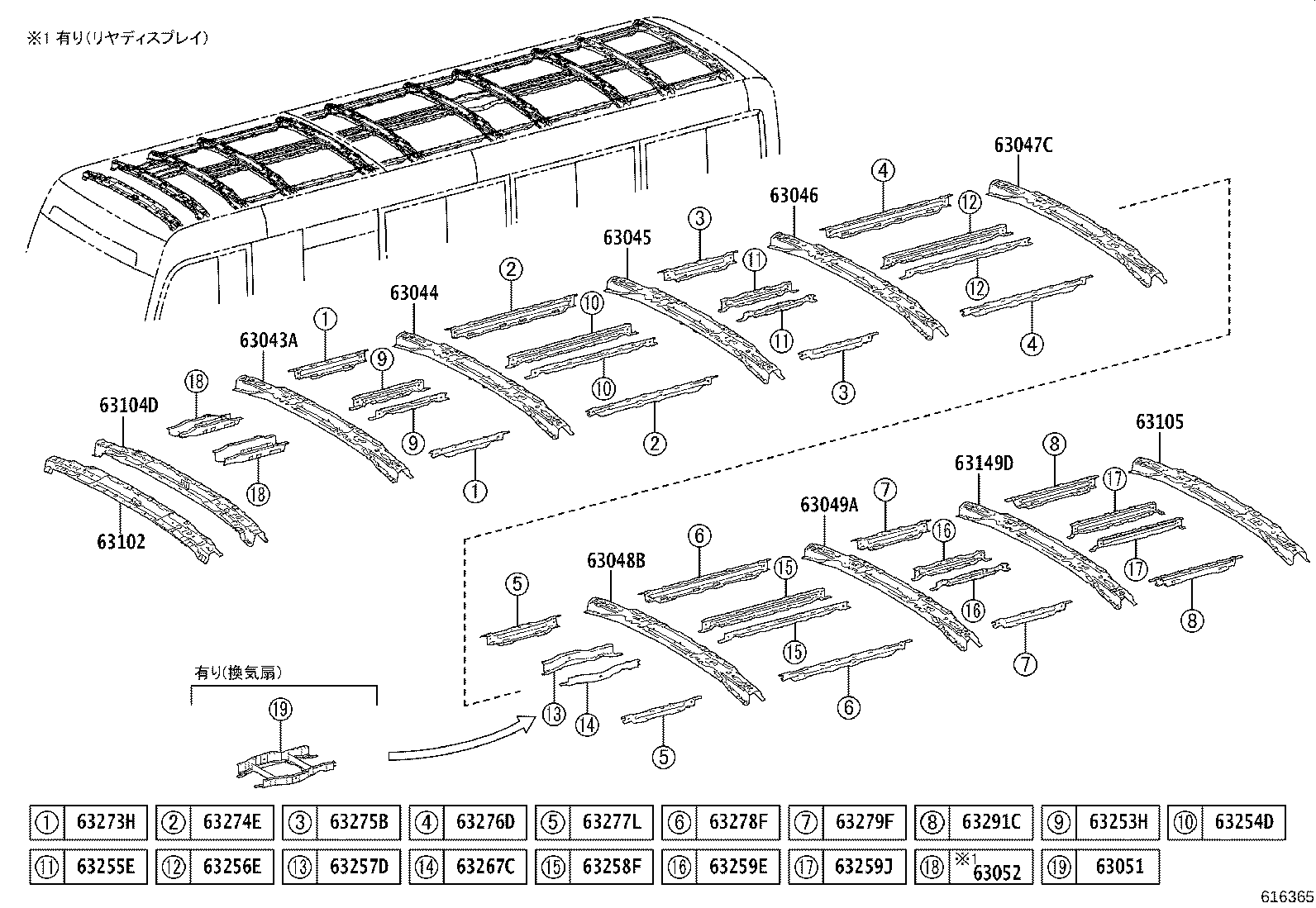

ILLUST NO. 2 OF 4(1908- )XZB80

Click highlighted areas on diagram

ﾘｲﾝﾎｰｽﾒﾝﾄ

diagram 63043A 63044 63045 63046 63047C 63048B 63049A 63051 63052 63102 63104D 63105 63149D 63253H 63254D 63255E 63256E 63257D 63258F 63259E 63259J 63267C 63273H 63274E 63275B 63276D 63277L 63278F 63279F 63291C
Part # Description Qty Price
63043A - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1
63044-36050

XZB70,80..13S,21S,24S,29S

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ

 1
63044-36060

XZB60,70,80

 1
63044 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A
63044-36060

XZB60,70,80

 1
63045 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63044-36080

XZB60,70,80..13S,21S,24S,25S,29S

 1
63046 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A
63044-36080

XZB60,70,80..13S,21S,24S,25S,29S

 1
63047C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63044-36080

XZB60,70,80..13S,21S,24S,25S,29S

 1
63048B - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63044-36080

XZB60,70,80..13S,21S,24S,25S,29S

 1
63049A - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7
63044-36080

XZB70,80..13S,21S,24S,29S

 1
63052 - STRENGTH SUB-ASSY, ROOF PANEL, FRONT
63052-36030

XZB70,80..13S,21S,24S,29S

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ,右側

 1
63052-36040

XZB70,80..13S,21S,24S,29S

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ,左側

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63104-36060

XZB60,70,80

 1
63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63043-36070

XZB70,80..13S,21S,24S,29S

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ

 1
63043-36060

XZB60,70,80

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63103-36040

XZB60,70,80..09S,13S,39S,49S

 1
63149D - REINFORCEMENT, ROOF PANEL, NO.8
63044-36080

XZB80

 1
63253H - STRENGTH, ROOF PANEL, CENTER NO.3
63253-36020

XZB60,70,80

 2
63255E - STRENGTH, ROOF PANEL, CENTER NO.5
63255-36030

XZB60,70,80

 2
63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH
63257-36030

XZB60,70,80

 1
63259E - STRENGTH, ROOF PANEL, CENTER NO.9
63255-36030

XZB80

 2
63259J - STRENGTH, ROOF PANEL, CENTER NO.10
63259-36020

XZB80

 2
63267C - STRENGTH, ROOF PANEL, CENTER NO.7 LH
63259-36010

XZB60,70,80

 1
63273H - STRENGTH, ROOF PANEL, NO.3
63273-36050

XZB60,70,80

 2
63274E - STRENGTH, ROOF PANEL, NO.4
63274-36030

XZB60,70,80

 2
63275B - STRENGTH, ROOF PANEL, NO.5
63275-36010

XZB60,70,80

 2
63276D - STRENGTH, ROOF PANEL, NO.6
63274-36030

XZB60,70,80

 2
63277L - STRENGTH, ROOF PANEL, NO.7
63275-36010

XZB60,70,80

 2
63278F - STRENGTH, ROOF PANEL, NO.8
63274-36030

XZB70,80

 2
63279F - STRENGTH, ROOF PANEL, NO.9
63275-36010

XZB80

 2
63291C - STRENGTH, ROOF PANEL, NO.10
63279-36080

XZB80

 2
