XZB70-ZXTQH (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

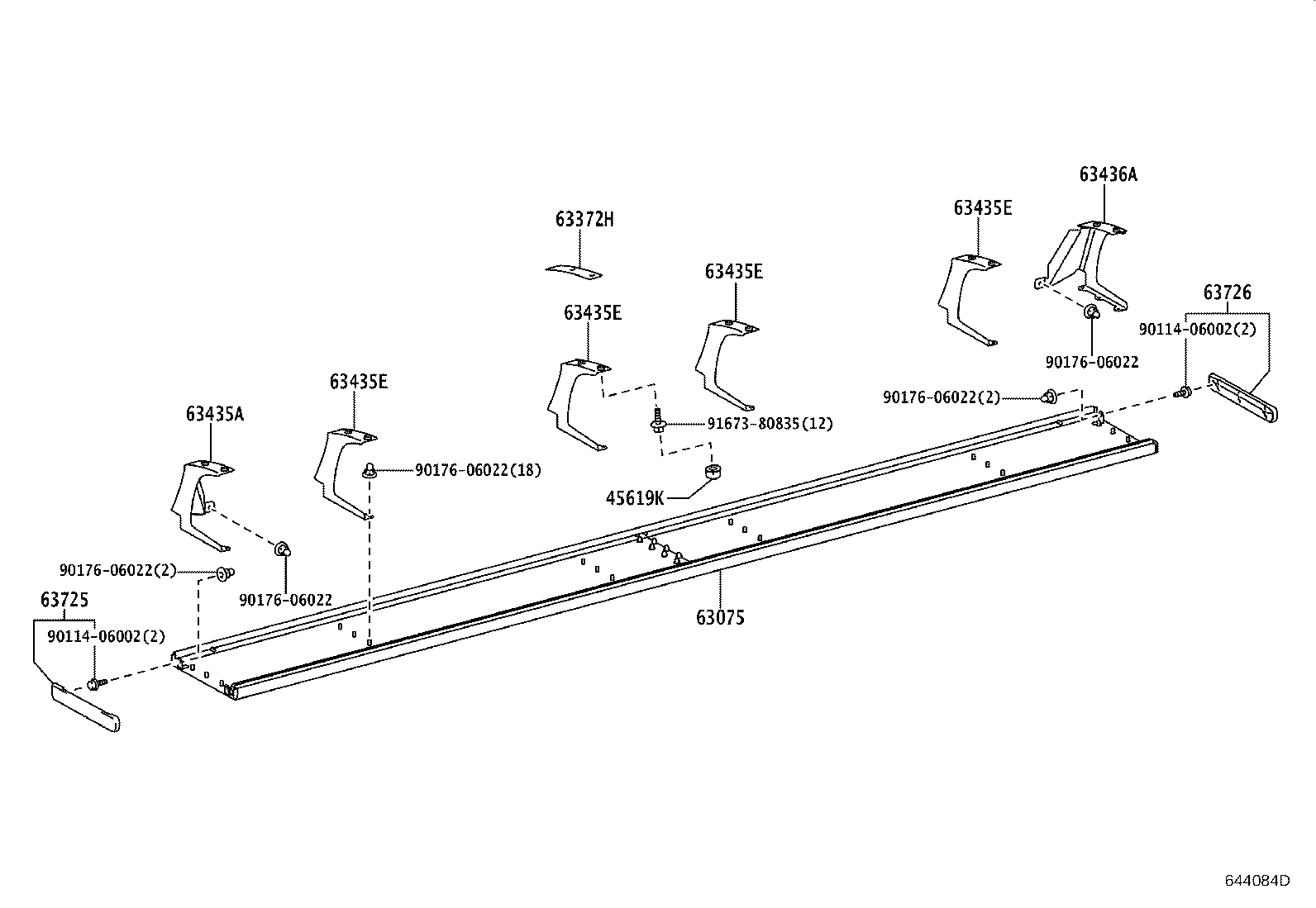

ILLUST NO. 1 OF 2(1701-1908)XZB70

Click highlighted areas on diagram

ﾙｰﾑﾗｯｸ

diagram 45619K 63075 63372H 63435A 63435E 63435E 63435E 63435E 63436A 63725 63726 9011406002 9011406002 9017606022 9017606022 9017606022 9017606022 9017606022 9167380835
Part # Description Qty Price
45619K - COVER, KNUCKLE STOPPER
45619-36040

XZB70..EX,PREM

 12
45619-14010

XZB70..EX

 12
63075 - COVER SUB-ASSY, ROOM RACK
63075-36110B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63075-36150B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63372H - MOULDING, ROOF BOARD SET
63372-36070B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63372-36070B0

XZB70..EX

LT.GRAY,TRIM1#

 2
63435A - FRAME, ROOM RACK, NO.1
63402-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63435-36120

XZB70..EX,PREM

 1
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63436A - FRAME, ROOM RACK, NO.2
63435-36160

XZB70..EX,PREM

 1
63402-36090B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63725 - PLATE, ROOM RACK COVER, FRONT
63725-36010B1

XZB70..EX

LT.GRAY,TRIM1#

 1
63726 - PLATE, ROOM RACK COVER, REAR
63726-36010B1

XZB70..EX

LT.GRAY,TRIM1#

 1
Common parts
90114-06002
90176-06022
91673-80835

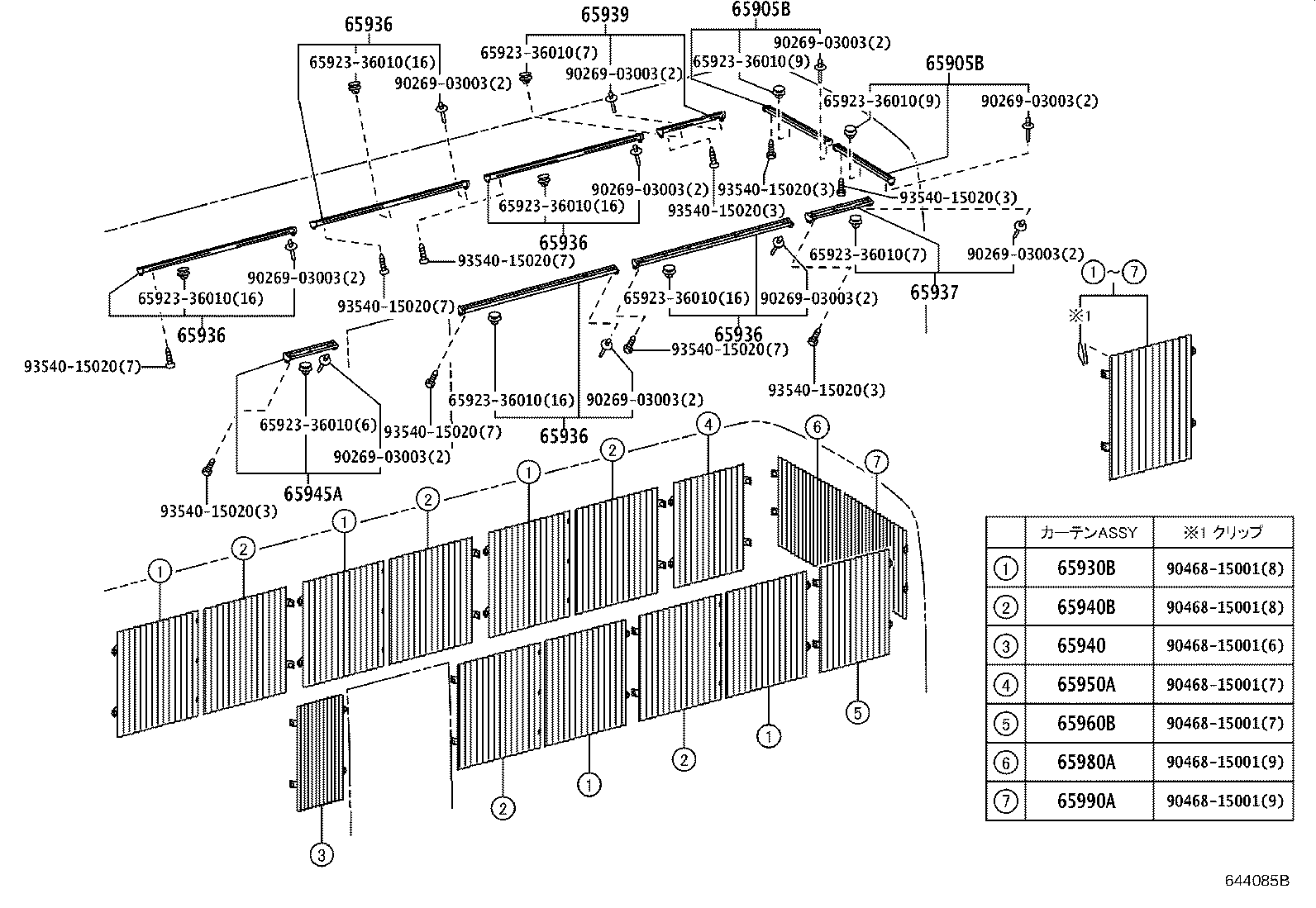

ILLUST NO. 2 OF 2(1701- )XZB70

Click highlighted areas on diagram

ｶｰﾃﾝ

diagram 65905B 65905B 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 65930B 65936 65936 65936 65936 65936 65937 65939 65940 65940B 65945A 65950A 65960B 65980A 65990A 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9046815001 9046815001 9046815001 9046815001 9046815001 9046815001 9046815001 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020
Part # Description Qty Price
65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH
65930-V4010B0

XZB60,70..24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 5
65930-36060B1

XZB60,70..24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70,80..13S,24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70,80..13S,24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70,80..13S,24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70,80..13S,24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70,80..13S,24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 5
65937 - RAIL, CURTAIN, NO.2
65099-36040B0

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 1
65099-36020B0

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 1
65939 - RAIL, CURTAIN, NO.4
65099-36030B0

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 1
65099-36010B0

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 1
65940 - CURTAIN ASSY, SIDE, FRONT RH
65940-36080B1

XZB60,70,80..13S,24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 1
65940-V4020B0

XZB60,70,80..13S,24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 1
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-36070B1

XZB60,70..24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 5
65940-V4010B0

XZB60,70..24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 5
65945A - RAIL, CURTAIN, NO.5
65098-36060B0

XZB60,70,80..13S,24S,25S,29S,39S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#

 1
65950A - CURTAIN ASSY, SIDE WINDOW, REAR RH
65950-V4010B0

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 1
65950-36030B1

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 1
65960B - CURTAIN ASSY, SIDE WINDOW, REAR LH
65960-V4010B0

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 1
65960-36030B1

XZB70..24S,29S,49S

ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LIGHT GRAY,TRIM1#

 1
Common parts
65923-36010
90269-03003
90468-15001
93540-15020

ILLUST NO. 1 OF 2(1908- )XZB70

Click highlighted areas on diagram

ﾙｰﾑﾗｯｸ

diagram 45619K 63075 63372H 63372H 63435A 63435E 63435E 63435E 63435E 63436A 9155180825 9155180825 9155180825 9167380835
Part # Description Qty Price
45619K - COVER, KNUCKLE STOPPER
45619-36040

XZB70..EX,PREM

 12
45619-14010

XZB70..EX

 12
63075 - COVER SUB-ASSY, ROOM RACK
63075-36110B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63075-36150B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63372H - MOULDING, ROOF BOARD SET
63372-36070B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63372-36070B0

XZB70..EX

LT.GRAY,TRIM1#

 2
63372H - MOULDING, ROOF BOARD SET
63372-36070B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63372-36070B0

XZB70..EX

LT.GRAY,TRIM1#

 2
63435A - FRAME, ROOM RACK, NO.1
63402-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 1
63435-36120

XZB70..EX,PREM

 1
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36080B0

XZB70..EX

LT.GRAY,TRIM1#

 4
63435-36120

XZB70..EX,PREM

 4
63436A - FRAME, ROOM RACK, NO.2
63435-36160

XZB70..EX,PREM

 1
63402-36090B0

XZB70..EX

LT.GRAY,TRIM1#

 1
Common parts
91551-80825
91673-80835
