XZB70-ZXTNY (2017)
Toyota Coaster

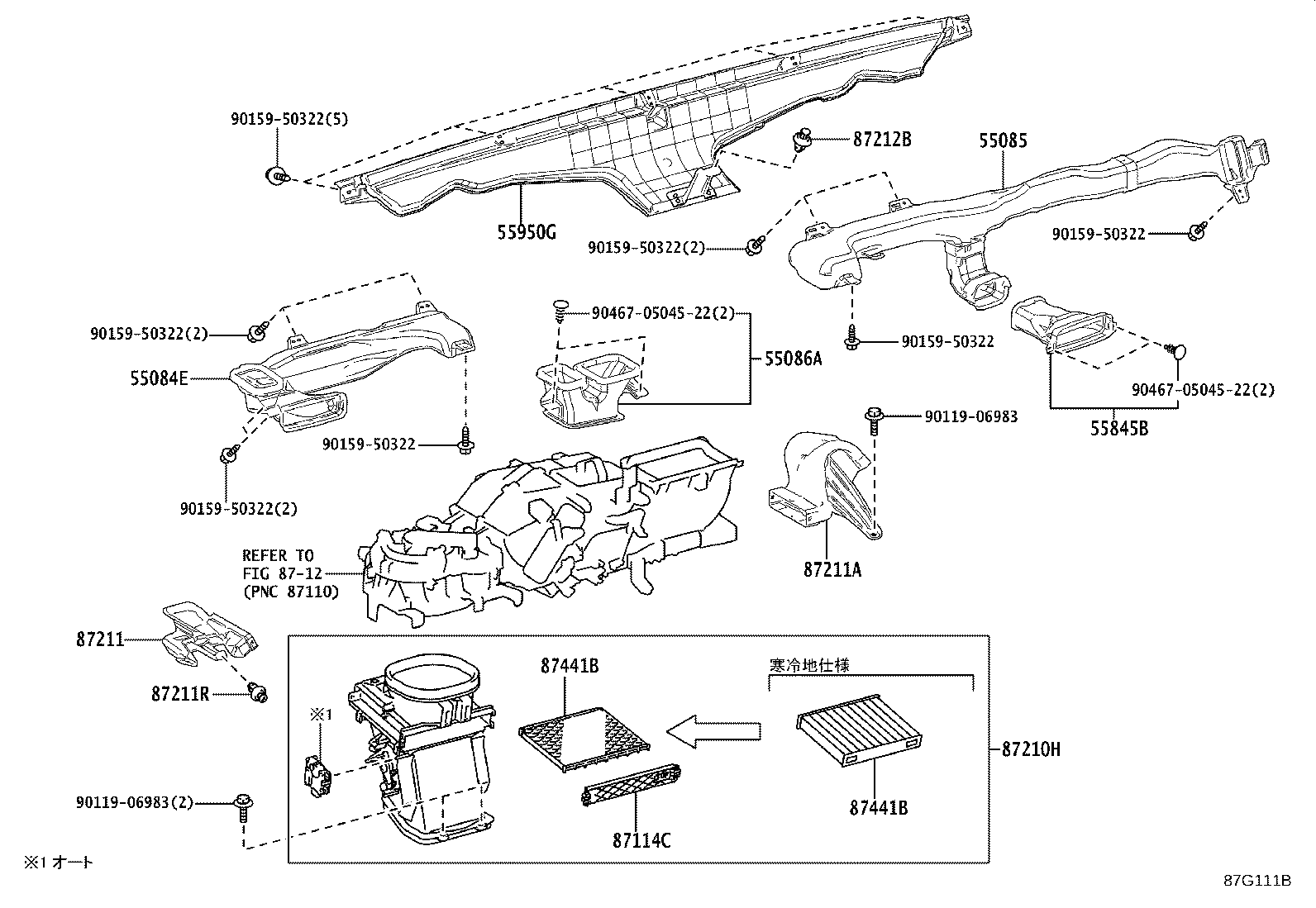

ILLUST NO. 2 OF 6(1701- )
ﾌﾛﾝﾄﾋｰﾀ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55085-36030 |
XZB60,70,80 |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55084-36040 |
XZB60,70,80 |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-36010 |
XZB60,70,80 |
1 | ||
| 55845B - DUCT, REAR HEATER TO REGISTER, NO.3 | ||||
| 55845-36030 |
XZB60,70,80 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-36040 |
XZB60,70 |
1 | ||
| 55950-36060 |
XZB60,70,80 |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-36030 |
XZB60,70,80 |
1 | ||
| 87210H - CASE ASSY, AIR DAMPER | ||||
| 87210-36170 |
XZB60,70,80..LX,S |
1 | ||
| 87210-36200 |
XZB60,70,80..LX,S 寒冷地仕様 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-36170 |
XZB60,70,80 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-36160 |
XZB60,70,80 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-05170 |
XZB60,70,80 |
1 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-07117 |
XZB60,70,80 |
1 | ||
| 87441B - FILTER, HEATER AIR | ||||
| 87139-26010 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87441-36030 |
XZB60,70,80 |
1 | ||
| 87441B - FILTER, HEATER AIR | ||||
| 87139-26010 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87441-36030 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90159-50322 | ||||
| 90467-0504522 | ||||
| Linked diagrams | ||||
| 8712 | ||||

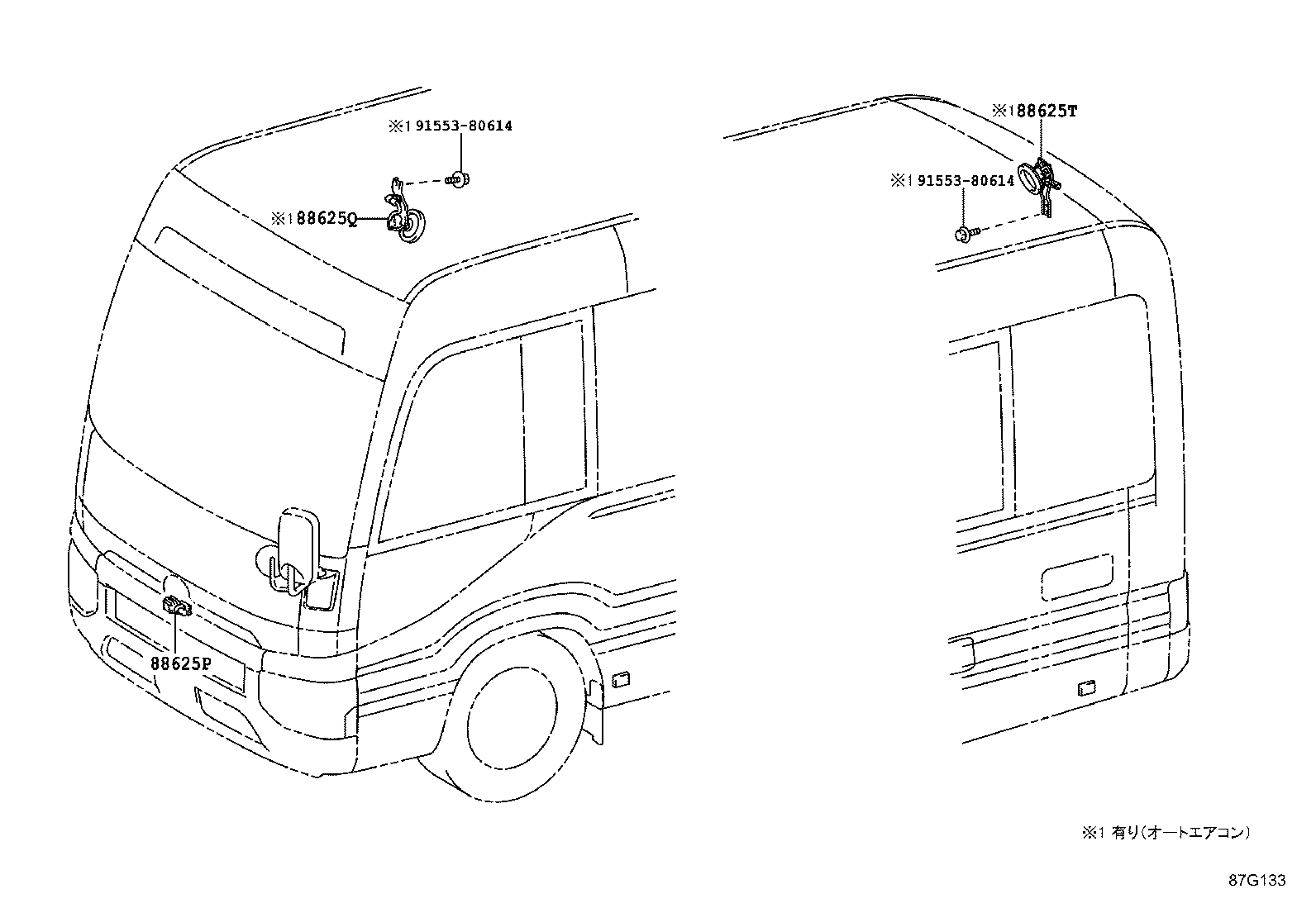

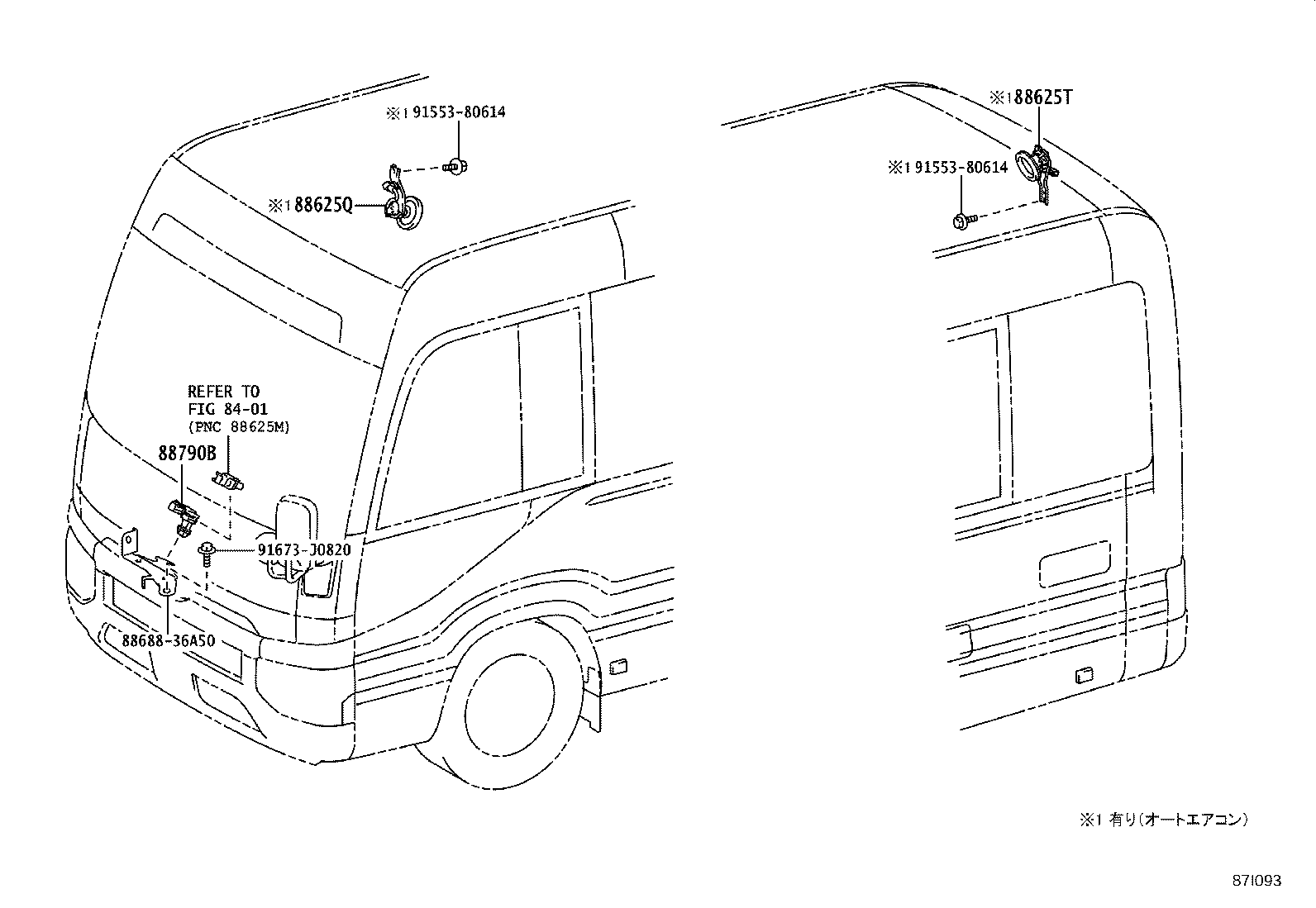

ILLUST NO. 6 OF 6(1701-1908)EX,GX ; (1701-1910)LX,S
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32171 |
XZB60,70,80..LX,S |
1 | ||
| Common parts | ||||
| 91553-80614 | ||||
ILLUST NO. 4 OF 6(1701- )
ﾙｰﾌﾀﾞｸﾄ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63830A - SERVO SUB-ASSY, DAMPER(FOR ROOF VENTILATOR) | ||||
| 87106-36100 |
XZB60,70,80 |
1 | ||
| 88430A - DUCT ASSY, AIR, NO.1 | ||||
| 88430-36340 |
XZB60,70,80 |
1 | ||
| 88430B - DUCT ASSY, AIR, NO.2 | ||||
| 88430-36330 |
XZB60,70,80..LX,S |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36060 |
XZB60,70,80 |
2 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36060 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 90467-10206 | ||||
| Linked diagrams | ||||
| 6153 | ||||
| 8714 | ||||

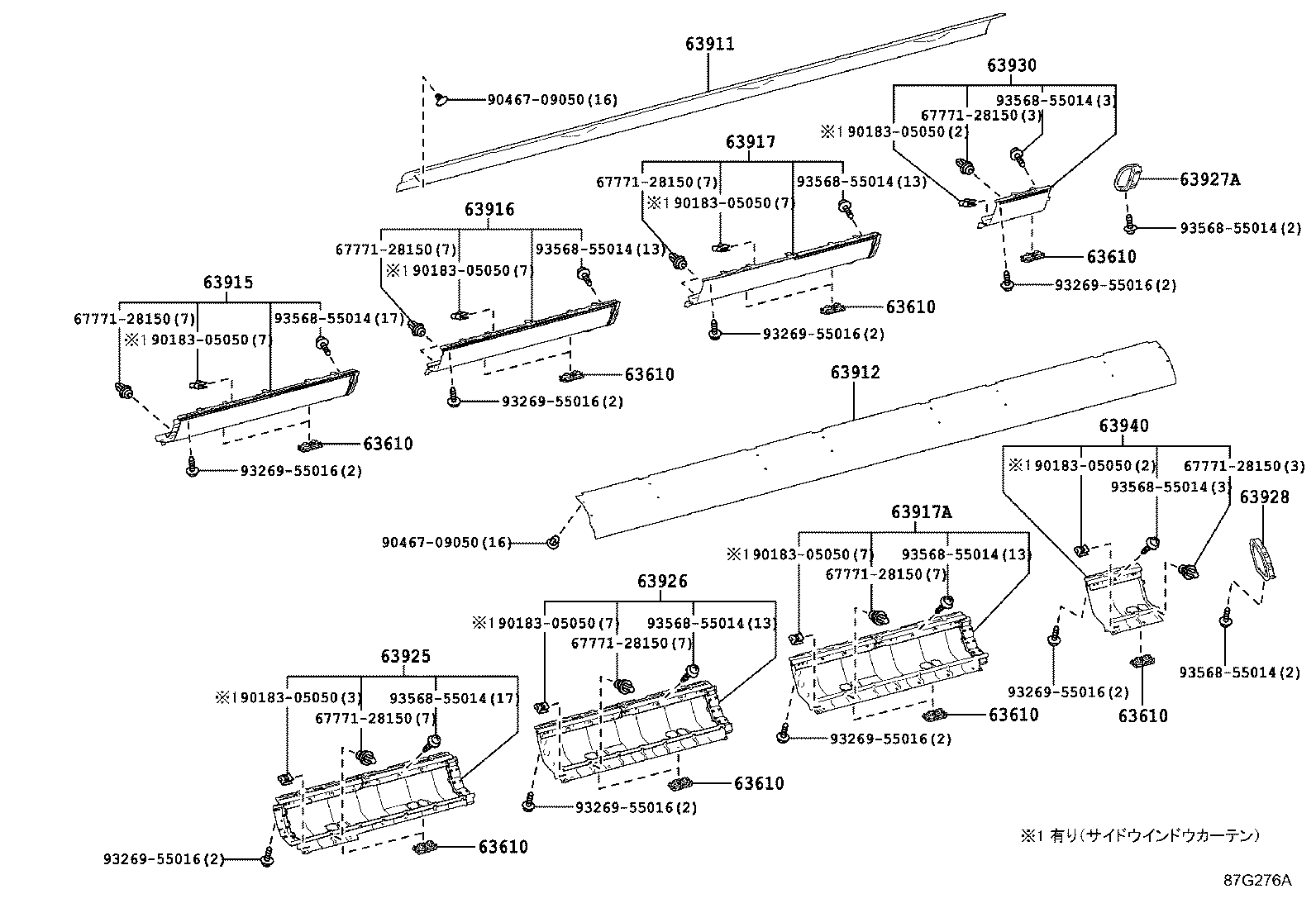

ILLUST NO. 5 OF 6(1701- )XZB70
ﾙｰﾌﾀﾞｸﾄ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63640-36020B0 |
XZB70..GX,LX,S LT.GRAY,TRIM1# |
16 | ||
| 63911 - DUCT, COOLER, OUTER RH | ||||
| 63911-36160 |
XZB70 |
1 | ||
| 63912 - DUCT, COOLER, OUTER LH | ||||
| 63921-36020 |
XZB70 |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63950-36040B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63950-36050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63916 - DUCT, COOLER, INNER NO.2 RH | ||||
| 63930-36020B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63930-36040B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63917 - DUCT, COOLER, INNER NO.3 RH | ||||
| 63930-36130B0 |
XZB70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63930-36120B0 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63917A - DUCT, COOLER, INNER NO.3 LH | ||||
| 63930-36170B0 |
XZB70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63930-36160B0 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63960-36030B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63960-36020B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63926 - DUCT, COOLER, INNER NO.2 LH | ||||
| 63930-36100B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63930-36110B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63927A - COVER, COOLER DUCT END, NO.1 | ||||
| 63927-36060 |
XZB60,70,80 |
1 | ||
| 63928 - COVER, COOLER DUCT END, NO.2 | ||||
| 63928-36060 |
XZB60,70,80 |
1 | ||
| 63930 - DUCT, COOLER, INNER NO.4 RH | ||||
| 63930-36060B0 |
XZB70..24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63930-36070B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63940 - DUCT, COOLER, INNER NO.4 LH | ||||
| 63940-36040B0 |
XZB70..24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63940-36050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-28150 | ||||
| 90183-05050 | ||||
| 90467-09050 | ||||
| 93269-55016 | ||||
| 93568-55014 | ||||

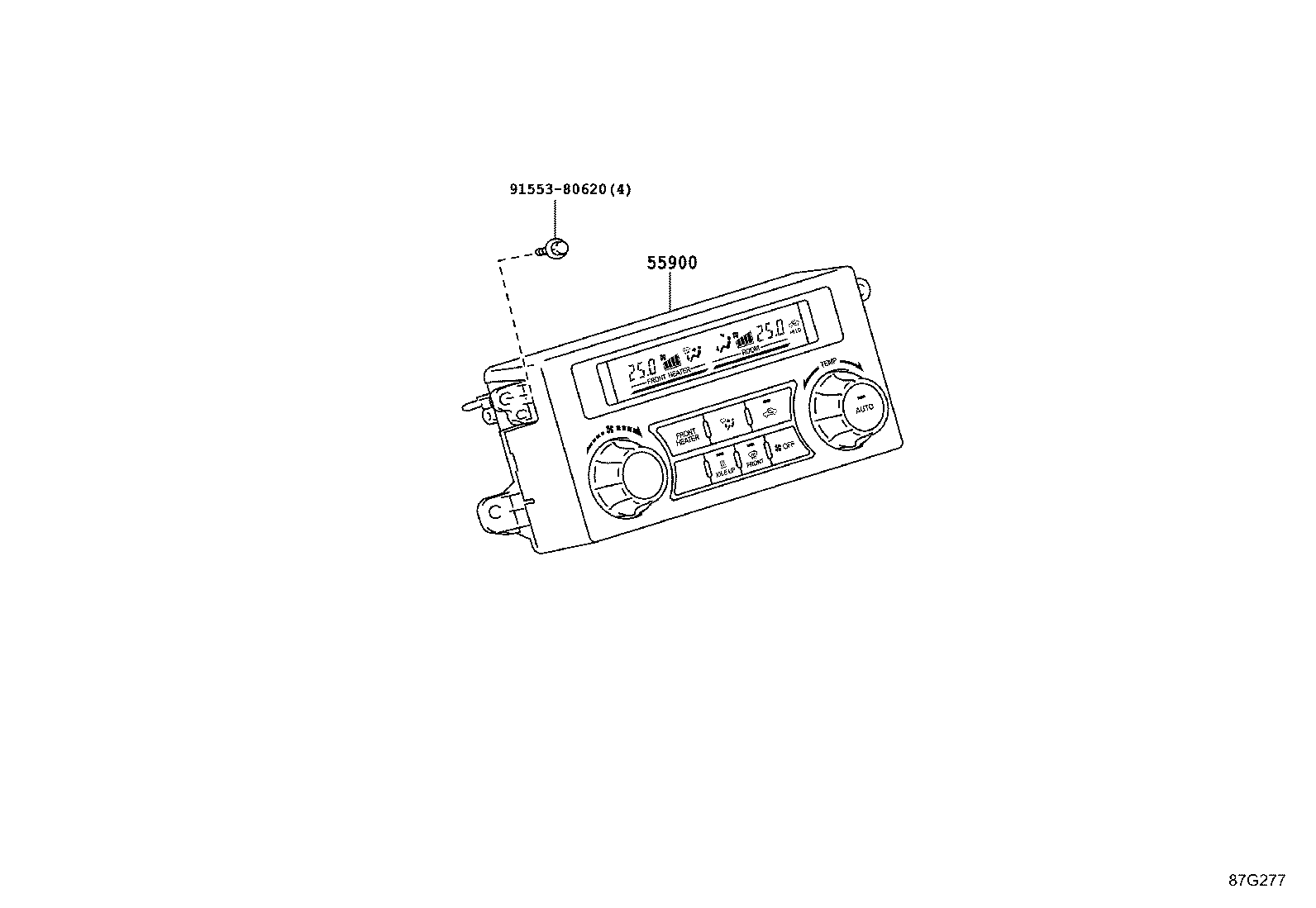

ILLUST NO. 1 OF 6(1701- )
ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ(ｵｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91553-80620 | ||||
ILLUST NO. 6 OF 6(1908- )EX,GX ; (1910- )LX,S ; (2006- )PREM
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| 88790-36050 |
XZB60,70,80..LX,S |
1 | ||
| Common parts | ||||
| 88688-36A50 | ||||
| 91553-80614 | ||||
| 91673-J0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

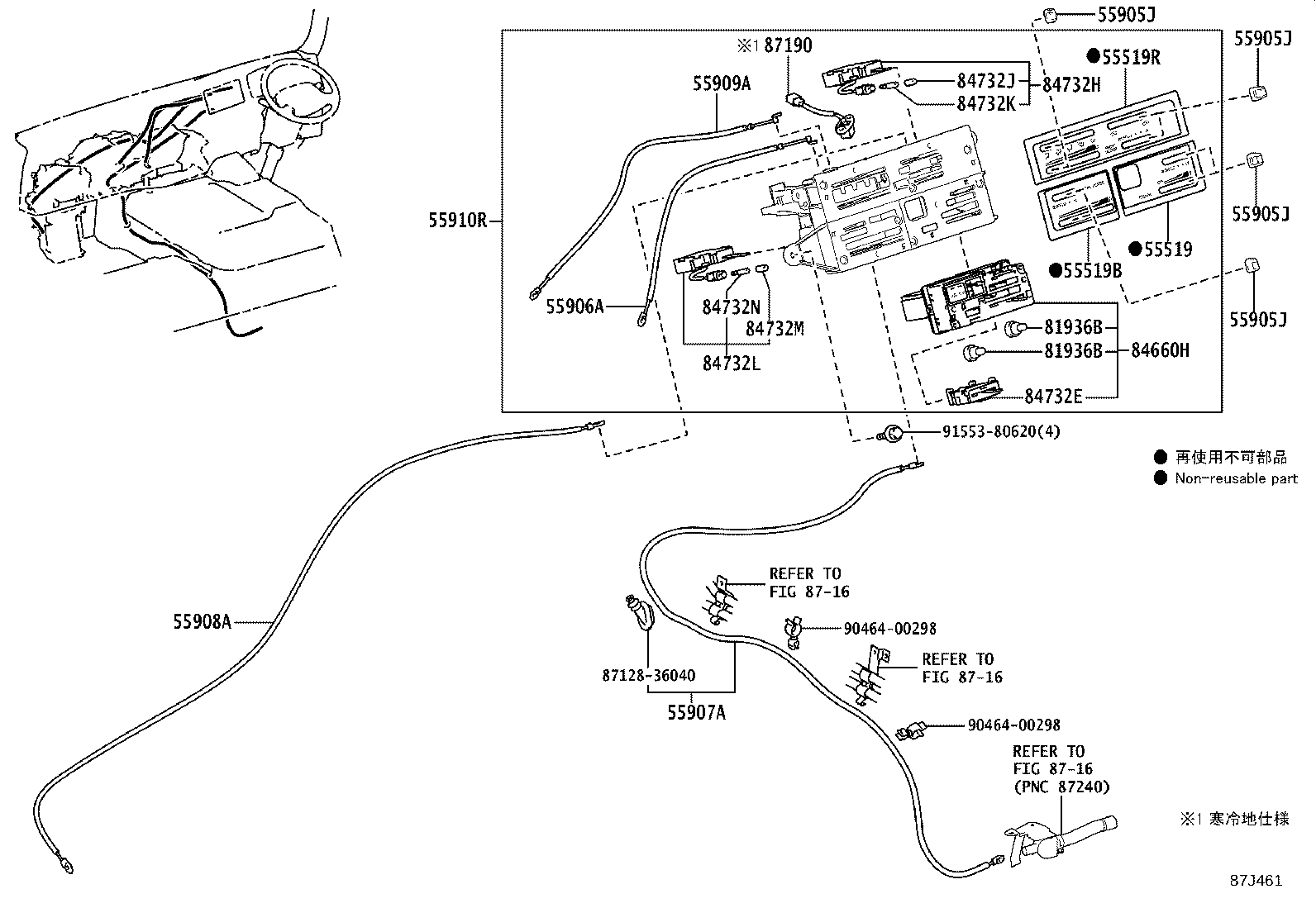

ILLUST NO. 1 OF 6(1701- )
ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ(ﾏﾆｭｱﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-36030 |
XZB60,70,80..LX,S |
1 | ||
| 55519B - PLATE, HEATER CONTROL NAME | ||||
| 55519-36080 |
XZB60,70,80..LX,S |
1 | ||
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-36070 |
XZB60,70,80..LX,S |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-36040 |
XZB60,70,80..LX,S |
8 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-36040 |
XZB60,70,80..LX,S |
8 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-36040 |
XZB60,70,80..LX,S |
8 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-36040 |
XZB60,70,80..LX,S |
8 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-36070 |
XZB60,70,80..LX,S |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-36120 |
XZB60,70,80..LX,S |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-36080 |
XZB60,70,80..LX,S |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55907-36070 |
XZB60,70,80..LX,S |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-36250 |
XZB60,70,80..LX,S |
1 | ||
| 55910-36260 |
XZB60,70,80..LX,S 寒冷地仕様 |
1 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
XZB60,70,80..LX,S |
2 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
XZB60,70,80..LX,S |
2 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-36050 |
XZB60,70,80..LX,S |
1 | ||
| 84732E - SWITCH, COOLER BLOWER | ||||
| 84732-35010 |
XZB60,70,80..LX,S |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 84732-36060 |
XZB60,70,80..LX,S |
1 | ||
| 84732J - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
XZB60,70,80..LX,S |
1 | ||
| 84732K - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
XZB60,70,80..LX,S 14V 1.4W |
1 | ||
| 84732L - SWITCH, REAR HEATER BLOWER | ||||
| 84732-36080 |
XZB60,70,80..LX,S |
1 | ||
| 84732M - CAP, REAR HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
XZB60,70,80..LX,S |
1 | ||
| 84732N - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11014 |
XZB60,70,80..LX,S |
1 | ||
| 87190 - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-36010 |
XZB60,70,80..LX,S 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 87128-36040 | ||||
| 90464-00298 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8716 | ||||
