XZB70-ZXTNY (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

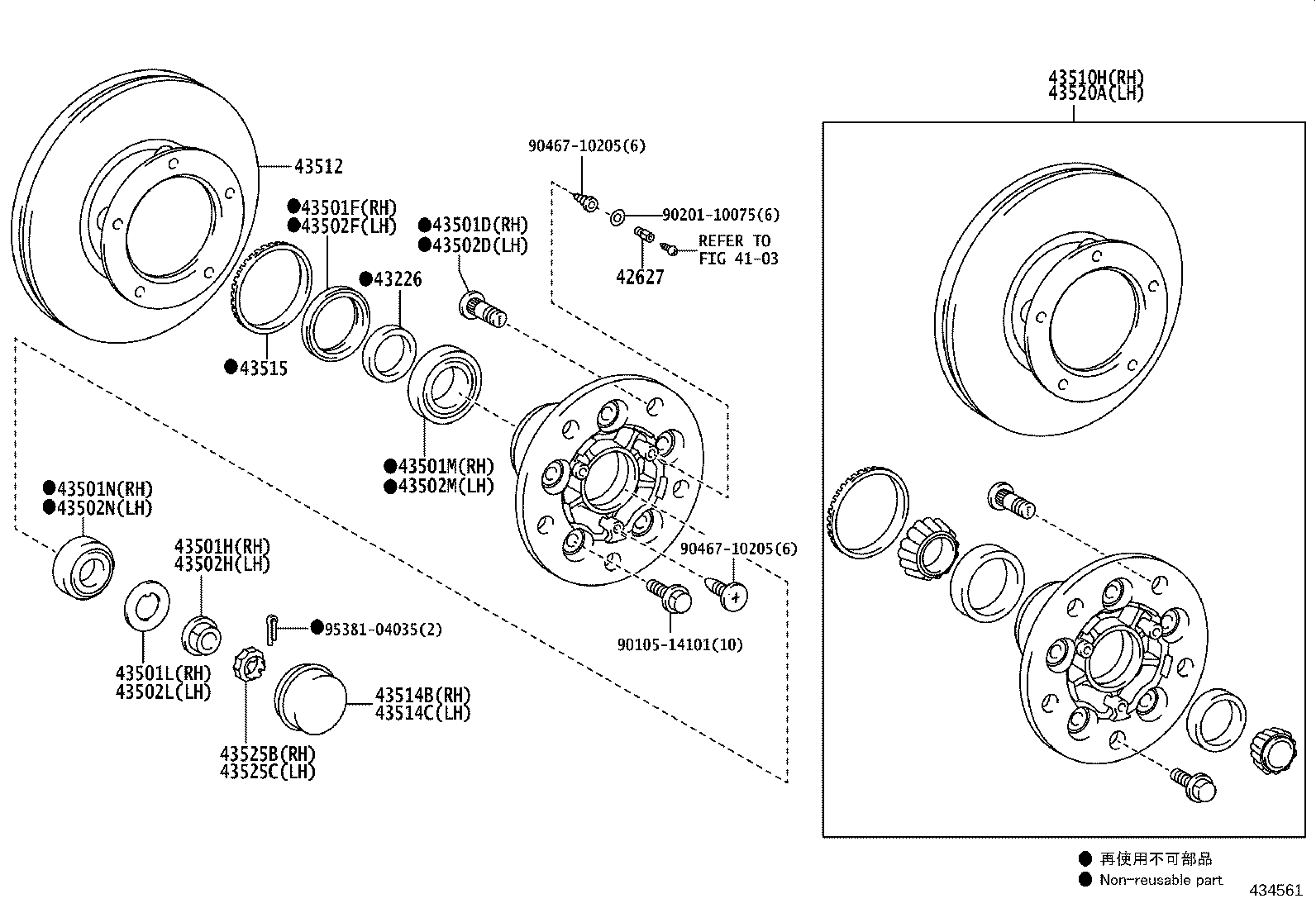

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42627 - BOLT, FRONT WHEEL CAP SET | ||||
| 42627-36020 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ |
6 | ||
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-37020 |
XZB60,70,80 |
2 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZB60,70,80 |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
XZB60,70,80 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
XZB60,70,80 |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
XZB60,70,80 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
XZB60,70,80 |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
XZB60,70,80 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZB60,70,80 |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68002 |
XZB60,70,80 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
XZB60,70,80 |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
XZB60,70,80 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
XZB60,70,80 |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
XZB60,70,80 |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39525 |
XZB60,70,80 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-36182 |
XZB60,70,80 |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37050 |
XZB60,70,80 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37050 |
XZB60,70,80 |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-36020 |
XZB60,70,80 |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39505 |
XZB60,70,80 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
XZB60,70,80 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 90201-10075 | ||||
| 90467-10205 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||
