XZB70-ZXMNY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

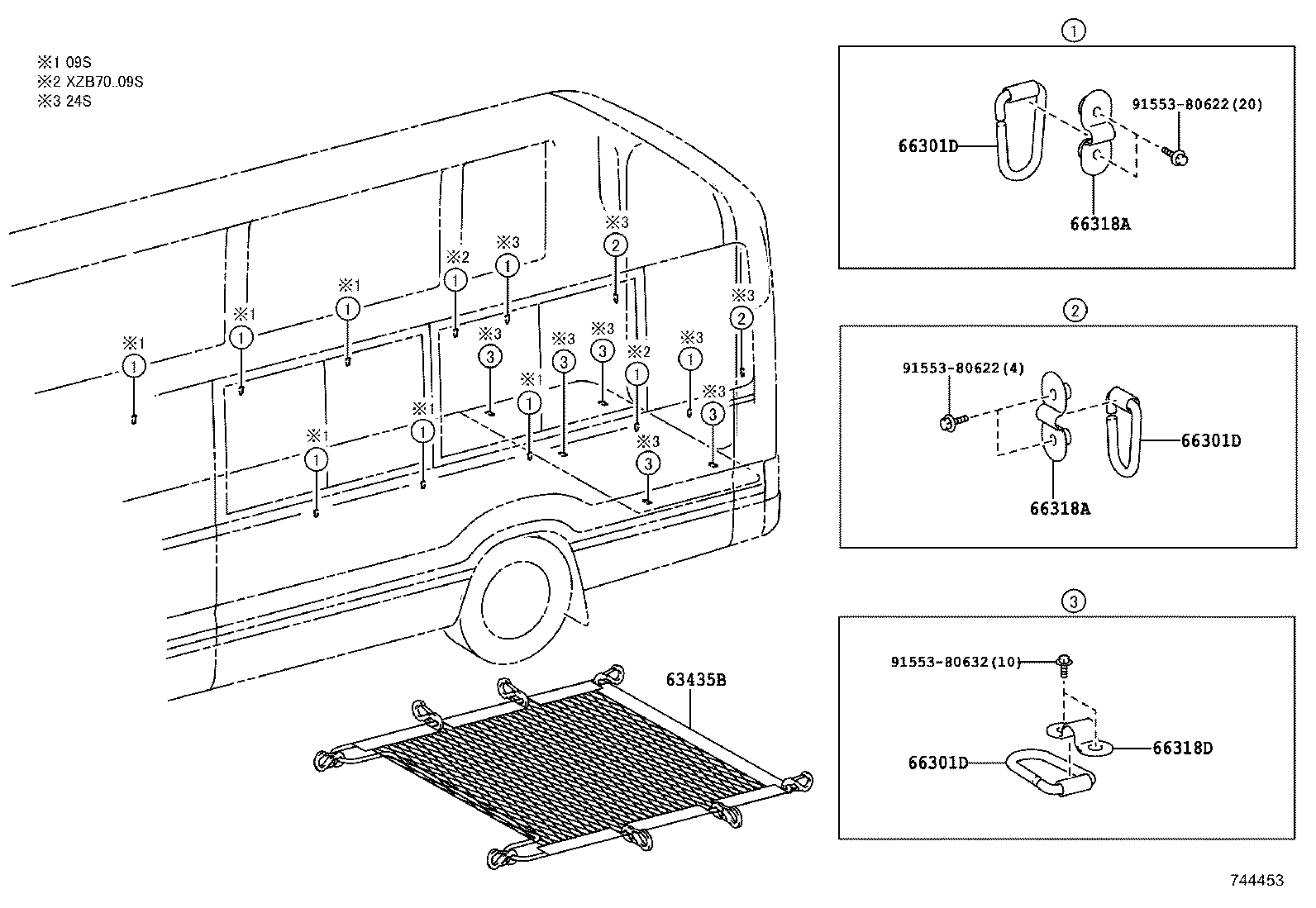

ILLUST NO. 2 OF 2(1701- )09S,24S

Click highlighted areas on diagram

ﾛｰﾌﾟﾌｯｸ & ﾈｯﾄ

diagram 63435B 66301D 66301D 66301D 66318A 66318A 66318D 9155380622 9155380622 9155380632
Part # Description Qty Price
63435B - NET, ROOM RACK
64230-36010

XZB70..24S

ﾗｯｹﾞｰｼﾞﾙｰﾑｾﾊﾟﾚｰﾀ−有り(ｾﾊﾟﾚｰﾀ)

 1
66301D - HOOK SUB-ASSY, ROPE
66301-36010

XZB70..24S

 9
66301D - HOOK SUB-ASSY, ROPE
66301-36010

XZB70..24S

 9
66301D - HOOK SUB-ASSY, ROPE
66301-36010

XZB70..24S

 9
66318A - BAND, ROPE HOOK
66318-36020

XZB70..24S

 4
66318A - BAND, ROPE HOOK
66318-36020

XZB70..24S

 4
66318D - BAND, ROPE HOOK, NO.2
66318-90A00

XZB70..24S

 5
Common parts
91553-80622
91553-80632
