XZB70-ZXMNY (2017)
Toyota Coaster
ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-36120 |
XZB60,70,80 |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-36120 |
XZB60,70,80 |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36240 |
XZB60,70 |
1 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-16042 |
XZB60,70,80 長さ=200,ｲﾗｽﾄ参照 |
2 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-16042 |
XZB60,70,80 長さ=200,ｲﾗｽﾄ参照 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36240 |
XZB60,70 |
1 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-16042 |
XZB60,70,80 長さ=200,ｲﾗｽﾄ参照 |
2 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-16042 |
XZB60,70,80 長さ=200,ｲﾗｽﾄ参照 |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
XZB60,70,80 |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
XZB60,70,80 |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
XZB60,70,80 |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
XZB60,70,80 |
2 | ||
| 48341C - BUMPER, REAR SPRING, NO.2 RH | ||||
| 48306-36090 |
XZB60,70,80 |
1 | ||
| 48341D - BUMPER, REAR SPRING, NO.2 LH | ||||
| 48306-36090 |
XZB60,70,80 |
1 | ||
| 48344B - STOPPER, BUMPER, REAR RH | ||||
| 48344-36450 |
XZB60,70,80 |
1 | ||
| 48345C - STOPPER, BUMPER, REAR LH | ||||
| 48345-36060 |
XZB60,70,80 |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36330 |
XZB60,80;XZB70..LX,S |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-36110 |
XZB60,80;XZB70..LX,S |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-36291 |
XZB60,80;XZB70..LX,S |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-36161 |
XZB60,80;XZB70..LX,S |
1 | ||
| 48422B - SUPPORT, REAR SPRING PIN, RH | ||||
| 48422-37010 |
XZB60,70,80 |
1 | ||
| 48422C - SUPPORT, REAR SPRING PIN, LH | ||||
| 48422-37010 |
XZB60,70,80 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80832 |
XZB60,70,80 ﾏｰｸ 48531−36221 |
1 | ||
| 48531-80807 |
XZB60,70 ﾏｰｸ 48531−36220 |
1 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
XZB60,70,80 |
2 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
XZB60,70,80 |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
XZB60,70,80 |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
XZB60,70,80 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80832 |
XZB60,70,80 ﾏｰｸ 48531−36221 |
1 | ||
| 48531-80807 |
XZB60,70 ﾏｰｸ 48531−36220 |
1 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
XZB60,70,80 |
2 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
XZB60,70,80 |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
XZB60,70,80 |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
XZB60,70,80 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-36031 |
XZB60,70..21S,24S,25S,29S,39S,49S |
1 | ||
| 48818B - BUSH, STABILIZER, REAR RH | ||||
| 48818-36030 |
XZB60,70..21S,24S,25S,29S,39S,49S |
1 | ||
| 48818C - BUSH, STABILIZER, REAR LH | ||||
| 48818-36040 |
XZB60,70..21S,24S,25S,29S,39S,49S |
1 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-36090 |
XZB60,70,80 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
XZB60,70 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
XZB60,70 |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-36021 |
XZB60,70 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-36021 |
XZB60,70 |
1 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90170-16021 | ||||
| 90901-05006 | ||||
| 91651-B0814 | ||||
| 91674-K1028 | ||||
| 94184-01601 | ||||
| 94184-61001 | ||||
| 94622-11600 | ||||
| 95121-01036 | ||||

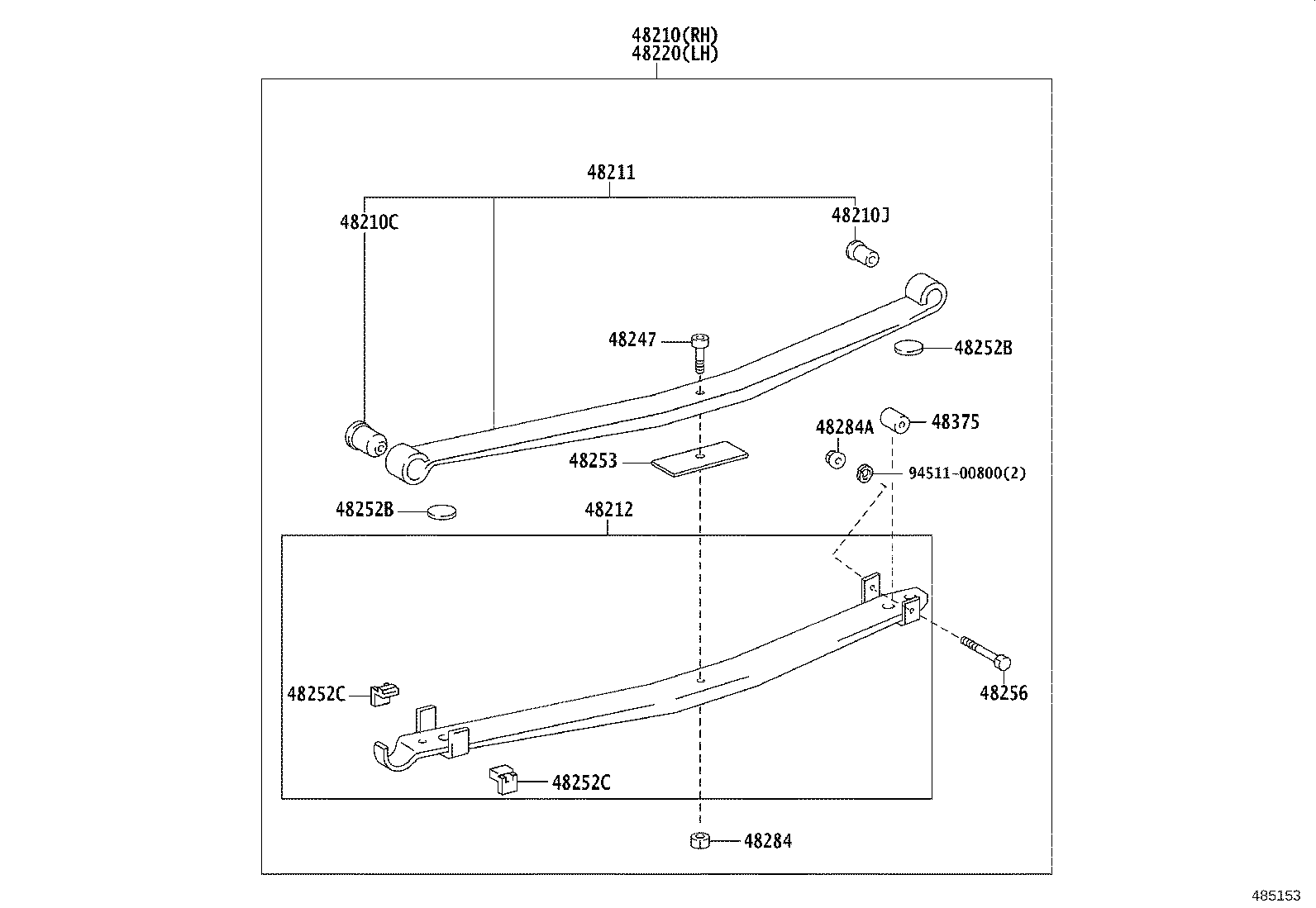

ILLUST NO. 2 OF 2(1908- )
2ﾏｲﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16018 |
XZB60,70 |
2 | ||
| 90389-16018 |
XZB60,70;XZB80..DCR |
2 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16030 |
XZB60,70 |
2 | ||
| 90389-16015 |
XZB60,70 |
2 | ||
| 90389-16030 |
XZB60,70;XZB80..DCR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B800 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48201-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48201-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48201-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B850 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48202-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48202-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48202-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B800 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
XZB60,70 |
2 | ||
| 48247-36B10 |
XZB60,70;XZB80..DCR |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZB60,70 |
4 | ||
| 48252-37670 |
XZB60,70;XZB80..DCR |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZB60,70 |
4 | ||
| 48252-37670 |
XZB60,70;XZB80..DCR |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26G00 |
XZB60,70,80..(GX,LX,S)..DCR |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26G00 |
XZB60,70,80..(GX,LX,S)..DCR |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26G00 |
XZB60,70,80..(GX,LX,S)..DCR |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26G00 |
XZB60,70,80..(GX,LX,S)..DCR |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
XZB60,70 |
2 | ||
| 48253-36A20 |
XZB60,70 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
XZB60,70;XZB80..DCR |
2 | ||

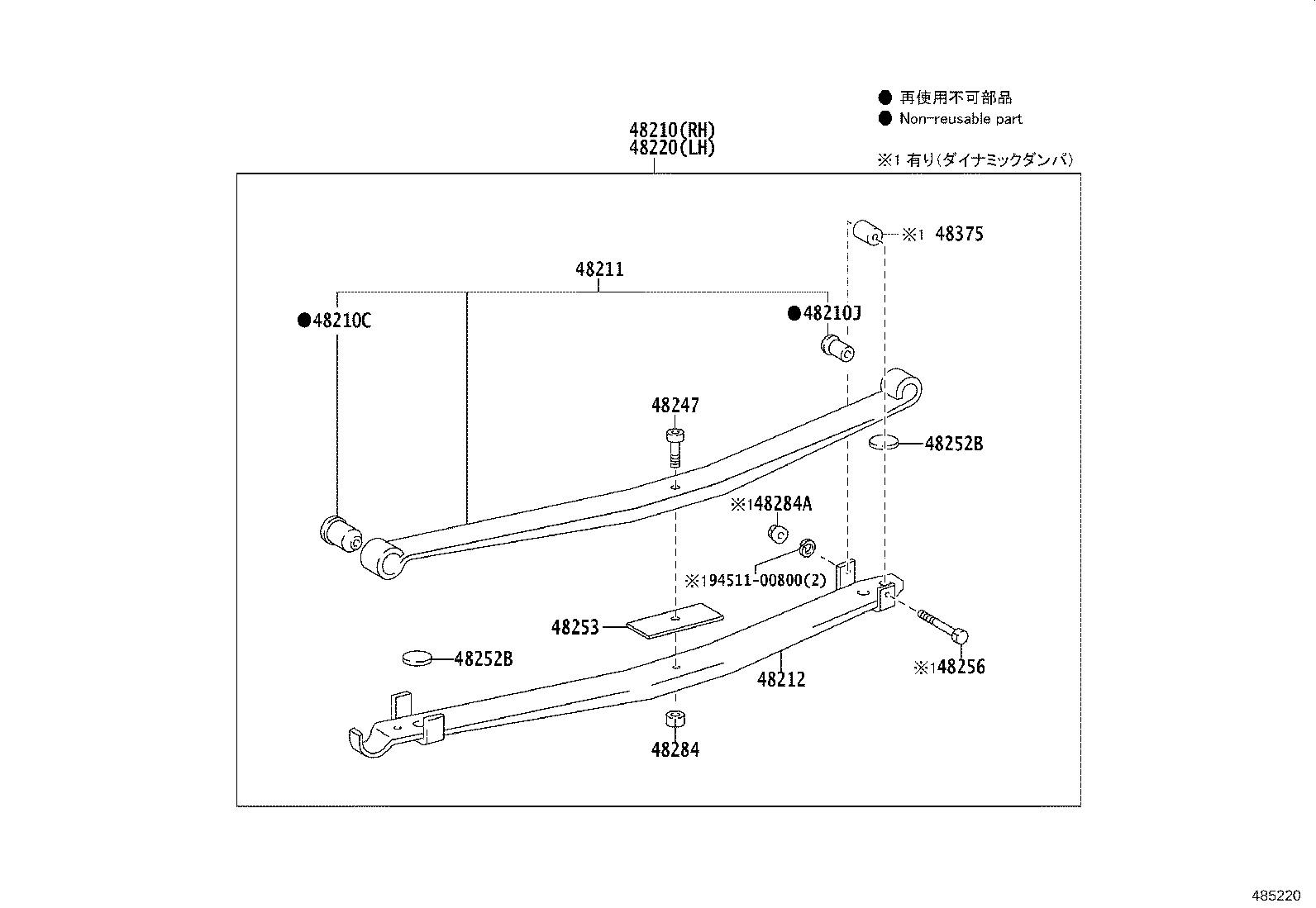

ILLUST NO. 2 OF 2(1908- )
2ﾏｲﾘｰﾌ,ｱﾘ(ﾀﾞﾝﾊﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16018 |
XZB60,70 |
2 | ||
| 90389-16018 |
XZB60,70;XZB80..DCR |
2 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16030 |
XZB60,70 |
2 | ||
| 90389-16015 |
XZB60,70 |
2 | ||
| 90389-16030 |
XZB60,70;XZB80..DCR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B800 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48201-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48201-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48201-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B850 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48202-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48202-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48202-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B800 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
XZB60,70 |
2 | ||
| 48247-36B10 |
XZB60,70;XZB80..DCR |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZB60,70 |
4 | ||
| 48252-37670 |
XZB60,70;XZB80..DCR |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZB60,70 |
4 | ||
| 48252-37670 |
XZB60,70;XZB80..DCR |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26G00 |
XZB60,70,80..(GX,LX,S)..DCR |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-26G00 |
XZB60,70,80..(GX,LX,S)..DCR |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
XZB60,70 |
2 | ||
| 48253-36A20 |
XZB60,70 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
XZB60,70;XZB80..DCR |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||
ILLUST NO. 2 OF 2(1701-1908)
2ﾏｲﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16018 |
XZB60,70 |
2 | ||
| 90389-16018 |
XZB60,70;XZB80..DCR |
2 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16030 |
XZB60,70 |
2 | ||
| 90389-16015 |
XZB60,70 |
2 | ||
| 90389-16030 |
XZB60,70;XZB80..DCR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B800 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48201-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48201-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48201-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B850 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48202-3C070 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48202-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 助手席側 |
1 | ||
| 48202-36A30 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 運転席側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B800 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48210-36A20 |
XZB60,70..(24S,25S,29S)..(GX,LX)..DCR 2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
XZB60,70 |
2 | ||
| 48247-36B10 |
XZB60,70;XZB80..DCR |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZB60,70 |
4 | ||
| 48252-37670 |
XZB60,70;XZB80..DCR |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZB60,70 |
4 | ||
| 48252-37670 |
XZB60,70;XZB80..DCR |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
XZB60,70 |
2 | ||
| 48253-36A20 |
XZB60,70 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
XZB60,70;XZB80..DCR |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
