XZB70-ZXMNY (2017)
Toyota Coaster
ILLUST NO. 3 OF 3(1701- )
ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-36060 |
XZB70 |
1 | ||
| 44050-36110 |
XZB70 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XZB60,70,80 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XZB60,70,80 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XZB60,70,80 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZB60,70,80 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZB60,70,80 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZB60,70,80 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-36050 |
XZB60,70,80 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44593-36030 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 91673-A0820 | ||||

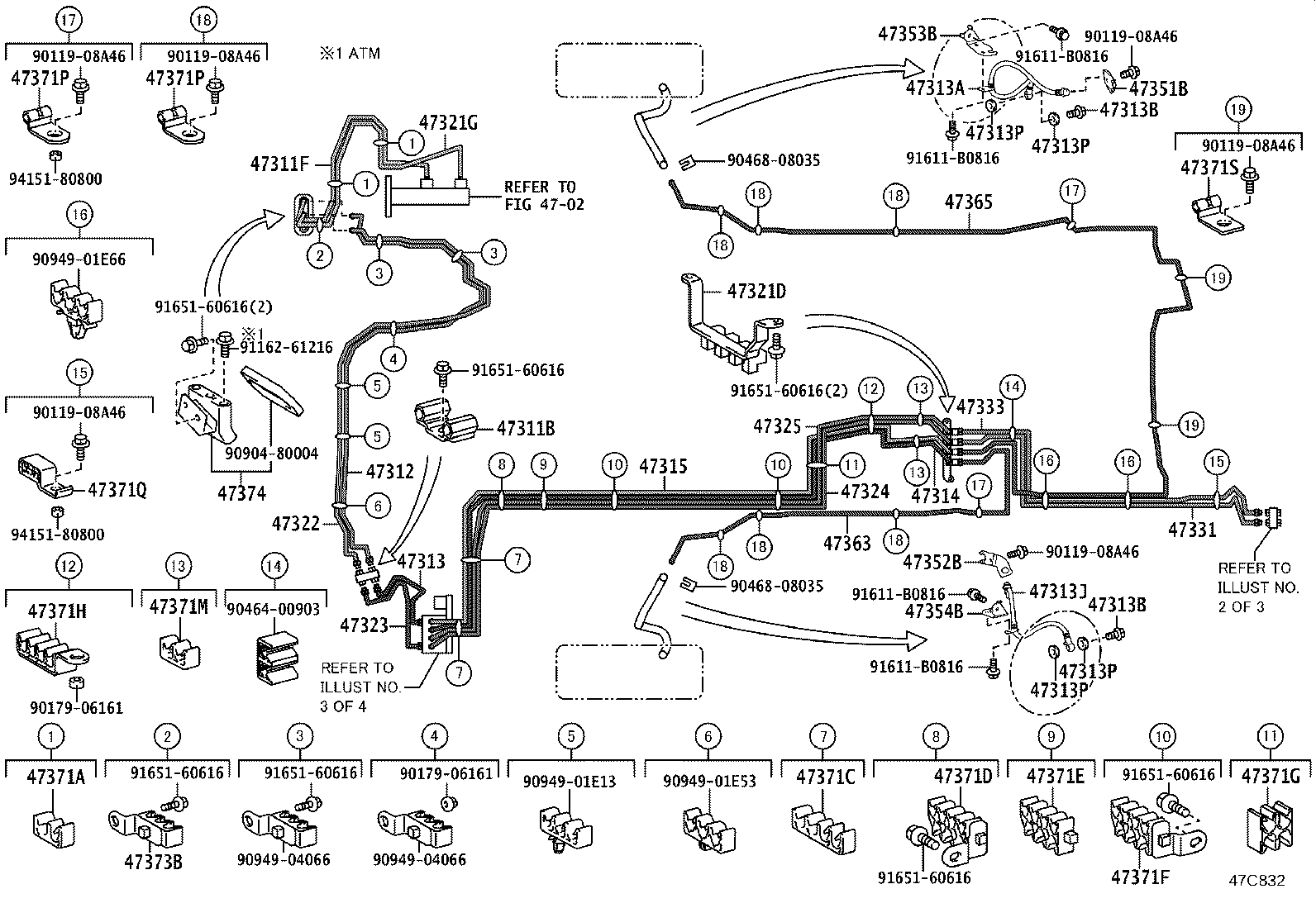

ILLUST NO. 1 OF 3(1701-1908)
ﾌﾛﾝﾄﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12068 |
XZB60,70,80 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB60,70,80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36360 |
XZB60,70,80 |
1 | ||
| 47312-V4010 |
XZB60,70,80 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10311 |
XZB60,70 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB60,70,80 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H77 |
XZB60,70,80 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB60,70,80 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB60,70,80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB60,70,80 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36420 |
XZB60,70,80 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36300 |
XZB60,70,80 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10310 |
XZB60,70,80 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB60,70,80 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB60,70,80 |
1 | ||
| 47322-V4010 |
XZB60,70,80 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36110 |
XZB60,70,80 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36390 |
XZB60,70,80 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36710 |
XZB60,70,80 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36330 |
XZB60,70,80 |
1 | ||
| 47331-V4010 |
XZB60,70,80 |
1 | ||
| 47331-36310 |
XZB60,70 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36140 |
XZB60,70 |
1 | ||
| 47333-36190 |
XZB60,70,80 |
1 | ||
| 47333-V4010 |
XZB60,70,80 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB60,70,80 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB60,70,80 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60,70,80 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60,70,80 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36120 |
XZB60,70 |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36110 |
XZB60,70,80 |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36130 |
XZB60,70,80 |
1 | ||
| 47365-36120 |
XZB60,70 |
1 | ||
| 47365-V4010 |
XZB60,70,80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
XZB60,70,80 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E53 |
XZB60,70,80 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01540 |
XZB60,70,80 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04071 |
XZB60,70,80 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E52 |
XZB60,70,80 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-04072 |
XZB60,70,80 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90464-00876 |
XZB60,70,80 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-04073 |
XZB60,70,80 |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB60,70,80 |
2 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB60,70,80 |
8 | ||
| 90461-06112 |
XZB60,70,80 |
4 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB60,70,80 |
8 | ||
| 90461-06112 |
XZB60,70,80 |
4 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
XZB60,70,80 |
1 | ||
| 90949-01536 |
XZB60,70 |
3 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
XZB60,70,80 |
1 | ||
| 90949-01536 |
XZB60,70 |
3 | ||
| 47371R - CLAMP, BRAKE TUBE, NO.16 | ||||
| 90480-01620 |
XZB60,70 |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB60,70,80 |
2 | ||
| 90461-08639 |
XZB60,70,80 |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB60,70,80 |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36120 |
XZB60,70,80 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04066 |
XZB60,70,80 |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04066 |
XZB60,70,80 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-04067 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 91162-61216 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4702 | ||||

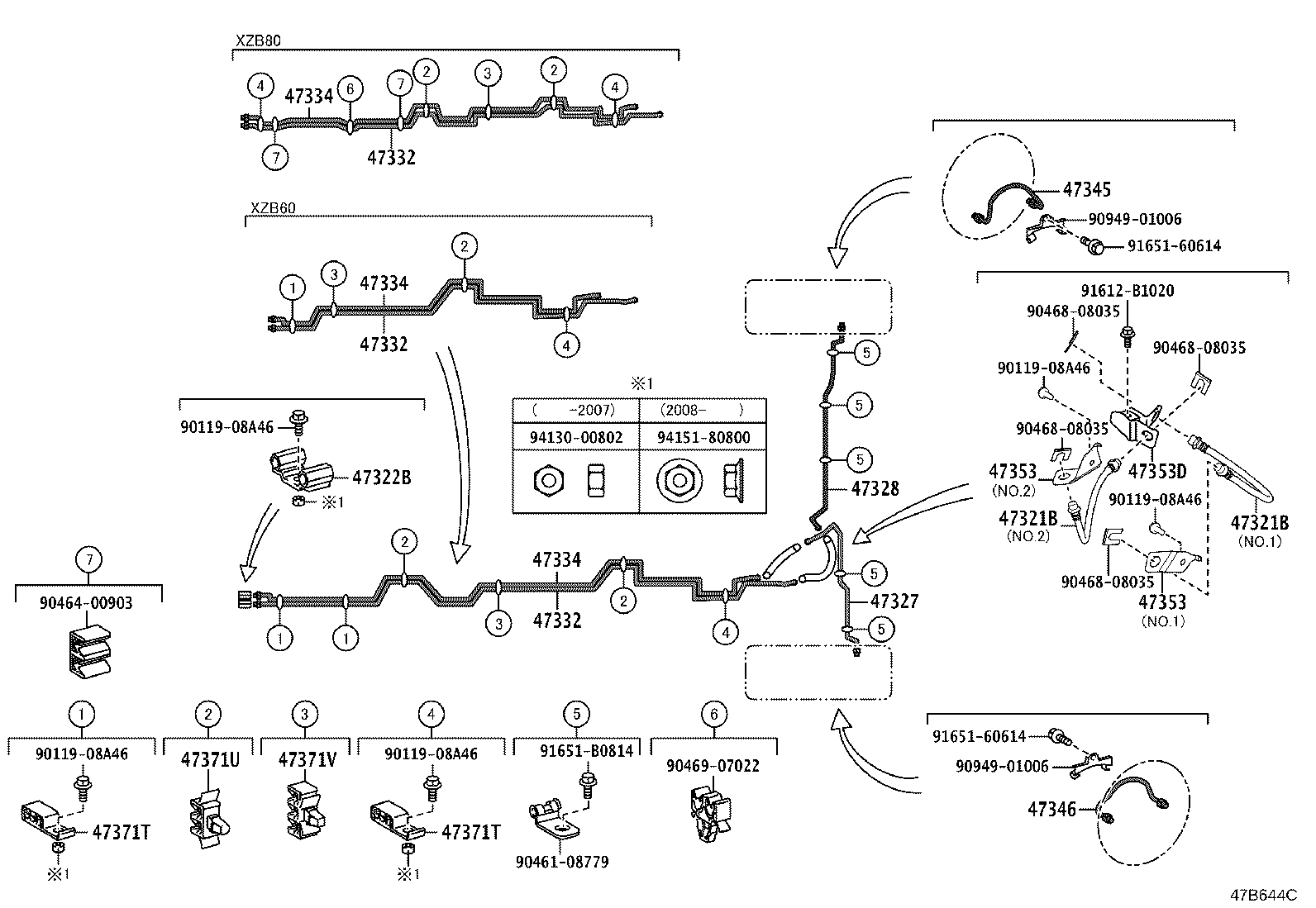

ILLUST NO. 2 OF 3(1701- )
ﾘﾔﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02G82 |
XZB60,70,80 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90947-02H78 |
XZB60,70,80 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02G82 |
XZB60,70,80 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90947-02H78 |
XZB60,70,80 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10283 |
XZB60,70,80 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36340 |
XZB60,70,80 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36380 |
XZB60,70,80 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36260 |
XZB70 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36260 |
XZB70 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36260 |
XZB70 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36160 |
XZB70 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36160 |
XZB70 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36160 |
XZB70 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36051 |
XZB60,70,80 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36051 |
XZB60,70,80 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36230 |
XZB60,70,80 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47355-36040 |
XZB60,70,80 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36230 |
XZB60,70,80 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47355-36040 |
XZB60,70,80 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47353D - BRACKET, FLEXIBLE HOSE, NO.7 | ||||
| 47354-36120 |
XZB60,70,80 |
1 | ||
| 47371T - CLAMP, BRAKE TUBE, NO.18 | ||||
| 90949-01249 |
XZB70 |
3 | ||
| 47371T - CLAMP, BRAKE TUBE, NO.18 | ||||
| 90949-01249 |
XZB70 |
3 | ||
| 47371U - CLAMP, BRAKE TUBE, NO.19 | ||||
| 90949-01C00 |
XZB70,80 |
2 | ||
| 47371V - CLAMP, BRAKE TUBE, NO.20 | ||||
| 47371-37010 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90464-00903 | ||||
| 90468-08035 | ||||
| 90469-07022 | ||||
| 90949-01006 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||

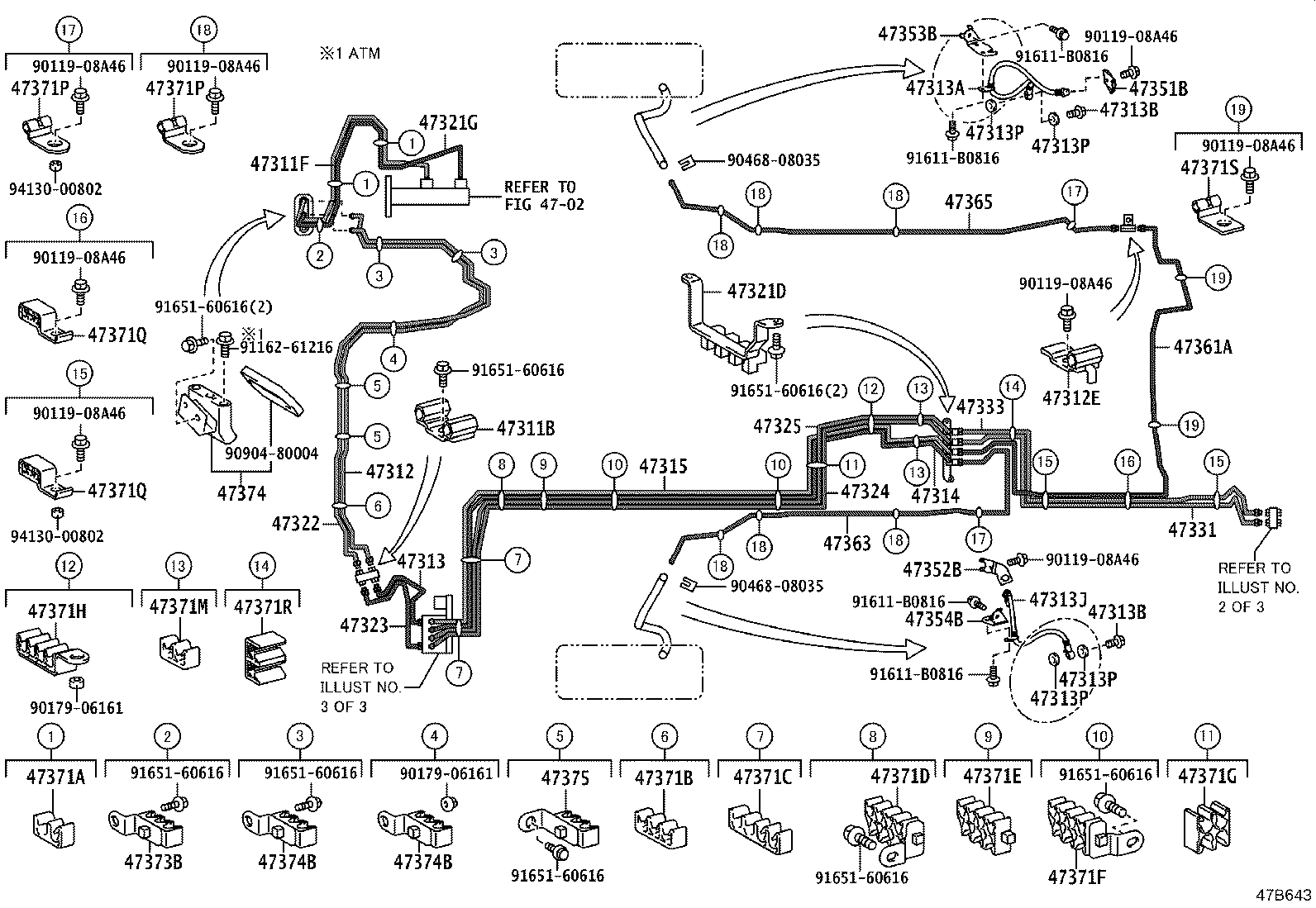

ILLUST NO. 1 OF 3(1908- )
ﾌﾛﾝﾄﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12068 |
XZB60,70,80 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB60,70,80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36360 |
XZB60,70,80 |
1 | ||
| 47312-V4010 |
XZB60,70,80 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB60,70,80 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H77 |
XZB60,70,80 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB60,70,80 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB60,70,80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB60,70,80 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36420 |
XZB60,70,80 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36300 |
XZB60,70,80 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10310 |
XZB60,70,80 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB60,70,80 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB60,70,80 |
1 | ||
| 47322-V4010 |
XZB60,70,80 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36110 |
XZB60,70,80 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36390 |
XZB60,70,80 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36710 |
XZB60,70,80 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36330 |
XZB60,70,80 |
1 | ||
| 47331-V4010 |
XZB60,70,80 |
1 | ||
| 47331-36310 |
XZB60,70 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36140 |
XZB60,70 |
1 | ||
| 47333-36190 |
XZB60,70,80 |
1 | ||
| 47333-V4010 |
XZB60,70,80 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB60,70,80 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB60,70,80 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60,70,80 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60,70,80 |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36110 |
XZB60,70,80 |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36130 |
XZB60,70,80 |
1 | ||
| 47365-36120 |
XZB60,70 |
1 | ||
| 47365-V4010 |
XZB60,70,80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
XZB60,70,80 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E53 |
XZB60,70,80 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01540 |
XZB60,70,80 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04071 |
XZB60,70,80 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E52 |
XZB60,70,80 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-04072 |
XZB60,70,80 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90464-00876 |
XZB60,70,80 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-04073 |
XZB60,70,80 |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB60,70,80 |
2 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB60,70,80 |
8 | ||
| 90461-06112 |
XZB60,70,80 |
4 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB60,70,80 |
8 | ||
| 90461-06112 |
XZB60,70,80 |
4 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
XZB60,70,80 |
1 | ||
| 90949-01536 |
XZB60,70 |
3 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB60,70,80 |
2 | ||
| 90461-08639 |
XZB60,70,80 |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB60,70,80 |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36120 |
XZB60,70,80 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04066 |
XZB60,70,80 |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04066 |
XZB60,70,80 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-04067 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90464-00903 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 90949-01D59 | ||||
| 90949-02124 | ||||
| 91162-61216 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||

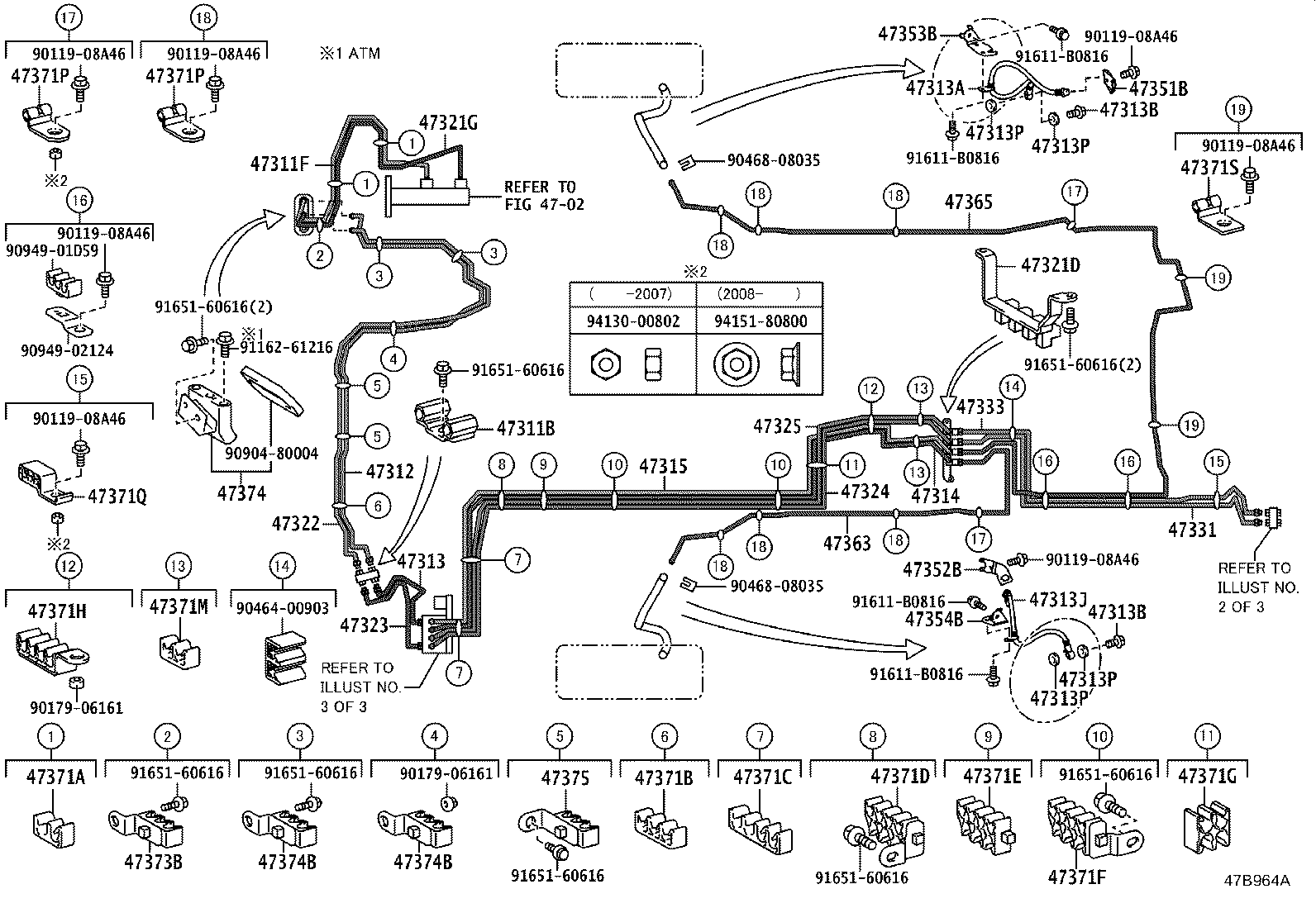

ILLUST NO. 1 OF 3(2101- )
ﾌﾛﾝﾄﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12068 |
XZB60,70,80 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB60,70,80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36360 |
XZB60,70,80 |
1 | ||
| 47312-V4010 |
XZB60,70,80 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB60,70,80 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H77 |
XZB60,70,80 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB60,70,80 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB60,70,80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB60,70,80 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60,70,80 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36420 |
XZB60,70,80 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36300 |
XZB60,70,80 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10310 |
XZB60,70,80 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB60,70,80 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB60,70,80 |
1 | ||
| 47322-V4010 |
XZB60,70,80 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36110 |
XZB60,70,80 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36390 |
XZB60,70,80 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36710 |
XZB60,70,80 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36330 |
XZB60,70,80 |
1 | ||
| 47331-V4010 |
XZB60,70,80 |
1 | ||
| 47331-36310 |
XZB60,70 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36140 |
XZB60,70 |
1 | ||
| 47333-36190 |
XZB60,70,80 |
1 | ||
| 47333-V4010 |
XZB60,70,80 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB60,70,80 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB60,70,80 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60,70,80 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60,70,80 |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36110 |
XZB60,70,80 |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36130 |
XZB60,70,80 |
1 | ||
| 47365-36120 |
XZB60,70 |
1 | ||
| 47365-V4010 |
XZB60,70,80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
XZB60,70,80 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01540 |
XZB60,70,80 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04071 |
XZB60,70,80 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E52 |
XZB60,70,80 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-04072 |
XZB60,70,80 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90464-00876 |
XZB60,70,80 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-04073 |
XZB60,70,80 |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB60,70,80 |
2 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB60,70,80 |
8 | ||
| 90461-06112 |
XZB60,70,80 |
4 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB60,70,80 |
8 | ||
| 90461-06112 |
XZB60,70,80 |
4 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
XZB60,70,80 |
1 | ||
| 90949-01536 |
XZB60,70 |
3 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB60,70,80 |
2 | ||
| 90461-08639 |
XZB60,70,80 |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB60,70,80 |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36120 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90464-00903 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 90949-01E13 | ||||
| 90949-01E53 | ||||
| 90949-01E66 | ||||
| 90949-04066 | ||||
| 91162-61216 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
