XZB70-ZXMNY (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

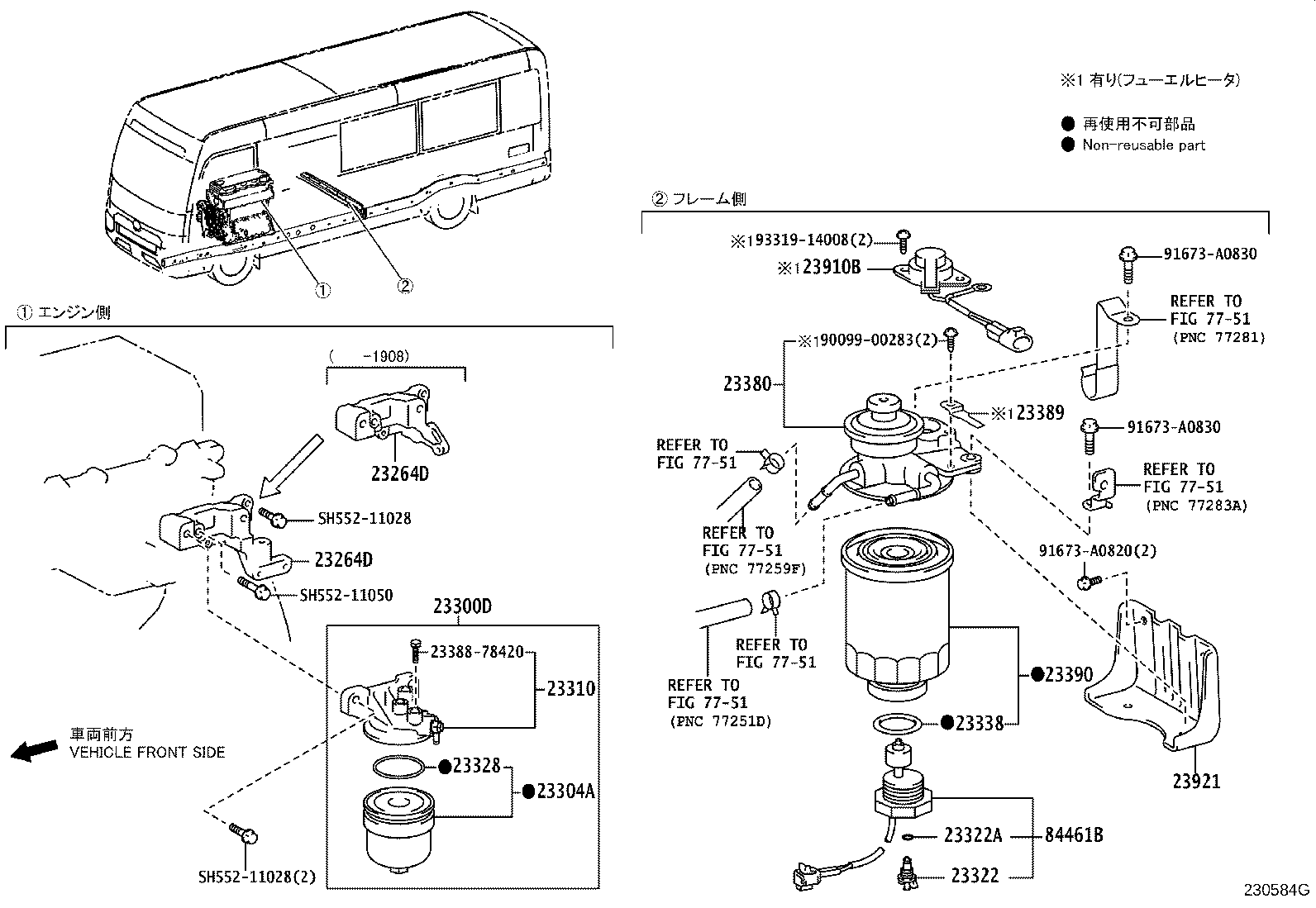

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23264D - BRACKET, FUEL FILTER | ||||
| 23264-78071 |
N04C..XZB60,70,80 |
1 | ||
| 23264-78081 |
N04C..XZB60,70 |
1 | ||
| 23264D - BRACKET, FUEL FILTER | ||||
| 23264-78071 |
N04C..XZB60,70,80 |
1 | ||
| 23264-78081 |
N04C..XZB60,70 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-78420 |
N04C..XZB60,70,80 |
1 | ||
| 23304A - ELEMENT SET, FUEL FILTER | ||||
| 23304-78420 |
N04C..XZB60,70,80 |
1 | ||
| 23310 - BODY, FUEL FILTER, UPPER | ||||
| 23310-78420 |
N04C..XZB60,70,80 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
N04C..XZB60,70,80 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
N04C..XZB60,70,80 |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-78420 |
N04C..XZB60,70,80 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
N04C..XZB60,70,80 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-17441 |
N04C..XZB60,70,80 寒冷地仕様 |
1 | ||
| 23380-17431 |
N04C..XZB60,70,80 |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-17380 |
N04C..XZB60,70,80 寒冷地仕様 |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-78280 |
N04C..XZB60,70,80 |
1 | ||
| 23390-78300 |
N04C..XZB60,70,80 寒冷地仕様 |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-17060 |
N04C..XZB60,70,80 寒冷地仕様 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-17040 |
N04C..XZB60,70,80 |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-28041 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 23388-78420 | ||||
| 90099-00283 | ||||
| 91673-A0820 | ||||
| 91673-A0830 | ||||
| 93319-14008 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| Linked diagrams | ||||
| 7751 | ||||
