XZB70-ZXMEY (2017)
Toyota Coaster

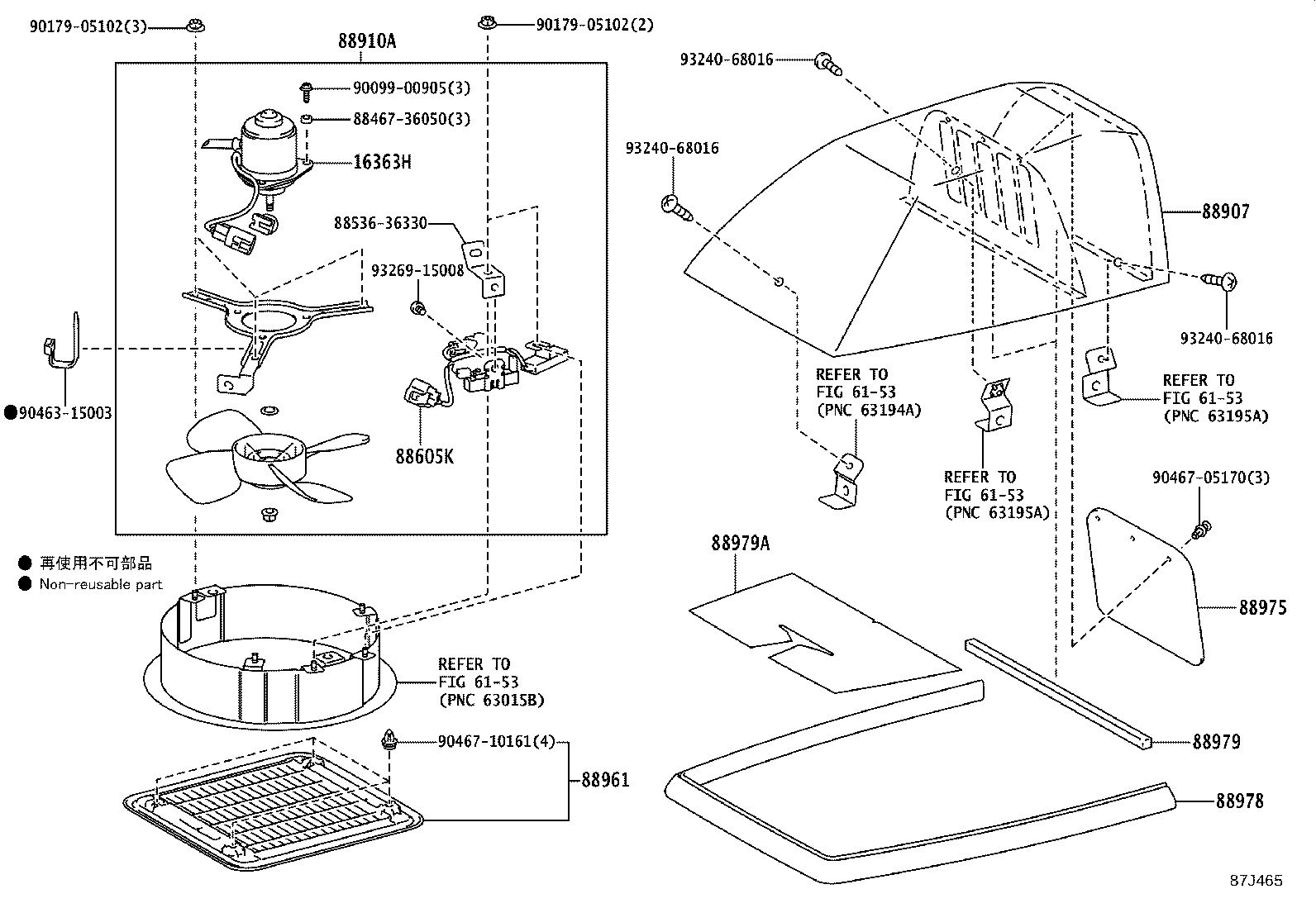

(1701-1705)EX,GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16363H - MOTOR, COOLING FAN | ||||
| 16363-74040 |
N04C..XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88605K - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-36500 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88907 - COVER SUB-ASSY, BOOST VENTILATOR | ||||
| 88907-36900 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88910A - VENTILATOR ASSY, BOOST | ||||
| 88910-36060 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88961 - GRILLE, BOOST VENTILATOR | ||||
| 88961-36020B0 |
XZB60,70,80..EX,GX 換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 88975 - BUTTERFLY, BOOST VENTILATOR | ||||
| 88975-36020 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88978 - TRIM, BOOST VENTILATOR COVER | ||||
| 88978-36060 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88979 - SEAL, BOOST VENTILATOR | ||||
| 88979-36030 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
2 | ||
| 88979A - SEAL, BOOST VENTILATOR NO.2 | ||||
| 88979-36040 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| Common parts | ||||
| 88467-36050 | ||||
| 88536-36330 | ||||
| 90099-00905 | ||||
| 90179-05102 | ||||
| 90463-15003 | ||||
| 90467-05170 | ||||
| 90467-10161 | ||||
| 93240-68016 | ||||
| 93269-15008 | ||||
| Linked diagrams | ||||
| 6153 | ||||

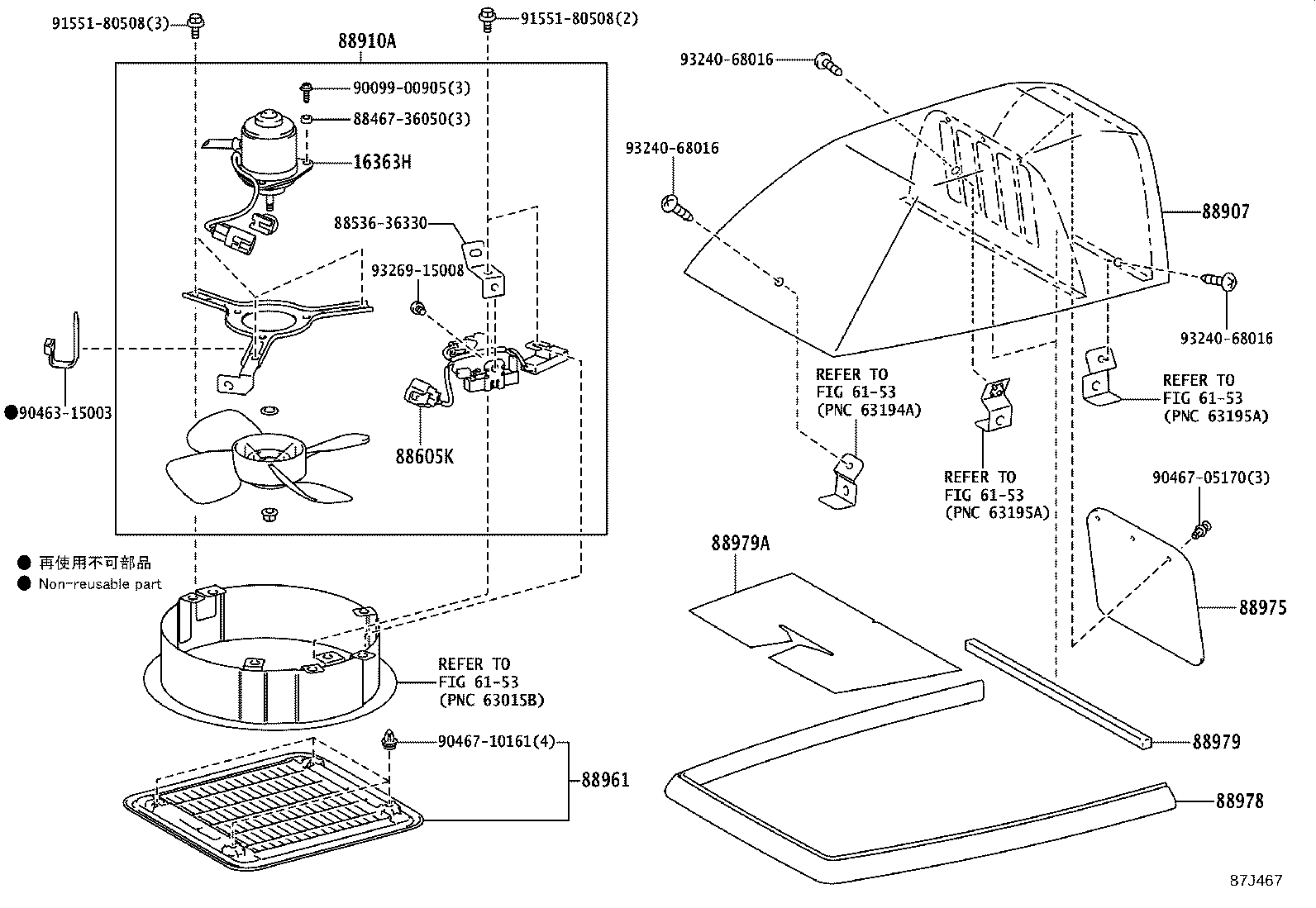

(1705- )EX,GX,PREM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16363H - MOTOR, COOLING FAN | ||||
| 16363-74040 |
N04C..XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88605K - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-36500 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88907 - COVER SUB-ASSY, BOOST VENTILATOR | ||||
| 88907-36900 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88910A - VENTILATOR ASSY, BOOST | ||||
| 88910-36060 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88961 - GRILLE, BOOST VENTILATOR | ||||
| 88961-36020B0 |
XZB60,70,80..EX,GX 換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 88975 - BUTTERFLY, BOOST VENTILATOR | ||||
| 88975-36020 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88978 - TRIM, BOOST VENTILATOR COVER | ||||
| 88978-36060 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 88979 - SEAL, BOOST VENTILATOR | ||||
| 88979-36030 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
2 | ||
| 88979A - SEAL, BOOST VENTILATOR NO.2 | ||||
| 88979-36040 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| Common parts | ||||
| 88467-36050 | ||||
| 88536-36330 | ||||
| 90099-00905 | ||||
| 90463-15003 | ||||
| 90467-05170 | ||||
| 90467-10161 | ||||
| 91551-80508 | ||||
| 93240-68016 | ||||
| 93269-15008 | ||||
| Linked diagrams | ||||
| 6153 | ||||
