XZB70-ZXMEY (2017)
Toyota Coaster

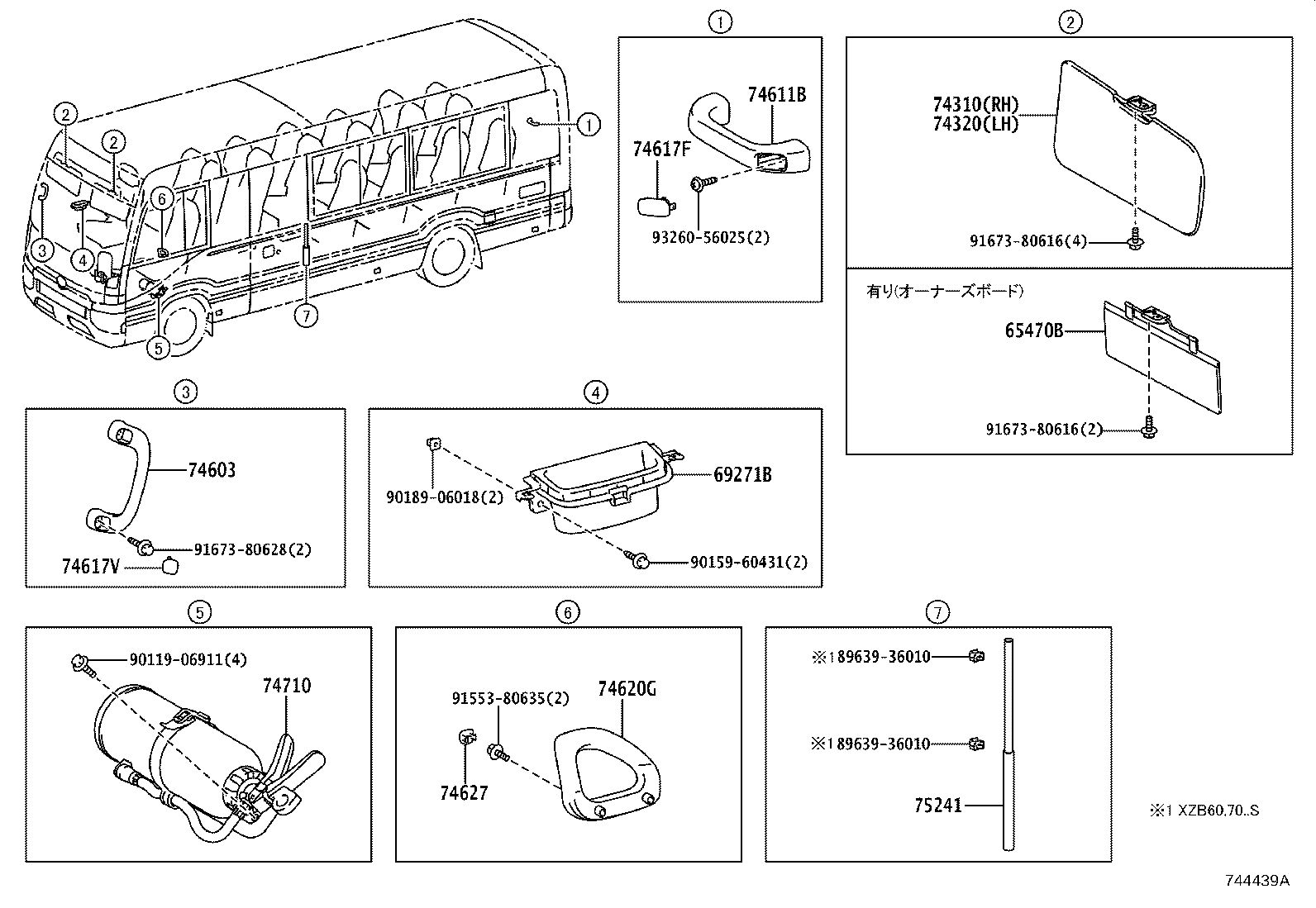

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65470B - BOARD ASSY, HEADER | ||||
| 65470-36010B0 |
XZB60,70,80..13S,24S,25S,29S ｻﾝﾊﾞｲｻﾞ−有り(運転席のみ & 有り(ｵｰﾅｰｽﾞﾎﾞｰﾄﾞ)),LT.GRAY,TRIM1# |
1 | ||
| 69271B - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69271-36020B0 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-36200B1 |
XZB60,70..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 74310-V4090B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 74310-36200B1 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 74310-36210B1 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 74310-V4080B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-36270B0 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74620-26010B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-60060B5 |
XZB60,70,80..09S,13S,24S,39S,49S LT.GRAY,TRIM1# |
1 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74617-60010B4 |
XZB60,70,80..09S,13S,24S,39S,49S LT.GRAY,TRIM1# |
2 | ||
| 74617V - PLUG, ASSIST GRIP | ||||
| 74615-60020B3 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 74620G - GRIP ASSY, ASSIST, FRONT | ||||
| 74620-60041B3 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 74627 - PLUG, REAR ASSIST GRIP | ||||
| 74627-60020B3 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
2 | ||
| 74710 - EXTINGUISHER ASSY | ||||
| 74710-36012 |
XZB60,70,80..13S,21S,24S,25S,29S |
1 | ||
| 74710-36070 |
XZB60,70,80..13S,21S,24S,25S,29S |
1 | ||
| 74710-36060 |
XZB60,70..S |
1 | ||
| 74710-36080 |
XZB60,70..S |
1 | ||
| 75241 - FLAG, RED | ||||
| 75241-90025 |
XZB60,70..S |
1 | ||
| Common parts | ||||
| 89639-36010 | ||||
| 90119-06911 | ||||
| 90159-60431 | ||||
| 90189-06018 | ||||
| 91553-80635 | ||||
| 91673-80616 | ||||
| 91673-80628 | ||||
| 93260-56025 | ||||

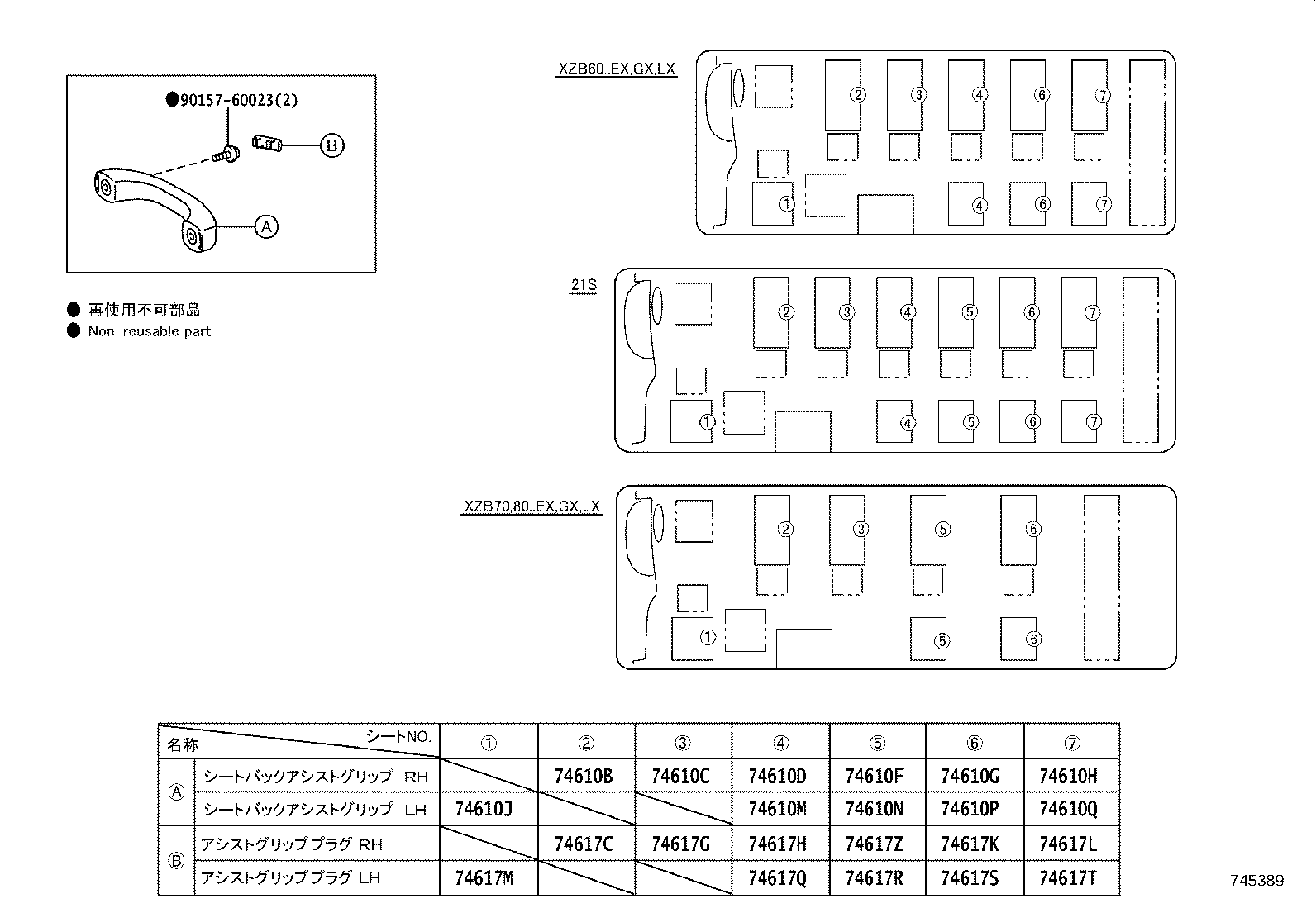

ILLUST NO. 2 OF 2(1701- )EX,GX,LX,PREM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74610B - GRIP ASSY, ASSIST, NO.2 RH | ||||
| 74690-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
2 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610C - GRIP ASSY, ASSIST, NO.3 RH | ||||
| 74690-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74610D - GRIP ASSY, ASSIST, NO.4 RH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
6 | ||
| 74690-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74610F - GRIP ASSY, ASSIST, NO.5 RH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
3 | ||
| 74690-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
2 | ||
| 74610G - GRIP ASSY, ASSIST, NO.6 RH | ||||
| 74690-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610H - GRIP ASSY, ASSIST, NO.7 RH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610J - GRIP ASSY, ASSIST, NO.1 LH | ||||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),該当品番なし |
1 | ||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫)&ｼｰﾄ表皮−ﾄﾘｺｯﾄ(標準),該当品番なし |
1 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
2 | ||
| 74690-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
1 | ||
| 74610M - GRIP ASSY, ASSIST, NO.4 LH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
4 | ||
| 74690-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
1 | ||
| 74610N - GRIP ASSY, ASSIST, NO.5 LH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
2 | ||
| 74690-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
1 | ||
| 74610P - GRIP ASSY, ASSIST, NO.6 LH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
2 | ||
| 74690-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
1 | ||
| 74610Q - GRIP ASSY, ASSIST, NO.7 LH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
4 | ||
| 74617G - PLUG, ASSIST GRIP, NO.3 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
12 | ||
| 74617-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
4 | ||
| 74617H - PLUG, ASSIST GRIP, NO.4 RH | ||||
| 74617-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
4 | ||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
12 | ||
| 74617K - PLUG, ASSIST GRIP, NO.6 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
4 | ||
| 74617L - PLUG, ASSIST GRIP, NO.7 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617M - PLUG, ASSIST GRIP, NO.1 LH | ||||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),該当品番なし |
1 | ||
| 74617-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
2 | ||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫)&ｼｰﾄ表皮−ﾄﾘｺｯﾄ(標準),該当品番なし |
1 | ||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
4 | ||
| 74617Q - PLUG, ASSIST GRIP, NO.4 LH | ||||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
8 | ||
| 74617-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74617R - PLUG, ASSIST GRIP, NO.5 LH | ||||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
4 | ||
| 74617-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
2 | ||
| 74617S - PLUG, ASSIST GRIP, NO.6 LH | ||||
| 74617-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
4 | ||
| 74617T - PLUG, ASSIST GRIP, NO.7 LH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
4 | ||
| 74617Z - PLUG, ASSIST GRIP, NO.5 RH | ||||
| 74617-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
4 | ||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
6 | ||
| Common parts | ||||
| 90157-60023 | ||||

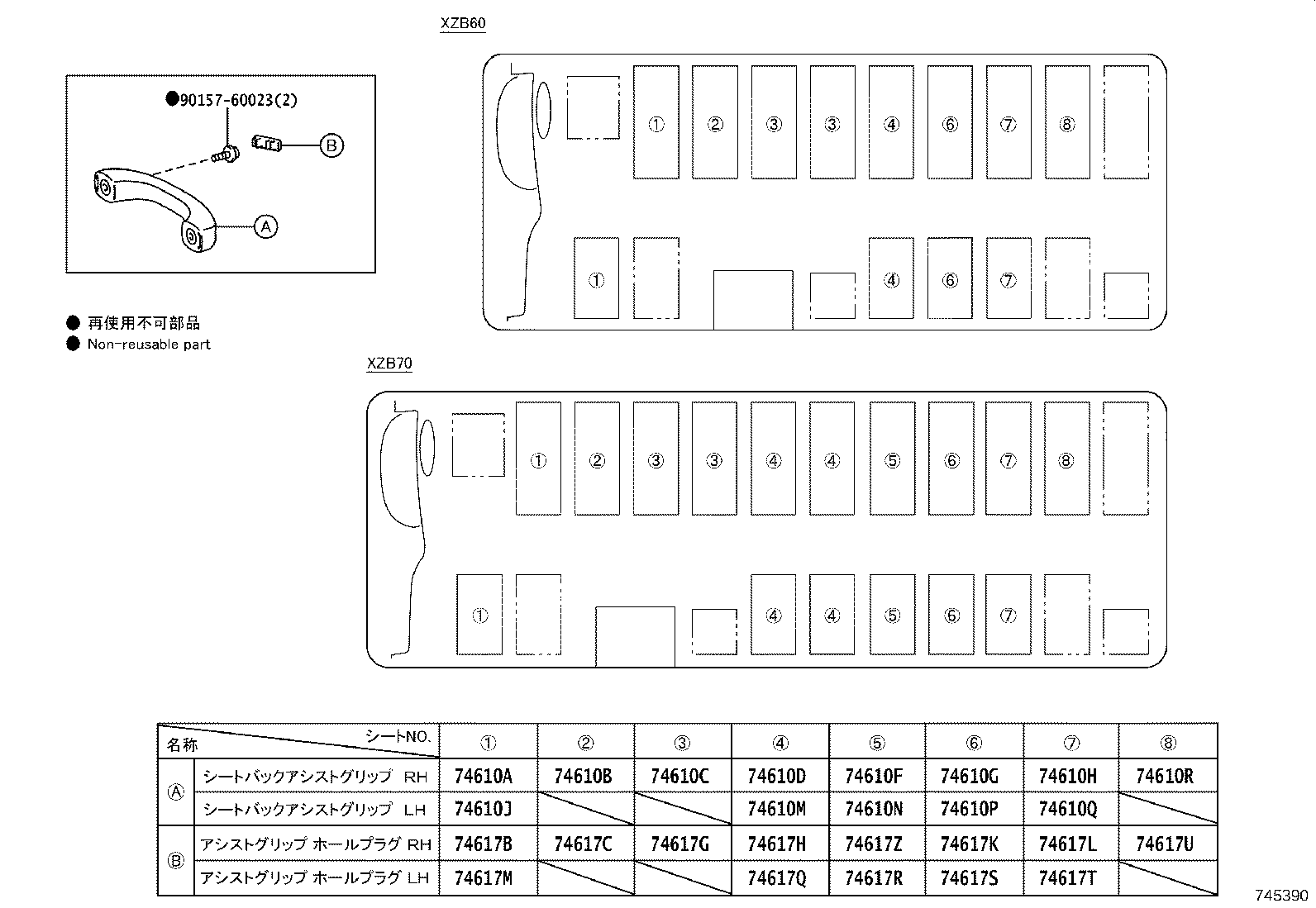

ILLUST NO. 2 OF 2(1701- )S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610B - GRIP ASSY, ASSIST, NO.2 RH | ||||
| 74690-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
2 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610C - GRIP ASSY, ASSIST, NO.3 RH | ||||
| 74690-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74610D - GRIP ASSY, ASSIST, NO.4 RH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
6 | ||
| 74690-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74610F - GRIP ASSY, ASSIST, NO.5 RH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
3 | ||
| 74690-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
2 | ||
| 74610G - GRIP ASSY, ASSIST, NO.6 RH | ||||
| 74690-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610H - GRIP ASSY, ASSIST, NO.7 RH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74610J - GRIP ASSY, ASSIST, NO.1 LH | ||||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),該当品番なし |
1 | ||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫)&ｼｰﾄ表皮−ﾄﾘｺｯﾄ(標準),該当品番なし |
1 | ||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
2 | ||
| 74690-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
1 | ||
| 74610M - GRIP ASSY, ASSIST, NO.4 LH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
4 | ||
| 74690-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
1 | ||
| 74610N - GRIP ASSY, ASSIST, NO.5 LH | ||||
| 74610-10020A0 |
XZB70..S IVORY,TRIM1# |
2 | ||
| 74690-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
1 | ||
| 74610P - GRIP ASSY, ASSIST, NO.6 LH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
2 | ||
| 74690-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
1 | ||
| 74610Q - GRIP ASSY, ASSIST, NO.7 LH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
2 | ||
| 74610R - GRIP ASSY, ASSIST, NO.8 RH | ||||
| 74610-10020A0 |
XZB60,70..S IVORY,TRIM1# |
3 | ||
| 74617B - PLUG, DOOR ASSIST GRIP | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
4 | ||
| 74617G - PLUG, ASSIST GRIP, NO.3 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
12 | ||
| 74617-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
4 | ||
| 74617H - PLUG, ASSIST GRIP, NO.4 RH | ||||
| 74617-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
4 | ||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
12 | ||
| 74617K - PLUG, ASSIST GRIP, NO.6 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
4 | ||
| 74617L - PLUG, ASSIST GRIP, NO.7 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617M - PLUG, ASSIST GRIP, NO.1 LH | ||||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),該当品番なし |
1 | ||
| 74617-36010C0 |
XZB60,70,80..EX,GX,LX BLACK,TRIM1# |
2 | ||
| 00000-00000 |
XZB70..24S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫)&ｼｰﾄ表皮−ﾄﾘｺｯﾄ(標準),該当品番なし |
1 | ||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
4 | ||
| 74617Q - PLUG, ASSIST GRIP, NO.4 LH | ||||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
8 | ||
| 74617-36010C0 |
XZB60,70,80..13S,24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74617R - PLUG, ASSIST GRIP, NO.5 LH | ||||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
4 | ||
| 74617-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
2 | ||
| 74617S - PLUG, ASSIST GRIP, NO.6 LH | ||||
| 74617-36010C0 |
XZB60,70..24S,25S,29S BLACK,TRIM1# |
2 | ||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
4 | ||
| 74617T - PLUG, ASSIST GRIP, NO.7 LH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
4 | ||
| 74617U - PLUG, ASSIST GRIP, NO.8 RH | ||||
| 74617-1401001 |
XZB60,70..S IVORY,TRIM1# |
6 | ||
| 74617Z - PLUG, ASSIST GRIP, NO.5 RH | ||||
| 74617-36010C0 |
XZB70..24S,29S BLACK,TRIM1# |
4 | ||
| 74617-1401001 |
XZB70..S IVORY,TRIM1# |
6 | ||
| Common parts | ||||
| 90157-60023 | ||||
