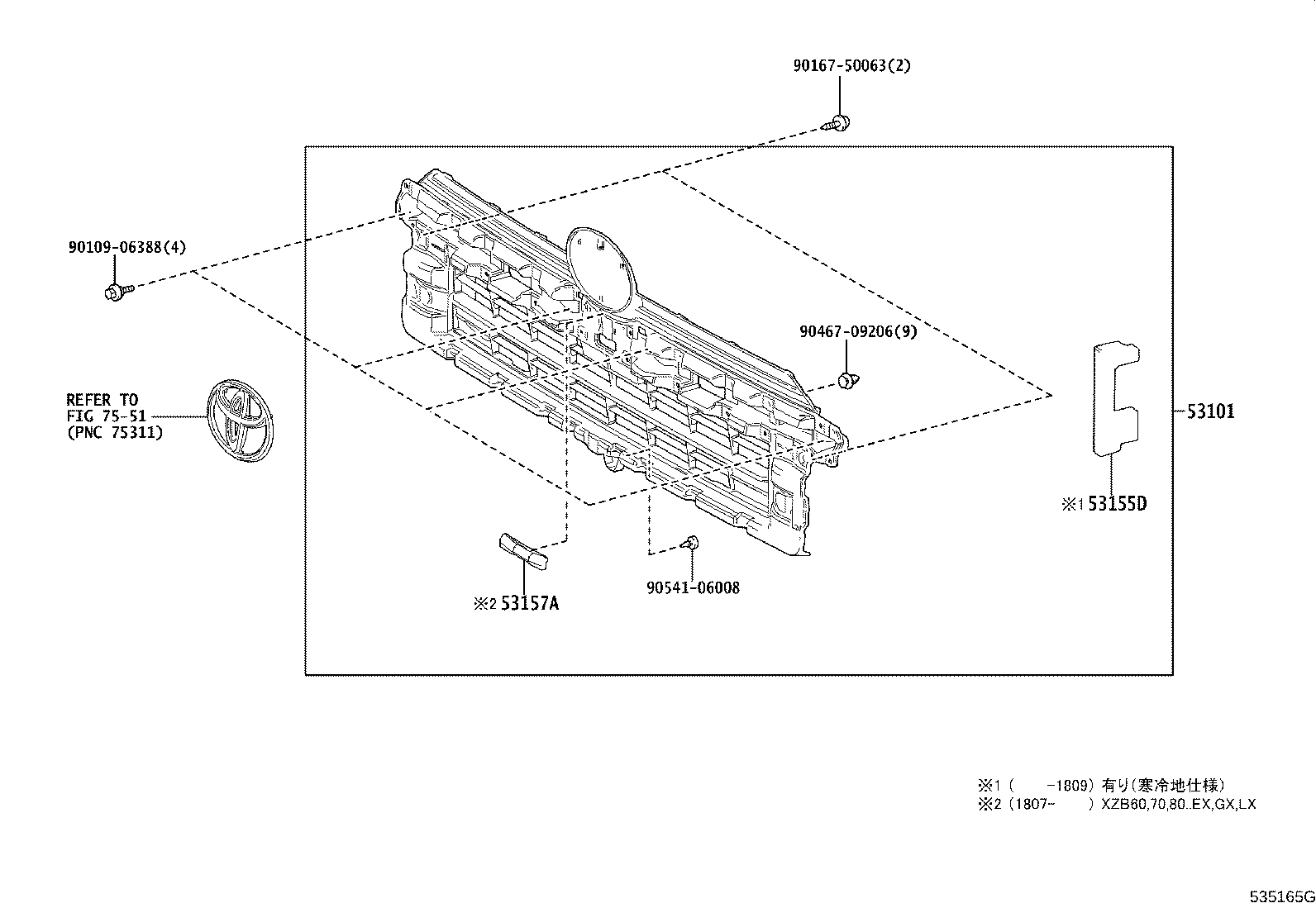

Toyota Coaster XZB70 RADIATOR GRILLE

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53101-36090	XZB60,70..EX,GX,LX 塗装不要,寒冷地仕様	01/2017 - 07/2018	1
53101-36110	XZB60,70..EX,GX,LX 塗装不要,寒冷地仕様	07/2018 - 09/2018	1
53101-36080	XZB60,70..EX,GX,LX 塗装不要	01/2017 - 07/2018	1
53101-36090	XZB60,70..S 塗装不要,寒冷地仕様	01/2017 - 09/2018	1
53101-36100	XZB60,70,80..EX,GX,LX,PREM	07/2018 - 12/2999	1
53101-36100	XZB60,70..S	01/2021 - 12/2999	1
53101-36080	XZB60,70..S	01/2017 - 01/2021	1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-36070	XZB60,70 寒冷地仕様	01/2017 - 09/2018	1
53157A - SEAL, RADIATOR GRILLE, NO.3
53157-36010	XZB60,70..S	01/2021 - 12/2999	1
53157-36010	XZB60,70,80..EX,GX,LX,PREM	07/2018 - 12/2999	1
Common parts
90109-06388
90167-50063
90467-09206
90541-06008
Linked diagrams
7551

XZB70-ZXMEY (2017)
