XZB70-ZXMEY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1701- )5F

Click highlighted areas on diagram

diagram 33503A 33503F 33504F 33506F 33523B 33534 33534C 33534C 33534C 33534C 33548F 33602B 33602B 33602D 33602D 33602E 33602F 9010108139 9111140855 9111150871 9165160816 9413060800 9413060800 9413060800 9453100800 9453100800 9453100800 9461210800
Part # Description Qty Price
33503A - COLLAR(FOR SHIFT LEVER)
90440-13003

XZB60,70..5F

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-36060

XZB60,70..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051C0

XZB60,70..5F

BLACK,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-36010

XZB60,70..5F

 1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
33523-36040

XZB60,70..5F

 1
33534 - BELLCRANK, SELECTING
33534-36090

XZB60,70..5F

 1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

XZB60,70..5F

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

XZB60,70..5F

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

XZB60,70..5F

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

XZB60,70..5F

 4
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

XZB60,70..5F

 1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

XZB60,70..5F

 2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

XZB60,70..5F

 2
33602D - COLLAR (FOR SELECT LEVER)
90387-08148

XZB60,70..5F

NO.2:ｲﾗｽﾄ参照

 1
90387-08063

XZB60,70..5F

NO.1:ｲﾗｽﾄ参照

 1
33602D - COLLAR (FOR SELECT LEVER)
90387-08148

XZB60,70..5F

NO.2:ｲﾗｽﾄ参照

 1
90387-08063

XZB60,70..5F

NO.1:ｲﾗｽﾄ参照

 1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03067

XZB60,70..5F

 1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-36031

XZB60,70..5F

 1
Common parts
90101-08139
91111-40855
91111-50871
91651-60816
94130-60800
94531-00800
94612-10800

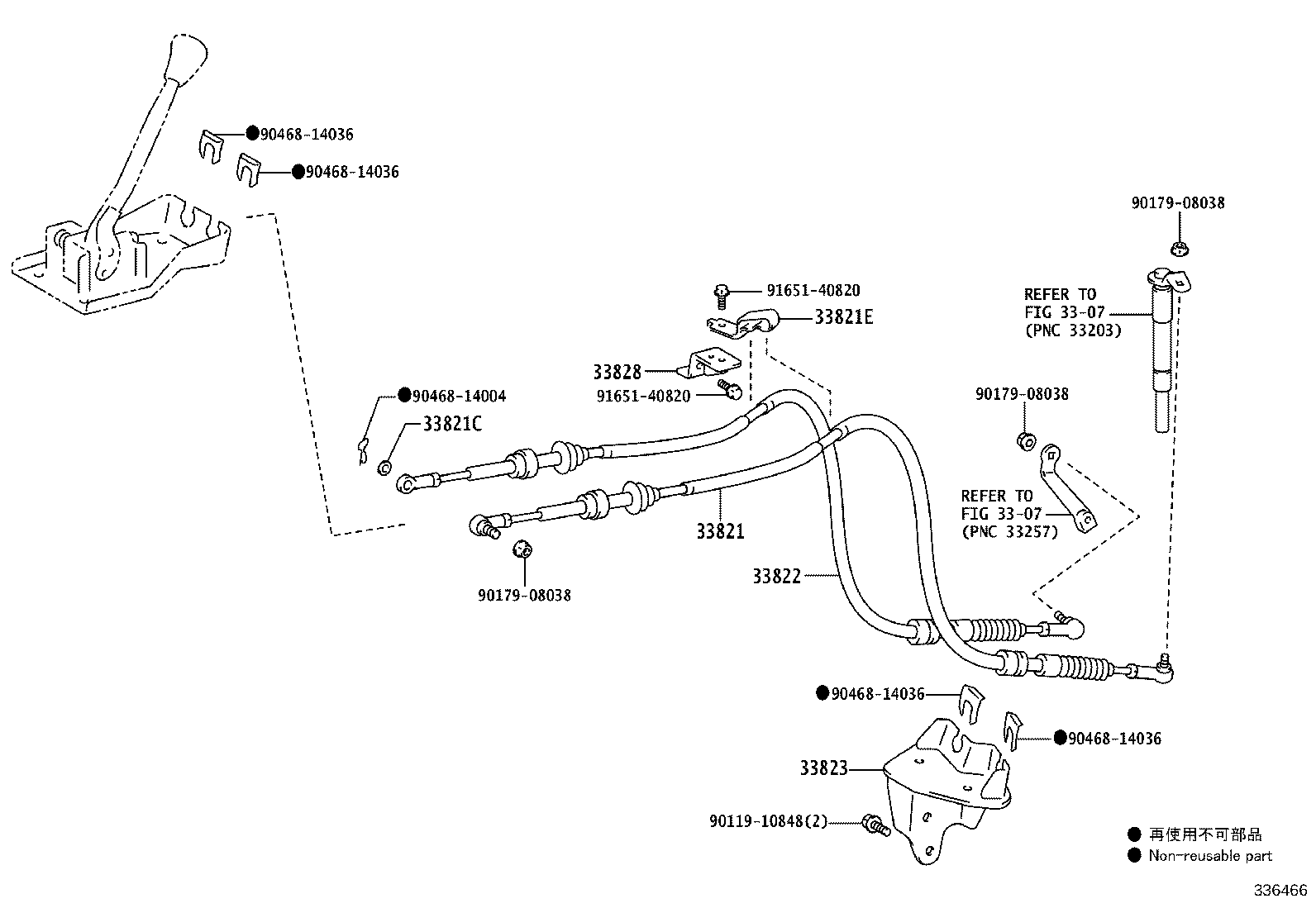

ILLUST NO. 2 OF 2(1701- )5F

Click highlighted areas on diagram

diagram 3307 3307 33821 33821C 33821E 33822 33823 33828 9011910848 9017908038 9017908038 9017908038 9046814004 9046814036 9046814036 9046814036 9046814036 9165140820 9165140820
Part # Description Qty Price
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-36230

XZB60,70..5F

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023

XZB60,70..5F

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-36250

XZB60,70..5F

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-36210

XZB60,70..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-36160

XZB60,70..5F

 1
33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33828-36080

XZB60,70,80

 1
Common parts
90119-10848
90179-08038
90468-14004
90468-14036
91651-40820
Linked diagrams
3307
