Toyota Coaster XZB70 ELECTRONIC CONTROLED DIESEL (ECD)

Manufacturers Home
Toyota
JP
COASTER
XZB70-ZRTQH (2017)
8405 - ELECTRONIC CONTROLED DIESEL (ECD)

XZB70-ZRTQH (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

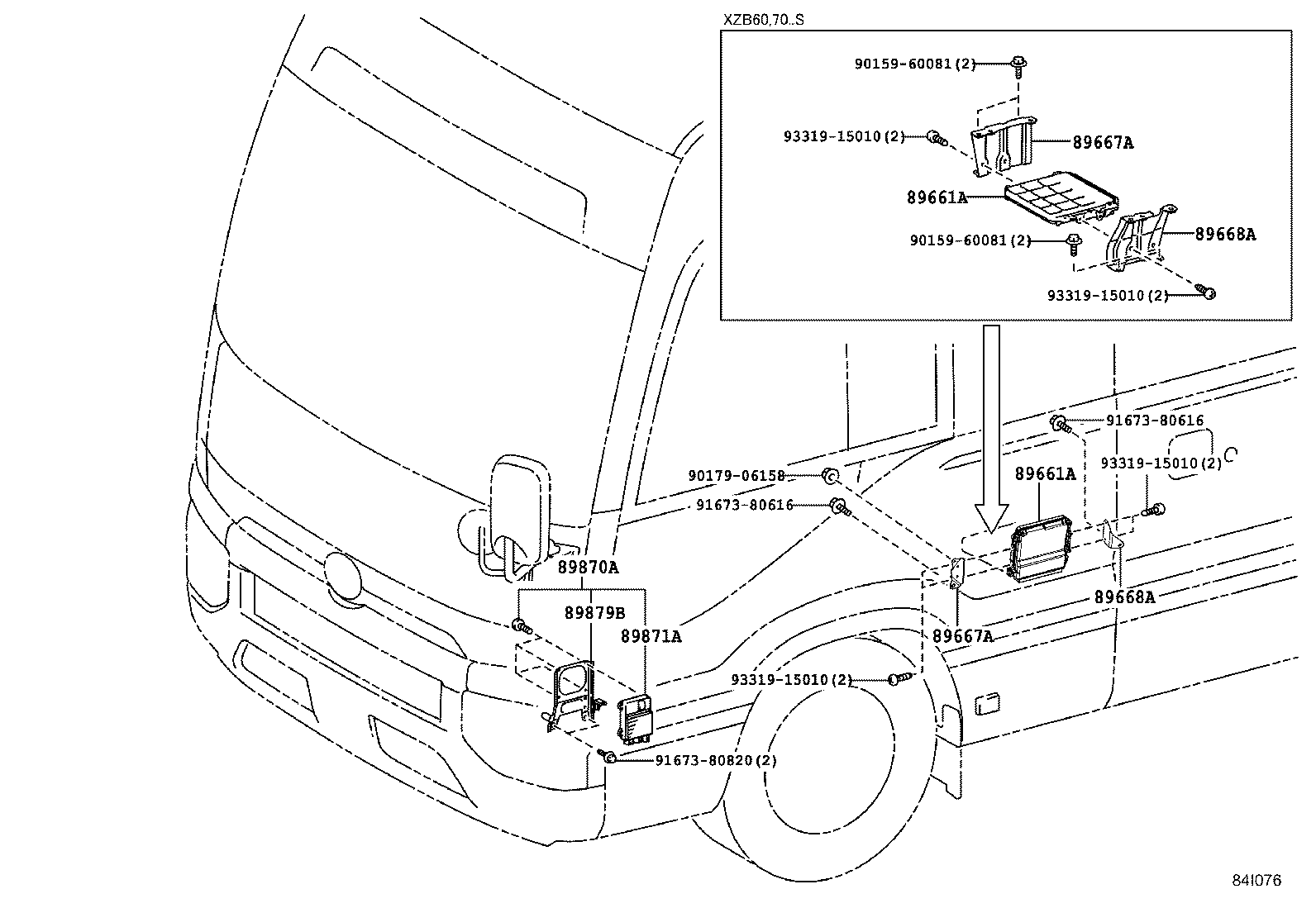

(1701-1908)

Click highlighted areas on diagram

Part #	Description	Period	Qty
89661A - COMPUTER, ENGINE CONTROL
89661-36670	XZB70..HDCR	01/2017 - 07/2018	1
89661-36640	XZB60,70..6FC..S	01/2017 - 08/2018	1
89661-36841	XZB70..HDCR DENSO	08/2018 - 08/2019	1
89661-36641	XZB60,70..6FC..S DENSO	08/2018 - 08/2019	1
89661-V4020	XZB70,80..(EX,GX)..HDCR DENSO	02/2020 - 11/2020	1
89661-36850	XZB60,70,80..DCR DENSO	08/2019 - 02/2020	1
89661-V4011	XZB60,70,80..DCR DENSO	12/2020 - 01/2021	1
89661-36860	XZB70,80..HDCR DENSO	08/2019 - 02/2020	1
89661-V4010	XZB60,70,80..DCR DENSO	02/2020 - 12/2020	1
89661-V4021	XZB70,80..(EX,GX)..HDCR DENSO	11/2020 - 12/2020	1
89661-36840	XZB70..HDCR DENSO	07/2018 - 08/2018	1
89661-V4080	XZB60,70,80..DCR DENSO	01/2021 - 12/2999	1
89661-V4022	XZB70,80..(EX,GX)..HDCR DENSO	12/2020 - 01/2021	1
89661-V4090	XZB70,80..(EX,GX)..HDCR DENSO	01/2021 - 12/2999	1
89661A - COMPUTER, ENGINE CONTROL
89661-36670	XZB70..HDCR	01/2017 - 07/2018	1
89661-36640	XZB60,70..6FC..S	01/2017 - 08/2018	1
89661-36841	XZB70..HDCR DENSO	08/2018 - 08/2019	1
89661-36641	XZB60,70..6FC..S DENSO	08/2018 - 08/2019	1
89661-V4020	XZB70,80..(EX,GX)..HDCR DENSO	02/2020 - 11/2020	1
89661-36850	XZB60,70,80..DCR DENSO	08/2019 - 02/2020	1
89661-V4011	XZB60,70,80..DCR DENSO	12/2020 - 01/2021	1
89661-36860	XZB70,80..HDCR DENSO	08/2019 - 02/2020	1
89661-V4010	XZB60,70,80..DCR DENSO	02/2020 - 12/2020	1
89661-V4021	XZB70,80..(EX,GX)..HDCR DENSO	11/2020 - 12/2020	1
89661-36840	XZB70..HDCR DENSO	07/2018 - 08/2018	1
89661-V4080	XZB60,70,80..DCR DENSO	01/2021 - 12/2999	1
89661-V4022	XZB70,80..(EX,GX)..HDCR DENSO	12/2020 - 01/2021	1
89661-V4090	XZB70,80..(EX,GX)..HDCR DENSO	01/2021 - 12/2999	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36210	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89667-36130	XZB60,70..S	01/2017 - 08/2019	1
89667-36230	XZB60,70..S	08/2019 - 12/2999	1
89667-36190	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36210	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89667-36130	XZB60,70..S	01/2017 - 08/2019	1
89667-36230	XZB60,70..S	08/2019 - 12/2999	1
89667-36190	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36200	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89668-36220	XZB60,70..S	08/2019 - 12/2999	1
89668-36180	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89668-36130	XZB60,70..S	01/2017 - 08/2019	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36200	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89668-36220	XZB60,70..S	08/2019 - 12/2999	1
89668-36180	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89668-36130	XZB60,70..S	01/2017 - 08/2019	1
89870A - DRIVER ASSY, INJECTOR
89870-36070	XZB60,70	01/2017 - 08/2019	1
89871A - DRIVER, INJECTOR
89871-25010	XZB60,70	01/2017 - 08/2019	1
89879B - BRACKET, INJECTOR DRIVER
89879-36040	XZB60,70	01/2017 - 08/2019	1
Common parts
90159-60081
90179-06158
91673-80616
91673-80820
93319-15010

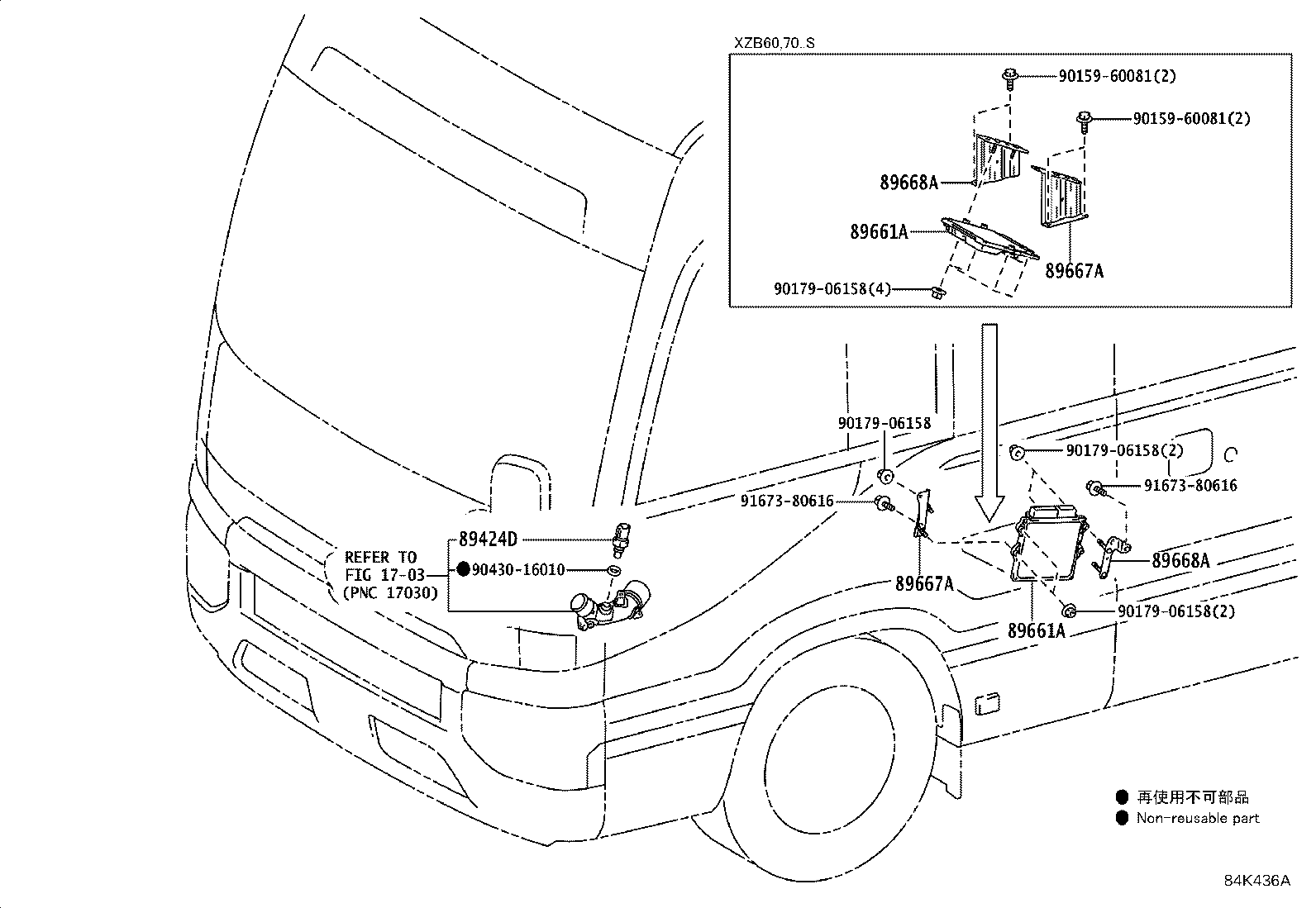

(1908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	XZB60,70,80	08/2019 - 12/2999	1
89661A - COMPUTER, ENGINE CONTROL
89661-36670	XZB70..HDCR	01/2017 - 07/2018	1
89661-36640	XZB60,70..6FC..S	01/2017 - 08/2018	1
89661-36841	XZB70..HDCR DENSO	08/2018 - 08/2019	1
89661-36641	XZB60,70..6FC..S DENSO	08/2018 - 08/2019	1
89661-V4020	XZB70,80..(EX,GX)..HDCR DENSO	02/2020 - 11/2020	1
89661-36850	XZB60,70,80..DCR DENSO	08/2019 - 02/2020	1
89661-V4011	XZB60,70,80..DCR DENSO	12/2020 - 01/2021	1
89661-36860	XZB70,80..HDCR DENSO	08/2019 - 02/2020	1
89661-V4010	XZB60,70,80..DCR DENSO	02/2020 - 12/2020	1
89661-V4021	XZB70,80..(EX,GX)..HDCR DENSO	11/2020 - 12/2020	1
89661-36840	XZB70..HDCR DENSO	07/2018 - 08/2018	1
89661-V4080	XZB60,70,80..DCR DENSO	01/2021 - 12/2999	1
89661-V4022	XZB70,80..(EX,GX)..HDCR DENSO	12/2020 - 01/2021	1
89661-V4090	XZB70,80..(EX,GX)..HDCR DENSO	01/2021 - 12/2999	1
89661A - COMPUTER, ENGINE CONTROL
89661-36670	XZB70..HDCR	01/2017 - 07/2018	1
89661-36640	XZB60,70..6FC..S	01/2017 - 08/2018	1
89661-36841	XZB70..HDCR DENSO	08/2018 - 08/2019	1
89661-36641	XZB60,70..6FC..S DENSO	08/2018 - 08/2019	1
89661-V4020	XZB70,80..(EX,GX)..HDCR DENSO	02/2020 - 11/2020	1
89661-36850	XZB60,70,80..DCR DENSO	08/2019 - 02/2020	1
89661-V4011	XZB60,70,80..DCR DENSO	12/2020 - 01/2021	1
89661-36860	XZB70,80..HDCR DENSO	08/2019 - 02/2020	1
89661-V4010	XZB60,70,80..DCR DENSO	02/2020 - 12/2020	1
89661-V4021	XZB70,80..(EX,GX)..HDCR DENSO	11/2020 - 12/2020	1
89661-36840	XZB70..HDCR DENSO	07/2018 - 08/2018	1
89661-V4080	XZB60,70,80..DCR DENSO	01/2021 - 12/2999	1
89661-V4022	XZB70,80..(EX,GX)..HDCR DENSO	12/2020 - 01/2021	1
89661-V4090	XZB70,80..(EX,GX)..HDCR DENSO	01/2021 - 12/2999	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36210	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89667-36130	XZB60,70..S	01/2017 - 08/2019	1
89667-36230	XZB60,70..S	08/2019 - 12/2999	1
89667-36190	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36210	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89667-36130	XZB60,70..S	01/2017 - 08/2019	1
89667-36230	XZB60,70..S	08/2019 - 12/2999	1
89667-36190	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36200	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89668-36220	XZB60,70..S	08/2019 - 12/2999	1
89668-36180	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89668-36130	XZB60,70..S	01/2017 - 08/2019	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36200	XZB60,70,80..EX,GX,LX,PREM	08/2019 - 12/2999	1
89668-36220	XZB60,70..S	08/2019 - 12/2999	1
89668-36180	XZB60,70..EX,GX,LX	01/2017 - 08/2019	1
89668-36130	XZB60,70..S	01/2017 - 08/2019	1
Common parts
90159-60081
90179-06158
90430-16010
91673-80616
Linked diagrams
1703

XZB70-ZRTQH (2017)

(1701-1908)

(1908- )
