XZB70-ZRTQH (2017)
Toyota Coaster

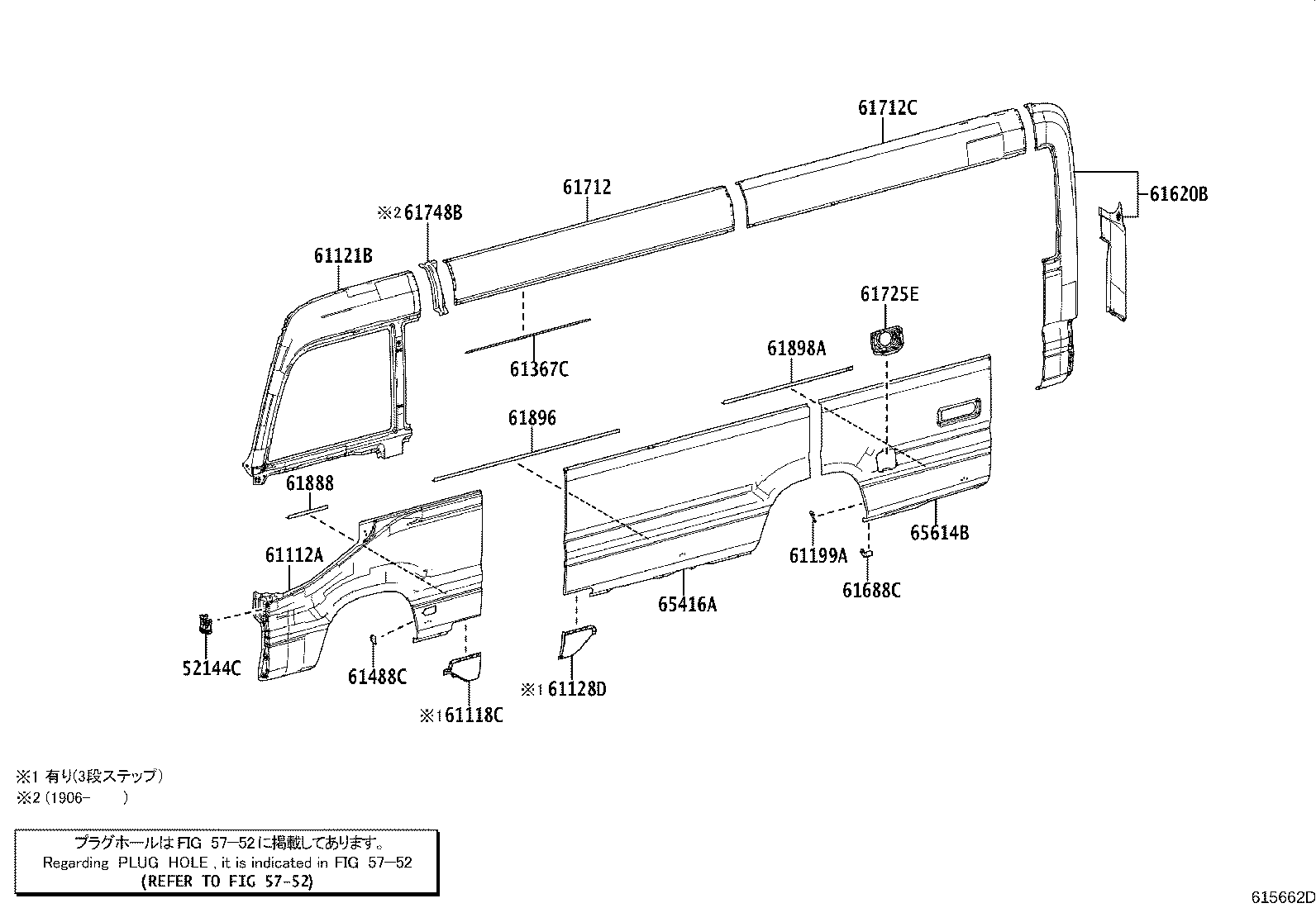

ILLUST NO. 1 OF 7(1701- )XZB60,70
ｱｳﾀﾊﾟﾈﾙ LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52144C - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 61823-36030 |
XZB60,70,80 |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61122-36260 |
XZB60,70..S |
1 | ||
| 61122-36250 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61118C - PANEL, CENTER DOOR OPENING, LOWER OUTER FRONT | ||||
| 61118-36020 |
XZB60,70..S |
1 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61221-36030 |
XZB60,70,80 |
1 | ||
| 61128D - PANEL, CENTER DOOR OPENING, LOWER OUTER REAR | ||||
| 61128-36020 |
XZB60,70..S |
1 | ||
| 61199A - BRACKET, SIDE PANEL TO REAR MUDGUARD, LH | ||||
| 61169-36010 |
XZB60,70,80 |
1 | ||
| 61367C - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61367-36040 |
XZB60,70..EX,GX,LX,S |
1 | ||
| 61367-36040 |
XZB60,70 |
1 | ||
| 61488C - BRACKET, MUDGUARD, FRONT LH | ||||
| 61488-36020 |
XZB60,70,80 |
1 | ||
| 61620B - PANEL SUB-ASSY, REAR BODY CORNER, LH | ||||
| 61108-36090 |
XZB60,70..25S,29S |
1 | ||
| 61108-36100 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 61688C - BRACKET, MUDGUARD, REAR LH | ||||
| 61688-36020 |
XZB60,70,80 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61123-36030 |
XZB60,70 |
1 | ||
| 61123-36031 |
XZB60,70,80 |
1 | ||
| 61712C - PANEL, ROOF SIDE, OUTER LH, NO.2 | ||||
| 61226-36030 |
XZB70 |
1 | ||
| 61725E - BOX, FUEL INLET | ||||
| 61725-36020 |
XZB60,70,80 |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61748-36010 |
XZB60,70,80 |
1 | ||
| 61888 - RAIL, SIDE PANEL DUST PROOF, NO.1 LH | ||||
| 61888-36040 |
XZB60,70,80 |
1 | ||
| 61896 - RAIL, SIDE PANEL DUST PROOF, NO.2 LH | ||||
| 61896-36060 |
XZB70 |
1 | ||
| 61898A - RAIL, SIDE PANEL DUST PROOF, NO.3 LH | ||||
| 61898-36040 |
XZB60,70 |
1 | ||
| 65416A - PANEL, REAR BODY, FRONT LH | ||||
| 65416-36340 |
XZB70..S |
1 | ||
| 65416-36320 |
XZB70..EX,GX,LX,PREM |
1 | ||
| 65614B - PANEL, REAR BODY, REAR LH | ||||
| 65614-36080 |
XZB60,70,80 |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 7(1701- )
ﾌﾛﾝﾄﾄﾞｱｵｰﾌﾟﾆﾝｸﾞ & ﾌﾛﾝﾄﾋﾟﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133H - BRACKET, FRONT BUMPER, RH | ||||
| 52133-36020 |
XZB60,70,80 |
1 | ||
| 52143C - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-36040 |
XZB60,70,80 |
1 | ||
| 53257A - BRACKET, FRONT END PANEL MOUNTING, RH | ||||
| 53257-36010 |
XZB60,70,80 |
1 | ||
| 53354 - GUSSET, HOOD REINFORCEMENT, LH | ||||
| 53354-36010 |
XZB60,70 |
1 | ||
| 53354-36011 |
XZB60,70,80 |
1 | ||
| 53797A - PROTECTOR, SIDE TURN SIGNAL LAMP | ||||
| 53797-36030 |
XZB60,70,80 寒冷地仕様,長さ=300 |
1 | ||
| 53797-36020 |
XZB60,70,80 寒冷地仕様,長さ=150 |
2 | ||
| 53797A - PROTECTOR, SIDE TURN SIGNAL LAMP | ||||
| 53797-36030 |
XZB60,70,80 寒冷地仕様,長さ=300 |
1 | ||
| 53797-36020 |
XZB60,70,80 寒冷地仕様,長さ=150 |
2 | ||
| 53797A - PROTECTOR, SIDE TURN SIGNAL LAMP | ||||
| 53797-36030 |
XZB60,70,80 寒冷地仕様,長さ=300 |
1 | ||
| 53797-36020 |
XZB60,70,80 寒冷地仕様,長さ=150 |
2 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-36020 |
XZB60,70,80 |
1 | ||
| 53837C - BRACKET, FRONT SIDE PANEL, NO.2 RH | ||||
| 53837-36010 |
XZB60,70,80 |
1 | ||
| 53838B - EXTENSION, FRONT FENDER REAR, RH | ||||
| 53838-36010 |
XZB60,70,80 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-36130 |
XZB60,70,80 |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-36080 |
XZB60,70,80 |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-36100 |
XZB60,70,80 |
1 | ||
| 61051 - PANEL, ROOF SIDE OUTER FRONT, RH | ||||
| 61711-36010 |
XZB60,70,80 |
1 | ||
| 61052 - PANEL, ROOF SIDE OUTER FRONT, LH | ||||
| 61712-36010 |
XZB60,70,80 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-36030 |
XZB60,70,80 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61143-36030 |
XZB60,70,80 |
1 | ||
| 61133C - PILLAR, FRONT BODY, LOWER OUTER RH | ||||
| 61145-36020 |
XZB60,70,80 |
1 | ||
| 61135A - REINFORCEMENT, FRONT BODY PILLAR, OUTER | ||||
| 61135-36030 |
XZB60,70,80 |
1 | ||
| 61136B - REINFORCEMENT, FRONT BODY PILLAR, OUTER | ||||
| 61136-36010 |
XZB60,70,80 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61146-36010 |
XZB60,70,80 |
1 | ||
| 61167D - BRACE, FRONT BODY PILLAR, INNER RH | ||||
| 55725-36010 |
XZB60,70,80 |
1 | ||
| 61168B - BRACE, FRONT BODY PILLAR, INNER LH | ||||
| 55726-36010 |
XZB60,70,80 |
1 | ||
| 61176C - REINFORCEMENT, NO.1 PILLAR, UPPER RH | ||||
| 61176-36020 |
XZB60,70,80 |
1 | ||
| 61177B - BRACKET, DOOR CHECK ARM | ||||
| 61177-36020 |
XZB60,70,80 |
1 | ||
| 61178A - REINFORCEMENT, NO.1 PILLAR, LOWER RH | ||||
| 61178-36020 |
XZB60,70,80 |
1 | ||
| 61222 - PILLAR, NO.1 OUTER, LOWER LH | ||||
| 61222-36020 |
XZB60,70,80 |
1 | ||
| 61311A - RAIL, NO.1 UPPER OUTER, RH | ||||
| 61311-36030 |
XZB60,70,80 |
1 | ||
| 61321A - RAIL, NO.1 UPPER OUTER, LH | ||||
| 61321-36030 |
XZB60,70,80 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61421-36020 |
XZB60,70,80 |
1 | ||
| 61476 - PATCH, FRONT DOOR PILLAR, RH | ||||
| 58219-26010 |
XZB60,70,80 |
2 | ||
| 61651A - GUSSET, PILLAR SHEAR, NO.1 RH | ||||
| 61651-36060 |
XZB60,70,80 |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-36010 |
XZB60,70,80 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-36010 |
XZB60,70,80 |
1 | ||
| 61859 - COVER, FRONT DOOR STEP, RH | ||||
| 61859-36010 |
XZB60,70,80 |
1 | ||
| 61938A - RETAINER, OUTER SIDE MIRROR, LH | ||||
| 61938-36010 |
XZB60,70,80 |
1 | ||
| 65104E - BRACKET SUB-ASSY, MOUNTING, LH | ||||
| 65104-36010 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 67868-30030 | ||||
| 90105-06344 | ||||
| 90179-04026 | ||||
| 90179-08184 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5752 | ||||

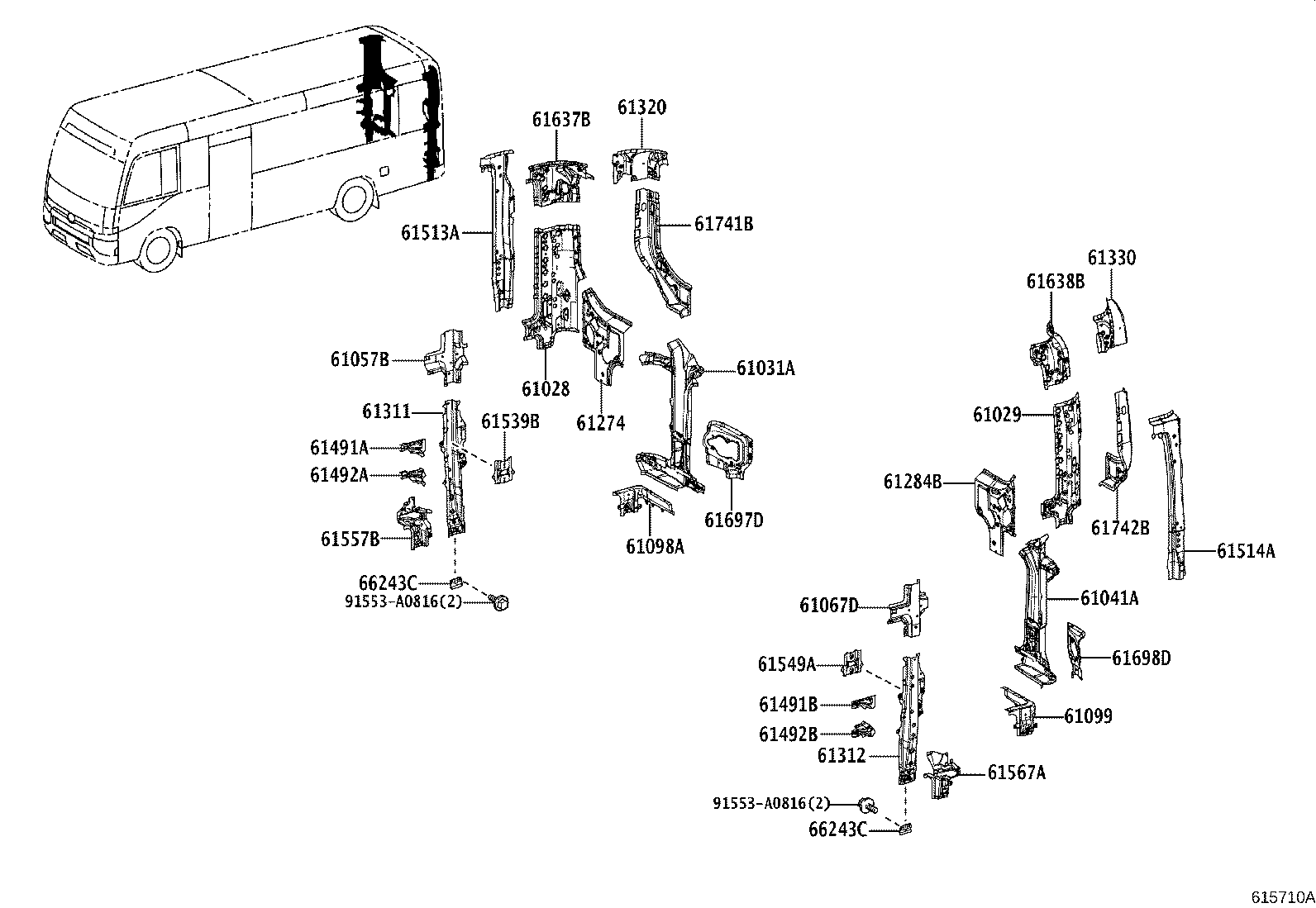

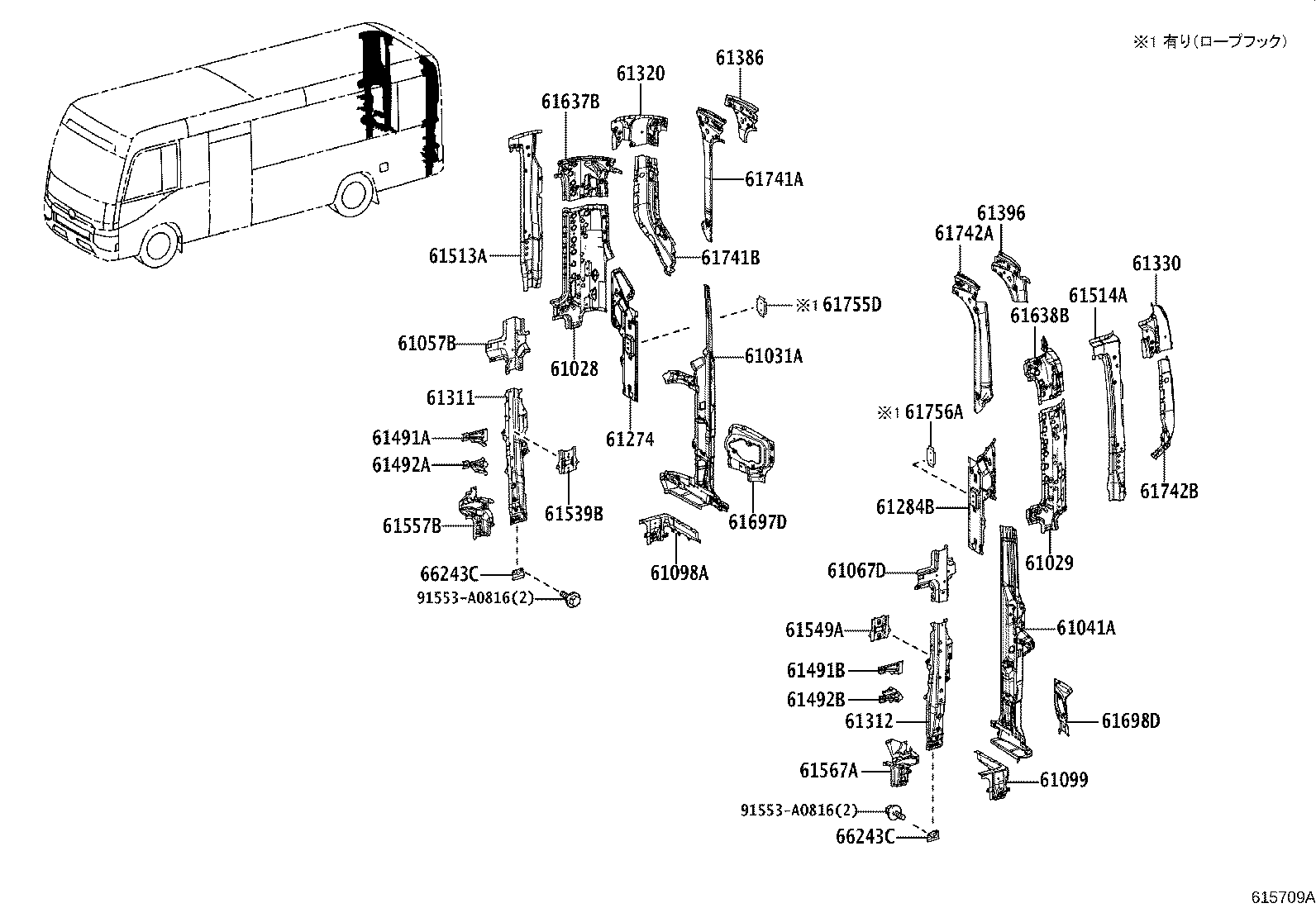

ILLUST NO. 4 OF 7(1701- )XZB70
ﾋﾟﾗｰ & ﾙｰﾌｻｲﾄﾞﾚｰﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-36270 |
XZB60,70,80 |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61054-36080 |
XZB60,70,80 |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61018-36200 |
XZB60,70,80 |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61054-36070 |
XZB60,70,80 |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61018-36200 |
XZB70 |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61015-36290 |
XZB70 |
1 | ||
| 61019A - PILLAR SUB-ASSY, NO.9 RH | ||||
| 61018-36200 |
XZB70 |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-36110 |
XZB60,70 |
1 | ||
| 61033-36111 |
XZB60,70,80 |
1 | ||
| 61036B - PILLAR SUB-ASSY, NO.5 INNER, RH | ||||
| 61035-36080 |
XZB60,70,80..13S,21S,24S,25S,29S,39S,49S |
1 | ||
| 61037C - PILLAR SUB-ASSY, NO.7 INNER, RH | ||||
| 61035-36080 |
XZB60,70,80 |
1 | ||
| 61038 - PILLAR SUB-ASSY, NO.9 INNER, RH | ||||
| 61035-36080 |
XZB70,80 |
1 | ||
| 61051B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT RH | ||||
| 61609-36130 |
XZB60,70 |
1 | ||
| 61052B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR RH | ||||
| 61603-36010 |
XZB60,70 |
1 | ||
| 61213 - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61203-36050 |
XZB70 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61201-36040 |
XZB60,70 |
1 | ||
| 61201-36041 |
XZB60,70,80 |
1 | ||
| 61215A - RAIL, ROOF SIDE, OUTER NO.3 RH | ||||
| 61210-36010 |
XZB60,70,80 |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61210-36010 |
XZB70,80 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-36010 |
XZB60,70,80 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61235-36050 |
XZB60,70,80 |
1 | ||
| 61235A - RAIL, ROOF SIDE, INNER NO.3 RH | ||||
| 61247-36030 |
XZB60,70,80 |
1 | ||
| 61237C - RAIL, ROOF SIDE, INNER NO.4 RH | ||||
| 61247-36030 |
XZB70,80 |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61241-36010 |
XZB70 |
1 | ||
| 61737G - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61715-36010 |
XZB60,70,80 |
1 | ||

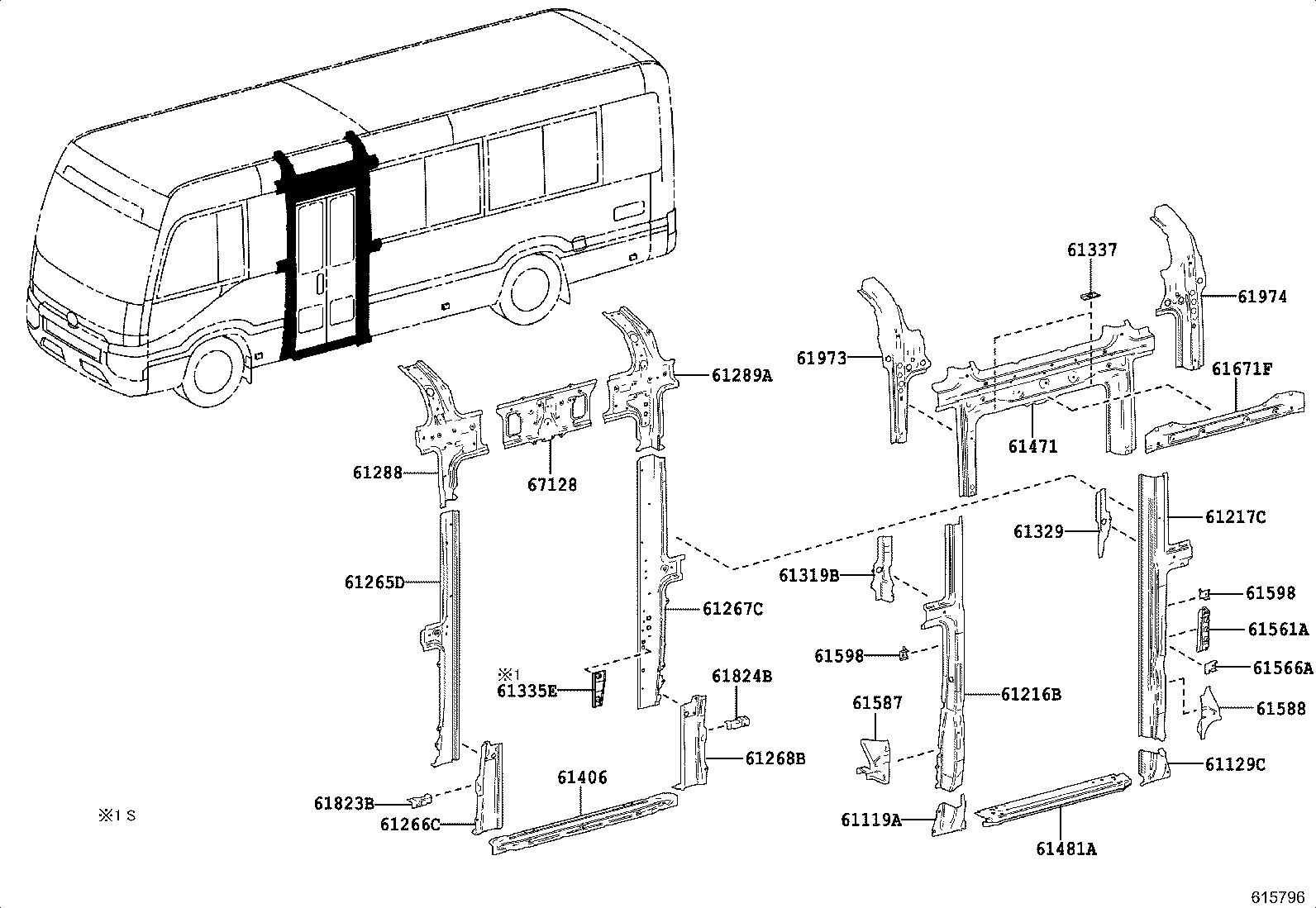

ILLUST NO. 3 OF 7(1701- )
ｾﾝﾀﾄﾞｱｵｰﾌﾟﾆﾝｸﾞ(ｸﾞﾗｲﾄﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61216B - PILLAR, NO.3 | ||||
| 61216-36100 |
XZB60,70..S |
1 | ||
| 61216-36140 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61217C - PILLAR, NO.4 | ||||
| 61217-36080 |
XZB60,70..S |
1 | ||
| 61217-36100 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61265D - PILLAR, NO.3 INNER, UPPER LH | ||||
| 61265-36360 |
XZB60,70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36360 |
XZB70..6FC..(EX,GX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70..6FC..(EX,GX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB60,70..6FC..(EX,GX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36260 |
XZB60,70..S |
1 | ||
| 61265-36350 |
XZB60,70,80..EX,GX,PREM |
1 | ||
| 61265-36360 |
XZB60,70,80..EX,GX,PREM ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36360 |
XZB70,80..EX,GX,PREM ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70,80..EX,GX,PREM ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70,80..6FC..(EX,GX,PREM) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB60,70,80..6FC..(EX,GX,PREM) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36360 |
XZB70,80..6FC..(EX,GX,PREM) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61266C - PILLAR, NO.3 INNER, LOWER LH | ||||
| 61266-36120 |
XZB60,70..S |
1 | ||
| 61266-36130 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61267C - PILLAR, NO.4 INNER, UPPER LH | ||||
| 61267-36470 |
XZB60,70..EX,GX |
1 | ||
| 61267-36380 |
XZB60,70..S |
1 | ||
| 61267-36471 |
XZB60,70,80..EX,GX,PREM |
1 | ||
| 61268B - PILLAR, NO.4 INNER, LOWER LH | ||||
| 61268-36110 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61268-36100 |
XZB60,70..S |
1 | ||
| 61288 - PILLAR, NO.3 CORNER, LH | ||||
| 61288-36100 |
XZB60,70..S |
1 | ||
| 61288-36110 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61289A - PILLAR, NO.4 CORNER, LH | ||||
| 61289-36160 |
XZB60,70..S |
1 | ||
| 61289-36180 |
XZB60,70,80..13S,21S,24S,25S,29S |
1 | ||
| 61305B - REINFORCE SUB-ASSY, CENTER BODY PILLER, LOWER FRONT | ||||
| 61305-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61306B - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER REAR | ||||
| 61306-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61323-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-36150 |
XZB70..(24S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61406-36150 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 61406-36150 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61406-36140 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61406-36150 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 61427-36070 |
XZB60,70..S |
1 | ||
| 61406-36150 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 61471 - RAIL, CENTER DOOR, OUTER | ||||
| 61471-36120 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61471-36100 |
XZB60,70..S |
1 | ||
| 61481A - RAIL, CENTER DOOR, LOWER OUTER | ||||
| 61481-36050 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61406-36110 |
XZB60,70..S |
1 | ||
| 61561A - GUSSET, REAR SEAT | ||||
| 61561-36020 |
XZB60,70,80 |
1 | ||
| 61566A - GUSSET, PILLAR TO RAIL, NO.1 LH | ||||
| 61566-36070 |
XZB60,70,80 |
1 | ||
| 61587 - GUSSET, CENTER DOOR PILLAR, FRONT LH | ||||
| 61587-36020 |
XZB60,70,80 |
1 | ||
| 61588 - GUSSET, CENTER DOOR PILLAR, REAR LH | ||||
| 61588-36020 |
XZB60,70,80 |
1 | ||
| 61598 - BRACKET, STIFFENER, NO.5 | ||||
| 61598-36020 |
XZB60,70,80 |
2 | ||
| 61598 - BRACKET, STIFFENER, NO.5 | ||||
| 61598-36020 |
XZB60,70,80 |
2 | ||
| 61624F - PLATE, CENTER DOOR PILLER DUST PROOF, REAR LH | ||||
| 61624-36040 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61671C - PALTE, QUARTER PANEL, UPPER NO.1 | ||||
| 61671-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61787B - RETAINER, SLIDE DOOR ARM, UPPER REAR | ||||
| 61787-36020 |
XZB60,70..EX,GX,LX |
1 | ||
| 61787-36021 |
XZB60,70..EX,GX,LX,PREM |
1 | ||
| 61823B - PLATE, DUST PROOF, NO.1 LH | ||||
| 61818-36040 |
XZB60,70,80 |
1 | ||
| 61824B - PLATE, DUST PLOOF, NO.2 LH | ||||
| 61828-36040 |
XZB60,70,80 |
1 | ||
| 61913A - PLATE, LOWER RAIL, INNER NO.3 | ||||
| 61913-36060 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61914 - PLATE, LOWER RAIL, INNER NO.4 | ||||
| 61914-36030 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61973 - REINFORCEMENT, CENTER PILLAR, NO.3 | ||||
| 61973-36010 |
XZB60,70..S |
1 | ||
| 61973-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61974 - REINFORCEMENT, CENTER PILLAR, NO.4 | ||||
| 61974-36030 |
XZB60,70..S |
1 | ||
| 61974-36040 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
ILLUST NO. 4 OF 7(1701- )XZB70
ﾋﾟﾗｰ & ﾙｰﾌｻｲﾄﾞﾚｰﾙ LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60132 - PILLAR SUB-ASSY, CENTER BODY, NO.2 LH | ||||
| 60132-36010 |
XZB60,70,80 |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-36050 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61022-36060 |
XZB60,70..S |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-36160 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61023-36170 |
XZB60,70..S |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61054-36080 |
XZB60,70,80 |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61018-36200 |
XZB70 |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61025-36270 |
XZB70 |
1 | ||
| 61029A - PILLAR SUB-ASSY, NO.9 LH | ||||
| 61018-36200 |
XZB70 |
1 | ||
| 61047C - PILLAR SUB-ASSY, NO.7 INNER, LH | ||||
| 61035-36080 |
XZB60,70,80 |
1 | ||
| 61048 - PILLAR SUB-ASSY, NO.9 INNER, LH | ||||
| 61035-36080 |
XZB70,80 |
1 | ||
| 61061B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT LH | ||||
| 61603-36010 |
XZB60,70 |
1 | ||
| 61062B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR LH | ||||
| 61609-36130 |
XZB60,70 |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61204-36030 |
XZB70 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61212-36051 |
XZB60,70,80 |
1 | ||
| 61212-36050 |
XZB60,70 |
1 | ||
| 61216C - RAIL, ROOF SIDE, OUTER NO.3 LH | ||||
| 61210-36050 |
XZB60,70,80 |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61210-36020 |
XZB70,80 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61234-36030 |
XZB60,70,80 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61238-36050 |
XZB60,70,80 |
1 | ||
| 61236A - RAIL, ROOF SIDE, INNER NO.3 LH | ||||
| 61247-36030 |
XZB60,70,80 |
1 | ||
| 61238C - RAIL, ROOF SIDE, INNER NO.4 LH | ||||
| 61247-36030 |
XZB70,80 |
1 | ||
| 61346A - RAIL, NO.5 UPPER INNER, LH | ||||
| 61241-36020 |
XZB70 |
1 | ||
ILLUST NO. 7 OF 7(1701- )
ﾘﾔﾋﾟﾗｰ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞｯｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61028 - PILLAR SUB-ASSY, REAR INNER, RH | ||||
| 61272-36220 |
XZB60,70,80 |
1 | ||
| 61029 - PILLAR SUB-ASSY, REAR INNER, LH | ||||
| 61282-36240 |
XZB60,70,80 |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-36080 |
XZB60,70..25S,29S |
1 | ||
| 61031-36090 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61041-36080 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 61041-36080 |
XZB70..29S;XZB60..25S..LX ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61041-36070 |
XZB60,70..25S,29S |
1 | ||
| 61057B - RAIL SUB-ASSY, REAR SIDE, RH | ||||
| 61317-36020 |
XZB60,70 |
1 | ||
| 61067D - RAIL SUB-ASSY, REAR SIDE, LH | ||||
| 61327-36010 |
XZB60,70 |
1 | ||
| 61098A - STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH | ||||
| 61098-36020 |
XZB60,70,80 |
1 | ||
| 61099 - STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH | ||||
| 61099-36041 |
XZB60,70,80 補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61099-36040 |
XZB70..29S;XZB60..25S..LX ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61099-36030 |
XZB60,70,80 |
1 | ||
| 61099-36040 |
XZB60,70 補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36050 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61274-36040 |
XZB60,70..25S,29S |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36040 |
XZB60,70..25S,29S |
1 | ||
| 61284-36050 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61311 - PILLAR, REAR RH | ||||
| 61959-36030 |
XZB60,70,80 |
1 | ||
| 61312 - PILLAR, REAR LH | ||||
| 61969-36020 |
XZB60,70,80 |
1 | ||
| 61320 - PANEL, REAR BODY FRONT SIDE, RH | ||||
| 61310-36010 |
XZB60,70..25S,29S |
1 | ||
| 61310-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61330 - PANEL, REAR BODY FRONT SIDE, LH | ||||
| 61320-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61320-36010 |
XZB60,70..25S,29S |
1 | ||
| 61386 - PANEL, REAR SIDE, UPPER RH | ||||
| 61343-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61396 - PANEL, REAR SIDE, UPPER LH | ||||
| 61344-36040 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61491A - BRACKET, SIDE PANEL STRENGTH, NO.1 | ||||
| 61491-36050 |
XZB60,70 |
1 | ||
| 61491B - BRACKET, SIDE PANEL STRENGTH, NO.1 LH | ||||
| 61492-36040 |
XZB60,70 |
1 | ||
| 61492A - BRACKET, SIDE PANEL STRENGTH, NO.2 RH | ||||
| 61491-36060 |
XZB60,70 |
1 | ||
| 61492B - BRACKET, SIDE PANEL STRENGTH, NO.2 LH | ||||
| 61492-36050 |
XZB60,70 |
1 | ||
| 61513A - PILLAR, REAR UPPER SIDE PANEL, RH | ||||
| 61958-36060 |
XZB60,70,80 |
1 | ||
| 61514A - PILLAR, REAR UPPER SIDE PANEL, LH | ||||
| 61968-36010 |
XZB60,70,80 |
1 | ||
| 61539B - GUSSET, SEAT ANCHOR, NO.9 | ||||
| 61539-36050 |
XZB60,70,80 |
1 | ||
| 61549A - GUSSET, SEAT ANCHOR, LH | ||||
| 61539-36050 |
XZB60,70,80 |
1 | ||
| 61557B - GUSSET, PILLAR TO RAIL, NO.2 | ||||
| 61557-36030 |
XZB60,70,80 |
1 | ||
| 61567A - GUSSET, PILLAR TO RAIL, NO.2 LH | ||||
| 61567-36030 |
XZB60,70,80 |
1 | ||
| 61637B - REINFORCEMENT, REAR PILLAR, INNER UPPER RH | ||||
| 61977-36010 |
XZB60,70..25S,29S |
1 | ||
| 61977-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61638B - REINFORCEMENT, REAR PILLAR, INNER UPPER LH | ||||
| 61987-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61987-36010 |
XZB60,70..25S,29S |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-36010 |
XZB60,70,80 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-36010 |
XZB60,70,80 |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61973-36030 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61741-36010 |
XZB60,70..25S,29S |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61983-36010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-36010 |
XZB60,70..25S,29S |
1 | ||
| 61742-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66248-36010 |
XZB60,70,80 |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66248-36010 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 91553-A0816 | ||||
ILLUST NO. 7 OF 7(1701- )
ﾘﾔﾋﾟﾗｰ(ﾗｹﾞｰｼﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61028 - PILLAR SUB-ASSY, REAR INNER, RH | ||||
| 61272-36220 |
XZB60,70,80 |
1 | ||
| 61029 - PILLAR SUB-ASSY, REAR INNER, LH | ||||
| 61282-36240 |
XZB60,70,80 |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-36080 |
XZB60,70..25S,29S |
1 | ||
| 61031-36090 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61041-36080 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 61041-36080 |
XZB70..29S;XZB60..25S..LX ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61041-36070 |
XZB60,70..25S,29S |
1 | ||
| 61057B - RAIL SUB-ASSY, REAR SIDE, RH | ||||
| 61317-36020 |
XZB60,70 |
1 | ||
| 61067D - RAIL SUB-ASSY, REAR SIDE, LH | ||||
| 61327-36010 |
XZB60,70 |
1 | ||
| 61098A - STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH | ||||
| 61098-36020 |
XZB60,70,80 |
1 | ||
| 61099 - STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH | ||||
| 61099-36041 |
XZB60,70,80 補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61099-36040 |
XZB70..29S;XZB60..25S..LX ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61099-36030 |
XZB60,70,80 |
1 | ||
| 61099-36040 |
XZB60,70 補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36050 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61274-36040 |
XZB60,70..25S,29S |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36040 |
XZB60,70..25S,29S |
1 | ||
| 61284-36050 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61311 - PILLAR, REAR RH | ||||
| 61959-36030 |
XZB60,70,80 |
1 | ||
| 61312 - PILLAR, REAR LH | ||||
| 61969-36020 |
XZB60,70,80 |
1 | ||
| 61320 - PANEL, REAR BODY FRONT SIDE, RH | ||||
| 61310-36010 |
XZB60,70..25S,29S |
1 | ||
| 61310-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61330 - PANEL, REAR BODY FRONT SIDE, LH | ||||
| 61320-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61320-36010 |
XZB60,70..25S,29S |
1 | ||
| 61491A - BRACKET, SIDE PANEL STRENGTH, NO.1 | ||||
| 61491-36050 |
XZB60,70 |
1 | ||
| 61491B - BRACKET, SIDE PANEL STRENGTH, NO.1 LH | ||||
| 61492-36040 |
XZB60,70 |
1 | ||
| 61492A - BRACKET, SIDE PANEL STRENGTH, NO.2 RH | ||||
| 61491-36060 |
XZB60,70 |
1 | ||
| 61492B - BRACKET, SIDE PANEL STRENGTH, NO.2 LH | ||||
| 61492-36050 |
XZB60,70 |
1 | ||
| 61513A - PILLAR, REAR UPPER SIDE PANEL, RH | ||||
| 61958-36060 |
XZB60,70,80 |
1 | ||
| 61514A - PILLAR, REAR UPPER SIDE PANEL, LH | ||||
| 61968-36010 |
XZB60,70,80 |
1 | ||
| 61539B - GUSSET, SEAT ANCHOR, NO.9 | ||||
| 61539-36050 |
XZB60,70,80 |
1 | ||
| 61549A - GUSSET, SEAT ANCHOR, LH | ||||
| 61539-36050 |
XZB60,70,80 |
1 | ||
| 61557B - GUSSET, PILLAR TO RAIL, NO.2 | ||||
| 61557-36030 |
XZB60,70,80 |
1 | ||
| 61567A - GUSSET, PILLAR TO RAIL, NO.2 LH | ||||
| 61567-36030 |
XZB60,70,80 |
1 | ||
| 61637B - REINFORCEMENT, REAR PILLAR, INNER UPPER RH | ||||
| 61977-36010 |
XZB60,70..25S,29S |
1 | ||
| 61977-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61638B - REINFORCEMENT, REAR PILLAR, INNER UPPER LH | ||||
| 61987-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61987-36010 |
XZB60,70..25S,29S |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-36010 |
XZB60,70,80 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-36010 |
XZB60,70,80 |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 61741-36010 |
XZB60,70..25S,29S |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-36010 |
XZB60,70..25S,29S |
1 | ||
| 61742-36020 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66248-36010 |
XZB60,70,80 |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66248-36010 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 91553-A0816 | ||||
ILLUST NO. 1 OF 7(1701- )XZB60,70
ｱｳﾀﾊﾟﾈﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 59401 - COVER SUB-ASSY, COOLER CONDENSER | ||||
| 61705-36900 |
XZB60,70,80 |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61007-36030 |
XZB70 |
1 | ||
| 61007-36031 |
XZB60,70,80 |
1 | ||
| 61199 - BRACKET, SIDE PANEL TO REAR MUDGUARD | ||||
| 61159-36020 |
XZB60,70,80 |
1 | ||
| 61478C - BRACKET, MUDGUARD, FRONT RH | ||||
| 61478-36020 |
XZB60,70,80 |
1 | ||
| 61610B - PANEL SUB-ASSY, REAR BODY CORNER, RH | ||||
| 61107-36120 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 61107-36100 |
XZB60,70..25S,29S |
1 | ||
| 61687B - BRACKET, MUDGUARD, REAR RH | ||||
| 61687-36020 |
XZB60,70,80 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61113-36021 |
XZB60,70,80 |
1 | ||
| 61113-36020 |
XZB60,70 |
1 | ||
| 61711C - PANEL, ROOF SIDE, OUTER RH, NO.2 | ||||
| 61225-36020 |
XZB70 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61726-36010 |
XZB60,70,80 |
1 | ||
| 61747B - REINFORCEMENT, ROOF SIDE, INNER REAR, RH | ||||
| 61747-36020 |
XZB60,70,80 |
1 | ||
| 61887 - RAIL, SIDE PANEL DUST PROOF, NO.1 RH | ||||
| 61887-36030 |
XZB60,70,80 |
1 | ||
| 61895 - RAIL, SIDE PANEL DUST PROOF, NO.2 RH | ||||
| 61895-36050 |
XZB70 |
1 | ||
| 61897 - RAIL, SIDE PANEL DUST PROOF, NO.3 RH | ||||
| 61897-36030 |
XZB60,70 |
1 | ||
| 65415C - PANEL, REAR BODY, FRONT RH | ||||
| 65415-36190 |
XZB70 |
1 | ||
| 65415-36191 |
XZB70 |
1 | ||
| 65417 - PANEL, REAR BODY, REAR RH | ||||
| 65417-36100 |
XZB60,70,80 |
1 | ||
| 65417-36080 |
XZB60,70 |
1 | ||
| Common parts | ||||
| 90159-50267 | ||||
| 90189-05074 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 3 OF 7(1701- )
ｾﾝﾀﾄﾞｱｵｰﾌﾟﾆﾝｸﾞ(ｵﾘﾄﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61119A - PANEL, CENTER DOOR ORENING, LOWER INNER FRONT | ||||
| 61119-36040 |
XZB60,70..S |
1 | ||
| 61129C - PANEL, CENTER DOOR OPENING, LOWER INNER REAR | ||||
| 61129-36040 |
XZB60,70..S |
1 | ||
| 61216B - PILLAR, NO.3 | ||||
| 61216-36100 |
XZB60,70..S |
1 | ||
| 61216-36140 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61217C - PILLAR, NO.4 | ||||
| 61217-36080 |
XZB60,70..S |
1 | ||
| 61217-36100 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61265D - PILLAR, NO.3 INNER, UPPER LH | ||||
| 61265-36360 |
XZB60,70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36360 |
XZB70..6FC..(EX,GX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70..6FC..(EX,GX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB60,70..6FC..(EX,GX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36260 |
XZB60,70..S |
1 | ||
| 61265-36350 |
XZB60,70,80..EX,GX,PREM |
1 | ||
| 61265-36360 |
XZB60,70,80..EX,GX,PREM ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36360 |
XZB70,80..EX,GX,PREM ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70,80..EX,GX,PREM ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB70,80..6FC..(EX,GX,PREM) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61265-36360 |
XZB60,70,80..6FC..(EX,GX,PREM) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 61265-36360 |
XZB70,80..6FC..(EX,GX,PREM) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61266C - PILLAR, NO.3 INNER, LOWER LH | ||||
| 61266-36120 |
XZB60,70..S |
1 | ||
| 61266-36130 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61267C - PILLAR, NO.4 INNER, UPPER LH | ||||
| 61267-36470 |
XZB60,70..EX,GX |
1 | ||
| 61267-36380 |
XZB60,70..S |
1 | ||
| 61267-36471 |
XZB60,70,80..EX,GX,PREM |
1 | ||
| 61268B - PILLAR, NO.4 INNER, LOWER LH | ||||
| 61268-36110 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61268-36100 |
XZB60,70..S |
1 | ||
| 61288 - PILLAR, NO.3 CORNER, LH | ||||
| 61288-36100 |
XZB60,70..S |
1 | ||
| 61288-36110 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61289A - PILLAR, NO.4 CORNER, LH | ||||
| 61289-36160 |
XZB60,70..S |
1 | ||
| 61289-36180 |
XZB60,70,80..13S,21S,24S,25S,29S |
1 | ||
| 61319B - PLATE, CENTER BODY PILLAR, OUTER RH | ||||
| 61319-36010 |
XZB60,70..S |
1 | ||
| 61329 - PLATE, CENTER BODY PILLAR, OUTER LH | ||||
| 61329-36010 |
XZB60,70..S |
1 | ||
| 61335E - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-36020 |
XZB60,70..S |
1 | ||
| 61337 - PATCH, CENTER BODY PILLAR | ||||
| 61397-36070 |
XZB60,70..S |
2 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-36150 |
XZB70..(24S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 61406-36150 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 61406-36150 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61406-36140 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61406-36150 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 61427-36070 |
XZB60,70..S |
1 | ||
| 61406-36150 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 61471 - RAIL, CENTER DOOR, OUTER | ||||
| 61471-36120 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61471-36100 |
XZB60,70..S |
1 | ||
| 61481A - RAIL, CENTER DOOR, LOWER OUTER | ||||
| 61481-36050 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61406-36110 |
XZB60,70..S |
1 | ||
| 61561A - GUSSET, REAR SEAT | ||||
| 61561-36020 |
XZB60,70,80 |
1 | ||
| 61566A - GUSSET, PILLAR TO RAIL, NO.1 LH | ||||
| 61566-36070 |
XZB60,70,80 |
1 | ||
| 61587 - GUSSET, CENTER DOOR PILLAR, FRONT LH | ||||
| 61587-36020 |
XZB60,70,80 |
1 | ||
| 61588 - GUSSET, CENTER DOOR PILLAR, REAR LH | ||||
| 61588-36020 |
XZB60,70,80 |
1 | ||
| 61598 - BRACKET, STIFFENER, NO.5 | ||||
| 61598-36020 |
XZB60,70,80 |
2 | ||
| 61598 - BRACKET, STIFFENER, NO.5 | ||||
| 61598-36020 |
XZB60,70,80 |
2 | ||
| 61671F - PLATE, QUARTER PANEL, UPPER NO.1 | ||||
| 61568-36020 |
XZB60,70..S |
1 | ||
| 61823B - PLATE, DUST PROOF, NO.1 LH | ||||
| 61818-36040 |
XZB60,70,80 |
1 | ||
| 61824B - PLATE, DUST PLOOF, NO.2 LH | ||||
| 61828-36040 |
XZB60,70,80 |
1 | ||
| 61973 - REINFORCEMENT, CENTER PILLAR, NO.3 | ||||
| 61973-36010 |
XZB60,70..S |
1 | ||
| 61973-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61974 - REINFORCEMENT, CENTER PILLAR, NO.4 | ||||
| 61974-36030 |
XZB60,70..S |
1 | ||
| 61974-36040 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 67128 - PLATE, CENTER DOOR PANEL | ||||
| 61678-36060 |
XZB60,70..S |
1 | ||
ILLUST NO. 5 OF 7(1701- )XZB60,70
ｻｲﾄﾞﾚｰﾙ(ｾﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61053A - RAIL SUB-ASSY, NO.1 CENTER, INNER | ||||
| 61053-36050 |
XZB60,70,80 |
1 | ||
| 61055A - RAIL, SUB-AASY, NO.2 CENTER, INNER, RH | ||||
| 61058-36050 |
XZB60,70,80 |
1 | ||
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61058-36050 |
XZB60,70,80 |
1 | ||
| 61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH | ||||
| 61059-36080 |
XZB70 |
1 | ||
| 61058C - RAIL SUB-ASSY, NO.3 CENTER, INNER, LH | ||||
| 61059-36080 |
XZB70 |
1 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61373-36020 |
XZB70 |
1 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61373-36020 |
XZB70 |
1 | ||
| 61063D - RAIL SUB-ASSY, NO.1 CENTER, INNER LH | ||||
| 61474-36020 |
XZB60,70,80 |
1 | ||
| 61161C - STIFFENER, SIDE PANEL, NO.1 RH | ||||
| 61163-36030 |
XZB60,70,80 |
2 | ||
| 61161C - STIFFENER, SIDE PANEL, NO.1 RH | ||||
| 61163-36030 |
XZB60,70,80 |
2 | ||
| 61162C - STIFFENER, SIDE PANEL, NO.2 RH | ||||
| 61166-36020 |
XZB70 |
1 | ||
| 61163C - STIFFENER, SIDE PANEL, NO.3 RH | ||||
| 61172-36040 |
XZB70 |
1 | ||
| 61164B - STIFFENER, SIDE PANEL, NO.4 RH | ||||
| 61529-36010 |
XZB60,70,80 |
1 | ||
| 61171C - STIFFENER, SIDE PANEL, NO.1 | ||||
| 61164-36030 |
XZB60,70,80 |
1 | ||
| 61172 - STIFFENER, SIDE PANEL, NO.2 | ||||
| 61166-36020 |
XZB70 |
1 | ||
| 61173C - STIFFENER, SIDE PANEL, NO.3 LH | ||||
| 61172-36040 |
XZB70 |
1 | ||
| 61174C - STIFFENER, SIDE PANEL, NO.4 LH | ||||
| 61529-36010 |
XZB60,70,80 |
1 | ||
| 61189A - REINFORCEMENT, NO.2 PILLAR, CENTER LH | ||||
| 65545-36010 |
XZB60,70,80 |
1 | ||
| 61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH | ||||
| 62207-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 62207-36030 |
XZB60,70..S |
1 | ||
| 61351D - RAIL, NO.1 CENTER OUTER, RH | ||||
| 61351-36040 |
XZB60,70 |
1 | ||
| 61301-36050 |
XZB60,70,80 |
1 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36070 |
XZB60,70,80 |
1 | ||
| 61353B - RAIL, NO.3 CENTER OUTER, RH | ||||
| 61352-36070 |
XZB60,70 |
1 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61353-36040 |
XZB70..09S,21S,29S,49S |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61925-36010 |
XZB60,70,80 |
1 | ||
| 61362A - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61303-36030 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61303-36030 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61303-36030 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 61303-36070 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 61303-36050 |
XZB60,70..S |
1 | ||
| 61303-36060 |
XZB70..EX,PREM |
1 | ||
| 61352-36070 |
XZB70..EX |
1 | ||
| 61303-36070 |
XZB60,70,80..13S,21S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 61363A - RAIL, NO.3 CENTER OUTER, LH | ||||
| 61352-36070 |
XZB60,70 |
1 | ||
| 61364C - RAIL, NO.4 CENTER OUTER, LH | ||||
| 61353-36040 |
XZB70..09S,21S,29S,49S |
1 | ||
| 61501F - RAIL SUB-ASSY, SEAT ANCHOR, LH | ||||
| 61501-36160 |
XZB60,70..S |
1 | ||
| 61501-36140 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61502E - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, LH | ||||
| 61503-36580 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61503-36550 |
XZB60,70..S |
1 | ||
| 61503-36560 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
1 | ||
| 61599 - BRACKET, STIFFENER, NO.6, RH | ||||
| 61599-36030 |
XZB60,70 |
2 | ||
| 61599 - BRACKET, STIFFENER, NO.6, RH | ||||
| 61599-36030 |
XZB60,70 |
2 | ||
ILLUST NO. 6 OF 7(1701- )XZB60,70
ｻｲﾄﾞﾚｰﾙ(ﾛﾜｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61405-36060 |
XZB70..S |
1 | ||
| 61405-36020 |
XZB70..EX,GX,LX,PREM |
1 | ||
| 61092 - RAIL SUB-ASSY, NO.3 LOWER INNER, RH | ||||
| 61092-36050 |
XZB60,70..EX,GX,LX,PREM |
1 | ||
| 61092-36060 |
XZB60,70..S |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61408-36020 |
XZB70..EX,GX,LX |
1 | ||
| 61408-36060 |
XZB70..S |
1 | ||
| 61094 - RAIL SUB-ASSY, NO.3 LOWER INNER, LH | ||||
| 61094-36060 |
XZB60,70..S |
1 | ||
| 61094-36050 |
XZB60,70..EX,GX,LX,PREM |
1 | ||
| 61411E - RAIL, NO.1 LOWER OUTER, RH | ||||
| 61411-36020 |
XZB60,70,80 |
1 | ||
| 61412E - RAIL, NO.2 LOWER OUTER, RH | ||||
| 61412-36020 |
XZB70 |
2 | ||
| 61412E - RAIL, NO.2 LOWER OUTER, RH | ||||
| 61412-36020 |
XZB70 |
2 | ||
| 61413D - RAIL, NO.3 LOWER OUTER, RH | ||||
| 61077-36040 |
XZB60,70,80 |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61401-36010 |
XZB60,70 |
1 | ||
| 61401-36020 |
XZB60,70,80 |
1 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61403-36030 |
XZB60,70 |
1 | ||
| 61403-36050 |
XZB60,70 |
1 | ||
| 61417A - RAIL, NO.7 LOWER OUTER, RH | ||||
| 61415-36020 |
XZB60,70,80 |
1 | ||
| 61417B - RAIL, NO.7 LOWER OUTER, LH | ||||
| 61415-36020 |
XZB60,70,80 |
1 | ||
| 61422B - RAIL, NO.2 LOWER OUTER, LH | ||||
| 61404-36060 |
XZB70,80 ﾌﾛﾝﾄ |
1 | ||
| 61412-36020 |
XZB70 ﾘﾔ |
1 | ||
| 61422B - RAIL, NO.2 LOWER OUTER, LH | ||||
| 61404-36060 |
XZB70,80 ﾌﾛﾝﾄ |
1 | ||
| 61412-36020 |
XZB70 ﾘﾔ |
1 | ||
| 61423D - RAIL, NO.3 LOWER OUTER, LH | ||||
| 61087-36010 |
XZB60,70,80 |
1 | ||
| 61424C - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61424-36010 |
XZB60,70,80 |
1 | ||
| 61425A - RAIL, NO.5 LOWER OUTER, LH | ||||
| 61403-36040 |
XZB60,70 |
1 | ||
| 61441B - RAIL, NO.1 LOWER INNER, LH | ||||
| 61441-36050 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 61606-36030 |
XZB60,70..S |
1 | ||
| 61479C - BRACKET, FRONT MUDGUARD | ||||
| 61479-36020 |
XZB60,70,80 |
1 | ||
| 61631L - PANEL, REAR WHEEL HOUSE, OUTER RH | ||||
| 61631-36020 |
XZB60,70,80 |
1 | ||
| 61632K - PANEL, REAR WHEEL HOUSE, OUTER LH | ||||
| 61632-36020 |
XZB60,70,80 |
1 | ||
| 61633B - PANEL, WHEEL HOUSE | ||||
| 61633-36040 |
XZB60,70,80 |
1 | ||
| 77689 - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3 | ||||
| 77689-36020 |
XZB60,70,80 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
