XZB70-ZRTQH (2017)
Toyota Coaster

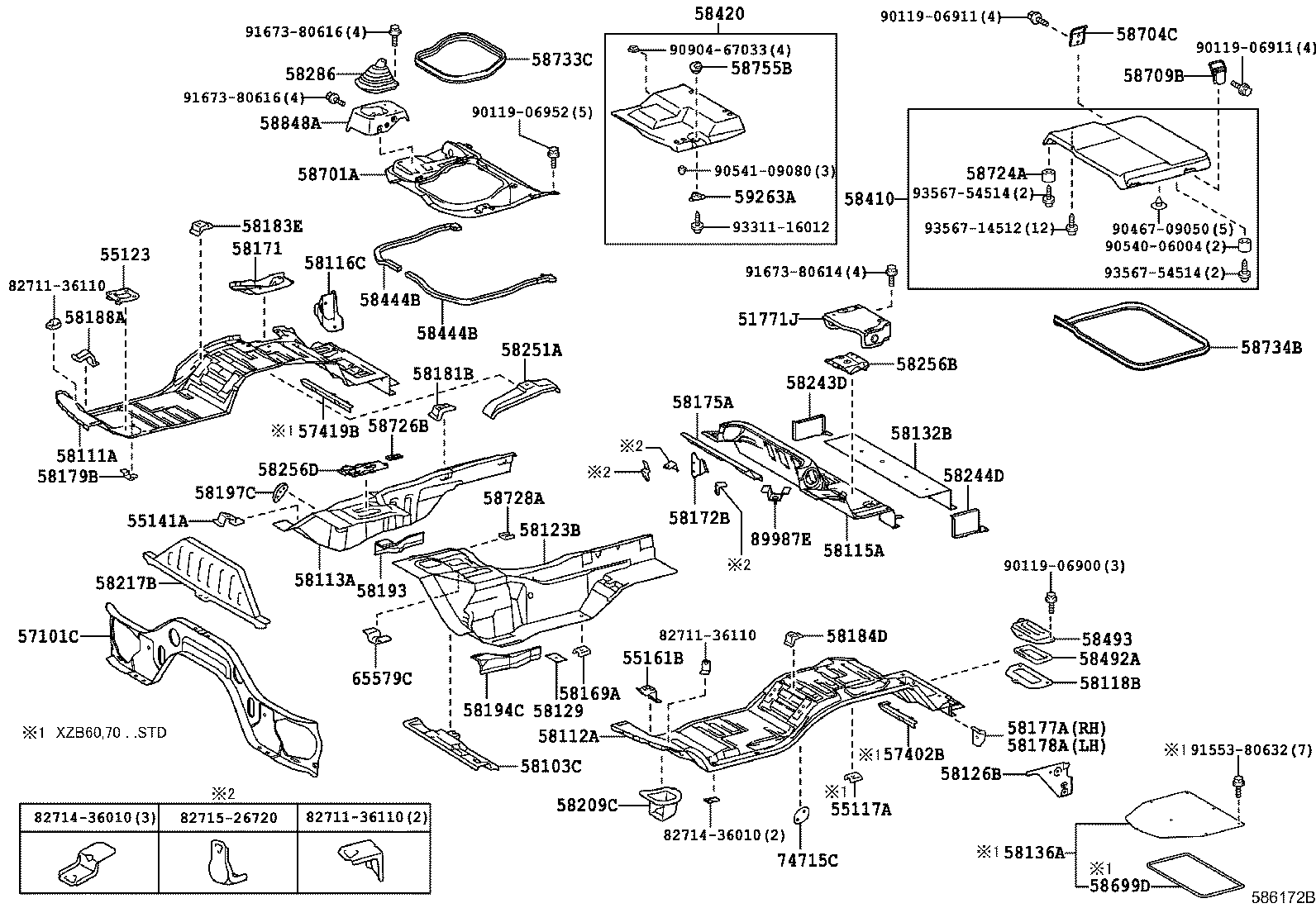

ILLUST NO. 1 OF 3(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771J - STEP, RH | ||||
| 51770-36010 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 55117A - RETAINER, CLUTCH BOOSTER, NO.1 | ||||
| 55117-90K00 |
XZB60,70..S |
2 | ||
| 55123 - REINFORCEMENT, STEERING SUPPORT | ||||
| 55123-36020 |
XZB60,70,80 |
1 | ||
| 55141A - BRACKET, FOOT REST MOUNTING | ||||
| 55141-36010 |
XZB60,70,80..6FC |
1 | ||
| 55161B - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-36040 |
XZB60,70,80 |
1 | ||
| 57101C - CROSSMEMBER SUB-ASSY, FLOOR, NO.1 | ||||
| 57101-36080 |
XZB60,70,80 |
1 | ||
| 57402B - REINFORCE SUB-ASSY, STEP PANEL UNDER | ||||
| 57402-36020 |
XZB60,70..S |
1 | ||
| 57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR | ||||
| 57419-36060 |
XZB60,70..S |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-36010 |
XZB60,70,80 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-36300 |
XZB60,70..EX,PREM,S |
1 | ||
| 58111-36270 |
XZB70..(EX,PREM)..HDCR 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 58111-36270 |
XZB70..(EX,PREM)..HDCR 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 58111-36270 |
XZB70..EX..HDCR 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 58111-36270 |
XZB70..EX..HDCR 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-36280 |
XZB60,70,80..13S,21S,24S,25S,29S |
1 | ||
| 58112-36290 |
XZB60,70..S |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-36180 |
XZB60,70,80 |
1 | ||
| 58113-V4050 |
XZB60,70,80 |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-36841 |
XZB60,70..S |
1 | ||
| 58115-36830 |
XZB60,70..EX,GX,LX |
1 | ||
| 58115-36831 |
XZB60,70..EX,GX,LX |
1 | ||
| 58115-36840 |
XZB60,70..S |
1 | ||
| 58115-36832 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58115-36842 |
XZB60,70..S |
1 | ||
| 58116C - PANEL, FRONT FLOOR REAR UPPER SIDE, RH | ||||
| 58116-36040 |
XZB60,70,80 |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-36010 |
XZB60,70,80 |
1 | ||
| 58123B - PANEL, FRONT FLOOR, CENTER LH | ||||
| 58123-V4090 |
XZB60,70..S |
1 | ||
| 58123-36240 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58123-36330 |
XZB60,70..S |
1 | ||
| 58123-V4020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58126B - PANEL, FRONT FLOOR REAR UPPER SIDE, LH | ||||
| 58126-36020 |
XZB60,70,80 |
1 | ||
| 58129 - PLATE, FRONT FLOOR, NO.2 | ||||
| 58129-36040 |
XZB60,70..S |
1 | ||
| 58132B - PANEL, FRONT FLOOR, CENTER | ||||
| 58132-36090 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58132-36040 |
XZB60,70..S |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58320-36050B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58320-36051B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58169A - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
XZB60,70..S |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-36040 |
XZB60,70,80 |
1 | ||
| 58172B - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-36030 |
XZB60,70,80 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-36032 |
XZB60,70,80 |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-36010 |
XZB60,70,80 |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-36010 |
XZB60,70,80 |
1 | ||
| 58179B - BRACKET, ACCELERATOR CABLE CLAMP | ||||
| 58179-36010 |
XZB60,70,80 |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-36010 |
XZB60,70,80 |
1 | ||
| 58183E - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36030 |
XZB60,70,80 |
1 | ||
| 58184D - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36030 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-36010 |
XZB60,70,80 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-36040 |
XZB60,70,80 |
1 | ||
| 58194C - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH | ||||
| 58193-36050 |
XZB60,70,80 |
1 | ||
| 58197C - PLATE, VACUUM TUBE BRACKET, RH | ||||
| 58197-36010 |
XZB60,70,80 |
1 | ||
| 58209C - COVER SUB-ASSY, HEATER AIR INTAKE | ||||
| 58209-36010 |
XZB60,70,80 |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-36030 |
XZB60,70,80 |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58243-36070 |
XZB60,70,80 |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58244-36070 |
XZB60,70,80 |
1 | ||
| 58251A - REINFORCEMENT, FRONT SEAT, FRONT RH | ||||
| 58251-36010 |
XZB60,70,80 |
1 | ||
| 58256B - BRACKET, AIR CLEANER, REAR | ||||
| 58256-36020 |
XZB60,70,80 |
1 | ||
| 58256D - BRACKET, FRONT FLOOR HARNESS | ||||
| 58256-36040 |
XZB60,70,80 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58410-36120B0 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58420-36140 |
XZB60,70,80 |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
XZB60,70,80 |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
XZB60,70,80 |
2 | ||
| 58492A - PACKING, RELAY BLOCK HOLE COVER | ||||
| 58492-36010 |
XZB60,70,80 |
1 | ||
| 58493 - RETAINER, ENGINE COVER, NO.3 | ||||
| 58493-36010B2 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 58699D - PACKING, FRONT FLOOR MAT DRIP | ||||
| 58699-36030 |
XZB60,70..S |
1 | ||
| 58699-36031 |
XZB60,70..S |
1 | ||
| 58701A - PANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT | ||||
| 58701-36300 |
XZB60,70,80..6FC |
1 | ||
| 58704C - HOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR | ||||
| 58704-36041 |
XZB60,70,80 |
2 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-36031 |
XZB60,70,80 |
2 | ||
| 58724A - CUSHION, ENGINE SERVICE COVER, NO.2 | ||||
| 58724-90B00 |
XZB60,70,80 |
2 | ||
| 58726B - PLATE, ENGINE SERVICE COVER, FRONT UPPER | ||||
| 58726-36010 |
XZB60,70,80 |
1 | ||
| 58728A - PLATE, ENGINE SERVICE COVER, NO.2 | ||||
| 58728-36010 |
XZB60,70,80 |
1 | ||
| 58733C - WEATHERSTRIP, ENGINE SERVICE COVER, FRONT | ||||
| 58733-36070 |
XZB60,70,80 |
1 | ||
| 58734B - WEATHERSTRIP, ENGINE SERVICE COVER, REAR | ||||
| 58734-36100 |
XZB60,70,80 |
1 | ||
| 58755B - HANDLE, ENGINE SERVICE COVER CATCH | ||||
| 58755-95D00 |
XZB60,70,80 |
1 | ||
| 59263A - HOOK, ENGINE COVER LOCK | ||||
| 59263-95D00 |
XZB60,70,80 |
1 | ||
| 65579C - BRACKET, SIDE PANEL FRAME | ||||
| 65579-36010 |
XZB60,70,80 |
1 | ||
| 74715C - RETAINER, EXTINGUISHER, NO.1 | ||||
| 74716-90K00 |
XZB60,70,80..13S,21S,24S,25S,29S,39S,49S |
2 | ||
| 89987E - BRACKET, COMPUTER, NO.1 | ||||
| 89987-36010 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 82711-36110 | ||||
| 82714-36010 | ||||
| 82715-26720 | ||||
| 90119-06900 | ||||
| 90119-06911 | ||||
| 90119-06952 | ||||
| 90467-09050 | ||||
| 90540-06004 | ||||
| 90541-09080 | ||||
| 90904-67033 | ||||
| 91553-80632 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 93311-16012 | ||||
| 93567-14512 | ||||
| 93567-54514 | ||||

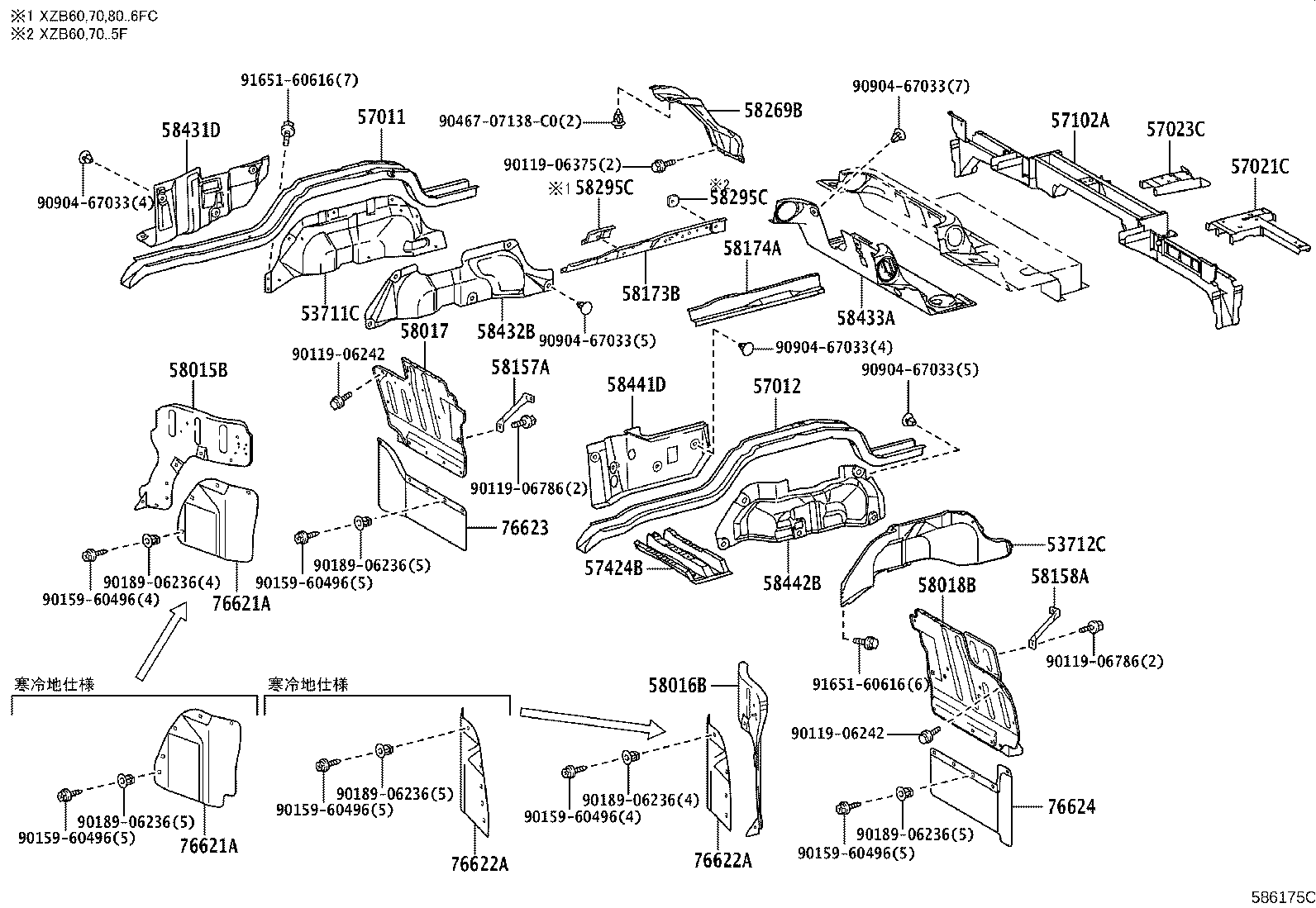

ILLUST NO. 2 OF 3(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53711C - APRON, FRONT FENDER, RH | ||||
| 53711-36050 |
XZB60,70,80 |
1 | ||
| 53712C - APRON, FRONT FENDER, LH | ||||
| 53712-36011 |
XZB60,70,80 |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-36180 |
XZB60,70,80 |
1 | ||
| 57011-V4020 |
XZB60,70,80 |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-36160 |
XZB60,70,80 |
1 | ||
| 57021C - STRENGTH SUB-ASSY, ANCHOR SIDE, NO.1 | ||||
| 57021-36012 |
XZB60,70..S |
1 | ||
| 57021-36120 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 57023C - STRENGTH SUB-ASSY, ANCHOR SIDE, NO.1 | ||||
| 57023-36090 |
XZB60,70,80 |
1 | ||
| 57102A - CROSSMENBER SUB-ASSY, FLOOR, NO.2 | ||||
| 57102-36161 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 57102-36160 |
XZB60,70..EX,GX,LX |
1 | ||
| 57102-36170 |
XZB60,70..S |
1 | ||
| 57102-36171 |
XZB60,70..S |
1 | ||
| 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH | ||||
| 51201-36230 |
XZB60,70,80 |
1 | ||
| 58015B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58015-36050 |
XZB60,70,80 |
1 | ||
| 58016B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58016-36030 |
XZB60,70,80 |
1 | ||
| 58017 - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58017-36060 |
XZB60,70,80 |
1 | ||
| 58018B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58018-36060 |
XZB60,70,80 |
1 | ||
| 58157A - STAY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58157-36010 |
XZB60,70,80 |
1 | ||
| 58158A - STAY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58158-36010 |
XZB60,70,80 |
1 | ||
| 58173B - ANGLE, FRONT FLOOR SIDE, RH | ||||
| 58173-36041 |
XZB60,70,80 |
1 | ||
| 58174A - ANGLE SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58174-36060 |
XZB60,70,80 |
1 | ||
| 58269B - COVER, PARKING BRAKE CABLE, RH | ||||
| 58269-36020 |
XZB60,70,80 |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-36020 |
XZB60,70,80..6FC |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-36020 |
XZB60,70,80..6FC |
1 | ||
| 58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH | ||||
| 58431-36102 |
XZB60,70,80 |
1 | ||
| 58432B - SILENCER, ENGINE ROOM SIDE, REAR RH | ||||
| 58432-36080 |
XZB60,70,80 |
1 | ||
| 58433A - SILENCER, ENGINE ROOM SIDE END | ||||
| 58433-36200 |
XZB60,70 |
1 | ||
| 58433-36240 |
XZB60,70,80 |
1 | ||
| 58441D - SILENCER, ENGING ROOM SIDE, FRONT LH | ||||
| 58441-V4040 |
XZB60,70,80..6FC |
1 | ||
| 58441-36170 |
XZB60,70,80..6FC |
1 | ||
| 58442B - SILENCER, ENGING ROOM SIDE, REAR LH | ||||
| 58442-36061 |
XZB60,70,80..6FC |
1 | ||
| 58442-V4020 |
XZB60,70,80..6FC |
1 | ||
| 76621A - MUDGUARD, FRONT BODY, FRONT RH | ||||
| 76621-36090 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 76621-36080 |
XZB60,70,80 |
1 | ||
| 76621A - MUDGUARD, FRONT BODY, FRONT RH | ||||
| 76621-36090 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 76621-36080 |
XZB60,70,80 |
1 | ||
| 76622A - MUDGUARD, FRONT BODY, FRONT LH | ||||
| 76622-36070 |
XZB60,70,80 |
1 | ||
| 76622-36080 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 76622A - MUDGUARD, FRONT BODY, FRONT LH | ||||
| 76622-36070 |
XZB60,70,80 |
1 | ||
| 76622-36080 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 76623 - MUDGUARD, FRONT BODY, REAR RH | ||||
| 76623-36040 |
XZB60,70,80 |
1 | ||
| 76624 - MUDGUARD, FRONT BODY, REAR LH | ||||
| 76624-36040 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90119-06375 | ||||
| 90119-06786 | ||||
| 90159-60496 | ||||
| 90189-06236 | ||||
| 90467-07138C0 | ||||
| 90904-67033 | ||||
| 91651-60616 | ||||

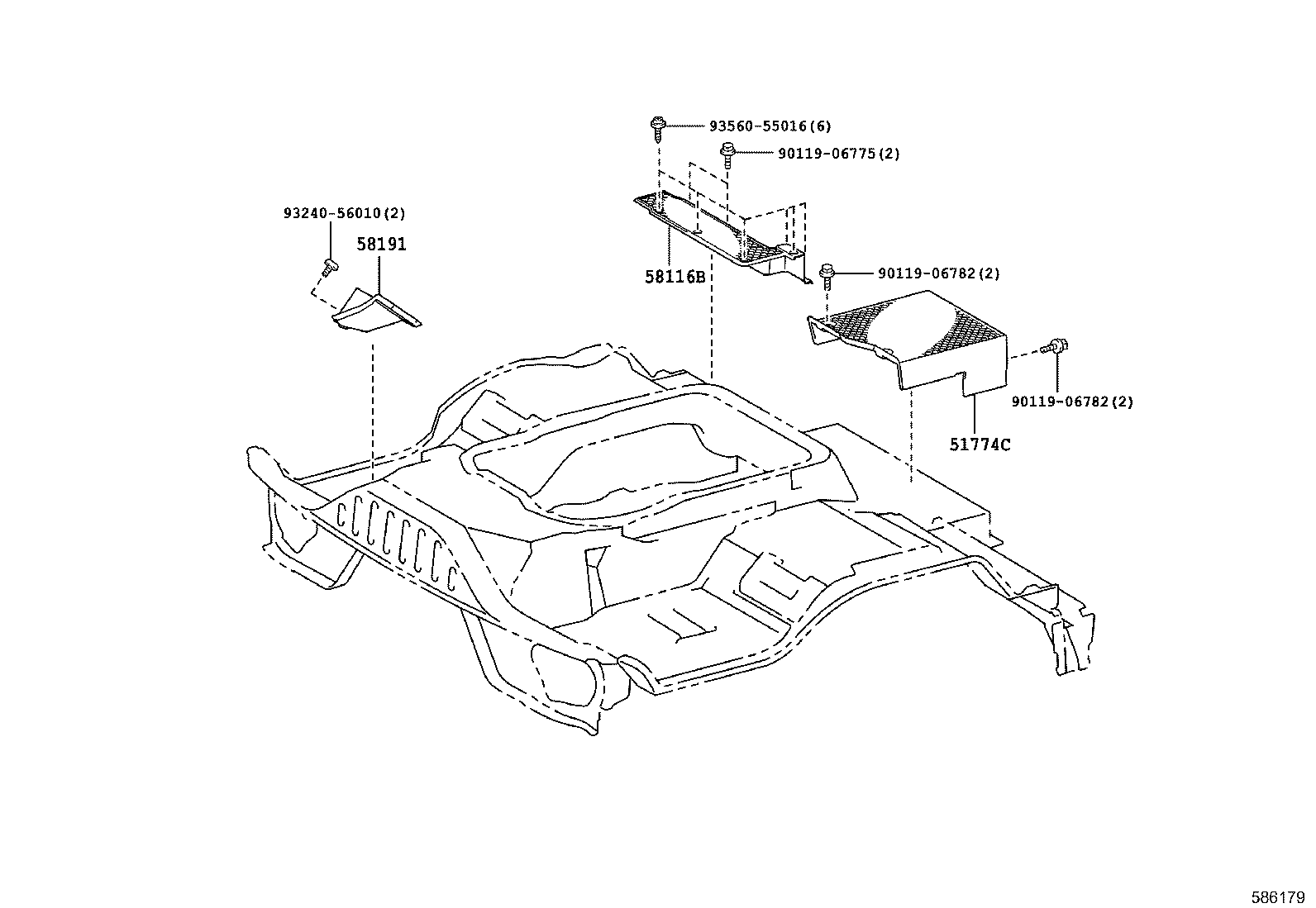

ILLUST NO. 3 OF 3(1701- )
ﾌｯﾄﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-36010B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58116B - PANEL, FRONT FLOOR REAR UPPER SIDE, RH | ||||
| 58116-36120B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-36010 |
XZB60,70,80..6FC |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90119-06782 | ||||
| 93240-56010 | ||||
| 93560-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
