XZB70-ZRTNY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

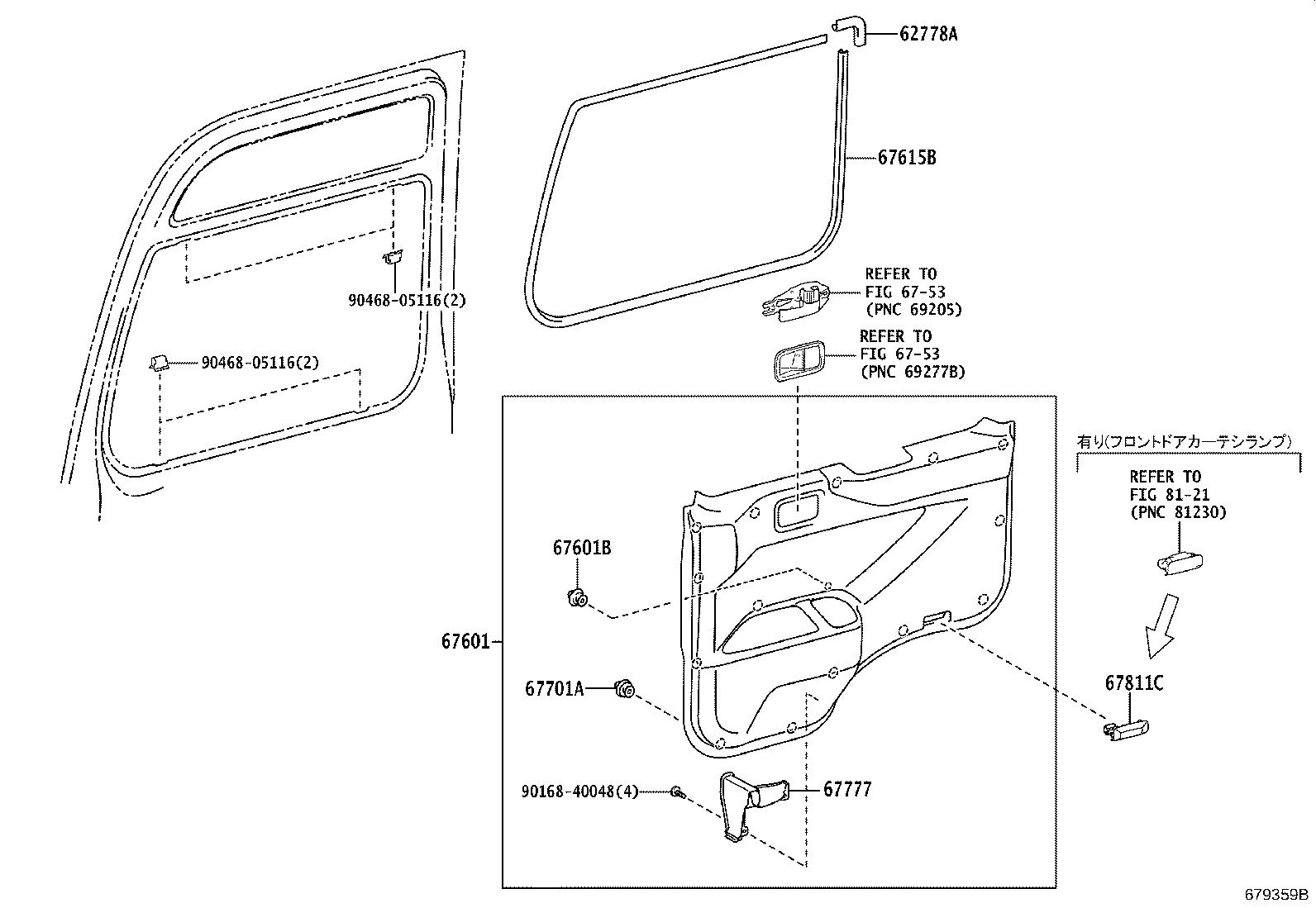

ILLUST NO. 3 OF 3(1701- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 62778A 6753 6753 67601 67601B 67615B 67701A 67777 67811C 8121 9016840048 9046805116 9046805116
Part # Description Qty Price
62778A - CAP, SIDE WINDOW FRONT SASH
62778-36040B1

XZB60,70,80..EX,GX,LX,S

MD.GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-36160B0

XZB60,70,80..EX,GX,LX,S

MD.GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67773-47010

XZB60,70,80

 1
67615B - TRIM, FRONT DOOR, UPPER RH
62375-36030B1

XZB60,70,80..EX,GX,LX,S

MD.GRAY,TRIM1#

 1
67701A - CLIP(FOR FRONT DOOR TRIM COVER)
90467-09206

XZB60,70,80

 14
67777 - POCKET, FRONT DOOR TRIM, RH
67777-36020B0

XZB60,70,80..EX,GX,LX,S

MD.GRAY,TRIM1#

 1
67811C - COVER, FRONT DOOR HOLE
67811-60030B0

XZB60,70..S

MD.GRAY,TRIM1#

 1
Common parts
90168-40048
90468-05116
Linked diagrams
6753
8121

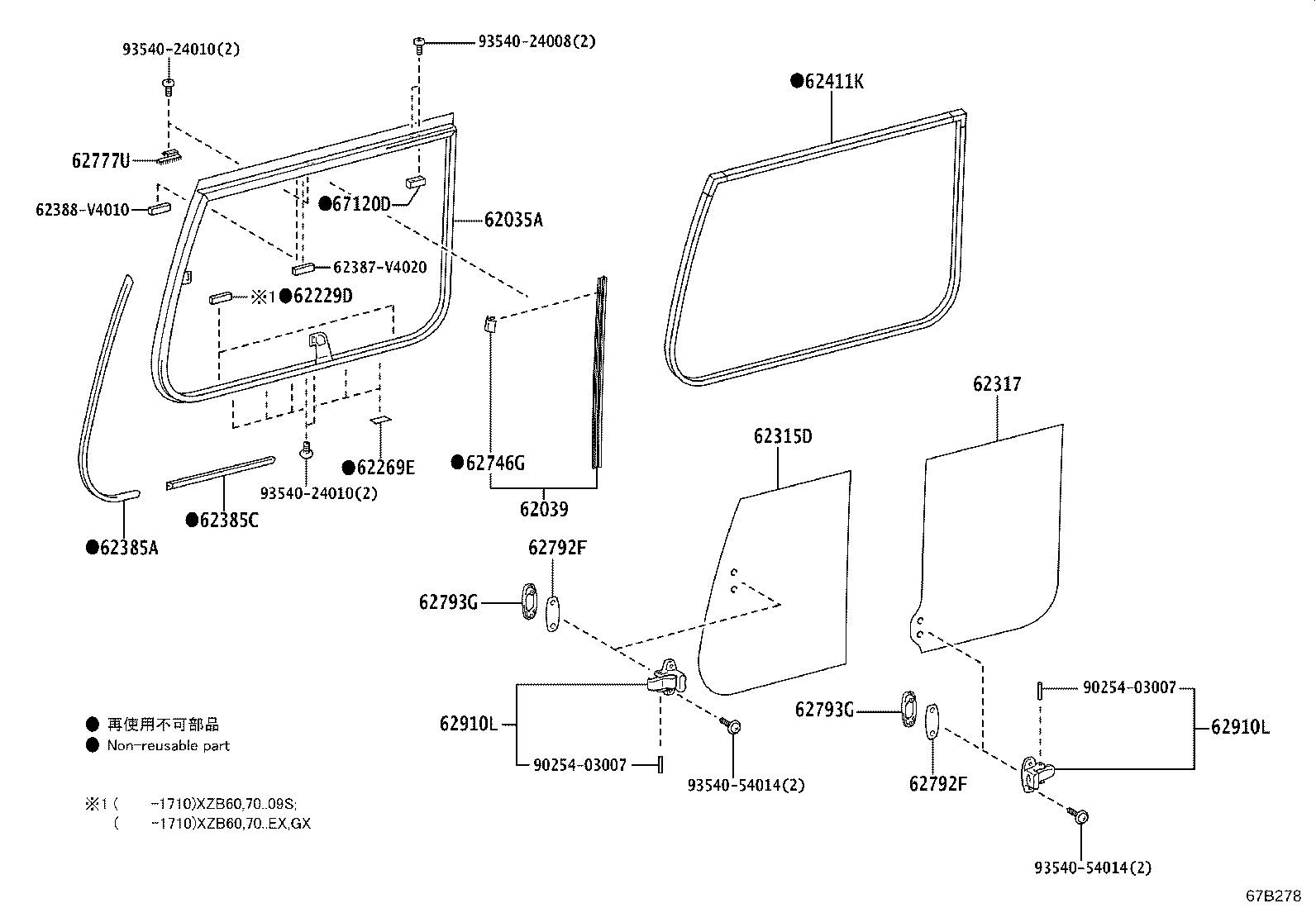

ILLUST NO. 1 OF 3(1701- )

Click highlighted areas on diagram

ﾄﾞｱｳｨﾝﾄﾞｳ

diagram 62035A 62039 62229D 62269E 62315D 62317 62385A 62385C 62387V4020 62388V4010 62411K 62746G 62777U 62792F 62792F 62793G 62793G 62910L 62910L 67120D 9025403007 9025403007 9354024008 9354024010 9354024010 9354054014 9354054014
Part # Description Qty Price
62035A - FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH
62035-36070

XZB60,70,80..(13S,24S,25S,29S,39S,49S)..(LX,S)

 1
62039 - FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH
62039-36040

XZB60,70,80..(13S,24S,25S,29S,39S,49S)..(LX,S)

 1
62269E - FILM, FRONT DOOR WINDOW FRAME, RH
62269-90K01

XZB60,70,80

 5
62315D - GLASS, FRONT DOOR WINDOW, FRONT RH
62315-36070

XZB60,70,80

 1
62317 - GLASS, FRONT DOOR WINDOW, REAR RH
62317-36070

XZB60,70,80

 1
62385A - SEAL, FRONT DOOR WINDOW, NO.1
62385-36040

XZB60,70,80

 1
62385C - SEAL, SIDE WINDOW, NO.1
62385-36050

XZB60,70,80

 1
62411K - RUN, FRONT DOOR WINDOW, RH
62411-36040

XZB60,70,80

 1
62746G - PACKING, QUARTER WINDOW
62746-36010

XZB60,70,80

 1
62777U - CAP, FRONT DOOR WINDOW CENTER SASH, RH
62777-36030

XZB60,70,80

 1
62792F - PACKING, SIDE WINDOW LOCK
62792-95A00

XZB60,70,80

 2
62792F - PACKING, SIDE WINDOW LOCK
62792-95A00

XZB60,70,80

 2
62793G - RETAINER, SIDE WINDOW LOCK
62793-95J00

XZB60,70,80

 2
62793G - RETAINER, SIDE WINDOW LOCK
62793-95J00

XZB60,70,80

 2
62910L - LOCK ASSY, SIDE WINDOW
62910-36010

XZB60,70,80

 2
62910L - LOCK ASSY, SIDE WINDOW
62910-36010

XZB60,70,80

 2
67120D - STOPPER, FRONT DOOR WINDOW
62391-36010

XZB60,70,80

 1
Common parts
62387-V4020
62388-V4010
90254-03007
93540-24008
93540-24010
93540-54014

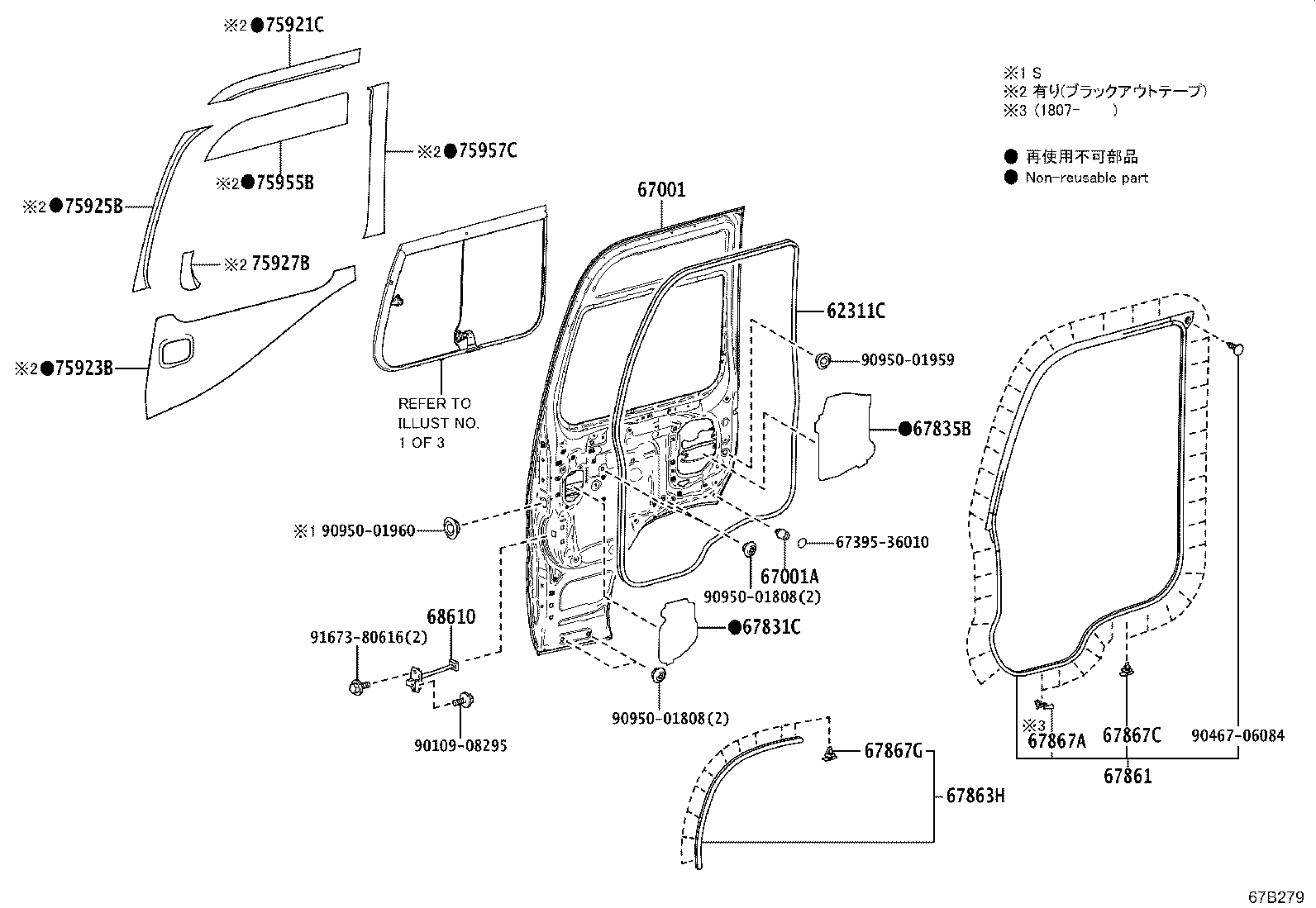

ILLUST NO. 2 OF 3(1701- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 62311C 67001 67001A 6739536010 67831C 67835B 67861 67863H 67867A 67867C 67867G 68610 75921C 75923B 75925B 75927B 75955B 75957C 9010908295 9046706084 9095001808 9095001808 9095001959 9095001960 9167380616
Part # Description Qty Price
62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-36020B0

XZB60,70,80..EX,GX,LX,S

LT.GRAY,TRIM1#

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-36340

XZB60,70,80..EX,GX,LX,PREM

 1
67001-36360

XZB60,70..S

 1
67001A - CUSHION, FRONT DOOR PANEL
67819-60010

XZB60,70,80

 1
67831C - COVER, FRONT DOOR SERVICE HOLE
67831-36030

XZB60,70,80

 1
67835B - COVER, FRONT DOOR SERVICE HOLE SUB
67833-36030

XZB60,70,80

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-36030

XZB60,70

 1
67861-36040

XZB60,70,80

 1
67863H - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-36030

XZB60,70,80

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-36010

XZB60,70,80

 6
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

XZB60,70,80

 34
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150

XZB60,70,80

 10
68610 - CHECK ASSY, FRONT DOOR
68610-36020

XZB60,70,80

 1
Common parts
67395-36010
90109-08295
90467-06084
90950-01808
90950-01959
90950-01960
91673-80616
