XZB70-ZRTNY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1807- )

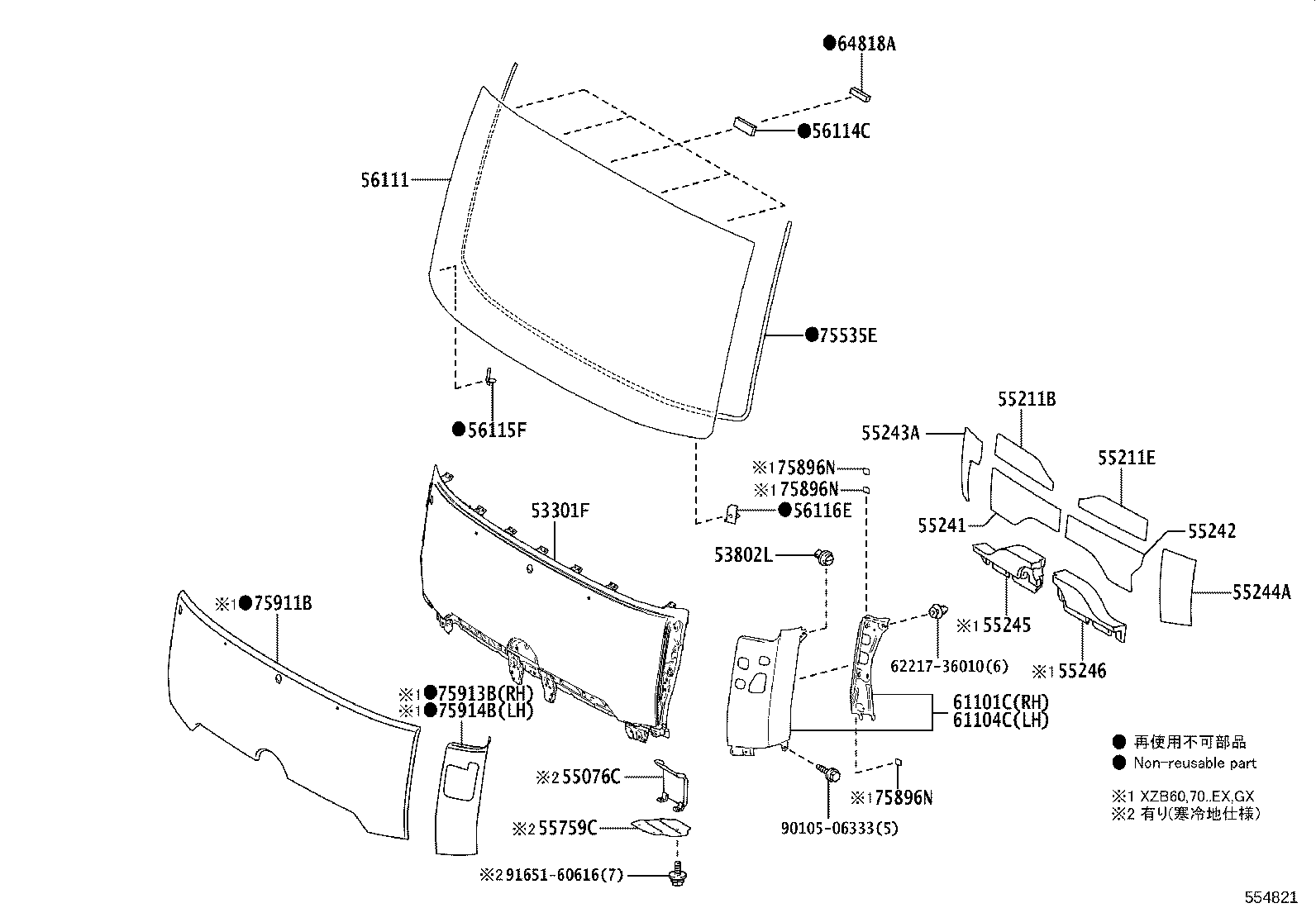

Click highlighted areas on diagram

diagram 53301F 53802L 55076C 55211B 55211E 55241 55242 55243A 55244A 55245 55246 55759C 56111 56114C 56115F 56116E 56119 56119 61101C 61104C 6221736010 64818A 75531E 75531E 75535E 75896N 75896N 75896N 75911B 75913B 75914B 9010506333 9165160616
Part # Description Qty Price
53301F - PANEL SUB-ASSY, FRONT
53301-36260

XZB60,70

 1
53301-36261

XZB60,70

 1
53301-36290

XZB60,70,80

 1
53802L - EXTENSION, FRONT FENDER, LH
53813-47040

XZB60,70,80

 1
55076C - NET SUB-ASSY, AIR DUCT
55076-36010

XZB60,70,80

寒冷地仕様

 1
55211B - SILENCER, FRONT PANEL
55211-36010

XZB60,70,80

 1
55211E - SILENCER, FRONT PANEL
55212-36010

XZB60,70,80

 1
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-36040

XZB60,70,80

 1
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-36050

XZB60,70,80

 1
55243A - SILENCER, FRONT PANEL SIDE, NO.2 RH
55243-36040

XZB60,70,80

 1
55244A - SILENCER, FRONT PANEL SIDE, NO.2 LH
55244-36040

XZB60,70,80

 1
55759C - COVER, HEATER AIR DUCT
55759-36030

XZB60,70,80

寒冷地仕様

 1
56111 - GLASS, WINDSHIELD
56111-36130

XZB60,70..LX,S

 1
56100-36010

XZB60,70,80..LX

 1
56111-36190

XZB60,70..S

 1
56100-36010

XZB60,70..S

 1
56111-36131

XZB60,70..LX,S

 1
56114C - RETAINER, WINDSHIELD GLASS
56114-36010

XZB60,70,80

 5
56115F - STOPPER, WINDSHIELD GLASS
56115-36010

XZB60,70,80

 1
56116E - STOPPER, WINDSHIELD GLASS, NO.2
56116-36020

XZB60,70,80

 1
56116-36010

XZB60,70

 1
56119 - SEAL, WINDSHIELD GLASS
56119-36010

XZB60,70,80

 2
56119 - SEAL, WINDSHIELD GLASS
56119-36010

XZB60,70,80

 2
61101C - PANEL SUB-ASSY, COWL SIDE, RH
61101-36050

XZB60,70,80

 1
61104C - PANEL SUB-ASSY, COWL SIDE, LH
61104-36460

XZB60,70,80

 1
64818A - SPACER, BACK WINDOW GLASS
64819-36010

XZB60,70,80

 5
75531E - MOULDING, WINDSHIELD, OUTSIDE UPPER
75531-36010

XZB60,70,80

右側

 1
75532-36010

XZB60,70,80

左側

 1
75531E - MOULDING, WINDSHIELD, OUTSIDE UPPER
75531-36010

XZB60,70,80

右側

 1
75532-36010

XZB60,70,80

左側

 1
75535E - MOULDING, WINDSHIELD, OUTSIDE LOWER
75535-36010

XZB60,70

 1
75535-36030

XZB60,70,80

 1
Common parts
62217-36010
90105-06333
91651-60616

(1701-1807)

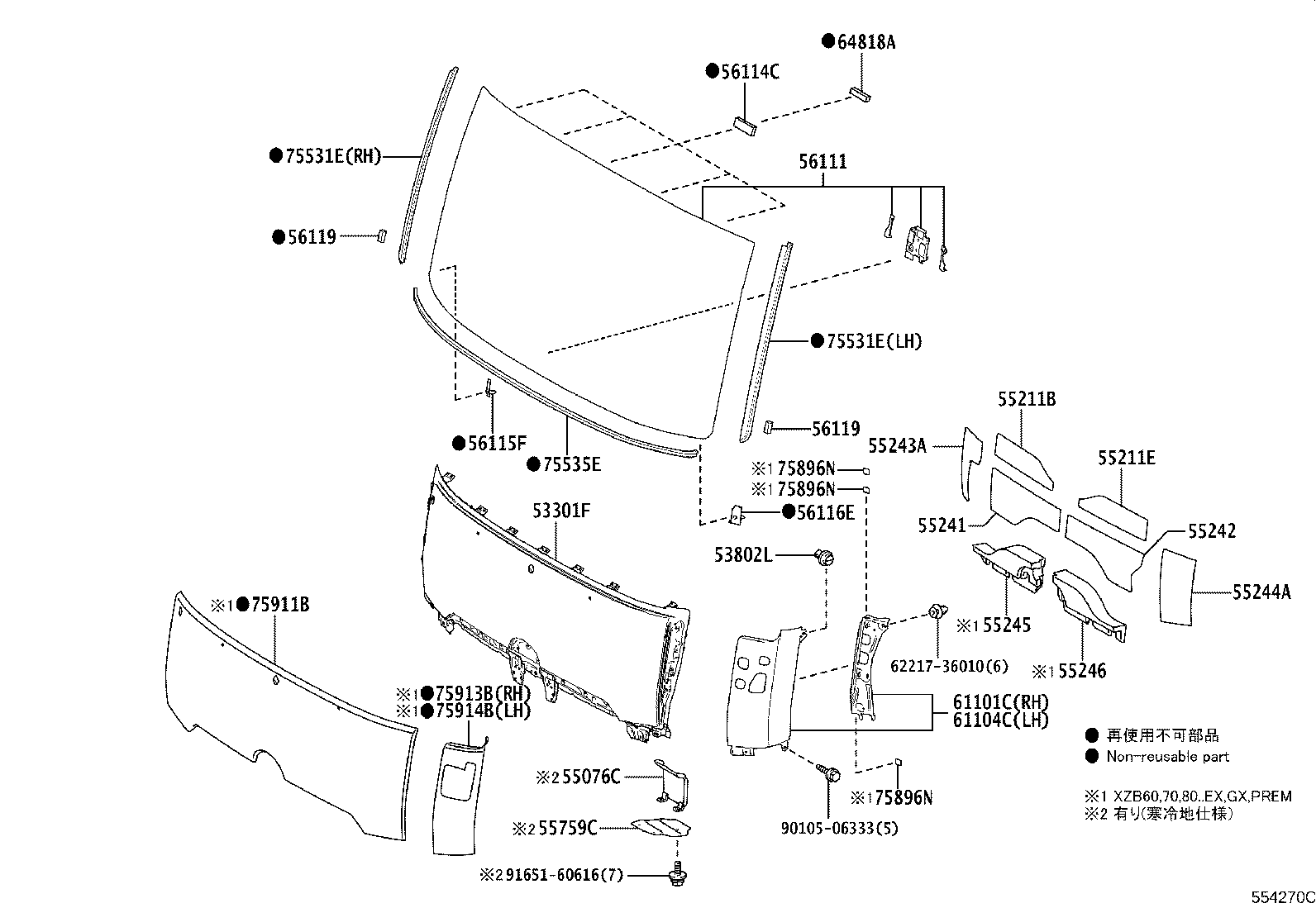

Click highlighted areas on diagram

diagram 53301F 53802L 55076C 55211B 55211E 55241 55242 55243A 55244A 55245 55246 55759C 56111 56114C 56115F 56116E 61101C 61104C 6221736010 64818A 75535E 75896N 75896N 75896N 75911B 75913B 75914B 9010506333 9165160616
Part # Description Qty Price
53301F - PANEL SUB-ASSY, FRONT
53301-36260

XZB60,70

 1
53301-36261

XZB60,70

 1
53301-36290

XZB60,70,80

 1
53802L - EXTENSION, FRONT FENDER, LH
53813-47040

XZB60,70,80

 1
55076C - NET SUB-ASSY, AIR DUCT
55076-36010

XZB60,70,80

寒冷地仕様

 1
55211B - SILENCER, FRONT PANEL
55211-36010

XZB60,70,80

 1
55211E - SILENCER, FRONT PANEL
55212-36010

XZB60,70,80

 1
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-36040

XZB60,70,80

 1
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-36050

XZB60,70,80

 1
55243A - SILENCER, FRONT PANEL SIDE, NO.2 RH
55243-36040

XZB60,70,80

 1
55244A - SILENCER, FRONT PANEL SIDE, NO.2 LH
55244-36040

XZB60,70,80

 1
55759C - COVER, HEATER AIR DUCT
55759-36030

XZB60,70,80

寒冷地仕様

 1
56111 - GLASS, WINDSHIELD
56111-36130

XZB60,70..LX,S

 1
56100-36010

XZB60,70,80..LX

 1
56111-36190

XZB60,70..S

 1
56100-36010

XZB60,70..S

 1
56111-36131

XZB60,70..LX,S

 1
56114C - RETAINER, WINDSHIELD GLASS
56114-36010

XZB60,70,80

 5
56115F - STOPPER, WINDSHIELD GLASS
56115-36010

XZB60,70,80

 1
56116E - STOPPER, WINDSHIELD GLASS, NO.2
56116-36020

XZB60,70,80

 1
56116-36010

XZB60,70

 1
61101C - PANEL SUB-ASSY, COWL SIDE, RH
61101-36050

XZB60,70,80

 1
61104C - PANEL SUB-ASSY, COWL SIDE, LH
61104-36460

XZB60,70,80

 1
64818A - SPACER, BACK WINDOW GLASS
64819-36010

XZB60,70,80

 5
75535E - MOULDING, WINDSHIELD, OUTSIDE LOWER
75535-36010

XZB60,70

 1
75535-36030

XZB60,70,80

 1
Common parts
62217-36010
90105-06333
91651-60616
